SQUEAK AND RATTLE TROUBLE DIAGNOSES

GW-9

C

D

E

F

G

H

J

K

L

M

A

B

GW

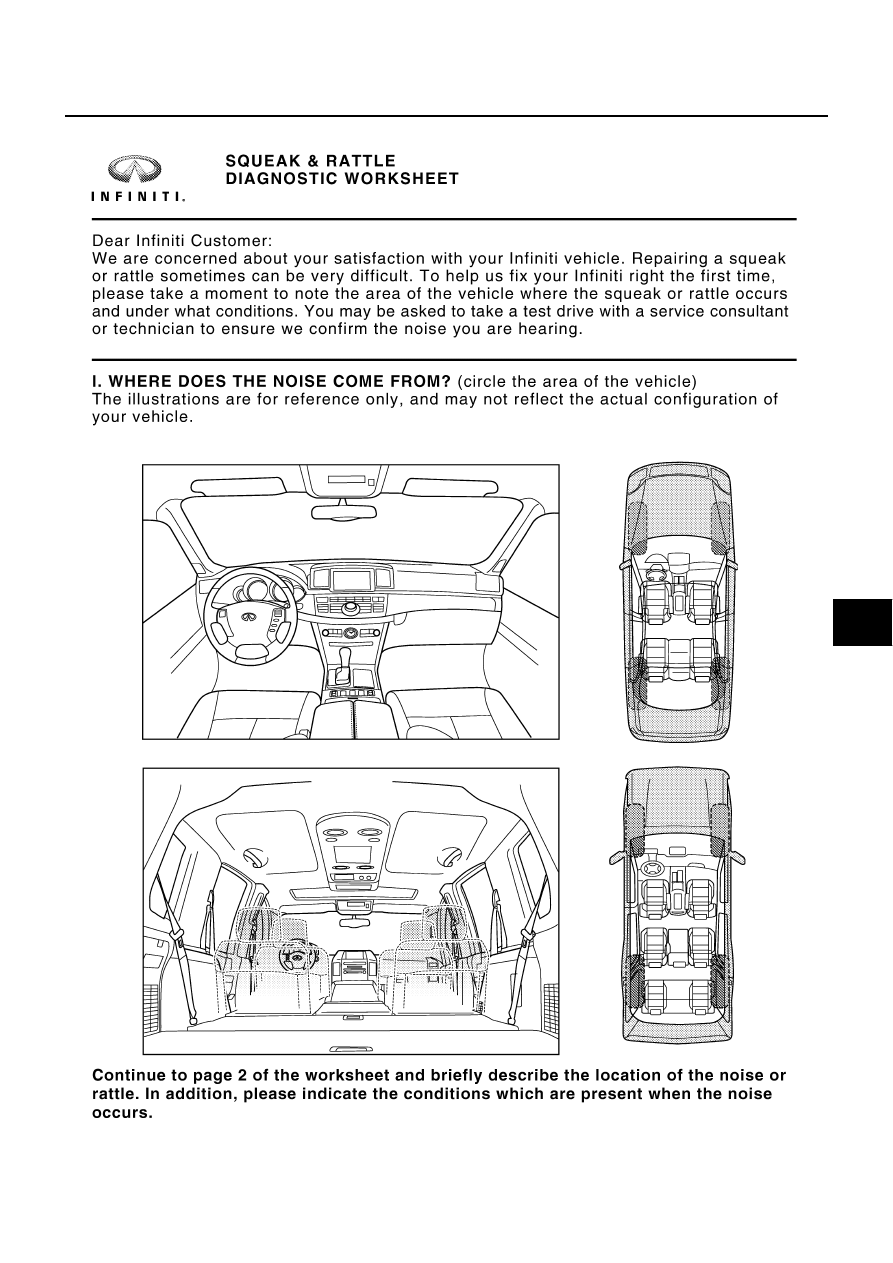

Diagnostic Worksheet

NIS0021D

PIIB8741E

GW-10

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

WINDSHIELD GLASS

GW-11

C

D

E

F

G

H

J

K

L

M

A

B

GW

WINDSHIELD GLASS

PFP:72712

Removal and Installation

NIS0021E

REMOVAL

1.

Remove the front pillar garnish. Refer to

EI-37, "BODY SIDE TRIM"

 .

2.

Partially remove the headlining (front edge). Refer to

EI-52, "HEADLINING"

 .

3.

Remove the front wiper arms. Refer to

WW-43, "Removal and Installation of Front Wiper Arms, Adjust-

ment of Wiper Arms Stop Location"

 .

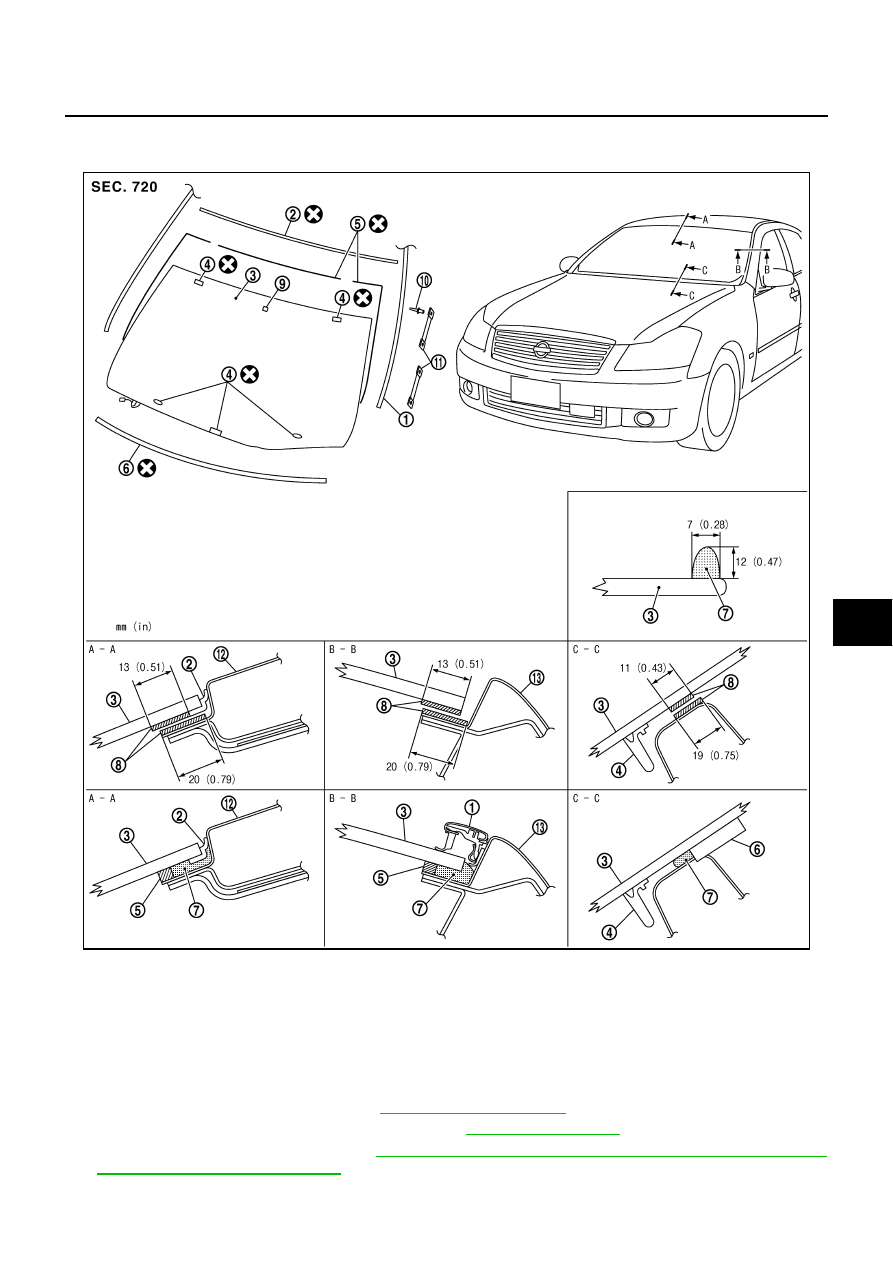

PIIB3284J

1.

Roof side molding

2.

Windshield molding (upper)

3.

Windshield glass

4.

Spacer

5.

Dam rubber

6.

Insulator

7.

Adhesive

8.

Primer

9.

Mirror base

10. Rivet

11.

Fastener

12. Roof panel

13. Body side outer panel

GW-12

WINDSHIELD GLASS

4.

Remove the cowl top cover. Refer to

EI-18, "COWL TOP"

 .

5.

Remove roof side molding. Refer to

EI-25, "ROOF SIDE MOLDING"

 .

6.

Apply a protective tape around the windshield glass to protect the painted surface from damage.

7.

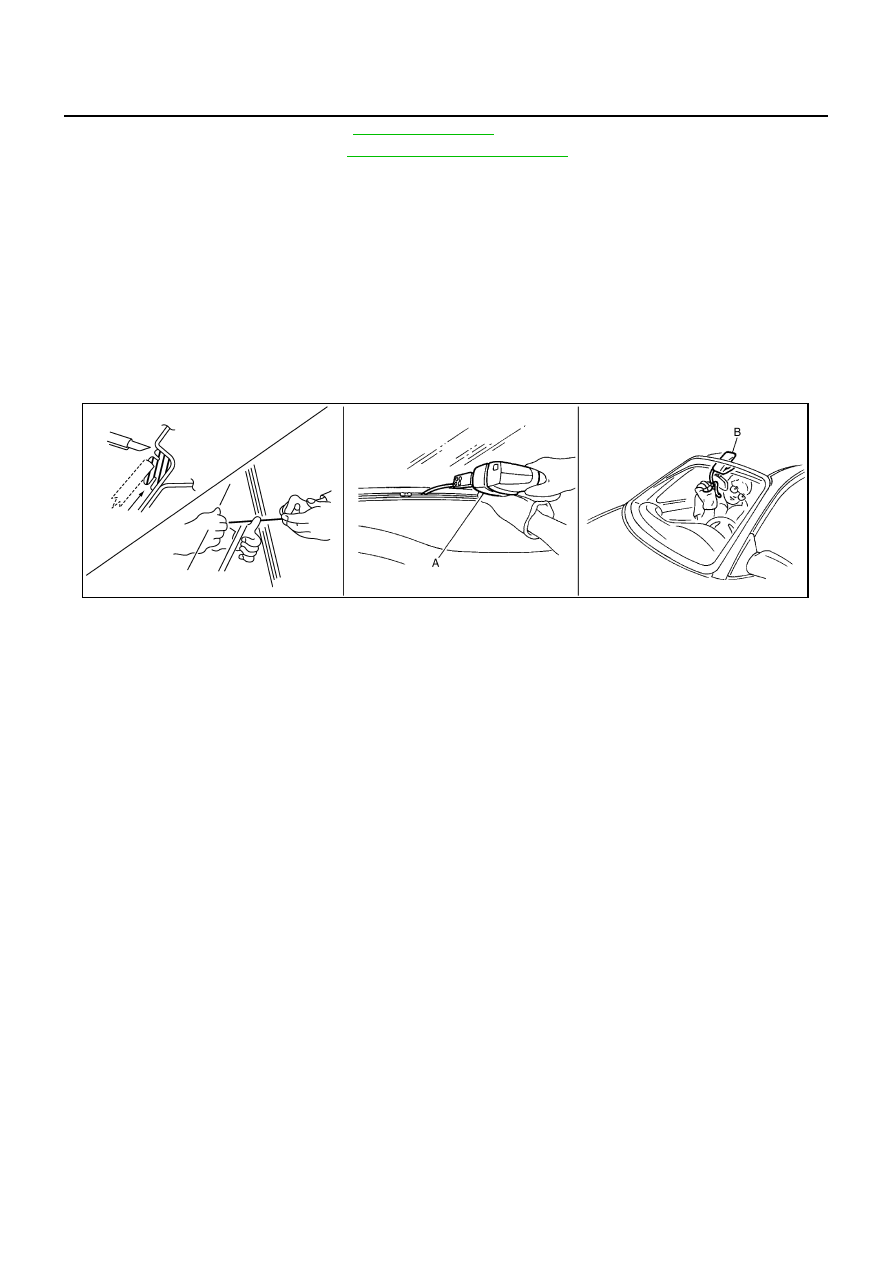

After removing moldings, remove glass using piano wire or power cutting tool A and an inflatable pump
bag B.

NOTE:
If a windshield glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.

CAUTION:

●

When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.

●

Be careful not to scratch the glass when removing.

●

Do not set or stand the glass on its edge. Small chips may develop into cracks.

8.

Remove the windshield glass, using suction lifter.

INSTALLATION

●

The dam rubber should be installed in position.

●

Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.

●

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger room air pressure when a door is closed.

●

The molding must be installed securely so that it is in position and leaves no gap.

●

Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

●

Keep heat and open flames away as primers and adhesive are flammable.

●

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

●

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

●

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.

CAUTION:

●

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

●

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

●

Do not leave primers or adhesive cartridge unattended with their caps open or off.

●

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidity. The curing time will
increase under lower temperature and lower humidity.

PIIB5779E
