FRONT FINAL DRIVE ASSEMBLY

FFD-15

C

E

F

G

H

I

J

K

L

M

A

B

FFD

Disassembly and Assembly

NDS000EV

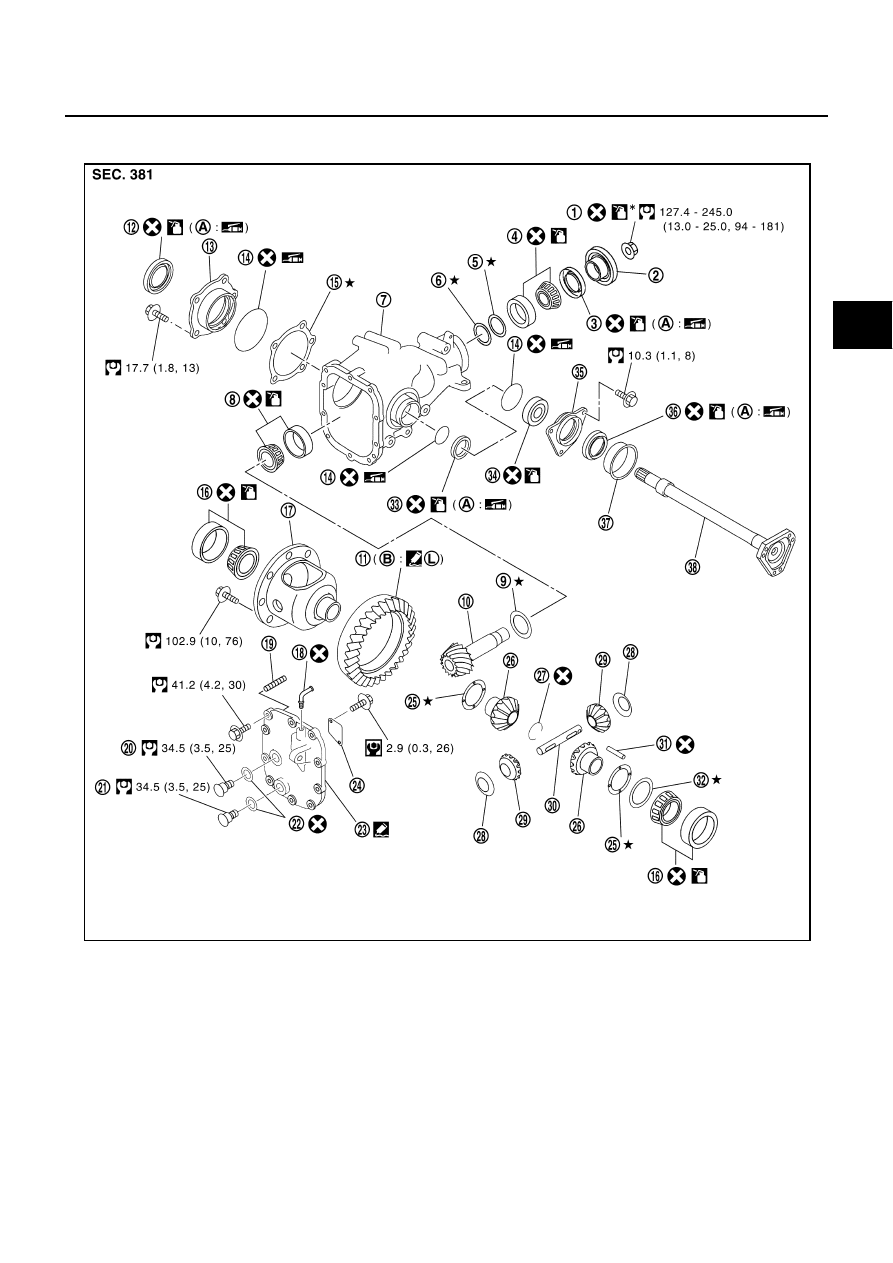

COMPONENTS

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Pinion front bearing

5.

Drive pinion bearing adjusting
washer

6.

Drive pinion adjusting washer

7.

Gear carrier

8.

Pinion rear bearing

9.

Pinion height adjusting washer

10. Drive pinion

11.

Drive gear

12. Side oil seal (right side)

13. Side retainer

14. O-ring

15. Side bearing adjusting shim

16. Side bearing

17. Differential case

18. Breather connector

19. Dowel pin

20. Filler plug

21. Drain plug

22. Gasket

23. Carrier cover

24. Gear oil defence

25. Side gear thrust washer

26. Side gear

27. Circular clip

28. Pinion mate thrust washer

29. Pinion mate gear

30. Pinion mate shaft

31. Lock pin

32. Side bearing adjusting washer

33. Side oil seal (left side)

PDIA0791J

FFD-16

FRONT FINAL DRIVE ASSEMBLY

ASSEMBLY INSPECTION AND ADJUSTMENT

Before inspection and adjustment, drain gear oil.

Total Preload Torque

1.

Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.

2.

Rotate drive pinion at least 20 times to check for smooth opera-
tion of the bearing.

3.

Measure total preload with preload gauge.

NOTE:
Total preload torque = Pinion bearing preload torque + Side
bearing preload torque

If measured value is out of the specification, disassemble it to
check and adjust each part. Adjust the pinion bearing preload and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bearing preload.

34. Side shaft bearing

35. Extension tube retainer

36. Side shaft oil seal

37. Dust sealed

38. Side shaft

A: Oil seal lip

B: Screw hole

Refer to

GI-11, "Components"

  and the followings for the symbols in the figure.

:

Apply gear oil.

:

Apply anti-corrosion oil.

:

Apply Genuine Silicone RTV or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .



:

Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to

GI-47, "Recommended Chemical

Products and Sealants"

 .

Tool number

A: ST3127S000 (J-25765-A)

Total preload torque:

1.56 - 2.65 N·m (0.16 - 0.27 kg-m, 14 - 23 in-lb)

PDIA0792J

When the preload torque is large

On pinion bearings:

Decrease the drive pinion bearing adjusting washer and drive pinion
adjusting washer thickness. Refer to

FFD-36, "Drive Pinion Bearing

Adjusting Washer"

  and

FFD-36, "Drive Pinion Adjusting Washer"

 .

On side bearings:

Increase the side bearing adjusting shim thickness. Refer to

FFD-36,

"Side Bearing Adjusting Shim"

 .

When the preload torque is small

On pinion bearings:

Increase the drive pinion bearing adjusting washer and drive pinion
adjusting washer thickness. Refer to

FFD-36, "Drive Pinion Bearing

Adjusting Washer"

  and

FFD-36, "Drive Pinion Adjusting Washer"

 .

On side bearings:

Decrease the side bearing adjusting shim thickness. Refer to

FFD-36,

"Side Bearing Adjusting Shim"

 .

FRONT FINAL DRIVE ASSEMBLY

FFD-17

C

E

F

G

H

I

J

K

L

M

A

B

FFD

Drive Gear Runout

1.

Remove carrier cover. Refer to

FFD-20, "Differential Assembly"

 .

2.

Fit a dial indicator to the drive gear back face.

3.

Rotate the drive gear to measure runout.

If the runout is outside of the repair limit, check drive gear
assembly condition; foreign material may be caught between
drive gear and differential case, or differential case or drive gear
may be deformed, etc.

CAUTION:

Replace drive gear and drive pinion gear as a set.

Tooth Contact

1.

Remove carrier cover. Refer to

FFD-20, "Differential Assembly"

 .

2.

Apply red lead to drive gear.

CAUTION:

Apply red lead to both the faces of 3 to 4 gears at 4 loca-
tions evenly spaced on drive gear.

3.

Rotate drive gear back and forth several times, check drive pin-
ion gear to drive gear tooth contact.

CAUTION:

Check tooth contact on drive side and reverse side.

Runout limit:

0.05 mm (0.0020 in)

SPD886

SPD357

SDIA0570E

FFD-18

FRONT FINAL DRIVE ASSEMBLY

4.

If tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X).

PDIA0667E

SDIA0517E
