EXHAUST SYSTEM
EX-5
C
D
E
F
G
H
I
J
K
L
M
A
EX
Removal and Installation
NBS005RL
CAUTION:
●
Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat
resistance, corrosion resistance, and shape.
●
Perform the operation with the exhaust system fully cooled down because the system will be hot
just after engine stops.
●
Be careful not to cut your hand on the heat insulator edge.
REMOVAL
●
Disconnect each joint and mounting using power tool.
●
Remove heated oxygen sensor 2 as follows:
–

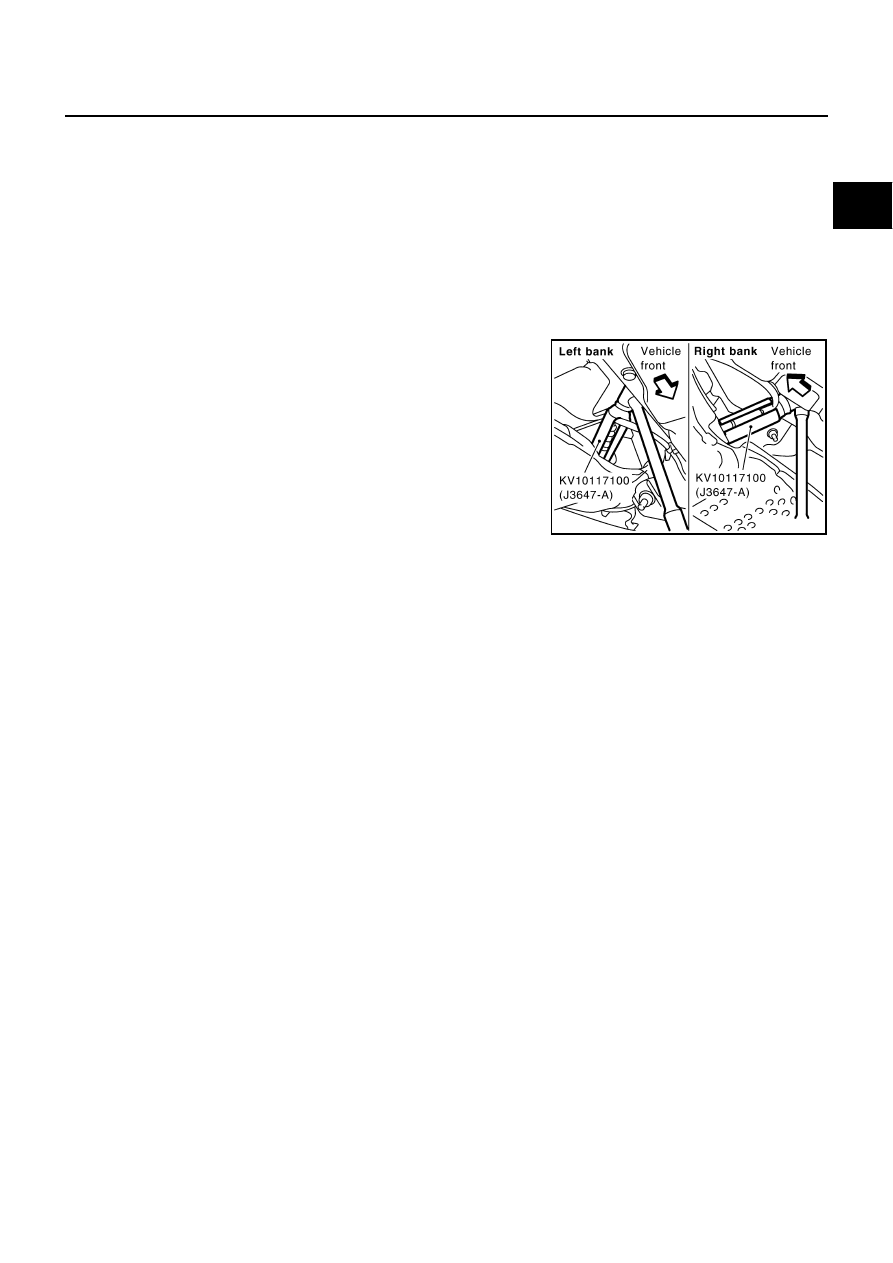

Using heated oxygen sensor wrench (SST), removal heated
oxygen sensor 2.
CAUTION:
Be careful not to damage heated oxygen sensor 2.
INSTALLATION
Note the following, and install in the reverse order of removal.
●
Check for deformation of the grommets (18 and 20 of Components).
●
Insert the collar (17 of Components) vertically.
●
Install the collar (5 of Components) with its lower surface horizontal.
●
Temporarily tighten nuts and bolts when installing exhaust pipe assembly. Tighten them to the specified
torque when connecting the vehicle rear to the vehicle front.
CAUTION:
●
Always replace exhaust tube gaskets with new ones when reassembling.
●
Discard any heated oxygen sensor which has been dropped onto a hard surface such as a con-
crete floor. Use a new one.
●
Before installing a new heated oxygen sensor, clean exhaust system threads using the heated
oxygen sensor thread cleaner [commercial service tool: J-43897-18 or J-43897-12], and apply the
anti-seize lubricant (commercial service tool).
●
Do not over torque heated oxygen sensor. Doing so may cause damage to heated oxygen sensor,
resulting in the “MIL” coming on.
●
If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat
insulator, remove them.
●
When installing heat insulator avoid large gaps or interference between heat insulator and each
exhaust pipe.
●
Remove deposits from the sealing surface of each connection. Connect them securely to avoid
gases leakage.
●
Temporarily tighten mounting nuts on the exhaust manifold side and mounting bolts on the vehi-
cle side. Check each part for unusual interference, and then tighten them to the specified torque.
●
When installing each mounting rubber, avoid twisting or unusual extension in up/down and right/
left directions.
INSPECTION AFTER INSTALLATION
●
Make sure clearance between tail tube and rear bumper is even.
●
With engine running, check exhaust tube joints for gas leakage and unusual noises.
●
Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.
PBIC2298E
