HEADLINING

EI-55

C

D

E

F

G

H

J

K

L

M

A

B

EI

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Install headlining assembly after inserting clips to clip holder of headlining rear end.

●

Do not bend headlining when installing.

●

When installing the map lamp assembly (new unit) or assist
grip assembly (new unit), use tools like drafter or deep
socket A to eliminate the gap between the headlining and
the above new units while the push on nuts (1).

PIIB7194J

EI-56

TRUNK ROOM TRIM & TRUNK LID FINISHER

TRUNK ROOM TRIM & TRUNK LID FINISHER

PFP:84920

Removal and Installation for Trunk Room Trim

NIS00254

1.

Trunk rear plate

2.

Trunk front finisher

3.

Trunk side finisher (LH)

4.

Trunk side finisher (RH)

5.

Trunk floor carpet

6.

Trunk floor carpet (LH)

7.

Trunk floor carpet (RH)

8.

Trunk side box
(for temper tire models)

9.

Rear seatback finisher

10. Trunk room lamp

11. Trunk floor felt (LH)

12. Trunk floor felt (RH)

13. Trunk floor spacer (LH)

(for sport models)

14. Trunk floor spacer (RH)

(for sport models)

15. Trunk net

Metal clip

PIIB6290E

TRUNK ROOM TRIM & TRUNK LID FINISHER

EI-57

C

D

E

F

G

H

J

K

L

M

A

B

EI

REMOVAL

1.

Fully open trunk lid assembly.

2.

Remove trunk floor carpet.

3.

Remove trunk side box. (for temper tire models)

4.

Remove trunk floor spacer (LH/RH). (for sport models)

5.

Remove trunk room lamp of trunk rear plate, and disconnect trunk room lamp connector.

6.

Remove trunk rear plate mounting clips, and the remove trunk rear plate.

7.

Remove trunk side finisher mounting clips, and the remove trunk side finisher (LH/RH).

8.

Remove rear seatback and rear seat cushion. Refer to

SE-173, "REAR SEAT"

 .

9.

Remove rear seatback finisher mounting clips, and the remove rear seatback finisher.

10. Remove trunk room lamp of trunk front finisher, and disconnect trunk room lamp connector.

11. Remove trunk front finisher mounting clips, and the trunk front finisher.

INSTALLATION

Install in the reverse order of removal.

REMOVAL AND INSTALLATION OF TRUNK LID FINISHER INNER

Removal

1.

Fully open trunk lid assembly.

2.

Remove trunk lid bumper rubber.

3.

Remove screws of trunk lid pull handle, and then remove trunk lid pull handle.

4.

Remove clips of trunk lid finisher.

5.

Remove trunk lid emergency handle holder.

6.

Remove trunk lid finisher inner.

Installation

Install in the reverse order of removal.

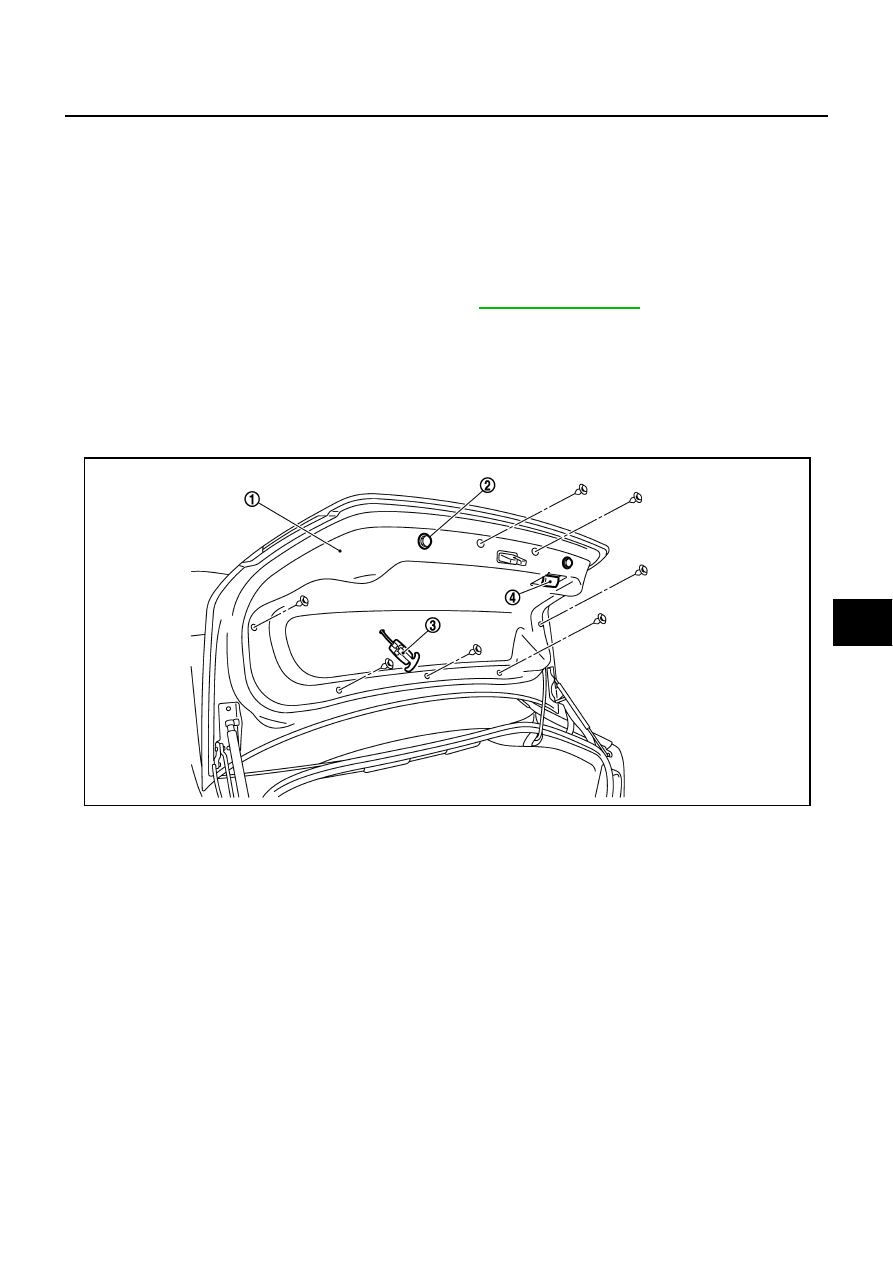

1.

Trunk lid finisher inner

2.

Trunk lid bumper rubber

3.

Emergency handle

4.

Trunk lid pull handle

PIIB4941E

EI-58

TRUNK ROOM TRIM & TRUNK LID FINISHER
