Infiniti M35/M45 Y50. Manual - part 753





REAR PARCEL SHELF FINISHER

EI-43

C

D

E

F

G

H

J

K

L

M

A

B

EI

4.

Remove rear kicking plate inner, rear wheelhouse garnish, rear pillar finisher. Refer to

EI-37, "BODY SIDE

TRIM"

 .

5.

Disconnect high-mounted stop lamp harness connector from
front side of rear parcel shelf finisher. (Models with rear window
sunshade)

6.

Remove rear parcel shelf finisher mounting clip using a clip clamp remover.

7.

Remove the following parts after removing rear parcel shelf finisher.

High-mounted stop lamp

High-mounted stop lamp harness

Rear speaker grille

Woofer grille (Models with woofer)

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Make sure that clips are securely fitted in panel holes on body when installing, and then press them in.

Rear Window Sunshade

NIS0024X

REMOVAL AND INSTALLATION

CAUTION:

Be careful not to damage the rear window glass.

Removal

1.

Remove rear parcel shelf finisher. Refer to

EI-42, "REAR PARCEL SHELF FINISHER"

 .

2.

Disconnect rear window sunshade harness connector.

3.

Remove rear window sunshade mounting bolts.

4.

Lift up rear window sunshade and pull out locating pin from body side panel hole, and then remove rear
window sunshade.

Installation

Install in the reverse order of removal.

PIIB5130E

EI-44

SUNSHADE

SUNSHADE

PFP:97580

Component Parts and Harness Connector Location

NIS0024Y

PIIB5864E

1.

Fuse block (J/B)

2.

Back-up lamp relay E19

3.

Rear sunshade cancel relay B141
(View with the trunk side finisher RH
removed)

4.

Rear sunshade unit (With built-in
motor) B474
(View with the rear parcel shelf fin-
isher removed)

5.

a: Rear sunshade front switch M137
b: Rear control cancel switch M151

6.

Rear sunshade rear switch B557

SUNSHADE

EI-45

C

D

E

F

G

H

J

K

L

M

A

B

EI

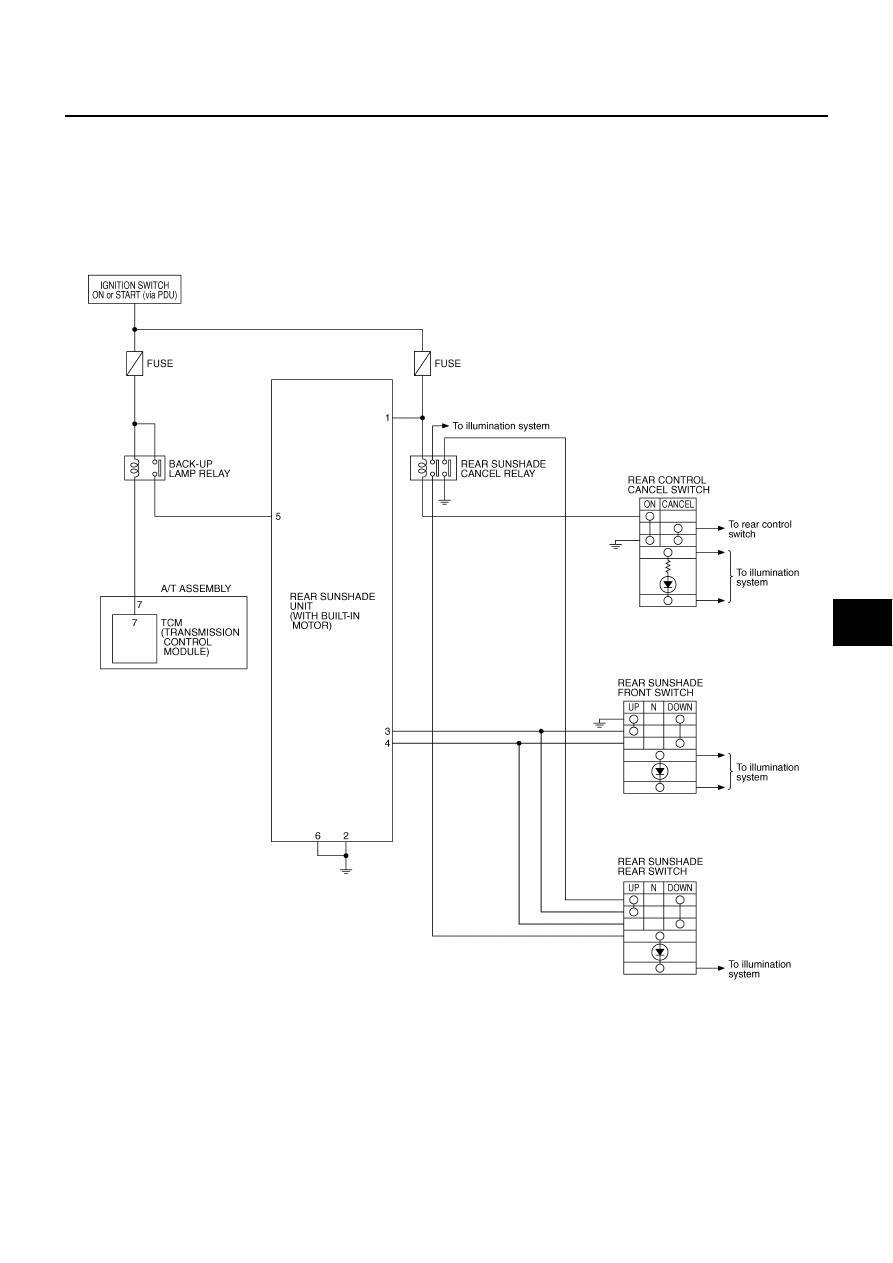

Schematic

NIS0024Z

TIWT1338E

EI-46

SUNSHADE

Wiring Diagram—SHADE—

NIS00250

TIWT2122E
