BODY SIDE TRIM

EI-39

C

D

E

F

G

H

J

K

L

M

A

B

EI

FRONT BODY SIDE WELT
Removal

1.

Remove center pillar lower garnish.

2.

Remove center kicking plate inner.

3.

Remove front body side welt.

Installation

Install in the reverse order of removal.

CENTER PILLAR LOWER GARNISH
Removal

Remove center pillar lower garnish mounting clips using a screw-
driver, and then remove center pillar lower garnish.

CAUTION:

Be careful not to damage the body.

Installation

Install in the reverse order of removal.

CENTER PILLAR UPPER GARNISH
Removal

1.

Remove center pillar lower garnish.

2.

Remove front seat belt floor anchor bolt and front seat belt shoulder anchor bolt. Refer to

SB-29,

"Removal and Installation of Front Seat Belt"

 .

3.

Remove front body side welt and rear body side welt.

4.

Remove center pillar upper garnish mounting clips using a
screwdriver, and then remove center pillar upper garnish.

Installation

Install in the reverse order of removal.

PIIB2763J

PIIB2764J

EI-40

BODY SIDE TRIM

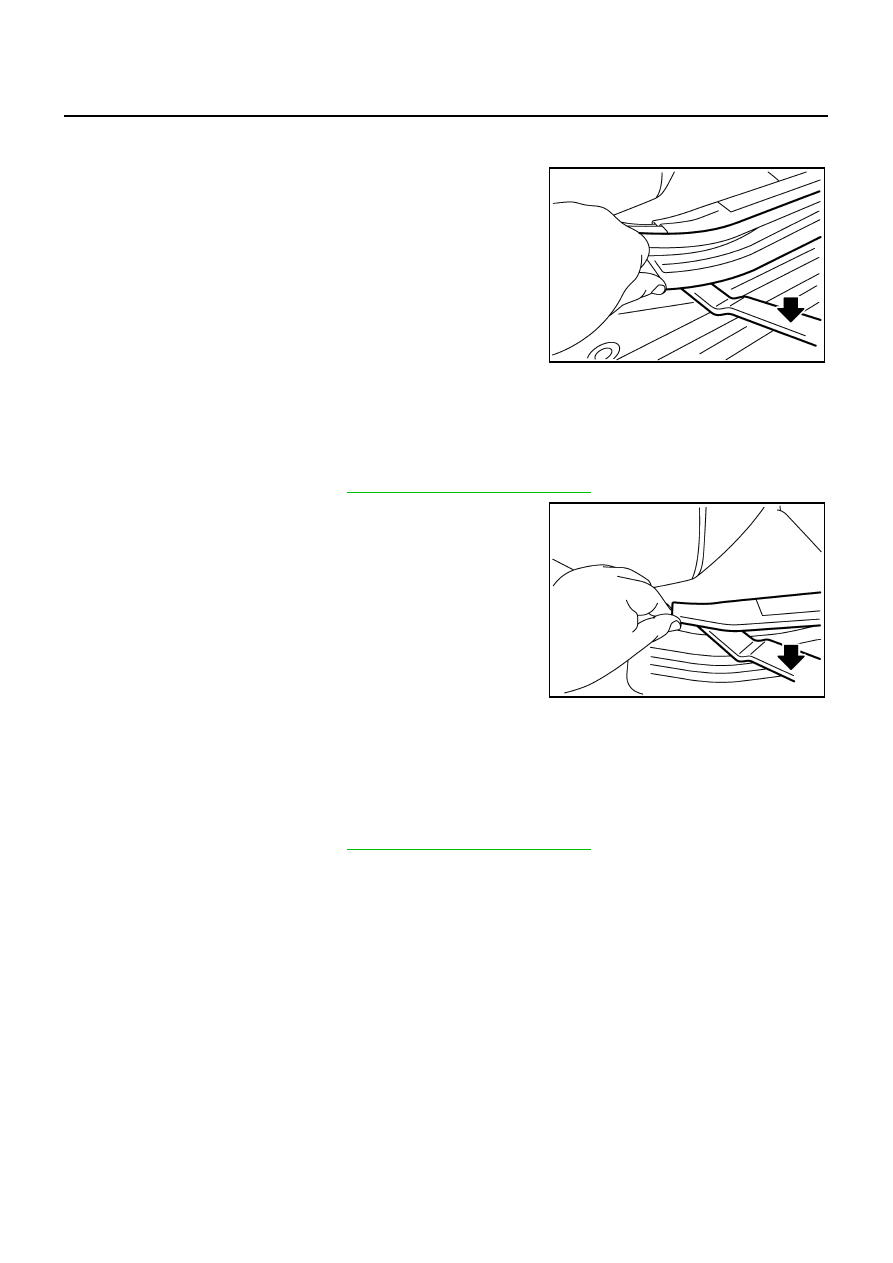

REAR KICKING PLATE OUTER
Removal

Remove rear kicking plate outer mounting clips using a clip clamp
remover, and then remove kicking plate outer.

Installation

Install in the reverse order of removal.

REAR KICKING PLATE INNER
Removal

1.

Remove rear seat cushion. Refer to

SE-177, "Removal and Installation"

 .

2.

Remove kicking plate inner mounting clips using a clip clamp
remover, and then remove kicking plate inner.

Installation

Install in the reverse order of removal.

REAR BODY SIDE WELT
Removal

1.

Remove center pillar lower garnish.

2.

Remove rear seat cushion. Refer to

SE-177, "Removal and Installation"

 .

3.

Remove rear kicking plate inner.

4.

Remove rear body side welt.

Installation

Install in the reverse order of removal.

PIIB2765J

PIIB2766J

BODY SIDE TRIM

EI-41

C

D

E

F

G

H

J

K

L

M

A

B

EI

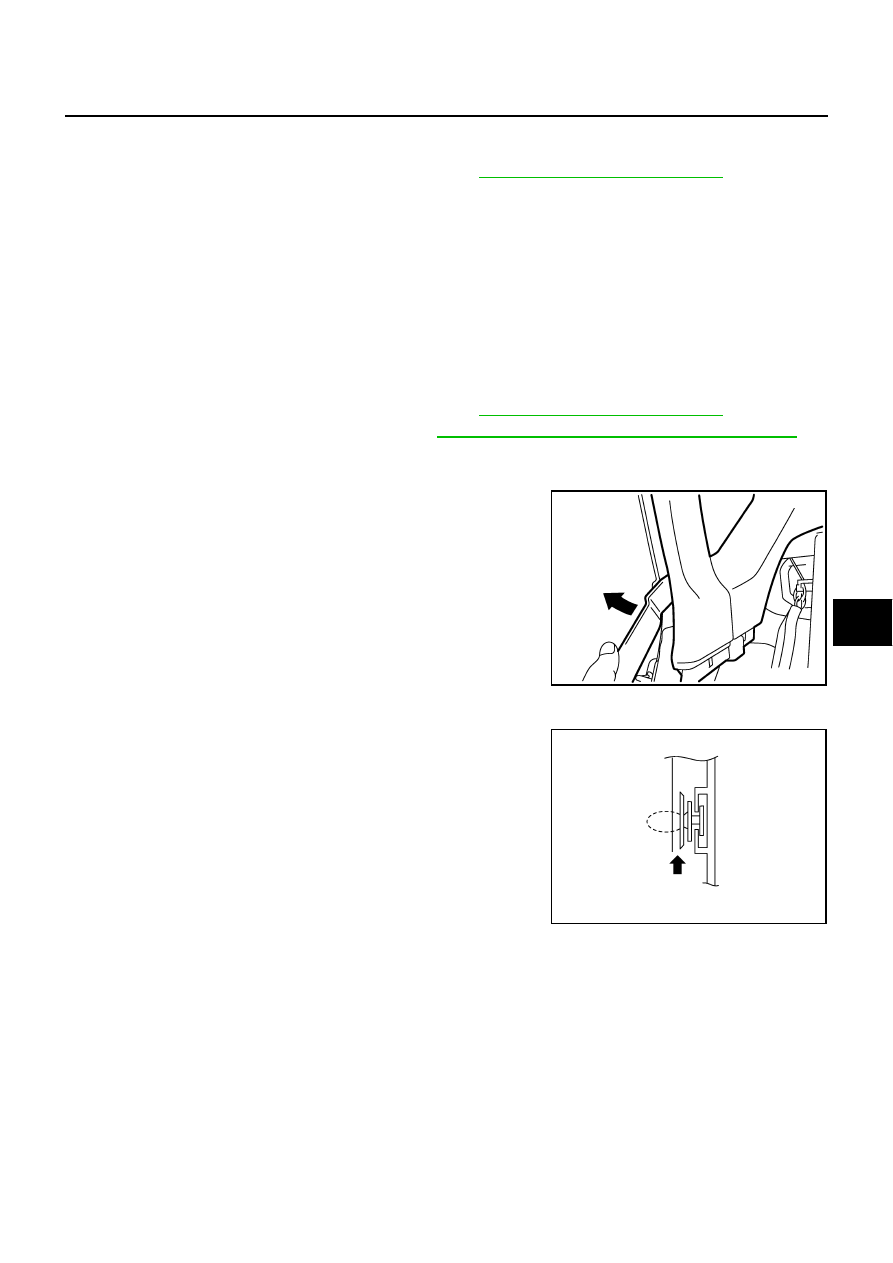

REAR WHEEL HOUSE GARNISH
Removal

1.

Remove rear seat cushion and rear seatback. Refer to

SE-177, "Removal and Installation"

 .

2.

Remove rear body side welt.

3.

Remove clip of rear wheel house garnish.

4.

Remove rear wheel house garnish.

Installation

Install in the reverse order of removal.

NOTE:
To install, check if all clips are matched over holes of panel on vehicle, then push on.

REAR PILLAR FINISHER
Removal

1.

Remove rear seat cushion and rear seatback. Refer to

SE-177, "Removal and Installation"

 .

2.

Remove rear seat belt floor anchor bolt. Refer to

SB-31, "Removal and Installation of Rear Seat Belt"

 .

3.

Remove rear kicking plate inner.

4.

Remove rear wheel house garnish.

5.

Remove pillar finisher mounting clips using a screwdriver, and
then remove pillar finisher.

CAUTION:

Insert a clip clamp remover wrapped with a shop cloth or
clip clamp remover into the part shown by the arrow
(between the clips and the body side panel). Remove clips.

Installation

Install in the reverse order of removal.

CAUTION:

Make sure that clips are securely fitted in panel holes on body when installing, and then press them in.

PIIB2769J

PIIB2768J

EI-42

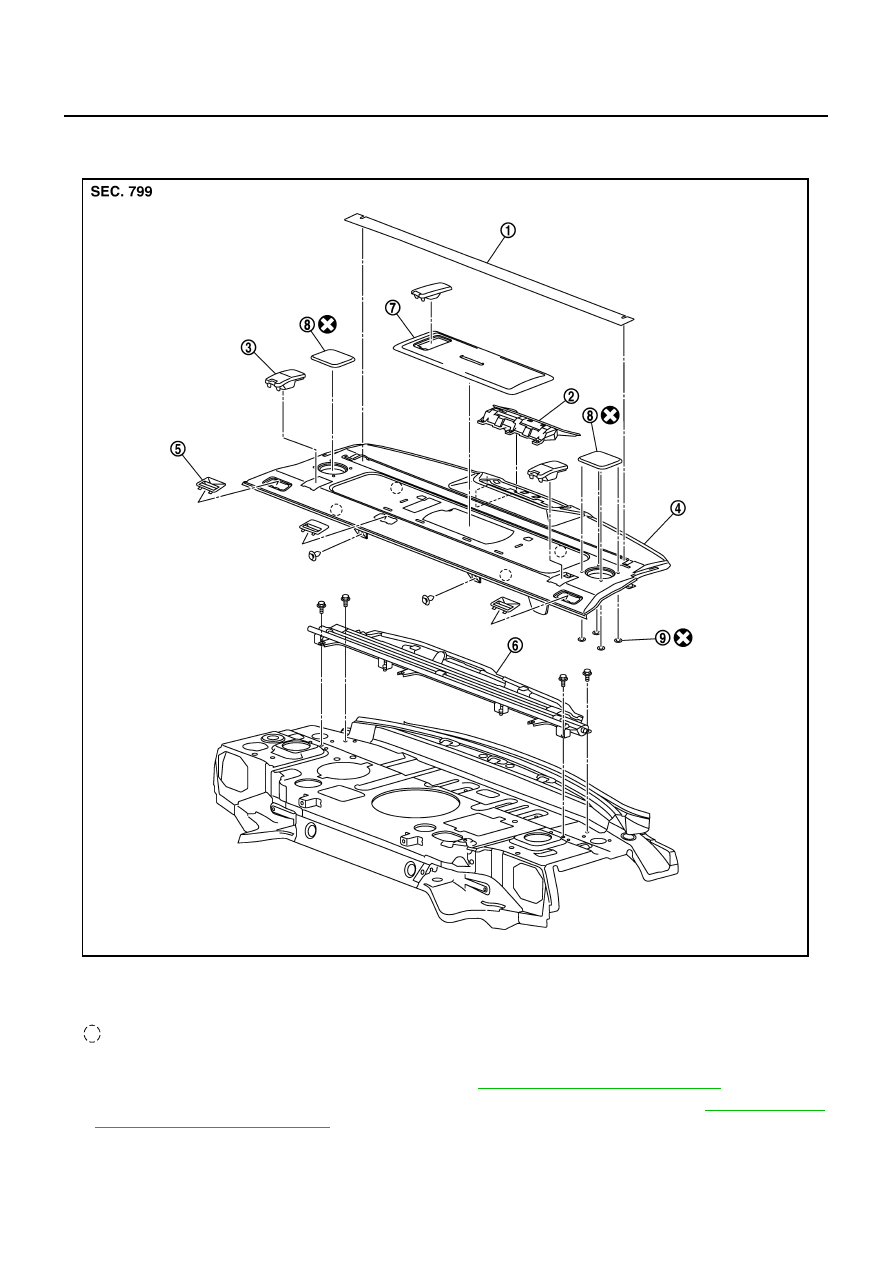

REAR PARCEL SHELF FINISHER

REAR PARCEL SHELF FINISHER

PFP:79910

Removal and Installation

NIS0024W

REMOVAL

1.

Remove rear seatback and rear seat cushion. Refer to

SE-177, "Removal and Installation"

 .

2.

Remove rear seat belt floor anchor bolt and rear seat belt shoulder anchor bolt. Refer to

SB-31, "Removal

and Installation of Rear Seat Belt"

 .

3.

Disengage child anchor cover front pawls, and then pull out child anchor cover (LH/RH center) toward
front of vehicle. (Models with rear window sunshade)

1.

Rear parcel shelf lid

2.

High-mounted stop lamp

3.

Child anchor cover

4.

Rear parcel shelf finisher

5.

Rear seat belt shoulder anchor cover 6.

Rear window sunshade

7.

Woofer grille

8.

Rear speaker grille

9.

Push on nut

Clip

PIIB8673E
