COWL TOP

EI-19

C

D

E

F

G

H

J

K

L

M

A

B

EI

●

Slide the pin while aligning with the concave part of E.

●

Engage the joint of plastic pawl of A with D, and then assemble
cowl top covers LH (1) and RH (2).

CAUTION:

After installing, perform adjustment of wiper arm. Refer to

WW-43, "Removal and Installation of Front

Wiper Arms, Adjustment of Wiper Arms Stop Location"

 .

PIIB5079E

EI-20

FENDER PROTECTOR

FENDER PROTECTOR

PFP:63840

Removal and Installation

NIS0024J

REMOVAL

1.

Remove rear end screw of fender protector (rear).

2.

Remove clips of fender protector (rear).

3.

Remove plastic clamp from wheelhouse arches, and then remove fender protector (rear) from wheel
house.

4.

Remove screws of front under cover.

5.

Remove front end screw of fender protector (front).

6.

Remove front end clip of fender protector (front).

7.

Remove fender protector (front) from wheel house.

INSTALLATION

Install in the reverse order of removal.

1.

Fender protector (front)

2.

Fender protector (rear)

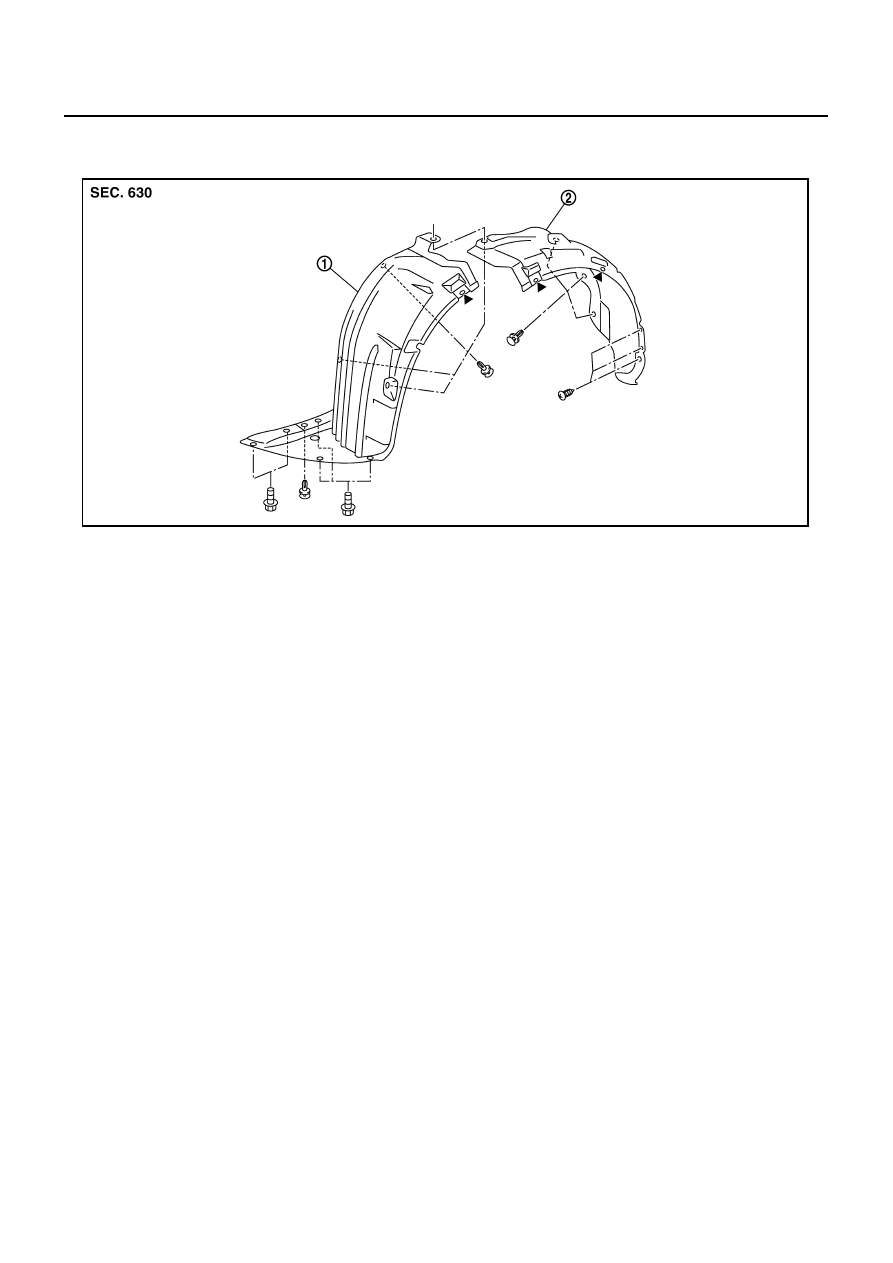

PIIB2940J

FENDER PROTECTOR

EI-21

C

D

E

F

G

H

J

K

L

M

A

B

EI

Rear Wheel House Protector

NIS0024K

REMOVAL AND INSTALLATION

REMOVAL

1.

Remove screw of rear portion wheel house protector. (rear bumper side)

2.

Remove screw of front portion wheel house protector. (center mud guard side)

3.

Remove clips of wheel house protector.

4.

Remove resin nuts of arch portion wheel house protector and remove rear wheel house protector.

INSTALLATION

Install in reverse order of removal.

1.

Rear wheel house protector

PIIB3602J

EI-22

CENTER MUD GUARD

CENTER MUD GUARD

PFP:76850

Removal and Installation

NIS0024L

REMOVAL

1.

Remove screw and nuts of wind deflector and remove wind
deflector.

2.

Remove screws of mudguard front/rear side.

3.

Remove screws of mudguard lower side.

4.

Fully open front door and rear door.

5.

Remove clips from back of mudguard using clip clamp remover.

6.

Remove center mudguard from body side.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.

1.

Center mud guard

PIIB2941J
