FRONT BUMPER

EI-11

C

D

E

F

G

H

J

K

L

M

A

B

EI

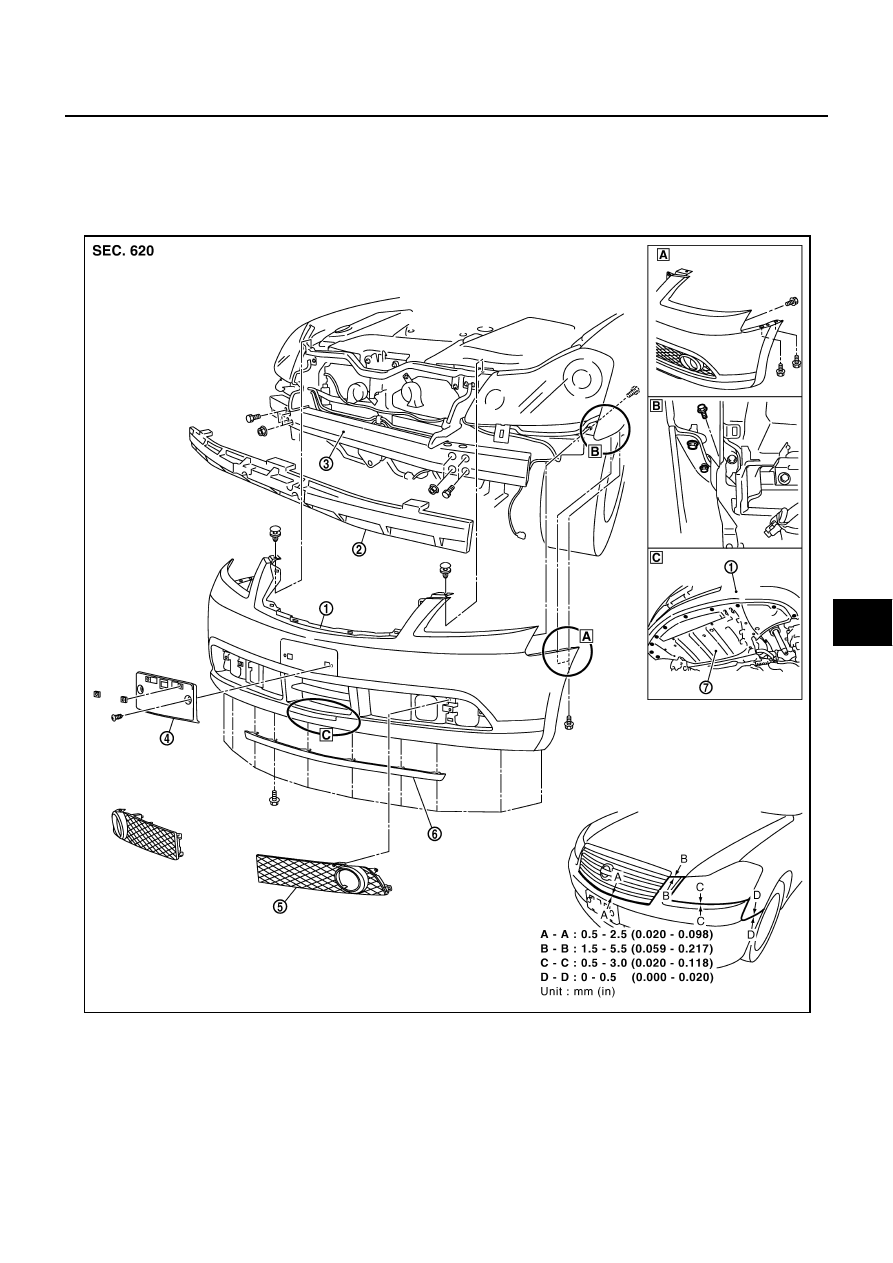

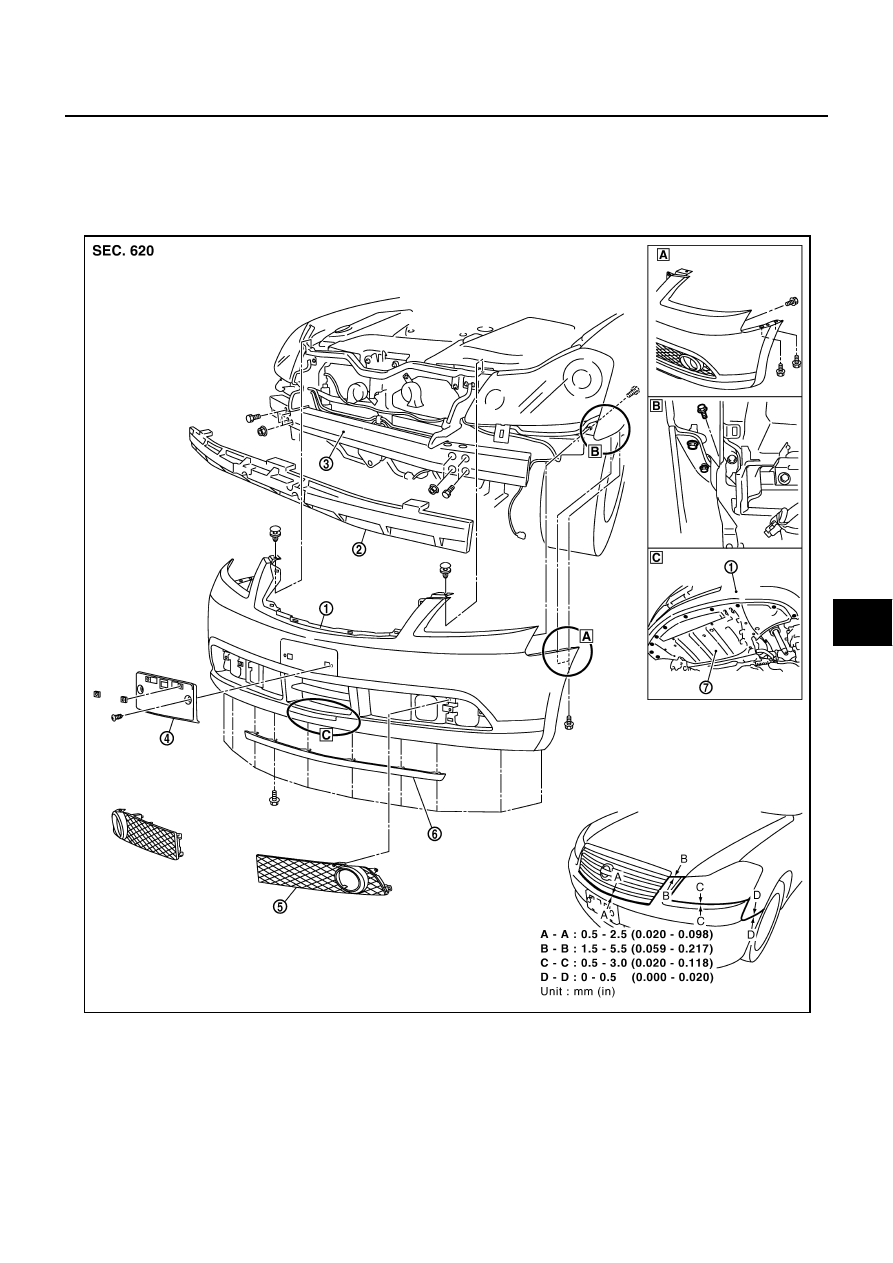

FRONT BUMPER

PFP:F2022

Removal and Installation

NIS0024D

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Bumper fascia assembly

2.

Energy absorber

3.

Bumper reinforcement

4.

License plate bracket

5.

Front bumper grille

6.

Front air spoiler

7.

Front undercover

PIIB4587E

EI-12

FRONT BUMPER

REMOVAL

1.

Fully open hood assembly.

2.

Remove screws of front air spoiler and remove front air spoiler.

3.

Remove bolts of front undercover and remove undercover. (Figure to illustration C)

4.

Remove front side of fender protector (LH/RH). Refer to

EI-20, "FENDER PROTECTOR"

 .

5.

Remove clips of bumper fascia upper side.

6.

Remove clips of front grille upper side.

7.

Remove screws of bumper fascia left/right side. (Figure to illustration A, B)

8.

Disconnect fog lamp harness connectors (LH/RH) after pulling out, and then remove bumper fascia.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

9.

Remove the following parts after removing bumper fascia.

Front grille

License plate bracket

Front bumper grille (LH/RH) Refer to

EI-13, "Removal and Installation of Front Bumper Grille"

 .

Fog lamp assembly (LH/RH) Refer to

LT-194, "FRONT FOG LAMP"

 .

10. Remove bumper side bracket mounting clips, and remove

bumper side bracket (LH/RH).

11. Remove bumper energy absorber.

12. Remove bumper reinforcement mounting nuts, and remove bumper reinforcement with power tool.

INSTALLATION

Install in the reverse order of removal.

NOTE:
After installing, perform fitting adjustment.

PIIB4118J

FRONT BUMPER

EI-13

C

D

E

F

G

H

J

K

L

M

A

B

EI

Removal and Installation of Front Bumper Grille

NIS0024E

CAUTION:

Apply protection tape around outer circumference of front bumper grille (bumper fascia side).

REMOVAL

1.

Disengage plastic pawls from vehicle inside using a plastic spatula.

2.

While pulling the grille frontward, unlock the turn fastener around right end of the grille using a screw-
driver.

3.

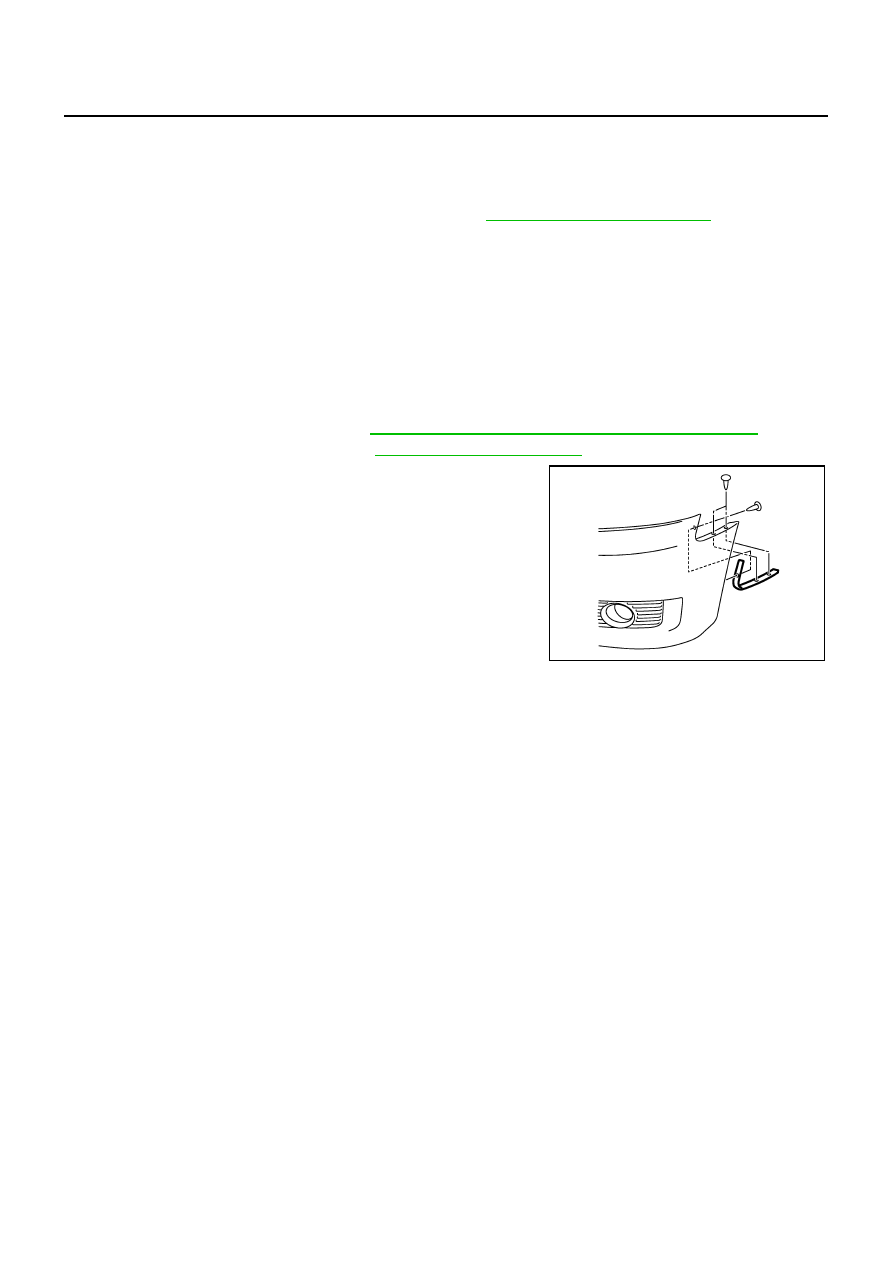

Insert a shop cloth to inside of front bumper grille as shown in
the figure, and then disengage lower plastic pawls by pulling
front bumper grille toward vehicle front.

4.

Hold fog lamp opening of front bumper grille by hand as shown
in the figure, and then pull front bumper grille out toward vehicle
front by disengaging plastic pawls of both ends.

NOTE:
Plastic clips of both ends are engaged strongly. Strong power is
necessary to disengage them.

INSTALLATION

Install in reverse order of removal.

1.

Bumper fascia assembly

2.

Front bumper grille

PIIB4588E

PIIB4363J

PIIB4364J

EI-14

REAR BUMPER

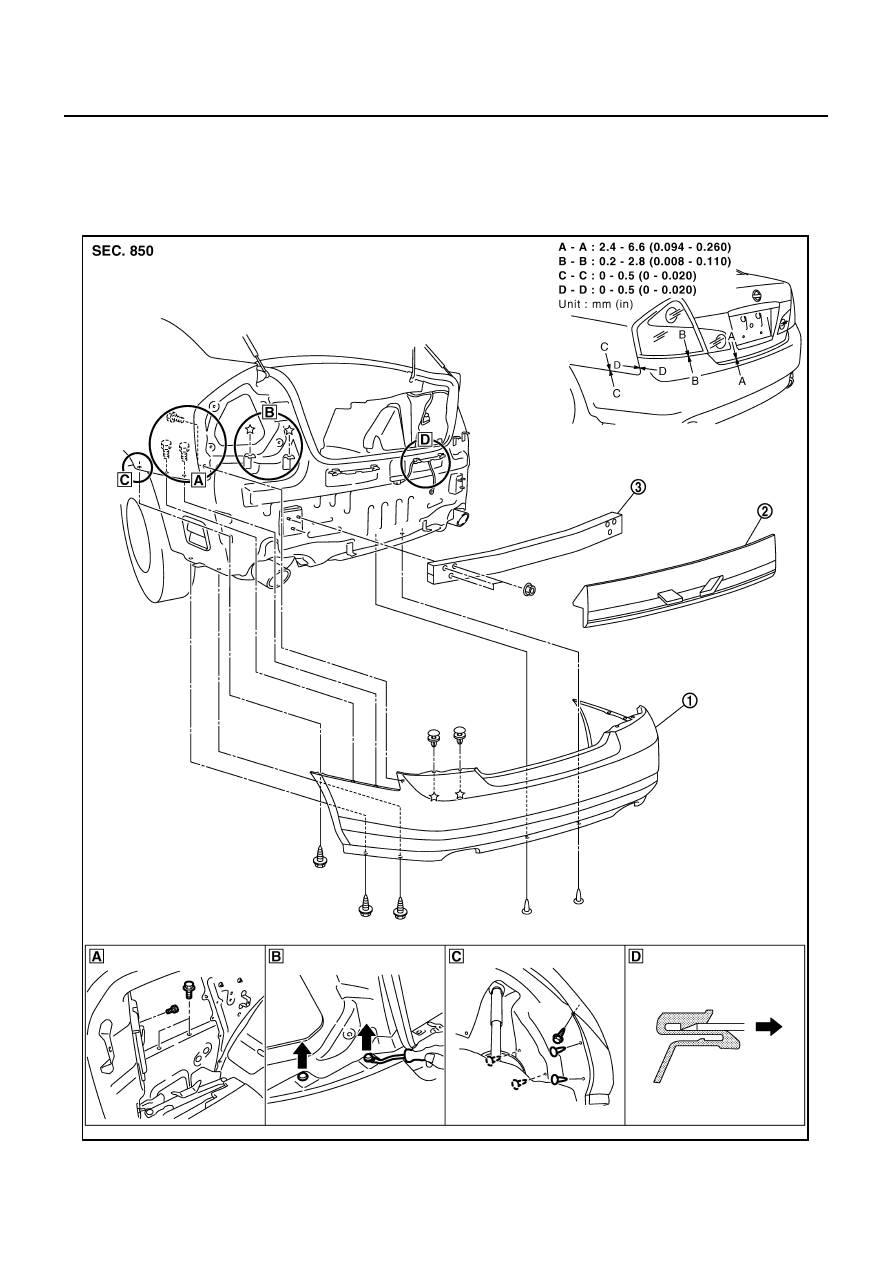

REAR BUMPER

PFP:H5022

Removal and Installation

NIS0024F

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Bumper fascia assembly

2.

Energy absorber

3.

Bumper reinforcement

PIIB4589E
