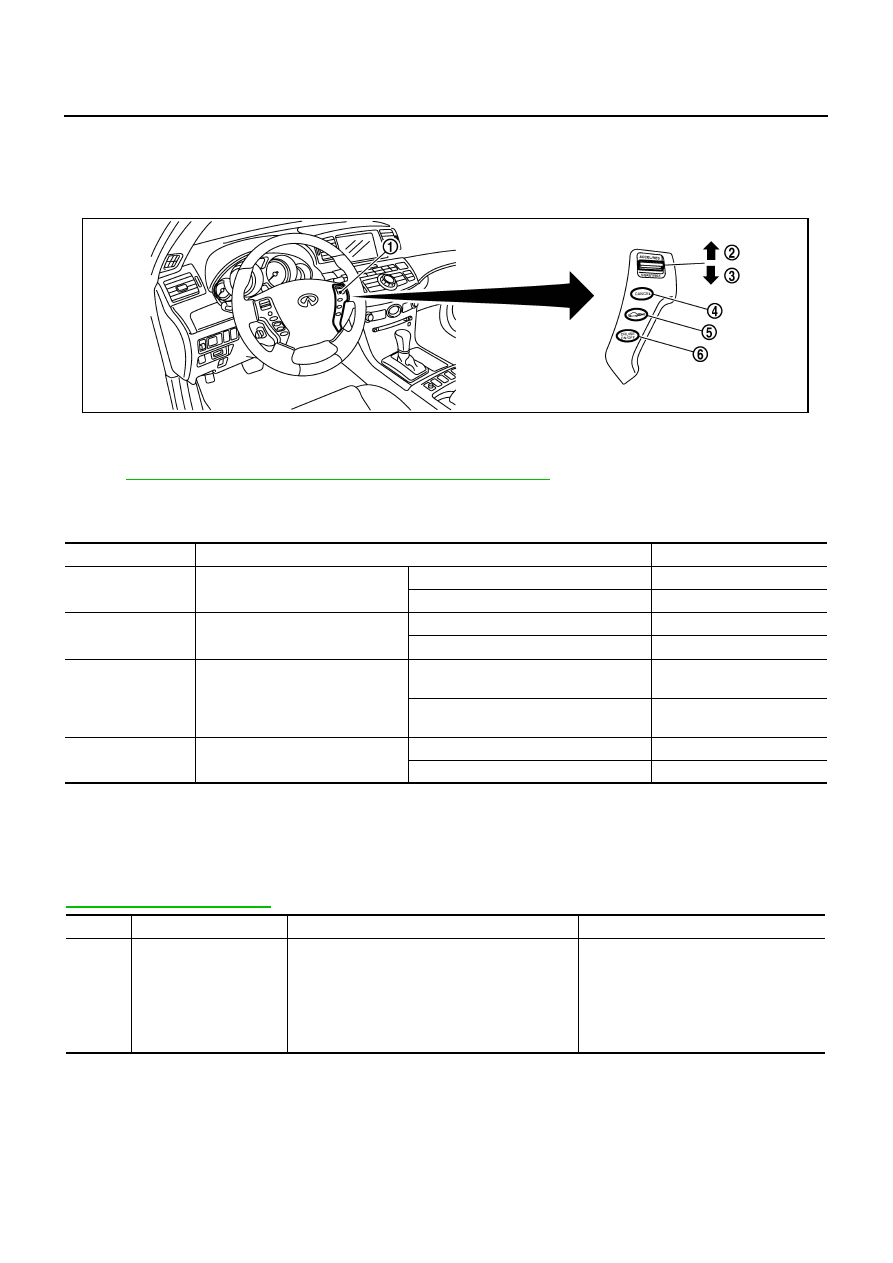

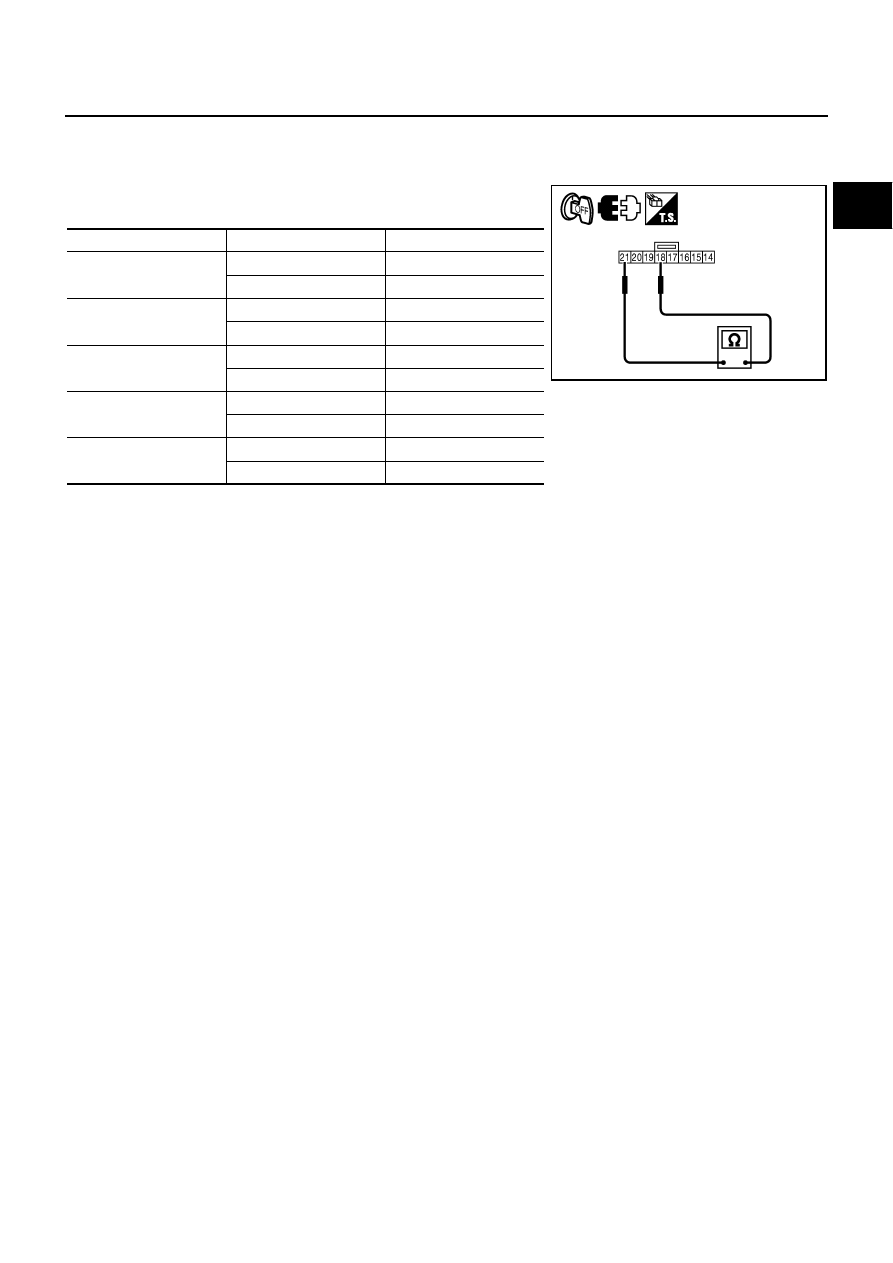

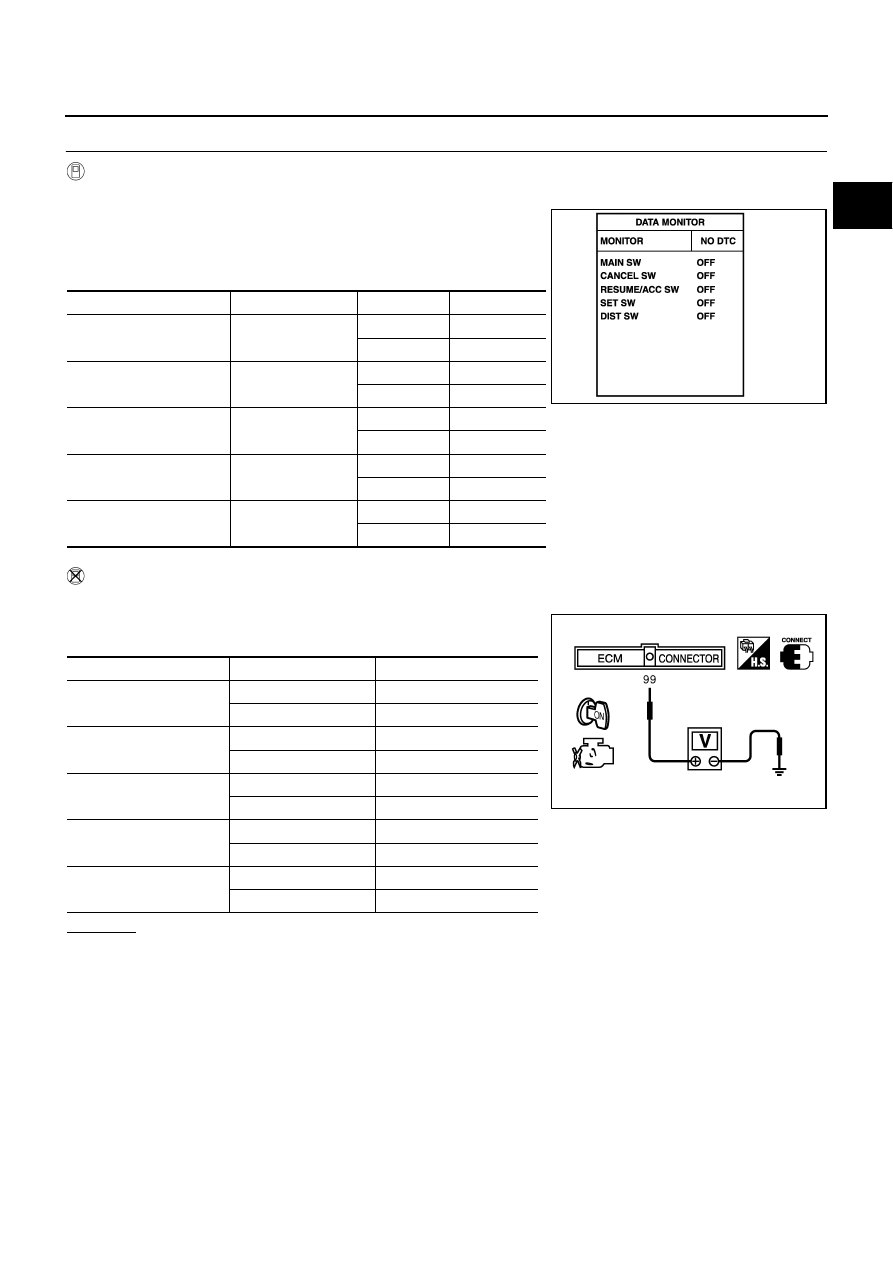

DTC P1564 ICC STEERING SWITCH EC-1269 [VK45DE] C D E F G H I J K L M A EC 2. CHECK ICC STEERING SWITCH CIRCUIT With CONSULT-II 1. Turn ignition switch ON. 2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW”, “SET 3. Check each item indication under the following conditions. Without CONSULT-II 1. Turn ignition switch ON. 2. Check voltage between ECM terminal 99 and ground with press- OK or NG OK >> GO TO 8. NG >> GO TO 3. Switch Monitor item Condition Indication MAIN switch MAIN SW Pressed ON Released OFF CANCEL switch CANCEL SW Pressed ON Released OFF RESUME/ACCELERATE RESUME/ACC SW Pressed ON Released OFF SET/COAST switch SET SW Pressed ON Released OFF DISTANCE switch DIST SW Pressed ON Released OFF MBIB0064E Switch Condition Voltage [V] MAIN switch Pressed Approx. 0 Released Approx. 4.3 CANCEL switch Pressed Approx. 1.3 Released Approx. 4.3 RESUME/ACCELERATE Pressed Approx. 3.7 Released Approx. 4.3 SET/COAST switch Pressed Approx. 3.0 Released Approx. 4.3 DISTANCE switch Pressed Approx. 2.2 Released Approx. 4.3 PBIB0311E |
