DTC P1551, P1552 BATTERY CURRENT SENSOR

EC-1249

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

6.

CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors E73, F68

Harness for open or short between battery current sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK BATTERY CURRENT SENSOR

Refer to

EC-1249, "Component Inspection"

 .

OK or NG

OK

>> GO TO 9.

NG

>> Replace battery negative cable assembly.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-857, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

NBS005LS

BATTERY CURRENT SENSOR

1.

Reconnect harness connectors disconnected.

2.

Disconnect battery negative cable (1).

: To body ground

3.

Install jumper cable A between battery negative terminal and
body ground.

4.

Turn ignition switch ON.

Continuity should exist.

PBIB2724E

EC-1250

[VK45DE]

DTC P1551, P1552 BATTERY CURRENT SENSOR

5.

Check voltage between ECM terminal 71 (battery current sensor
signal) and ground.

6.

If NG, replace battery negative cable assembly.

Voltage: Approximately 2.5V

PBIB2617E

DTC P1553 BATTERY CURRENT SENSOR

EC-1251

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P1553 BATTERY CURRENT SENSOR

PFP:294G0

Component Description

NBS005LT

The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to SC section.

CAUTION:

Do not connect the electrical component or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of the power generation voltage variable control, and then the battery
discharge may occur.

CONSULT-II Reference Value in Data Monitor Mode

NBS005LU

Specification data are reference values.

*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

SC-5, "SPECIFIC GRAVITY CHECK"

 .

On Board Diagnosis Logic

NBS005LV

The MIL will not light up for this diagnosis.

NOTE:
If DTC P1553 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to

EC-1193, "DTC P0643 SENSOR POWER SUPPLY"

 .

PBIB2685E

MONITOR ITEM

CONDITION

SPECIFICATION

BAT CUR SEN

Engine speed: Idle

Battery: Fully charged*

Selector lever: P or N

Air conditioner switch: OFF

No load

Approx. 2,600 - 3,500mV

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1553
1553

Battery current sensor performance

The signal voltage transmitted from the
sensor to ECM is higher than the amount
of the maximum power generation.

Harness or connectors
(The sensor circuit is open or shorted.)

Battery current sensor

EC-1252

[VK45DE]

DTC P1553 BATTERY CURRENT SENSOR

DTC Confirmation Procedure

NBS005LW

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and wait at least 10 seconds.

4.

If 1st trip DTC is detected, go to

EC-1254, "Diagnostic Proce-

dure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

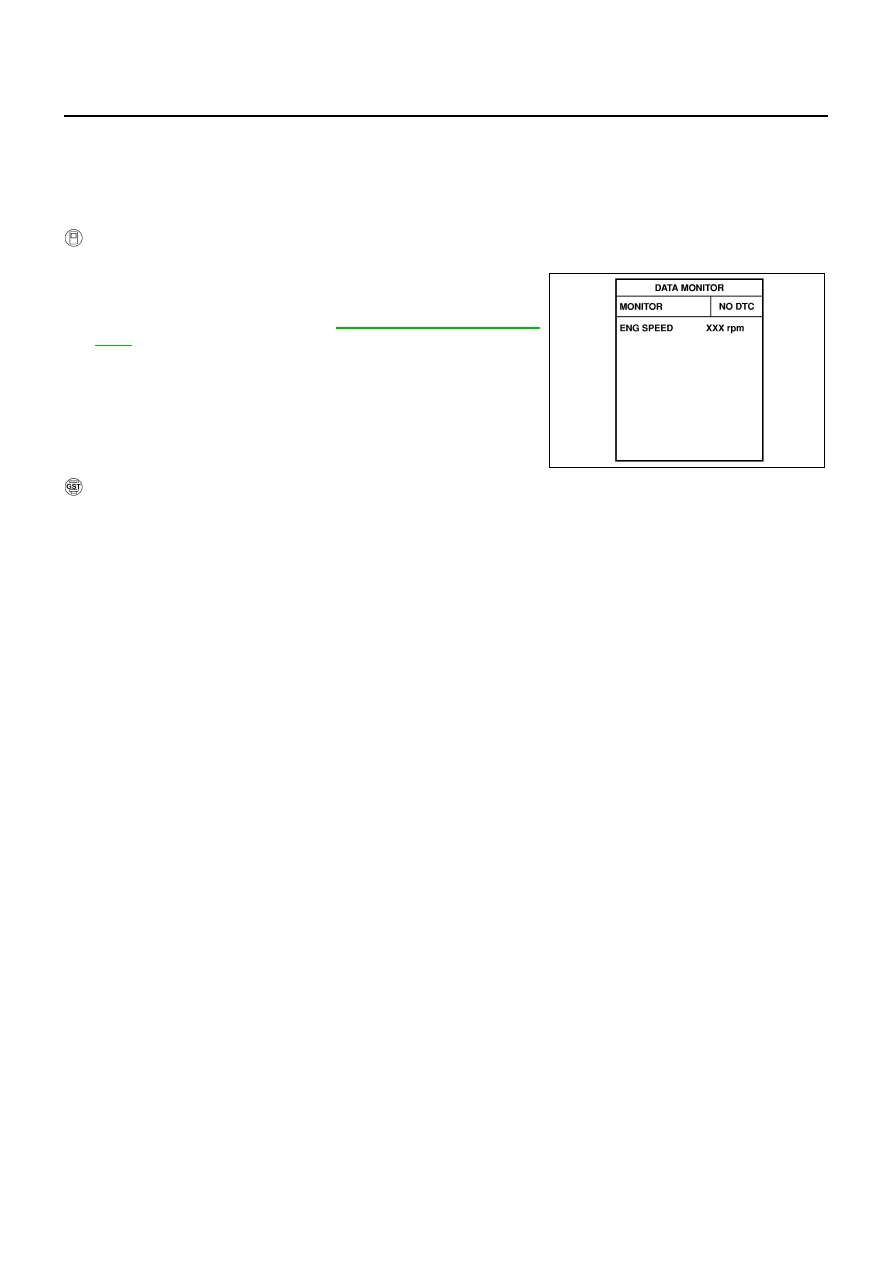

SEF058Y
