DTC P1225 TP SENSOR
PFP:16119
Component Description
NBS005L5

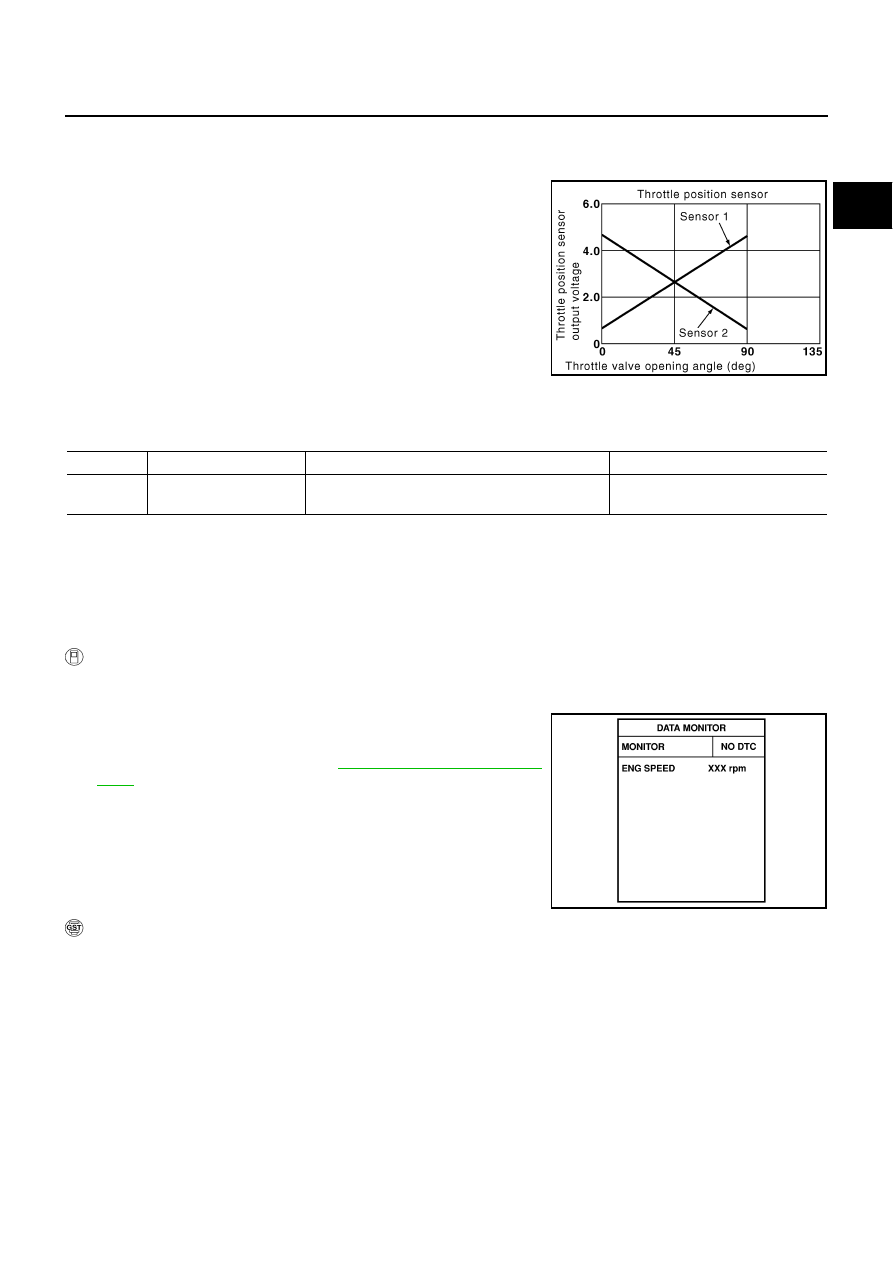

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis Logic
NBS005L6
The MIL will not light up for this diagnosis.
DTC Confirmation Procedure
NBS005L7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1.
Turn ignition switch ON.
2.
Select “DATA MONITOR” mode with CONSULT-II.
3.
Turn ignition switch OFF, wait at least 10 seconds.
4.
Turn ignition switch ON.
5.
If 1st trip DTC is detected, go to
EC-1234, "Diagnostic Proce-
dure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No.
Trouble diagnosis name
DTC detecting condition
Possible cause
P1225
1225
Closed throttle position
learning performance
Closed throttle position learning value is excessively
low.
●
Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
