Infiniti M35/M45 Y50. Manual - part 664





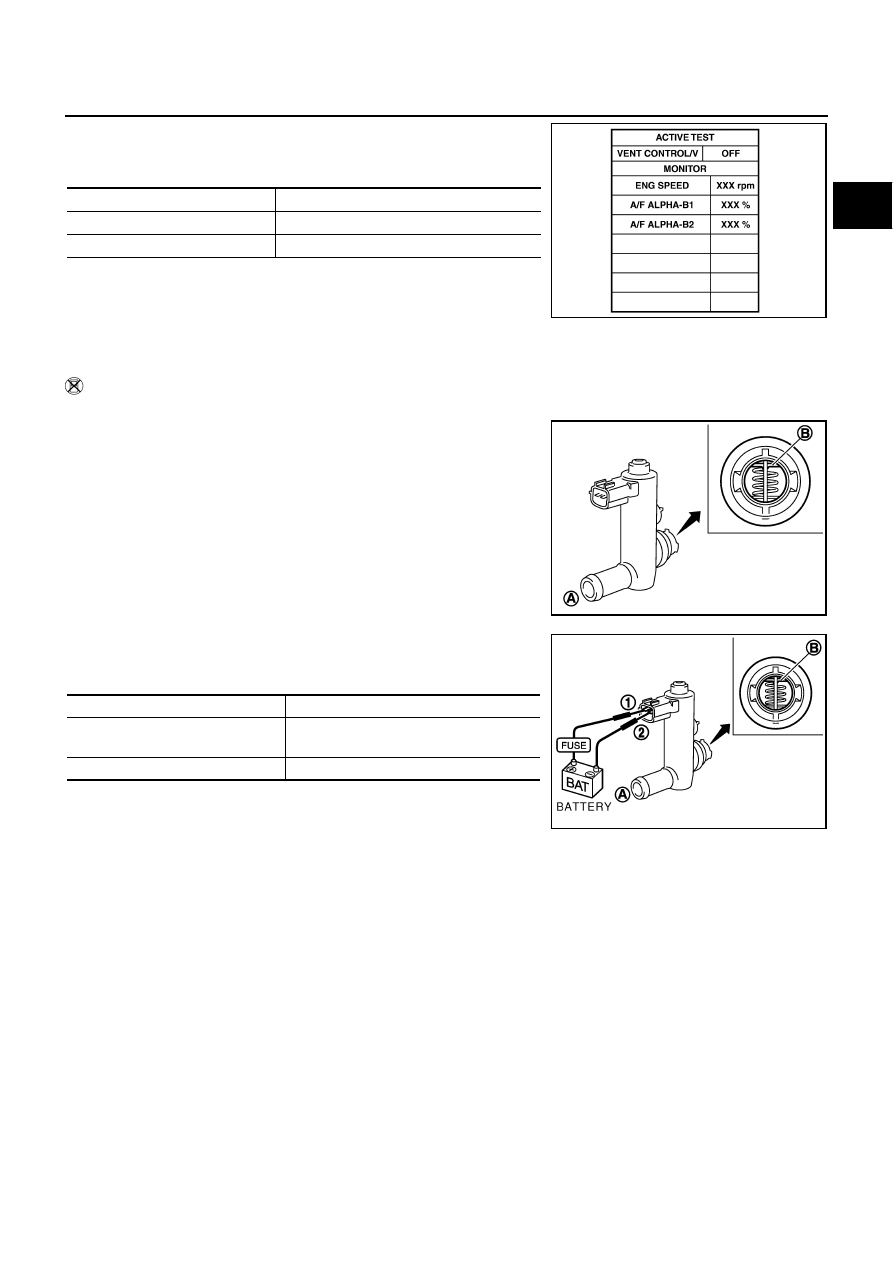

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

EC-1129

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

6.

Check air passage continuity and operation delay time.
Make sure new O-ring is installed properly.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.
If OK, go to next step.

7.

Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.

8.

Perform step 6 again.

 Without CONSULT-II

1.

Remove EVAP canister vent control valve from EVAP canister.

2.

Check portion (B) of EVAP canister vent control valve for being
rusted.

3.

Check air passage continuity and operation delay time under the
following conditions.
Make sure new O-ring is installed properly.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.
If OK, go to next step.

4.

Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.

5.

Perform step 3 again.

Condition VENT CONTROL/V

Air passage continuity between (A) and (B)

ON

No

OFF

Yes

PBIB1679E

PBIB1033E

Condition

Air passage continuity between (A) and (B)

12V direct current supply between
 terminals (1) and (2)

No

OFF

Yes

PBIB1034E

EC-1130

[VK45DE]

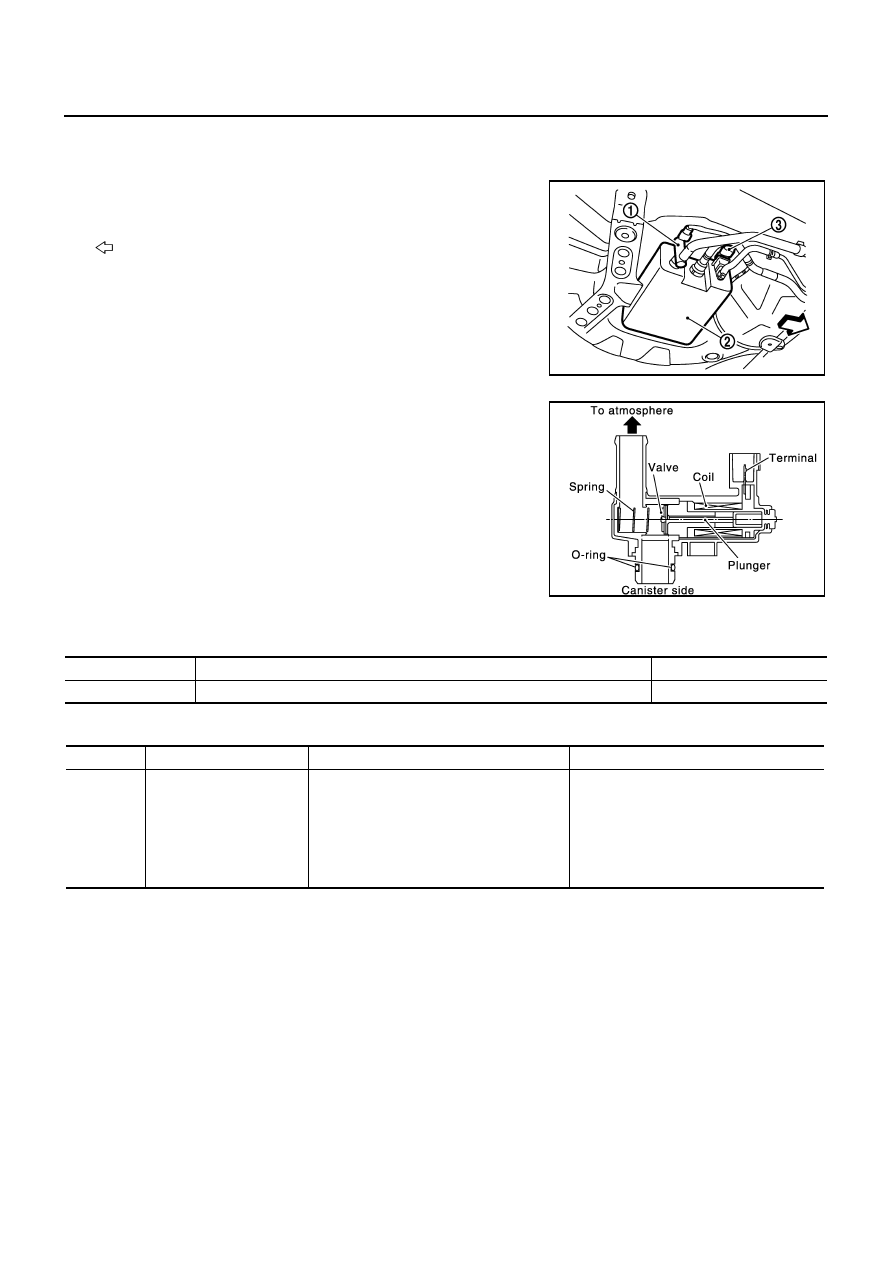

DTC P0448 EVAP CANISTER VENT CONTROL VALVE

DTC P0448 EVAP CANISTER VENT CONTROL VALVE

PFP:16935

Component Description

NBS005HR

The EVAP canister vent control valve (1) is located on the EVAP
canister (2) and is used to seal the canister vent.

Illustration shows the view from under the vehicle.

: Vehicle front

EVAP control system pressure sensor (3)

This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
control system diagnosis.

CONSULT-II Reference Value in Data Monitor Mode

NBS005HS

Specification data are reference values.

On Board Diagnosis Logic

NBS005HT

PBIB2702E

PBIB1263E

MONITOR ITEM

CONDITION

SPECIFICATION

VENT CONT/V

Ignition switch: ON

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0448
0448

EVAP canister vent control
valve close

EVAP canister vent control valve remains
closed under specified driving conditions.

EVAP canister vent control valve

EVAP control system pressure sensor
and the circuit

Blocked rubber tube to EVAP canister
vent control valve

EVAP canister is saturated with water

DTC P0448 EVAP CANISTER VENT CONTROL VALVE

EC-1131

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

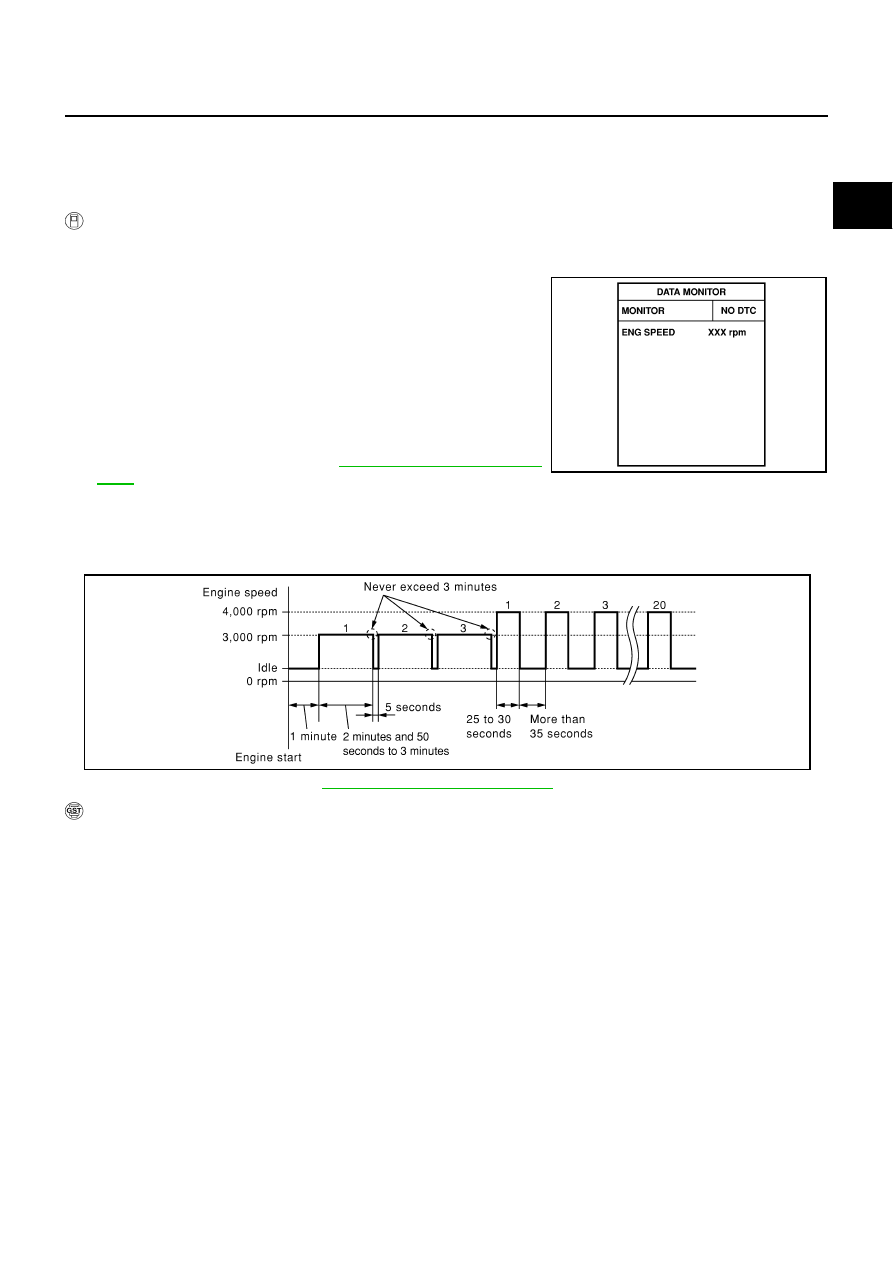

DTC Confirmation Procedure

NBS005HU

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

4.

Start engine and let it idle for at least 1 minute.

5.

Repeat next procedures three times.

a.

Increase the engine speed up to 3,000 to 3,500 rpm and keep it
for 2 minutes and 50 seconds to 3 minutes.
Never exceed 3 minutes.

b.

Fully released accelerator pedal and keep engine idle for about
5 seconds.

6.

If 1st trip DTC is detected, go to

EC-1133, "Diagnostic Proce-

dure"

 .

If 1st trip DTC is not detected, go to the next step.

7.

Repeat next procedure 20 times.

a.

Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.

b.

Fully released accelerator pedal and keep engine idle for at least 35 seconds.

8.

If 1st trip DTC is detected, go to

EC-1133, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

PBIB0972E

EC-1132

[VK45DE]

DTC P0448 EVAP CANISTER VENT CONTROL VALVE

Wiring Diagram

NBS005HV

TBWT1539E
