Infiniti M35/M45 Y50. Manual - part 632





DTC P0138, P0158 HO2S2

EC-1001

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

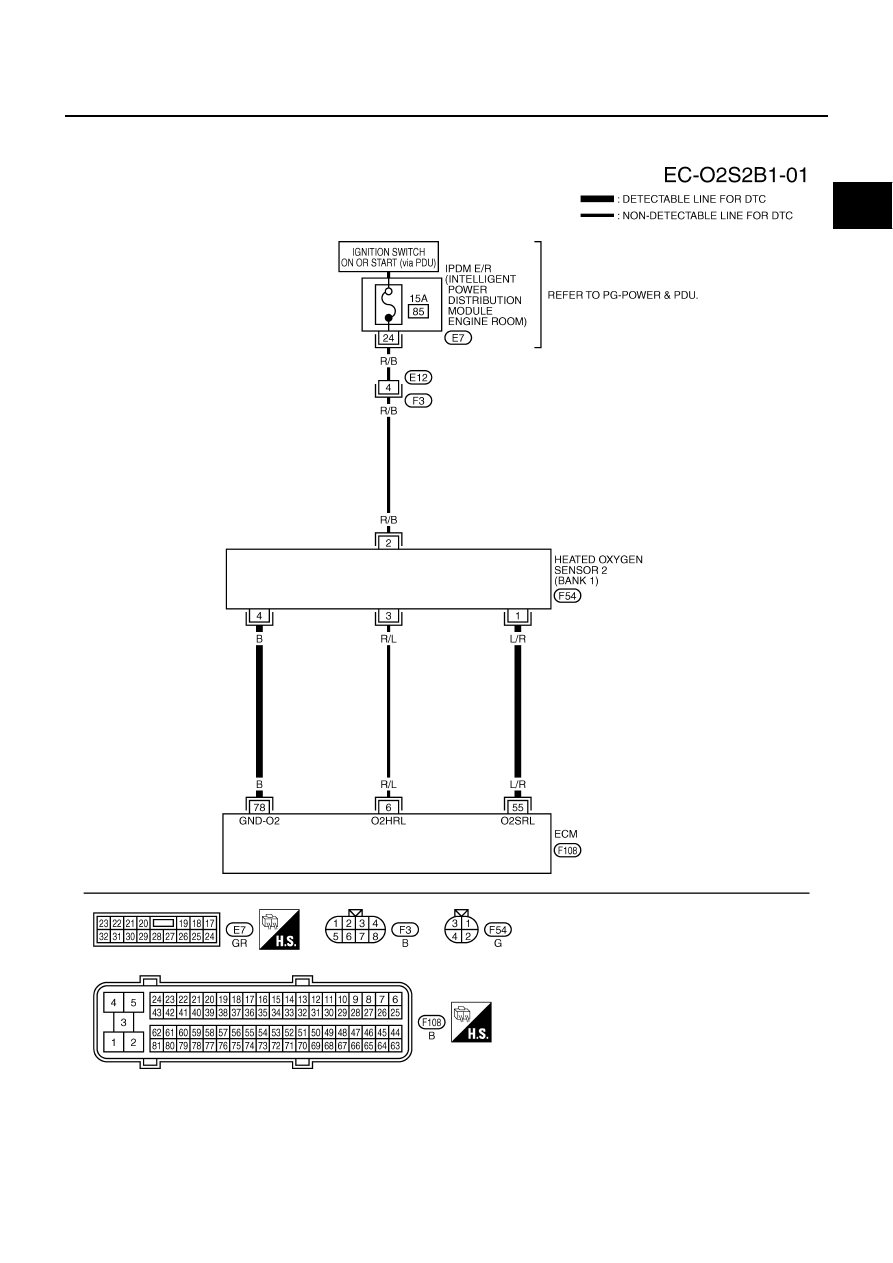

Wiring Diagram

NBS005EW

BANK 1

TBWT1020E

EC-1002

[VK45DE]

DTC P0138, P0158 HO2S2

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

6

R/L

Heated oxygen sensor 2
heater (bank 1)

[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

Engine: Stopped

[Engine is running]

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

55

L/R

Heated oxygen sensor 2
(bank 1)

[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

78

B

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

DTC P0138, P0158 HO2S2

EC-1003

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

BANK 2

TBWT1021E

EC-1004

[VK45DE]

DTC P0138, P0158 HO2S2

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS005EX

PROCEDURE FOR MALFUNCTION A

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten ground screws on the body.
Refer to

EC-864, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

25

P/B

Heated oxygen sensor 2
heater (bank 2)

[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

Engine: Stopped

[Engine is running]

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

74

W

Heated oxygen sensor 2
(bank 2)

[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

78

B

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

1.

Body ground M70

2.

Body ground M16

PBIB2782E
