DTC P0137, P0157 HO2S2

EC-993

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS005EO

1.

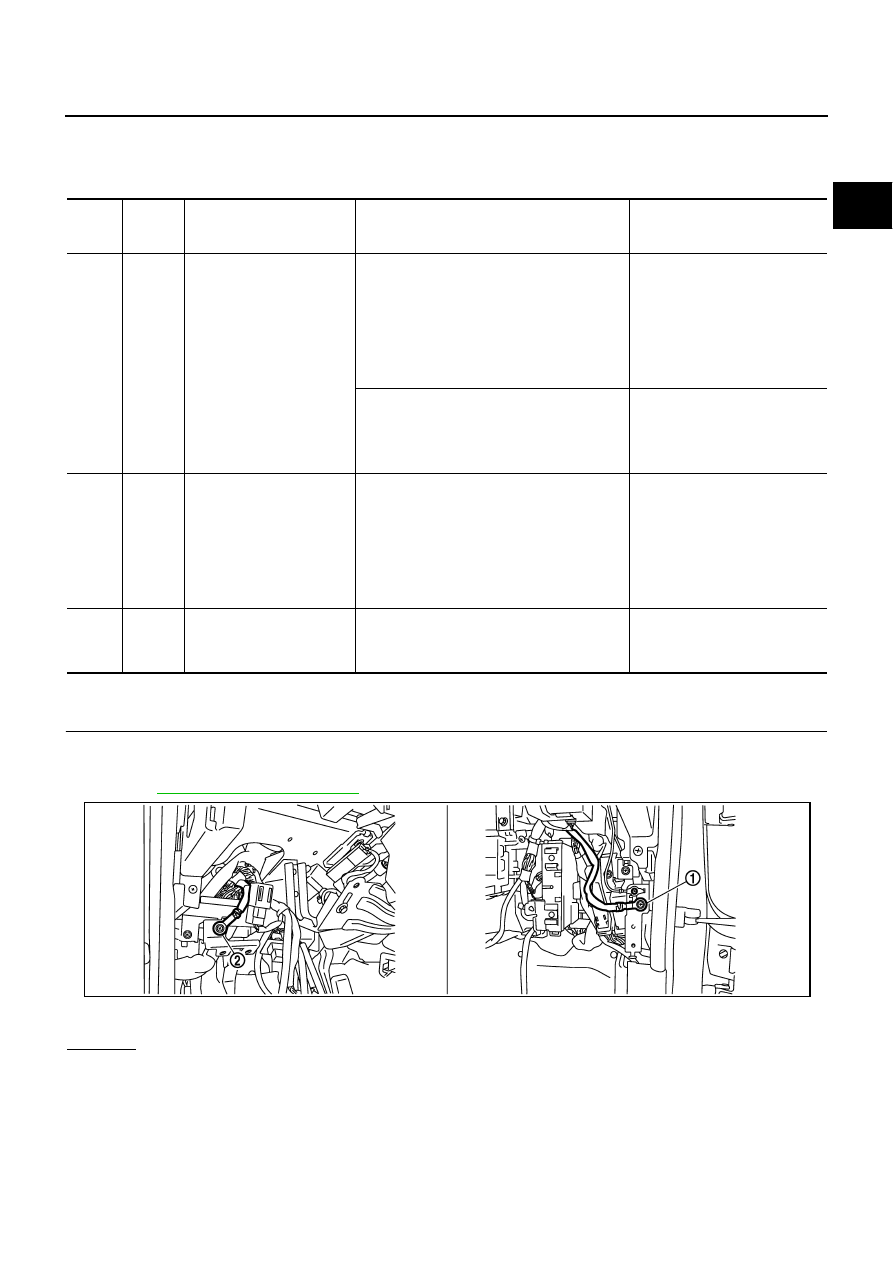

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten ground screws on the body.
Refer to

EC-864, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

25

P/B

Heated oxygen sensor 2
heater (bank 2)

[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

Engine: Stopped

[Engine is running]

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

74

W

Heated oxygen sensor 2
(bank 2)

[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

78

B

Sensor ground
(Heated oxygen sensor 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

1.

Body ground M70

2.

Body ground M16

PBIB2782E

EC-994

[VK45DE]

DTC P0137, P0157 HO2S2

2.

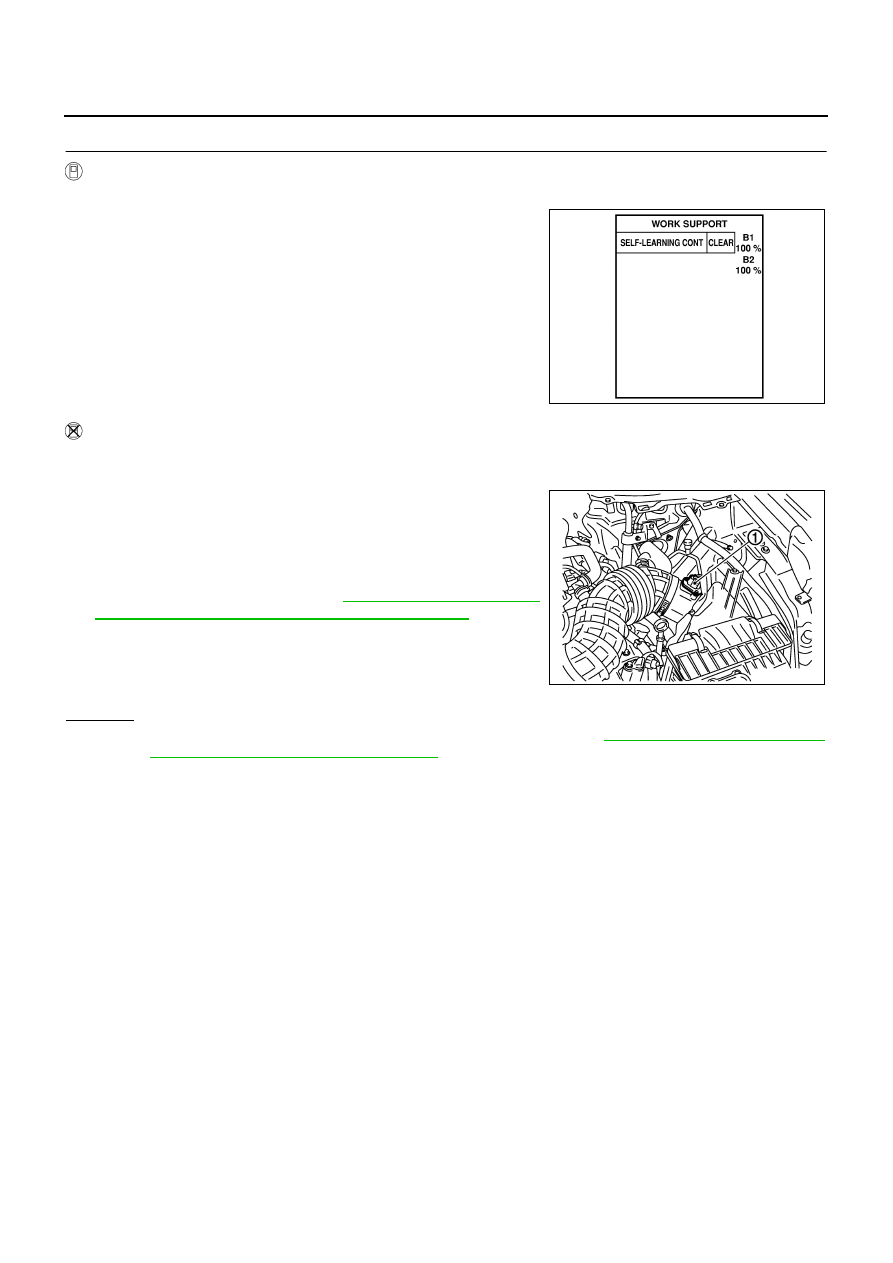

CLEAR THE SELF-LEARNING DATA

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode
with CONSULT-II.

3.

Clear the self-learning control coefficient by touching “CLEAR”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0174 detected?
Is it difficult to start engine?

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor (1) harness connector, and
restart and run engine for at least 5 seconds at idle speed.

4.

Stop engine and reconnect mass air flow sensor harness con-
nector.

5.

Make sure DTC P0102 is displayed.

6.

Erase the DTC memory. Refer to

EC-770, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

7.

Make sure DTC P0000 is displayed.

8.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0174 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171 or P0174. Refer to

EC-1022, "DTC P0171, P0174

FUEL INJECTION SYSTEM FUNCTION"

 .

No

>> GO TO 3.

SEF968Y

PBIB2682E

DTC P0137, P0157 HO2S2

EC-995

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

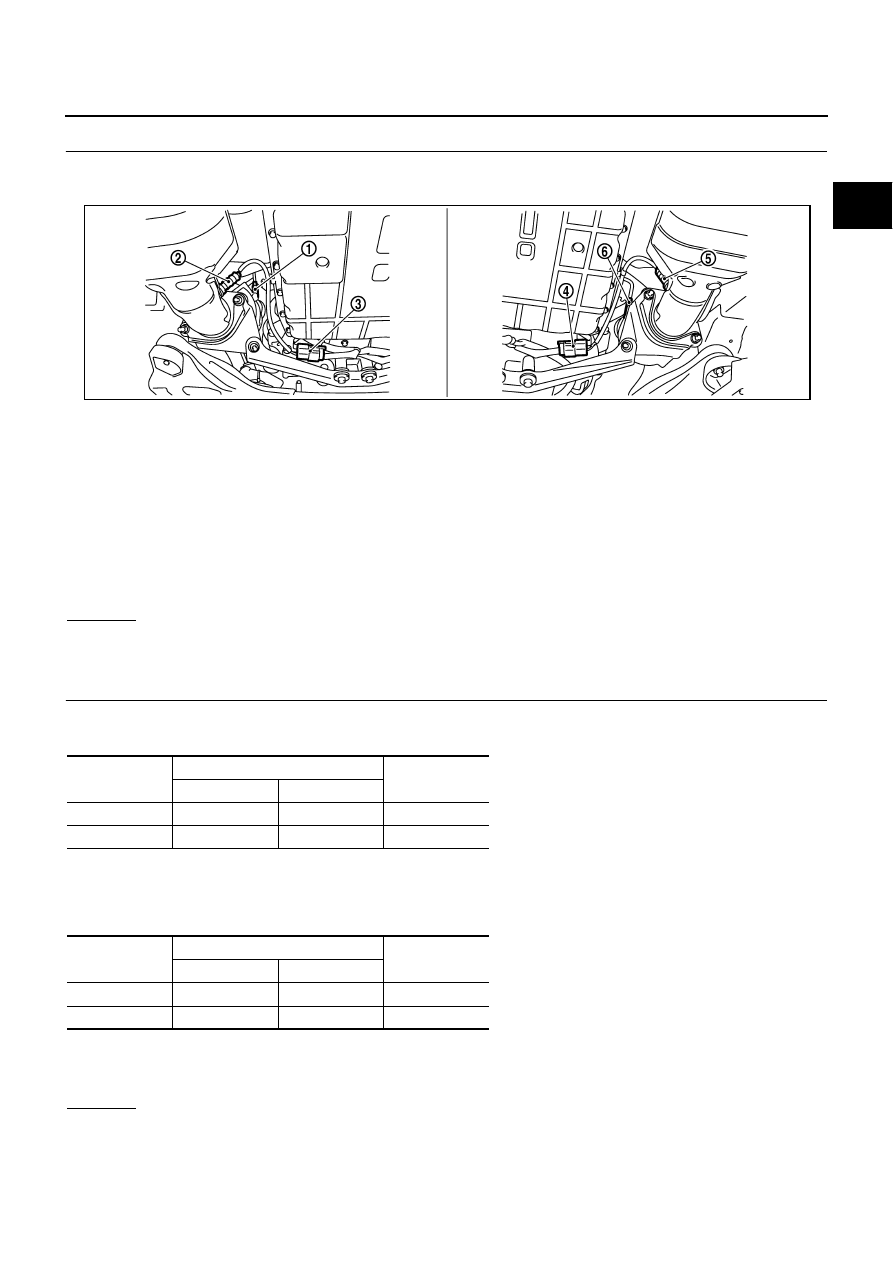

CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect heated oxygen sensor 2 harness connector.

3.

Disconnect ECM harness connector.

4.

Check harness continuity between ECM terminal 78 and HO2S2 terminal 4.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.

2.

Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

1.

Air fuel ratio (A/F) sensor 1 (bank 1)

2.

Heated oxygen sensor 2 (bank 1)

3.

Heated oxygen sensor 2 (bank 1)
harness connector

4.

Heated oxygen sensor 2 (bank 2)
harness connector

5.

Heated oxygen sensor 2 (bank 2)

6.

Air fuel ratio (A/F) sensor 1 (bank 2)

Continuity should exist.

PBIB2711E

DTC

Terminals

Bank

ECM

Sensor

P0137

55

1

1

P0157

74

1

2

Continuity should exist.

DTC

Terminals

Bank

ECM

Sensor

P0137

55

1

1

P0157

74

1

2

Continuity should not exist.

EC-996

[VK45DE]

DTC P0137, P0157 HO2S2

5.

CHECK HEATED OXYGEN SENSOR 2

Refer to

EC-996, "Component Inspection"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Replace malfunctioning heated oxygen sensor 2.

6.

CHECK INTERMITTENT INCIDENT

Refer to

EC-857, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

NBS005EP

HEATED OXYGEN SENSOR 2

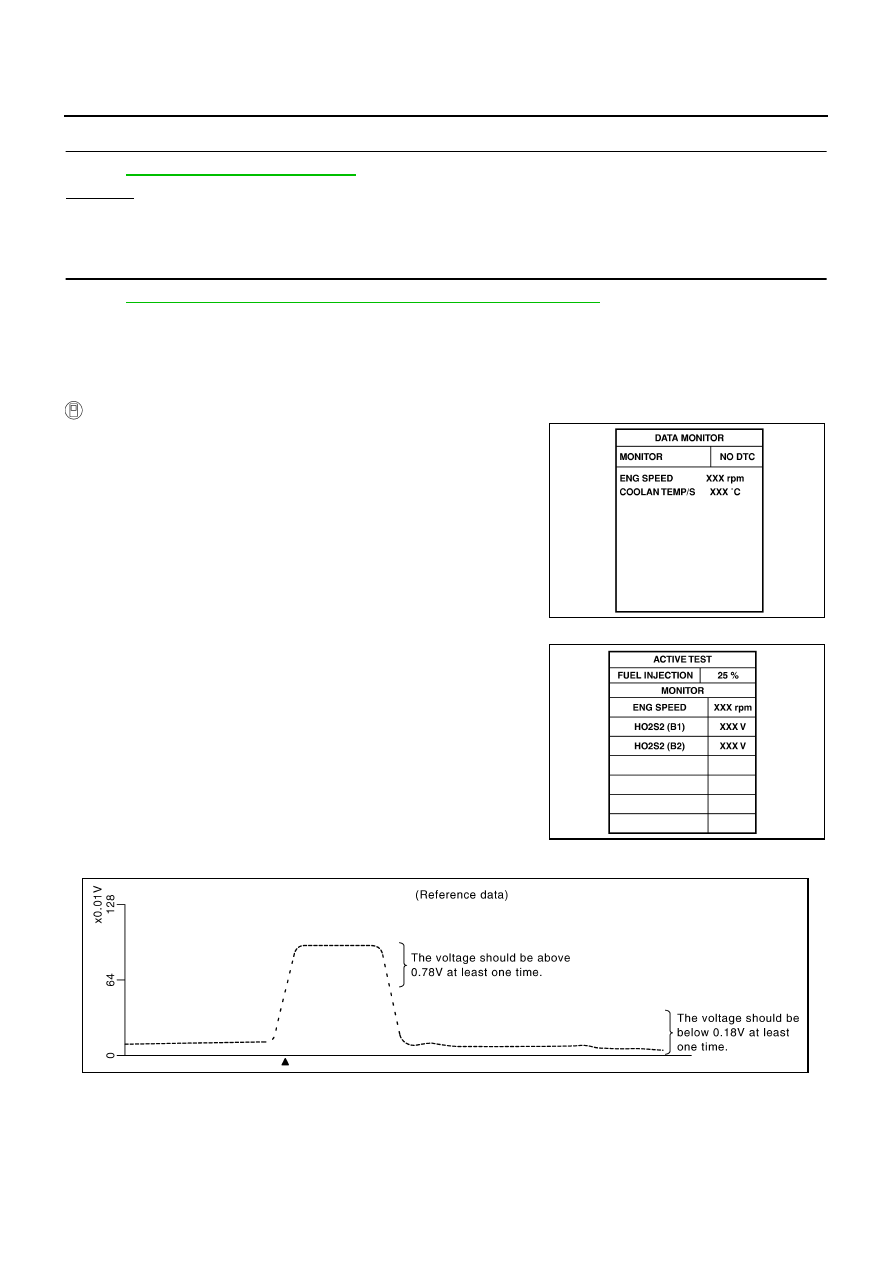

 With CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and warm it up to the normal operating tempera-
ture.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.

5.

Let engine idle for 1 minute.

6.

Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)/(B2)” as the monitor item with CONSULT-II.

7.

Check “HO2S2 (B1)/(B2)” at idle speed when adjusting “FUEL INJECTION” to

±

25%.

“HO2S2 (B1)/(B2)” should be above 0.78V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)/(B2)” should be below 0.18V at least once when the “FUEL INJECTION” is

25%.

CAUTION:

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.

SEF174Y

PBIB1672E

PBIB2163E
