DTC P0101 MAF SENSOR

EC-913

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Component Inspection

NBS005CC

MASS AIR FLOW SENSOR

 With CONSULT-II

1.

Reconnect all harness connectors disconnected.

2.

Start engine and warm it up to normal operating temperature.

3.

Connect CONSULT-II and select “DATA MONITOR” mode.

4.

Select “MAS A/F SE-B1” and check indication under the follow-
ing conditions.

*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.

5.

If the voltage is out of specification, proceed the following.

a.

Check for the cause of uneven air flow through mass air flow sensor. Refer to following.

Crushed air ducts

Malfunctioning seal of air cleaner element

Uneven dirt of air cleaner element

Improper specification of intake air system parts

b.

If NG, repair or replace malfunctioning part and perform step 2 to 4 again.
If OK, go to next step.

6.

Turn ignition switch OFF.

7.

Disconnect mass air flow sensor harness connector and reconnect it again.

8.

Perform step 2 to 4 again.

9.

If NG, clean or replace mass air flow sensor.

 Without CONSULT-II

1.

Reconnect all harness connectors disconnected.

2.

Start engine and warm it up to normal operating temperature.

3.

Check voltage between ECM terminal 51 (Mass air flow sensor
signal) and ground.

*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.

4.

If the voltage is out of specification, proceed the following.

a.

Check for the cause of uneven air flow through mass air flow sensor. Refer to following.

Crushed air ducts

Malfunctioning seal of air cleaner element

Uneven dirt of air cleaner element

Improper specification of intake air system parts

Condition

MAS A/F SE-B1 (V)

Ignition switch ON (Engine stopped.)

Approx. 0.4

Idle (Engine is warmed-up to normal
operating temperature.)

0.9 - 1.2

2,500 rpm (Engine is warmed-up to
normal operating temperature.)

1.6 - 1.9

Idle to about 4,000 rpm

0.9 - 1.2 to Approx. 2.4*

PBIB2371E

Condition

Voltage V

Ignition switch ON (Engine stopped.)

Approx. 0.4

Idle (Engine is warmed-up to normal
operating temperature.)

0.9 - 1.2

2,500 rpm (Engine is warmed-up to
normal operating temperature.)

1.6 - 1.9

Idle to about 4,000 rpm

0.9 - 1.2 to Approx. 2.4*

PBIB1106E

EC-914

[VK45DE]

DTC P0101 MAF SENSOR

b.

If NG, repair or replace malfunctioning part and perform step 2 to 3 again.
If OK, go to next step.

5.

Turn ignition switch OFF.

6.

Disconnect mass air flow sensor harness connector and reconnect it again.

7.

Perform step 2 and 3 again.

8.

If NG, clean or replace mass air flow sensor.

Removal and Installation

NBS005CD

MASS AIR FLOW SENSOR

Refer to

EM-177, "AIR CLEANER AND AIR DUCT"

 .

DTC P0102, P0103 MAF SENSOR

EC-915

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

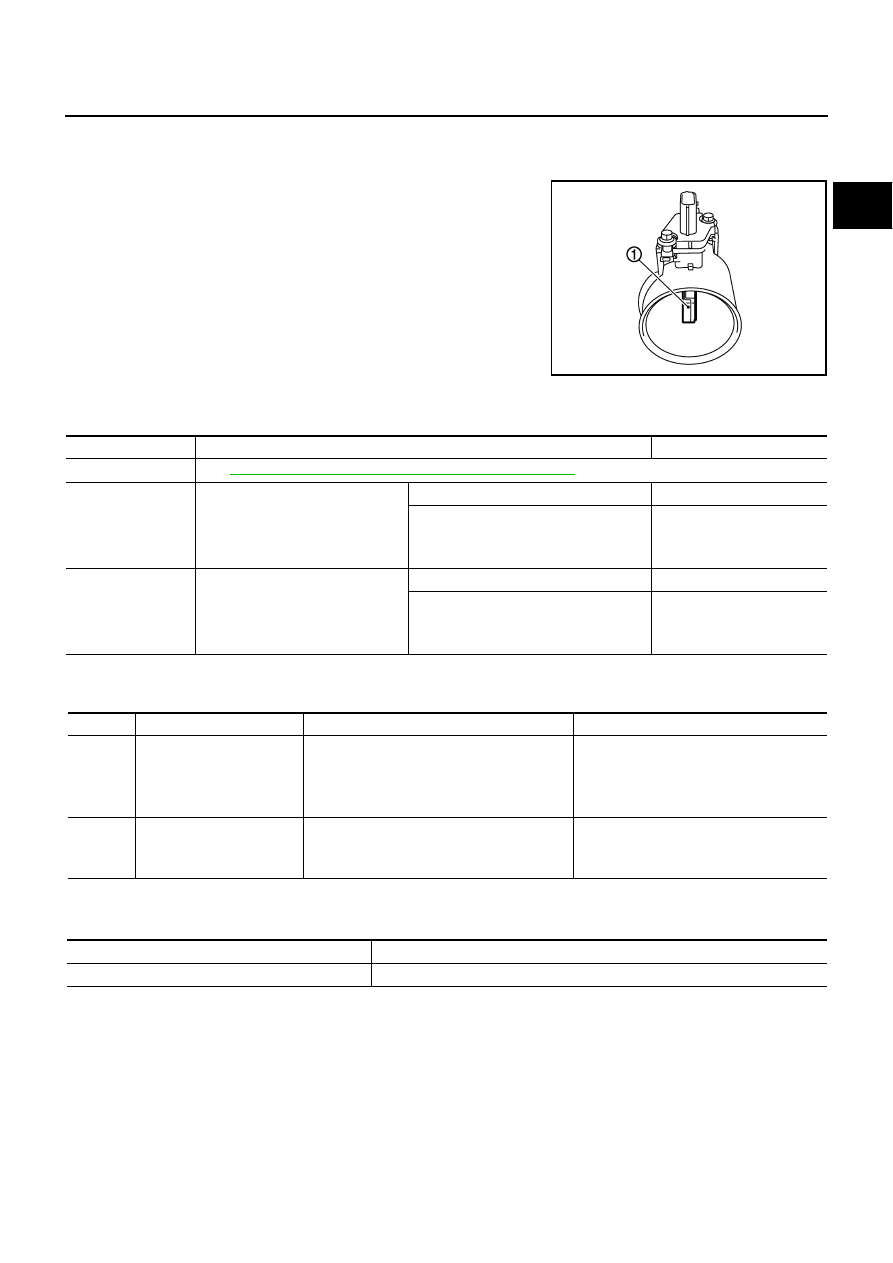

DTC P0102, P0103 MAF SENSOR

PFP:22680

Component Description

NBS005CE

The mass air flow sensor (1) is placed in the stream of intake air. It
measures the intake flow rate by measuring a part of the entire
intake flow. The mass air flow sensor controls the temperature of the
hot wire to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current supplied to hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.

CONSULT-II Reference Value in Data Monitor Mode

NBS005CF

Specification data are reference values.

On Board Diagnosis Logic

NBS005CG

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

PBIA9559J

MONITOR ITEM

CONDITION

SPECIFICATION

MAS A/F SE-B1

See

EC-847, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

CAL/LD VALUE

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load

Idle

14% - 33%

2,500 rpm

12% - 25%

MASS AIRFLOW

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load

Idle

2.0 - 6.0 g·m/s

2,500 rpm

7.0 - 20.0 g·m/s

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0102
0102

Mass air flow sensor circuit
low input

An excessively low voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Intake air leaks

Mass air flow sensor

P0103
0103

Mass air flow sensor circuit
high input

An excessively high voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Mass air flow sensor

Detected items

Engine operating condition in fail-safe mode

Mass air flow sensor circuit

Engine speed will not rise more than 2,400 rpm due to the fuel cut.

EC-916

[VK45DE]

DTC P0102, P0103 MAF SENSOR

DTC Confirmation Procedure

NBS005CH

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

PROCEDURE FOR DTC P0102

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and wait at least 5 seconds.

4.

If DTC is detected, go to

EC-918, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

PROCEDURE FOR DTC P0103

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-918, "Diagnostic Procedure"

 .

If DTC is not detected, go to next step.

5.

Start engine and wait at least 5 seconds.

6.

If DTC is detected, go to

EC-918, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

SEF058Y
