DTC P0075, P0081 IVT CONTROL SOLENOID VALVE

EC-901

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

10

W/G

Intake valve timing control
solenoid valve (bank 1)

[Engine is running]

●

Warm-up condition

●

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,000rpm

7 - 12V

111

SB

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB1790E

EC-902

[VK45DE]

DTC P0075, P0081 IVT CONTROL SOLENOID VALVE

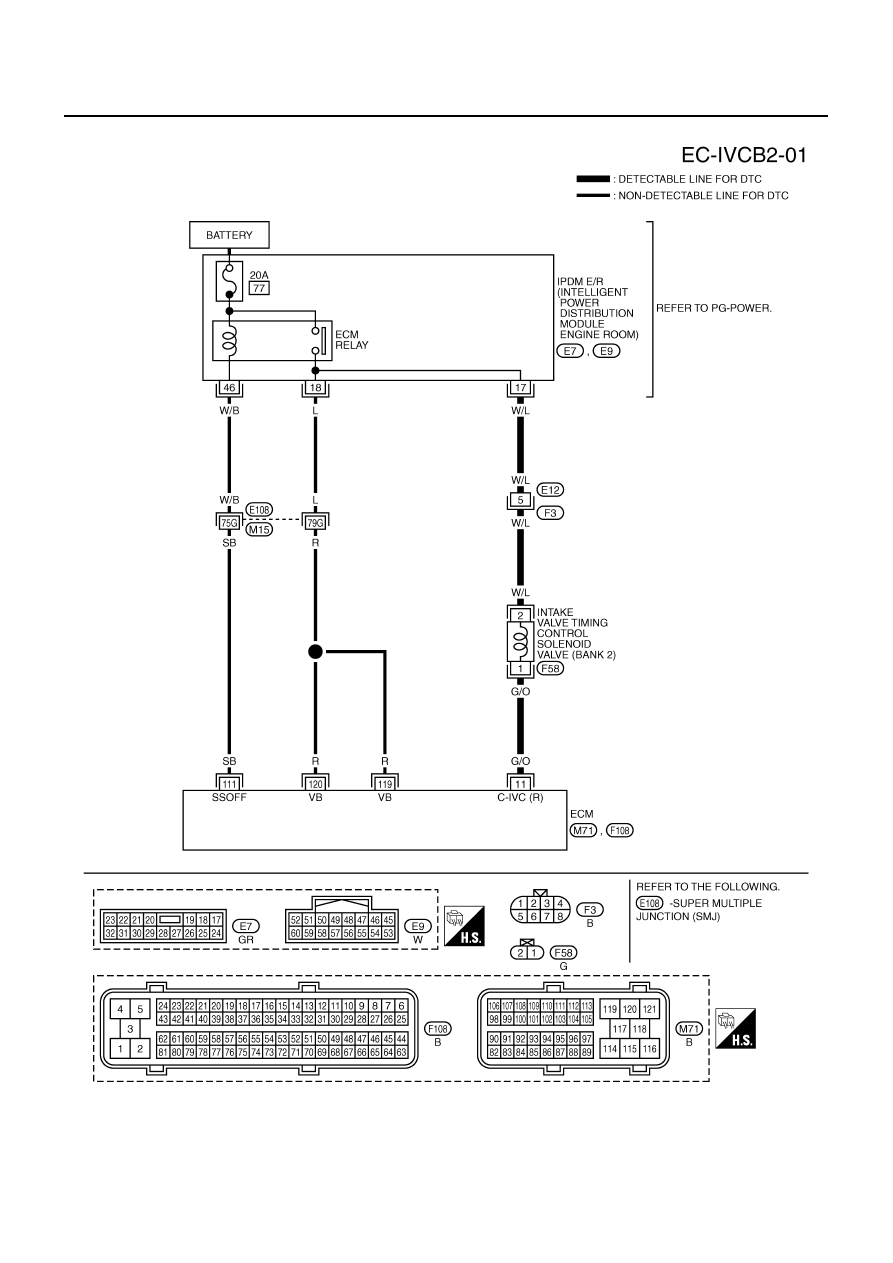

BANK 2

TBWT1037E

DTC P0075, P0081 IVT CONTROL SOLENOID VALVE

EC-903

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

11

G/O

Intake valve timing control
solenoid valve (bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

BATTERY VOLTAGE
(11 - 14V)

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,000rpm

7 - 12V

111

SB

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB1790E

EC-904

[VK45DE]

DTC P0075, P0081 IVT CONTROL SOLENOID VALVE

Diagnostic Procedure

NBS005C2

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing control solenoid valve harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between intake valve timing control solenoid
valve terminal 2 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E12, F3

●

IPDM E/R harness connector E7

●

Harness for open or short between intake valve timing control solenoid valve and IPDM E/R

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR

OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following;
ECM terminal 10 and intake valve timing control solenoid valve (bank 1) terminal 1 or
ECM terminal 11 and intake valve timing control solenoid valve (bank 2) terminal 1.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

1.

Intake valve timing control solenoid
valve (bank 2)

2.

Intake valve timing control solenoid
valve (bank 1)

Voltage: Battery voltage

PBIB2687E

PBIB0192E

Continuity should exist.
