TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

EC-857

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

PFP:00006

Description

NBS005AV

Intermittent incidents may occur. In many cases, the malfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of intermittent
incidents occurrences is poor electrical connections. Because of this, the conditions under which the incident
occurred may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may
not indicate the specific malfunctioning area.

Common Intermittent Incidents Report Situations

Diagnostic Procedure

NBS005AW

1.

INSPECTION START

Erase (1st trip) DTCs. Refer to

EC-770, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-

TION"

 .

>> GO TO 2.

2.

CHECK GROUND TERMINALS

Check ground terminals for corroding or loose connection.
Refer to

EC-864, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

SEARCH FOR ELECTRICAL INCIDENT

Perform

GI-28, "How to Perform Efficient Diagnosis for an Electrical Incident"

 , “INCIDENT SIMULATION

TESTS”.
OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

4.

CHECK CONNECTOR TERMINALS

Refer to

GI-25, "How to Check Terminal"

 , “HOW TO PROBE CONNECTORS”, “How to Check Enlarged Con-

tact Spring of Terminal”.
OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace connector.

STEP in Work Flow

Situation

2

The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than [0] or [1t].

3 or 4

The symptom described by the customer does not recur.

5

(1st trip) DTC does not appear during the DTC Confirmation Procedure.

10

The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.

EC-858

[VK45DE]

POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

PFP:24110

Wiring Diagram

NBS005AX

TBWT1010E

POWER SUPPLY AND GROUND CIRCUIT

EC-859

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS005AY

1.

INSPECTION START

Start engine.
Is engine running?

Yes or No

Yes

>> GO TO 8.

No

>> GO TO 2.

2.

CHECK ECM POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF and then ON.

2.

Check voltage between ECM terminal 109 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Fuse block (J/B) connector M4

●

15A fuse

●

Harness for open or short between ECM and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

1

B

ECM ground

[Engine is running]

●

Idle speed

Body ground

109

L

Ignition switch

[Ignition switch: OFF]

0V

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

111

SB

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

115
116

B
B

ECM ground

[Engine is running]

●

Idle speed

Body ground

119

120

R
R

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

Voltage: Battery voltage

MBIB0015E

EC-860

[VK45DE]

POWER SUPPLY AND GROUND CIRCUIT

4.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten ground screws on the body.
Refer to

EC-864, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace ground connections.

5.

CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminals 1, 115, 116 and ground.
Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors F102, M72

●

Harness for open or short between ECM and ground

>> Repair open circuit or short to power in harness or connectors.

7.

CHECK ECM POWER SUPPLY CIRCUIT-II

1.

Reconnect ECM harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between IPDM E/R terminal 17 and ground with
CONSULT-II or tester.

OK or NG

OK

>> Go to

EC-1411, "IGNITION SIGNAL"

 .

NG

>> GO TO 8.

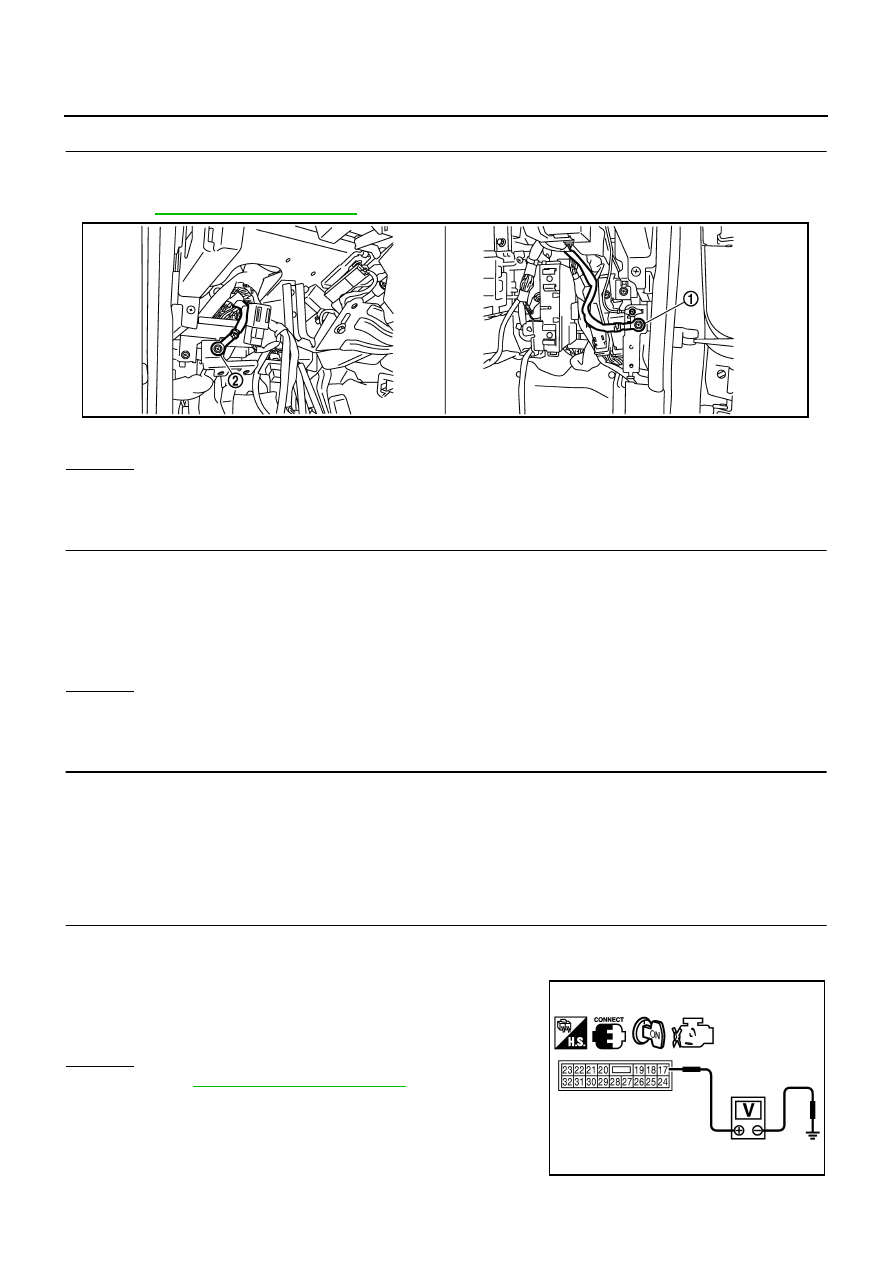

1.

Body ground M70

2.

Body ground M16

PBIB2782E

Continuity should exist.

Voltage: Battery voltage

PBIB1915E
