REFRIGERANT PRESSURE SENSOR

EC-705

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

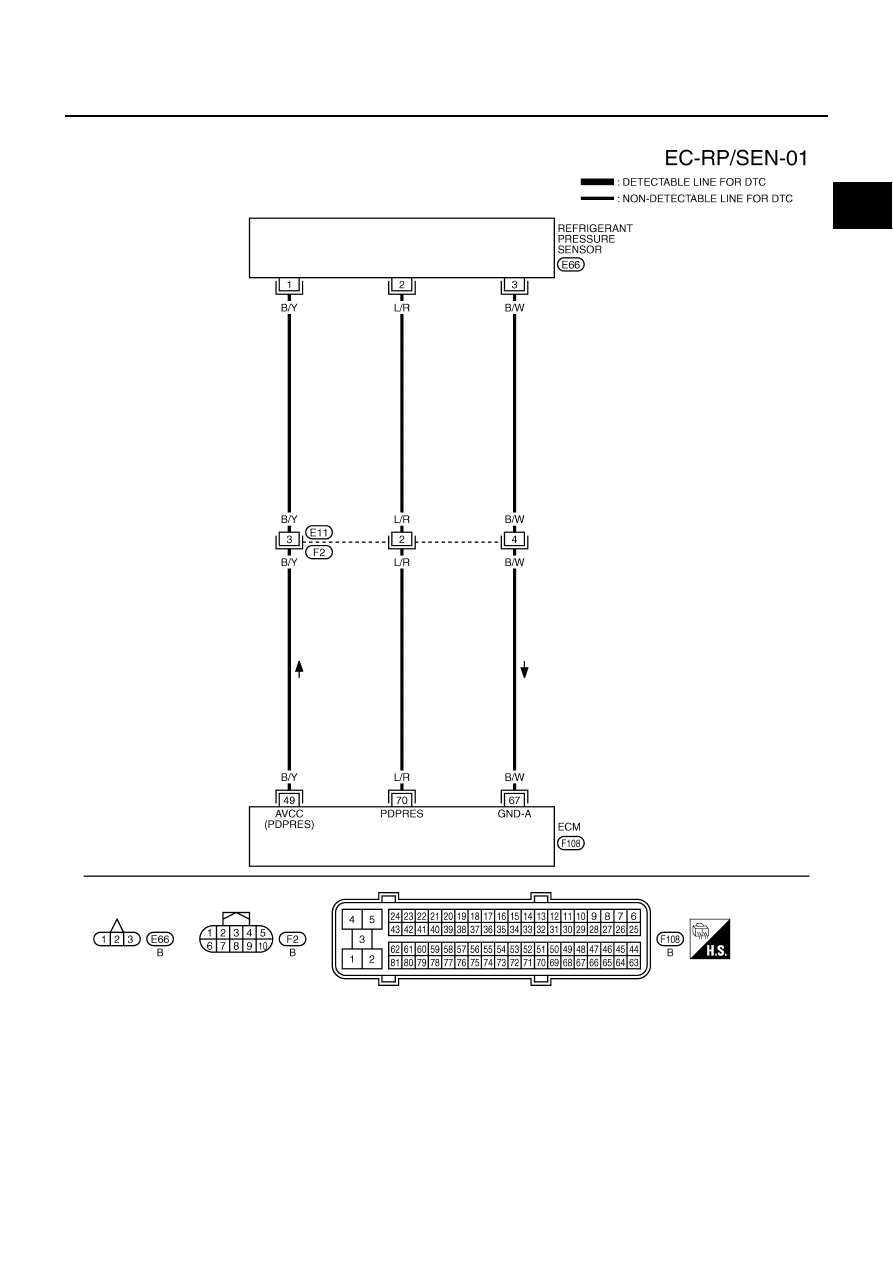

Wiring Diagram

NBS00586

TBWT0998E

EC-706

[VQ35DE]

REFRIGERANT PRESSURE SENSOR

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS00587

1.

CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION

1.

Start engine and warm it up to normal operating temperature.

2.

Turn A/C switch and blower fan switch ON.

3.

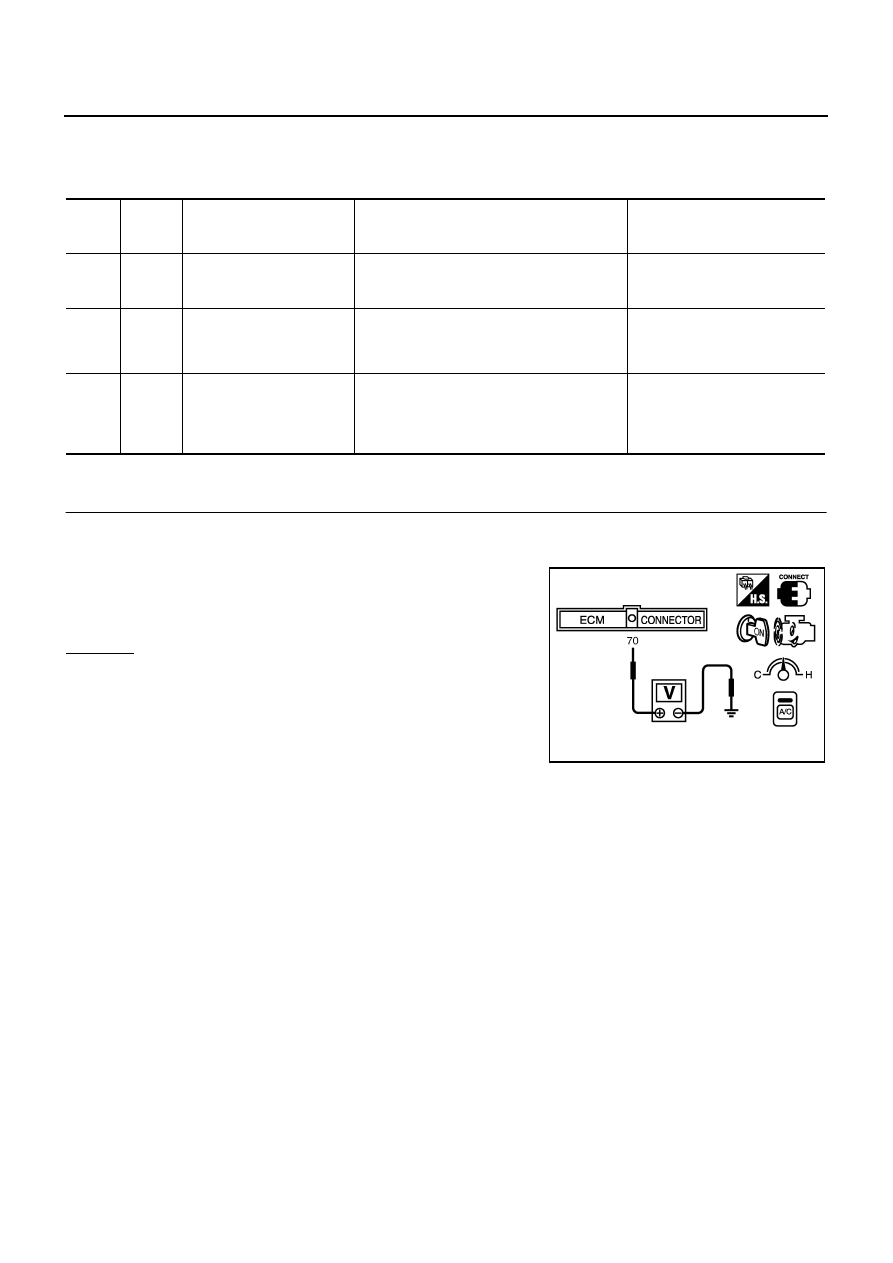

Check voltage between ECM terminal 70 and ground with CON-
SULT-II or tester.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

49

B/Y

Sensor power supply
(Refrigerant pressure sen-
sor, Battery current sensor)

[Ignition switch: ON]

Approximately 5V

67

B/W

Sensor ground

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

70

L/R

Refrigerant pressure sensor

[Engine is running]

●

Warm-up condition

●

Both A/C switch and blower fan motor
switch: ON (Compressor operates)

1.0 - 4.0V

Voltage: 1.0 - 4.0V

PBIB1188E

REFRIGERANT PRESSURE SENSOR

EC-707

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

2.

CHECK GROUND CONNECTIONS

1.

Turn A/C switch and blower switch OFF.

2.

Stop engine.

3.

Turn ignition switch OFF.

4.

Loosen and retighten two ground screws on the body.
Refer to

EC-160, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace ground connections.

3.

CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect refrigerant pressure sensor (1) harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between refrigerant pressure sensor terminal 1
and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E11, F2

●

Harness for open or short between ECM and refrigerant pressure sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

1.

Body ground M70

2.

Body ground M16

PBIB2782E

PBIA9537J

Voltage: Approximately 5V

PBIB0188E

EC-708

[VQ35DE]

REFRIGERANT PRESSURE SENSOR

5.

CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between refrigerant pressure sensor terminal 3 and ECM terminal 67.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E11, F2

●

Harness for open or short between ECM and refrigerant pressure sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 70 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E11, F2

●

Harness for open or short between ECM and refrigerant pressure sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-153, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

OK

>> Replace refrigerant pressure sensor.

NG

>> Repair or replace.

Removal and Installation

NBS00588

REFRIGERANT PRESSURE SENSOR

Refer to

ATC-166, "Removal and Installation of Refrigerant Pressure Sensor"

 .

Continuity should exist.

Continuity should exist.
