Infiniti M35/M45 Y50. Manual - part 556

IGNITION SIGNAL

EC-697

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

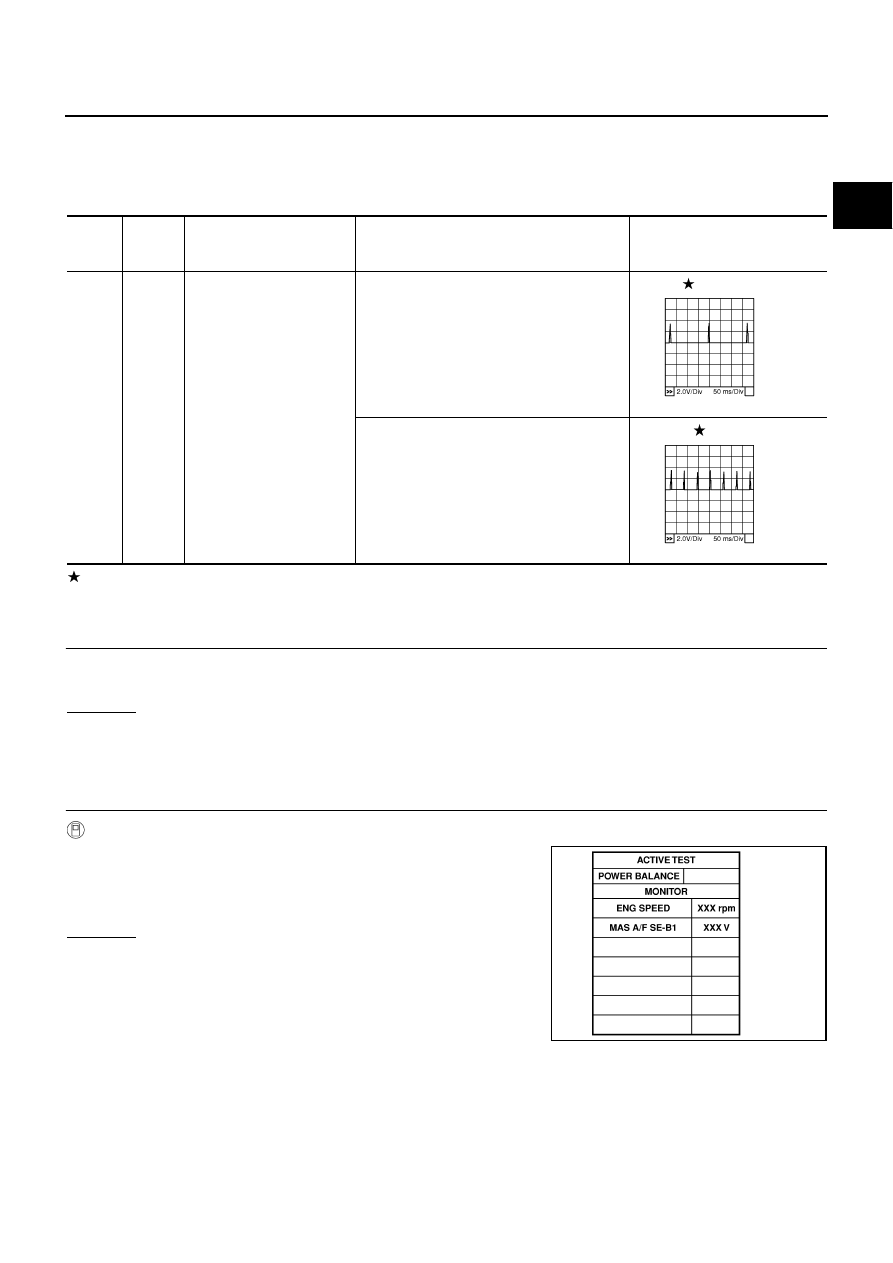

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

NBS0057Q

1.

CHECK ENGINE START

Turn ignition switch OFF, and restart engine.
Is engine running?

Yes or No

Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No

>> GO TO 4.

2.

CHECK OVERALL FUNCTION

 With CONSULT-II

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.

2.

Make sure that each circuit produces a momentary engine
speed drop.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 10.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

79
80
81

GR/R
GR/B
G/R

Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2

[Engine is running]

●

Warm-up condition

●

Idle speed

NOTE:
The pulse cycle changes depending on rpm
at idle

0 - 0.2V

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,000 rpm

0.1 - 0.4V

PBIB0044E

PBIB0045E

PBIB0133E

EC-698

[VQ35DE]

IGNITION SIGNAL

3.

CHECK OVERALL FUNCTION

 Without CONSULT-II

1.

Let engine idle.

2.

Read the voltage signal between ECM terminals 60, 61, 62, 79,
80, 81 and ground with an oscilloscope.

3.

Verify that the oscilloscope screen shows the signal wave as
shown below.

NOTE:
The pulse cycle changes depending on rpm at idle.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 10.

4.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF, wait at least 10 seconds and then turn ON.

2.

Check voltage between ECM terminals 119, 120 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> Go to

EC-154, "POWER SUPPLY AND GROUND CIR-

CUIT"

 .

PBIB1186E

PBIB0044E

Voltage: Battery voltage

MBIB0034E

IGNITION SIGNAL

EC-699

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

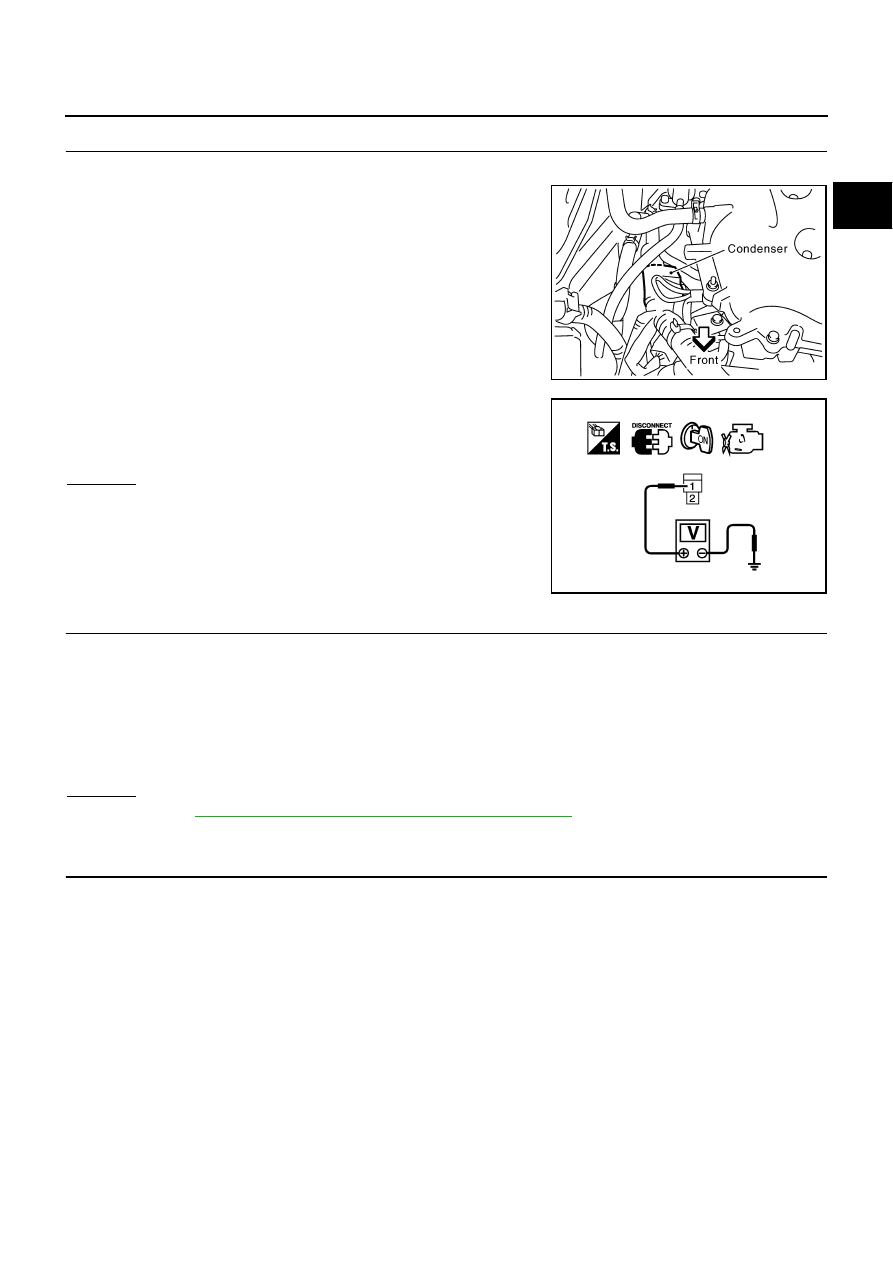

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II

1.

Turn ignition switch OFF.

2.

Disconnect condenser harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 6.

6.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connector E7.

3.

Check harness continuity between IPDM E/R terminal 17 and condenser terminal 1.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> Go to

EC-154, "POWER SUPPLY AND GROUND CIRCUIT"

 .

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E12, F3

●

Harness for open or short between IPDM E/R and condenser

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB1606E

Voltage: Battery voltage

PBIB0624E

Continuity should exist.

EC-700

[VQ35DE]

IGNITION SIGNAL

8.

CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to power in harness or connectors.

9.

CHECK CONDENSER

Refer to

EC-702, "Component Inspection"

OK or NG

OK

>> GO TO 10.

NG

>> Replace condenser.

10.

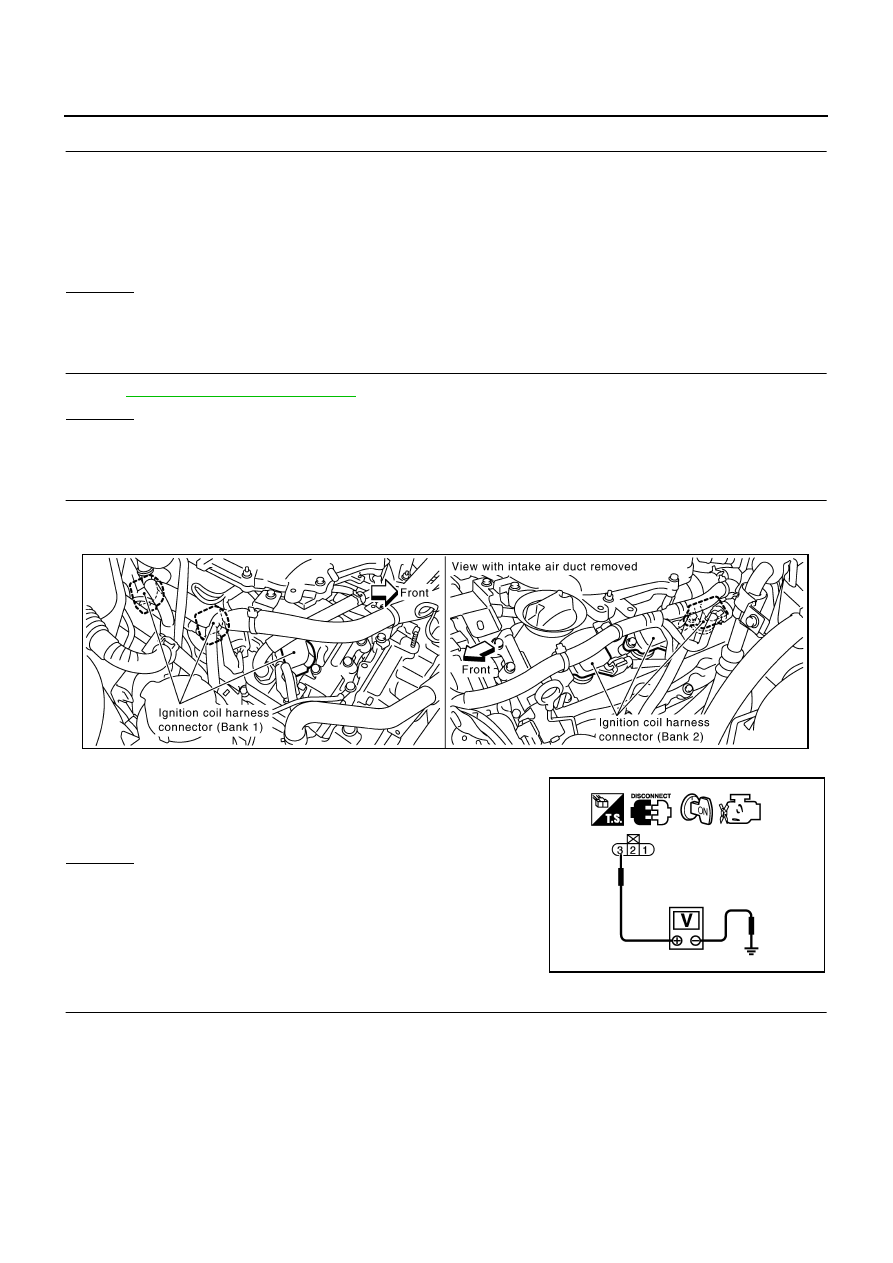

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V

1.

Reconnect all harness connectors disconnected.

2.

Disconnect ignition coil harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between ignition coil terminal 3 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 11.

11.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors F18, F201

●

Harness connector F3

●

Harness for open or short between ignition coil and harness connector F3

>> Repair or replace harness or connectors.

Continuity should exist.

Voltage: Battery voltage

PBIB1560E

PBIB0138E
