Infiniti M35/M45 Y50. Manual - part 531

DTC P1805 BRAKE SWITCH

EC-597

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Component Inspection

NBS0055W

STOP LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.

4.

If NG, adjust stop lamp switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

ICC BRAKE HOLD RELAY

1.

Check continuity between ICC brake hold relay terminals 3 and
5 under the following conditions.

2.

If NG, replace ICC brake hold relay.

Condition

Continuity

When brake pedal: Fully released.

Should not exist.

When brake pedal: Slightly depressed.

Should exist.

PBIA9489J

Condition

Continuity

12V direct current supply between terminals
1 and 2

Should not exist

No current supply

Should exist

PBIB0098E

EC-598

[VQ35DE]

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY

PFP:16119

Component Description

NBS0055X

Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.

CONSULT-II Reference Value in Data Monitor Mode

NBS0055Y

Specification data are reference values.

On Board Diagnosis Logic

NBS0055Z

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MlL lights up.

DTC Confirmation Procedure

NBS00560

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

PROCEDURE FOR DTC P2100

 With CONSULT-II

1.

Turn ignition switch ON and wait at least 2 seconds.

2.

Select “DATA MONITOR””mode with CONSULT-II.

3.

Start engine and let it idle for 5 seconds.

4.

If DTC is detected, go to

EC-601, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL RELAY

●

Ignition switch: ON

ON

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2100
2100

Throttle control motor
relay circuit open

ECM detects a voltage of power source for
throttle control motor is excessively low.

●

Harness or connectors
(Throttle control motor relay circuit is
open)

●

Throttle control motor relay

P2103
2103

Throttle control motor
relay circuit short

ECM detect the throttle control motor relay is
stuck ON.

●

Harness or connectors
(Throttle control motor relay circuit is
shorted)

●

Throttle control motor relay

Engine operating condition in fail-safe mode

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

SEF058Y

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY

EC-599

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

PROCEDURE FOR DTC P2103

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V.

 With CONSULT-II

1.

Turn ignition switch ON and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

If DTC is detected, go to

EC-601, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

SEF058Y

EC-600

[VQ35DE]

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY

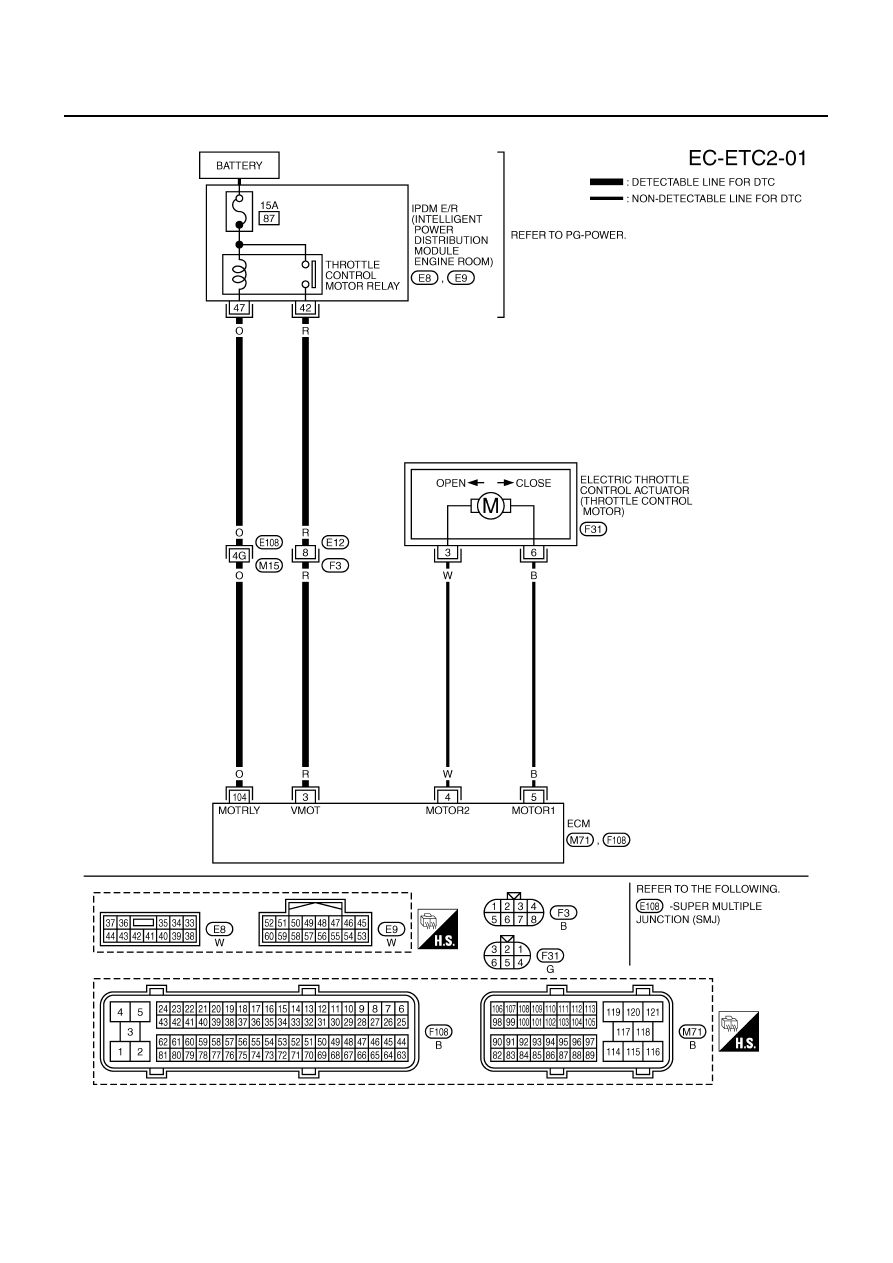

Wiring Diagram

NBS00561

TBWT1479E
