DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-441

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between EVAP control system pressure sensor
terminal 3 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors B171, B469

●

Harness connectors B418, M66

●

Harness connectors M72, F102

●

Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND

SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal
67.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors B171, B469

●

Harness connectors B418, M66

●

Harness connectors M72, F102

●

Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

Voltage: Approximately 5V

PBIB0138E

Continuity should exist.

EC-442

[VQ35DE]

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

7.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND

SHORT

1.

Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal
2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors B171, B469

●

Harness connectors B418, M66

●

Harness connectors M72, F102

●

Harness for open or short between EVAP control system pressure sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK RUBBER TUBE

1.

Disconnect rubber tube connected to EVAP canister vent control valve.

2.

Check the rubber tube for clogging.

OK or NG

OK

>> GO TO 10.

NG

>> Clean the rubber tube using an air blower, repair or replace rubber tube.

10.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-420, "Component Inspection"

 .

OK or NG

OK

>> GO TO 11.

NG

>> Replace EVAP canister vent control valve.

11.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-444, "Component Inspection"

 .

OK or NG

OK

>> GO TO 12.

NG

>> Replace EVAP control system pressure sensor.

Continuity should exist.

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-443

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

12.

CHECK IF EVAP CANISTER SATURATED WITH WATER

1.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.

2.

Check if water will drain from the EVAP canister (1).

–

EVAP canister vent control valve (2)

Yes or No

Yes

>> GO TO 13.

No

>> GO TO 15.

13.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.0 kg (4.4 lb).

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 14.

14.

DETECT MALFUNCTIONING PART

Check the following.

●

EVAP canister for damage

●

EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister.

15.

CHECK INTERMITTENT INCIDENT

Refer to

EC-153, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

PBIB2731E

EC-444

[VQ35DE]

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

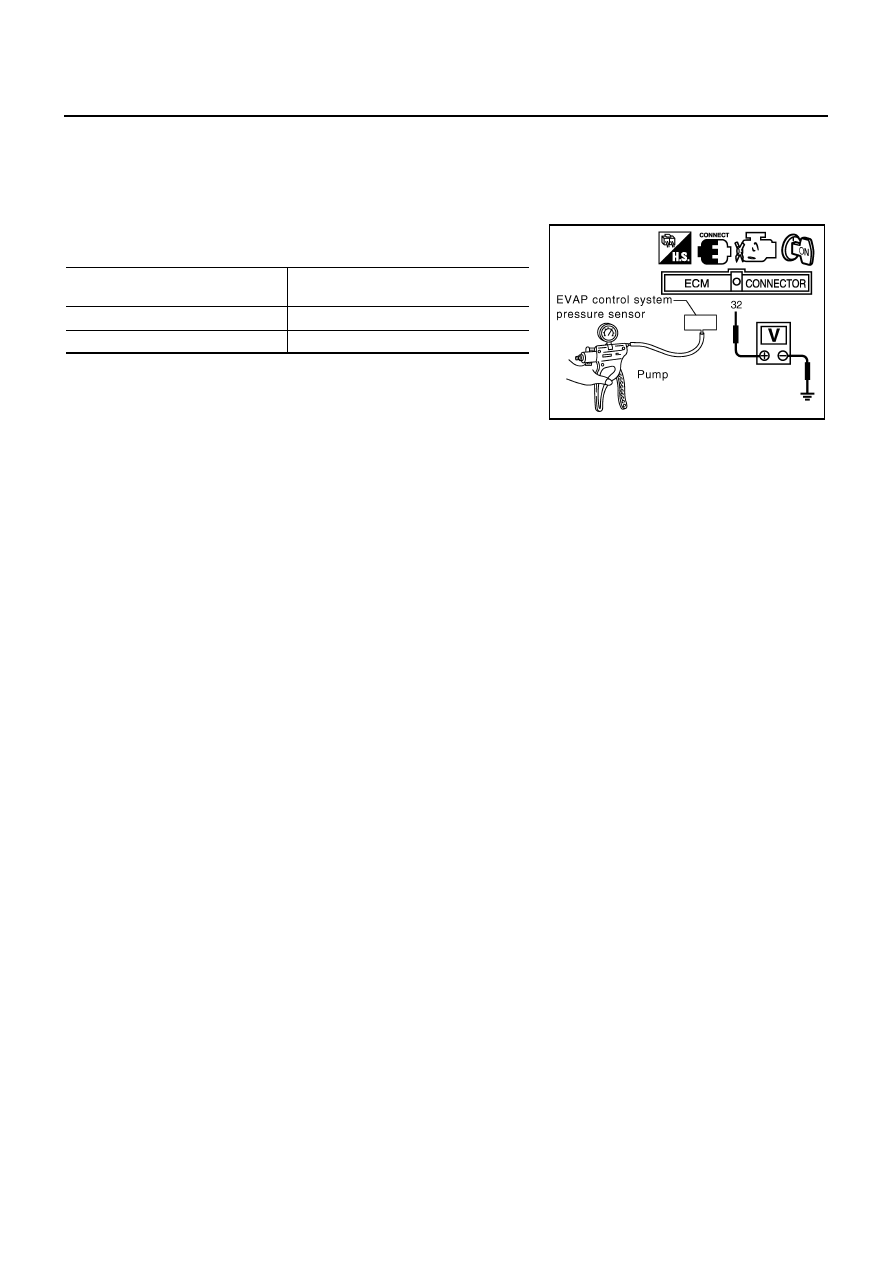

Component Inspection

NBS00511

EVAP CONTROL SYSTEM PRESSURE SENSOR

1.

Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.

2.

Install a vacuum pump to EVAP control system pressure sensor.

3.

Turn ignition switch ON and check output voltage between ECM
terminal 32 and ground under the following conditions.

CAUTION:

●

Always calibrate the vacuum pump gauge when using it.

●

Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).

4.

If NG, replace EVAP control system pressure sensor.

Applied vacuum kPa

(mmHg, inHg)

Voltage V

Not applied

1.8 - 4.8

-26.7 (-200, -7.87)

2.1 to 2.5V lower than above value

PBIB1173E
