DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

EC-177

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

PFP:226A0

Description

NBS004U8

SYSTEM DESCRIPTION

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.

OPERATION

CONSULT-II Reference Value in Data Monitor Mode

NBS004U9

Specification data are reference values.

On Board Diagnosis Logic

NBS004UA

Sensor

Input signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Heated oxygen sensor 2
heater control

Heated oxygen sensor 2 heater

Engine coolant temperature sensor

Engine coolant temperature

Mass air flow sensor

Amount of intake air

Engine speed rpm

Heated oxygen sensor 2 heater

Above 3,600

OFF

Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load

ON

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed: Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load

ON

Engine speed: Above 3,600 rpm

OFF

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P0037
0037
(Bank 1)

Heated oxygen
sensor 2 heater
control circuit low

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

Harness or connectors
(The heated oxygen sensor 2 heater circuit is
open or shorted.)

Heated oxygen sensor 2 heater

P0057
0057
(Bank 2)

P0038
0038
(Bank 1)

Heated oxygen
sensor 2 heater
control circuit high

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 2
heater.)

Harness or connectors
(The heated oxygen sensor 2 heater circuit is
shorted.)

Heated oxygen sensor 2 heater

P0058
0058
(Bank 2)

EC-178

[VQ35DE]

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

DTC Confirmation Procedure

NBS004UB

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 11V and 16V at
idle.

 WITH CONSULT-II

1.

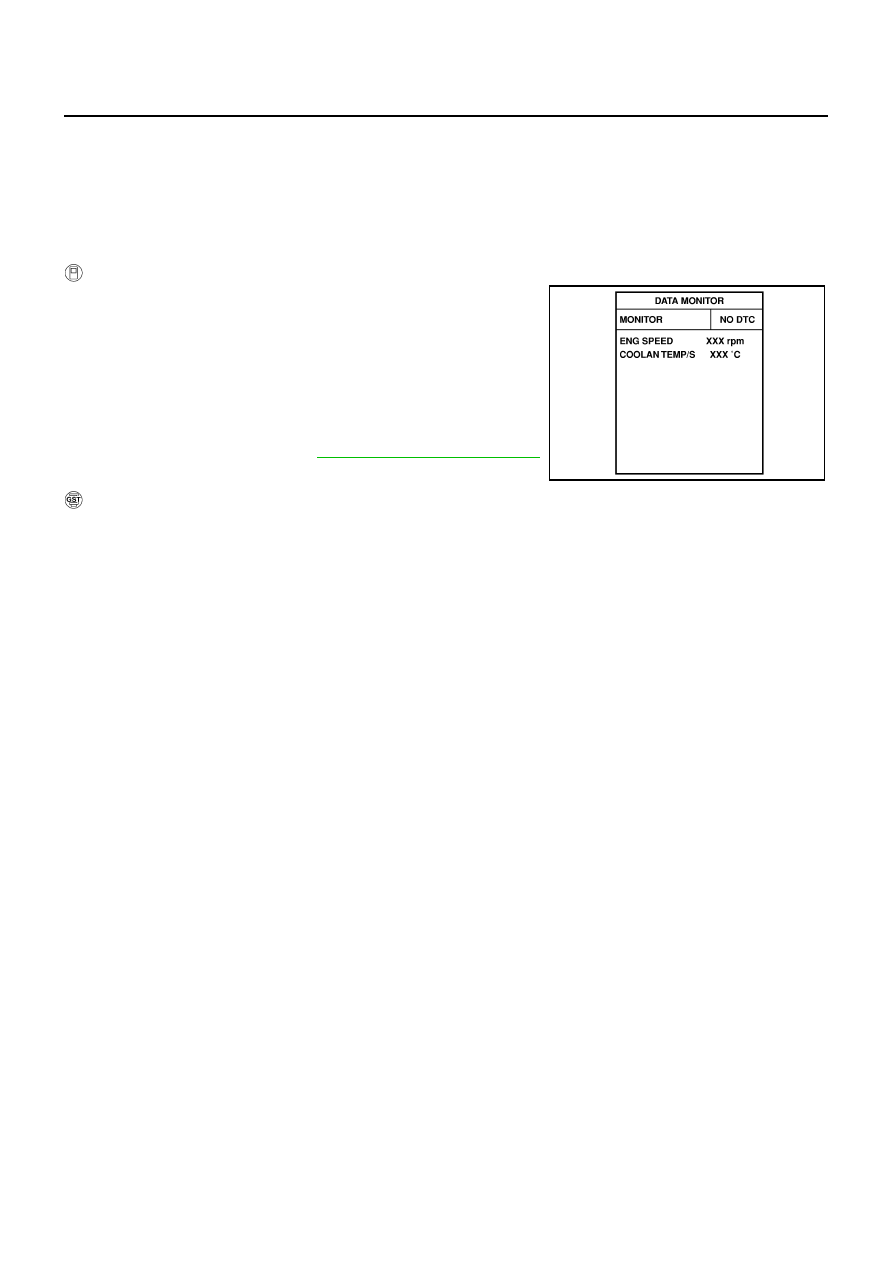

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and warm it up to the normal operating tempera-
ture.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Start the engine and keep the engine speed between 3,500 rpm
and 4,000 rpm for at least 1 minute under no load.

5.

Let engine idle for 1 minute.

6.

If 1st trip DTC is detected, go to

EC-182, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF174Y

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

EC-179

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Wiring Diagram

NBS004UC

BANK 1

TBWT1470E

EC-180

[VQ35DE]

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

25

P/B

Heated oxygen sensor 2
heater (bank 1)

[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

Engine stopped

[Engine is running]

Engine speed: Above 3,600 rpm

BATTERY VOLTAGE
(11 - 14V)

74

W

Heated oxygen sensor 2
(bank 1)

[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met

Engine: After warming up

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - Approximately 1.0V

78

B

Sensor ground
(Heated oxygen sensor)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V
