BASIC SERVICE PROCEDURE

EC-85

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

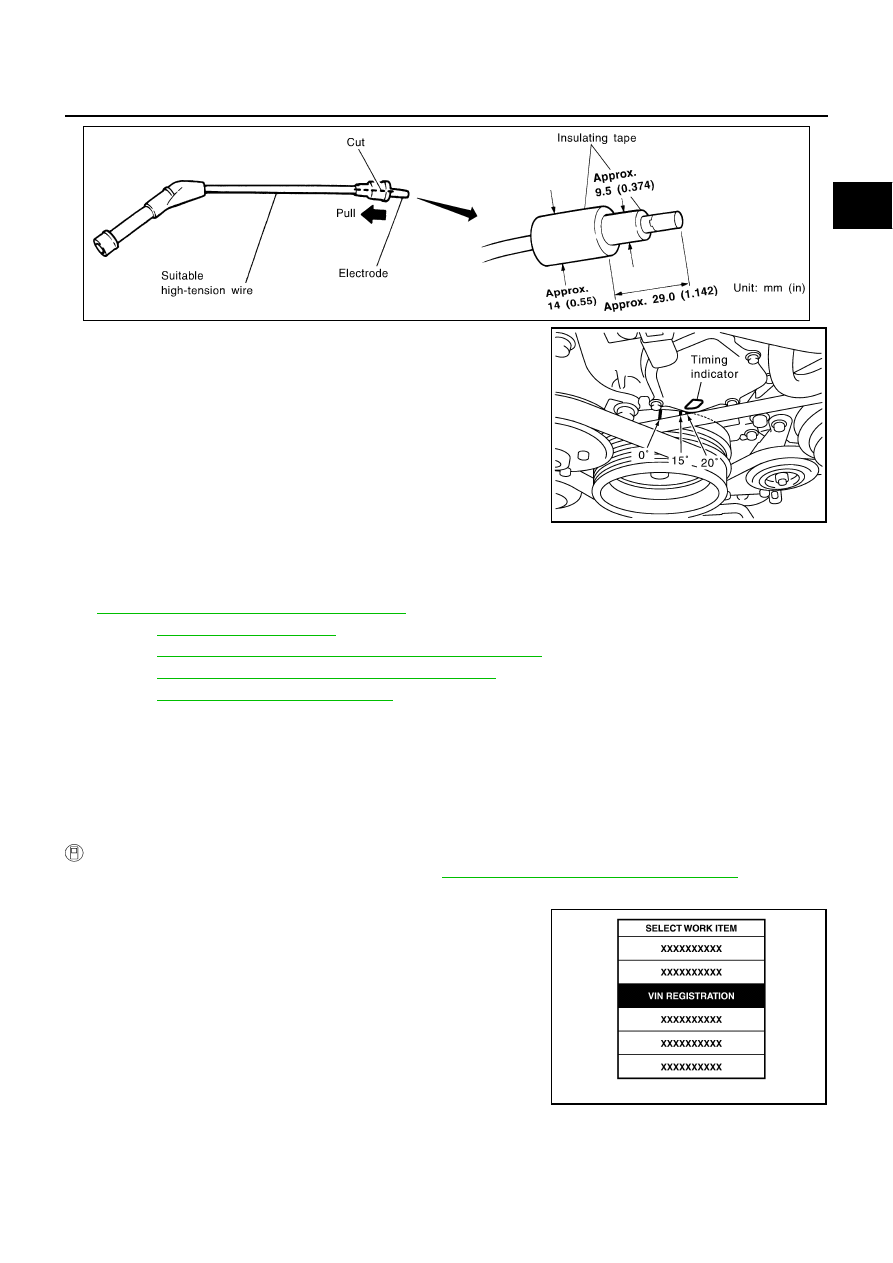

Check ignition timing.

Procedure After Replacing ECM

NBS005S8

When replacing ECM, the following procedure must be performed.

1.

Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to

BL-248, "ECM Re-Communicating Function"

 .

2.

Perform

EC-85, "VIN Registration"

 .

3.

Perform

EC-86, "Accelerator Pedal Released Position Learning"

 .

4.

Perform

EC-86, "Throttle Valve Closed Position Learning"

 .

5.

Perform

EC-86, "Idle Air Volume Learning"

 .

VIN Registration

NBS004ST

DESCRIPTION

VIN Registration is an operation to registering VIN in ECM. It must be performed each time ECM is replaced.

NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).

OPERATION PROCEDURE

 With CONSULT-II

1.

Check the VIN of the vehicle and note it. Refer to

GI-48, "IDENTIFICATION INFORMATION"

 .

2.

Turn ignition switch ON and engine stopped.

3.

Select “VIN REGISTRATION” in “WORK SUPPORT” mode.

4.

Follow the instruction of CONSULT-II display.

SEF166Y

PBIB1602E

PBIB2242E

EC-86

[VQ35DE]

BASIC SERVICE PROCEDURE

Accelerator Pedal Released Position Learning

NBS004SU

DESCRIPTION

Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.

OPERATION PROCEDURE

1.

Make sure that accelerator pedal is fully released.

2.

Turn ignition switch ON and wait at least 2 seconds.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Repeat step 2 and 3 for 4 times.

Throttle Valve Closed Position Learning

NBS004SV

DESCRIPTION

Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.

OPERATION PROCEDURE

1.

Make sure that accelerator pedal is fully released.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.

Idle Air Volume Learning

NBS004SW

DESCRIPTION

Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:

●

Each time electric throttle control actuator or ECM is replaced.

●

Idle speed or ignition timing is out of specification.

PREPARATION

Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.

●

Battery voltage: More than 12.9V (At idle)

●

Engine coolant temperature: 70 - 105

°

C (158 - 221

°

F)

●

PNP switch: ON

●

Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine
is started the headlamp will not be illuminated.

●

Steering wheel: Neutral (Straight-ahead position)

●

Vehicle speed: Stopped

●

Transmission: Warmed-up

–

With CONSULT-II: Drive vehicle until “ATF TEMP SE 1” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.

–

Without CONSULT-II: Drive vehicle for 10 minutes.

OPERATION PROCEDURE

 With CONSULT-II

1.

Perform

EC-86, "Accelerator Pedal Released Position Learning"

 .

2.

Perform

EC-86, "Throttle Valve Closed Position Learning"

 .

3.

Start engine and warm it up to normal operating temperature.

4.

Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

BASIC SERVICE PROCEDURE

EC-87

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

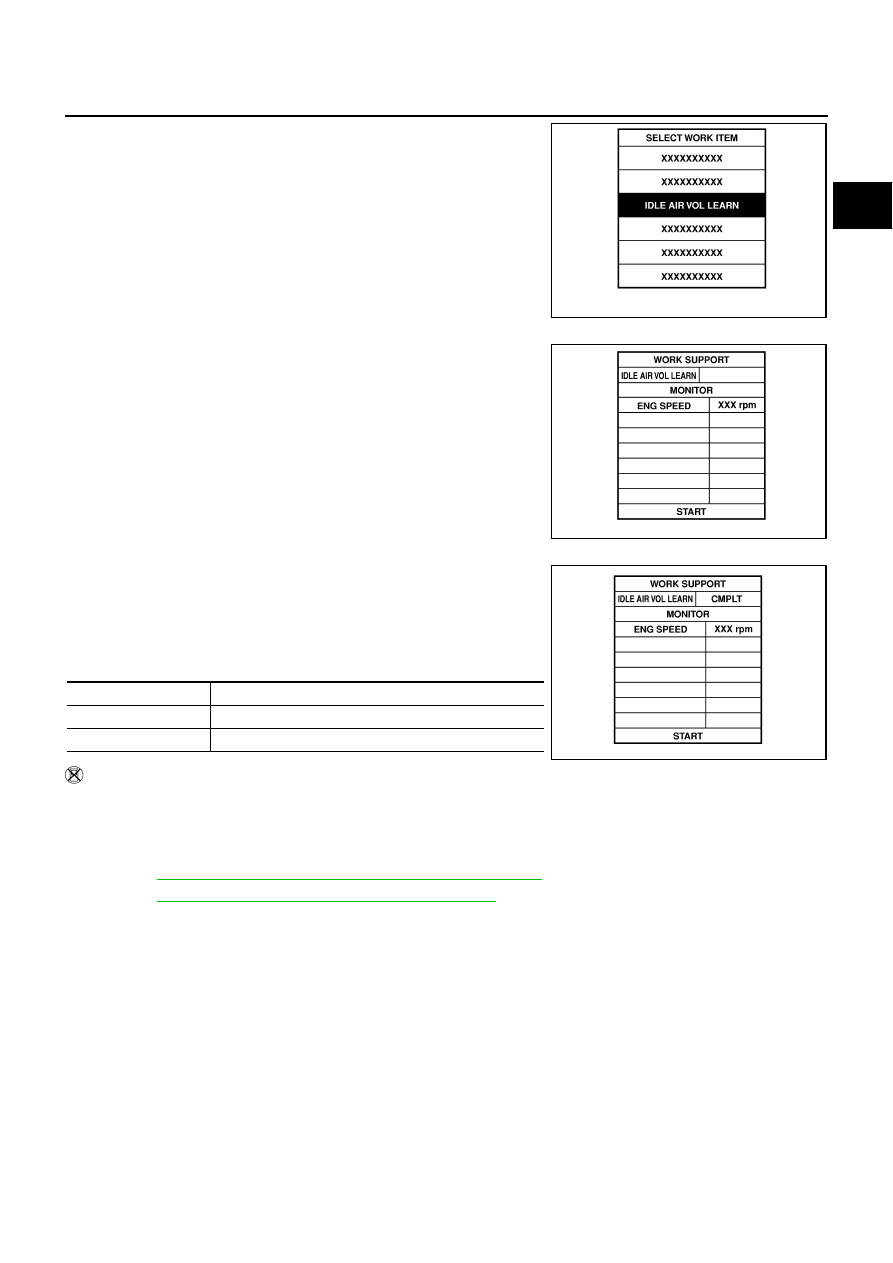

Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

6.

Touch “START” and wait 20 seconds.

7.

Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed, Idle Air Volume Learning will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the DIAGNOSTIC PROCEDURE below.

8.

Rev up the engine two or three times and make sure that idle
speed and ignition timing are within the specifications.

 Without CONSULT-II

NOTE:

●

It is better to count the time accurately with a clock.

●

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

1.

Perform

EC-86, "Accelerator Pedal Released Position Learning"

 .

2.

Perform

EC-86, "Throttle Valve Closed Position Learning"

 .

3.

Start engine and warm it up to normal operating temperature.

4.

Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

7.

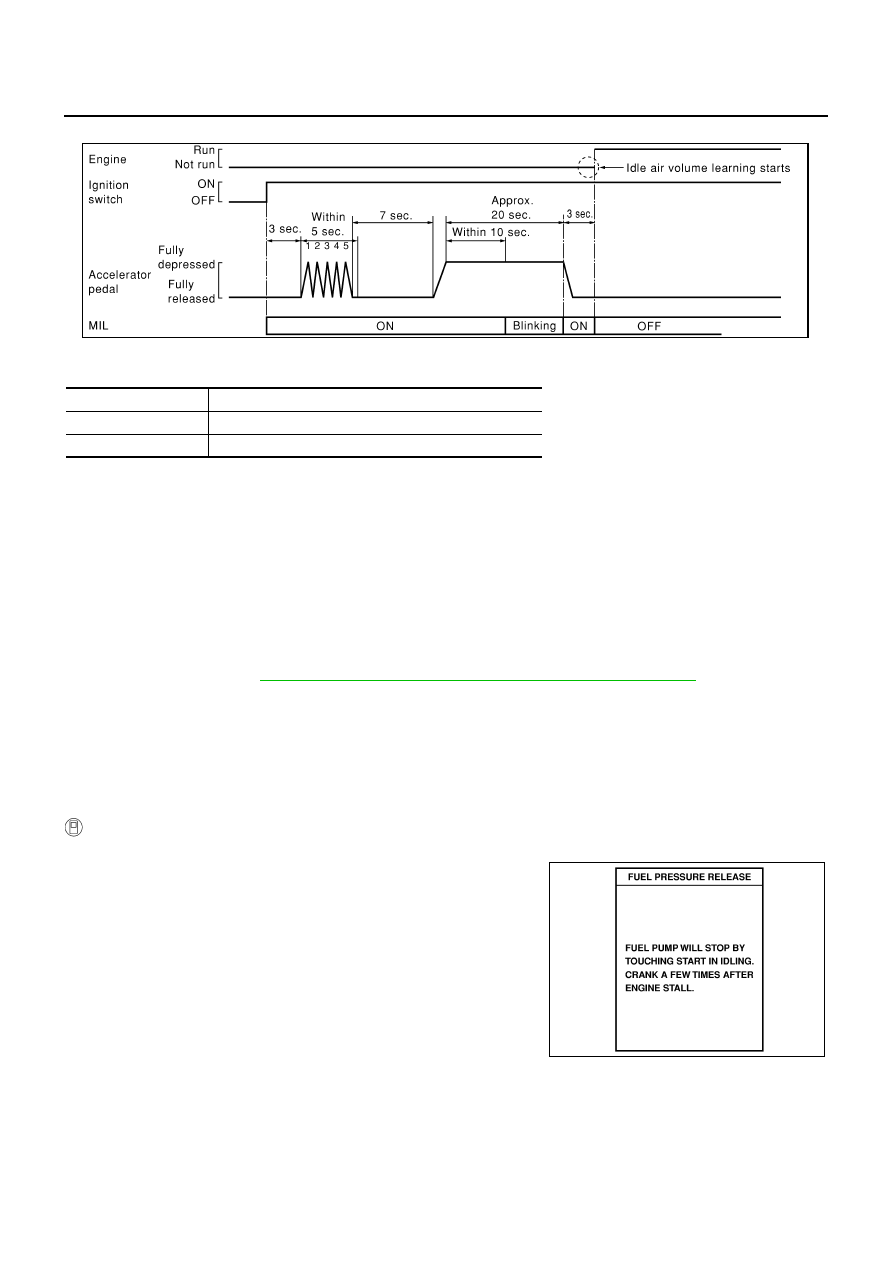

Repeat the following procedure quickly five times within 5 seconds.

a.

Fully depress the accelerator pedal.

b.

Fully release the accelerator pedal.

8.

Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops
blinking and turned ON.

9.

Fully release the accelerator pedal within 3 seconds after the MIL turned ON.

10. Start engine and let it idle.

SEF217Z

SEF454Y

ITEM

SPECIFICATION

Idle speed

650

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

MBIB0238E

EC-88

[VQ35DE]

BASIC SERVICE PROCEDURE

11. Wait 20 seconds.

12. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the

specifications.

13. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carried

out successfully. In this case, find the cause of the incident by referring to the DIAGNOSTIC PROCE-
DURE below.

DIAGNOSTIC PROCEDURE

If idle air volume learning cannot be performed successfully, proceed as follows:

1.

Check that throttle valve is fully closed.

2.

Check PCV valve operation.

3.

Check that downstream of throttle valve is free from air leakage.

4.

When the above three items check out OK, engine component parts and their installation condi-
tion are questionable. Check and eliminate the cause of the incident.
It is useful to perform

EC-143, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

5.

If any of the following conditions occur after the engine has started, eliminate the cause of the
incident and perform Idle Air Volume Learning all over again:

–

Engine stalls.

–

Erroneous idle.

Fuel Pressure Check

NBS004SX

FUEL PRESSURE RELEASE

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT”
mode with CONSULT-II.

3.

Start engine.

4.

After engine stalls, crank it two or three times to release all fuel
pressure.

5.

Turn ignition switch OFF.

ITEM

SPECIFICATION

Idle speed

650

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

SEC897C

SEF214Y
