WARNING CHIME

DI-63

C

D

E

F

G

H

I

J

L

M

A

B

DI

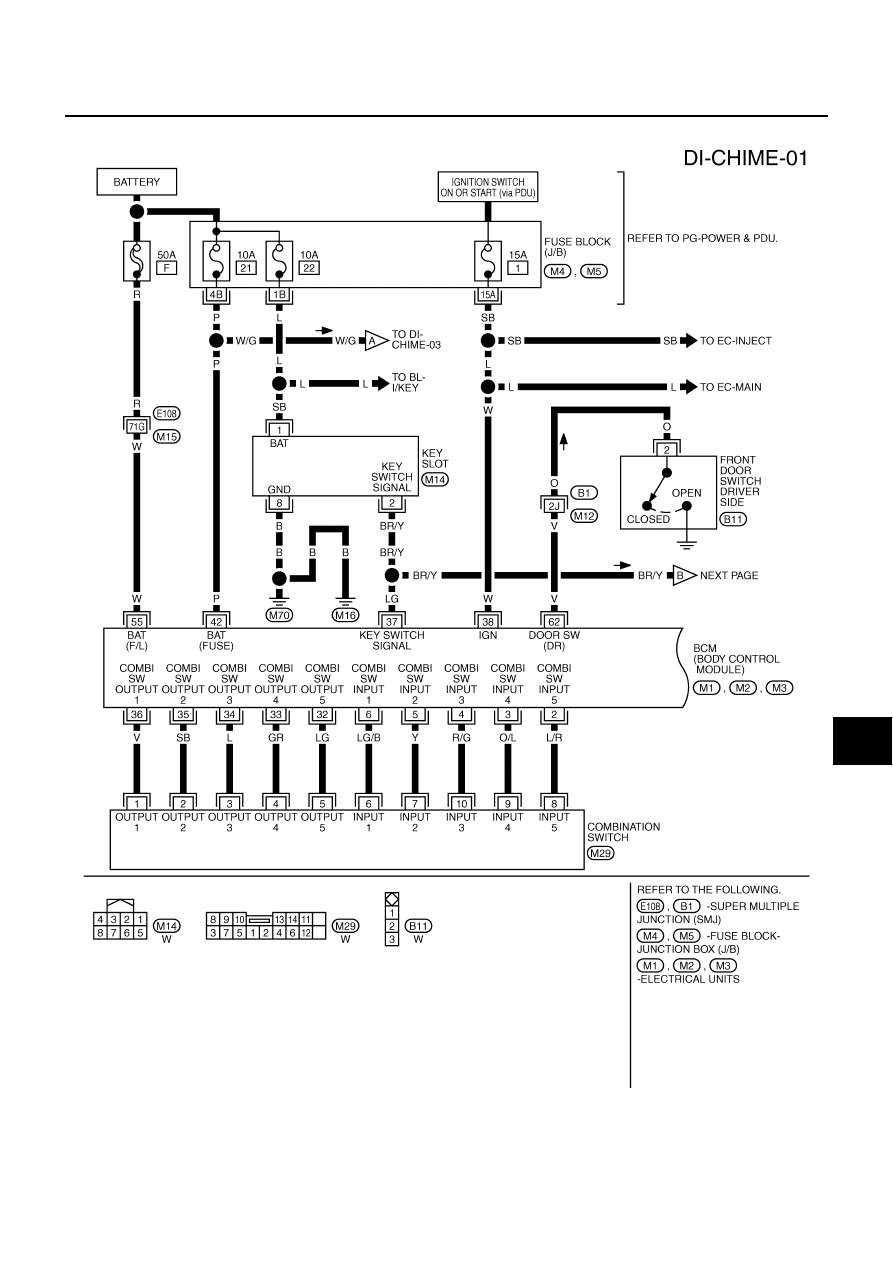

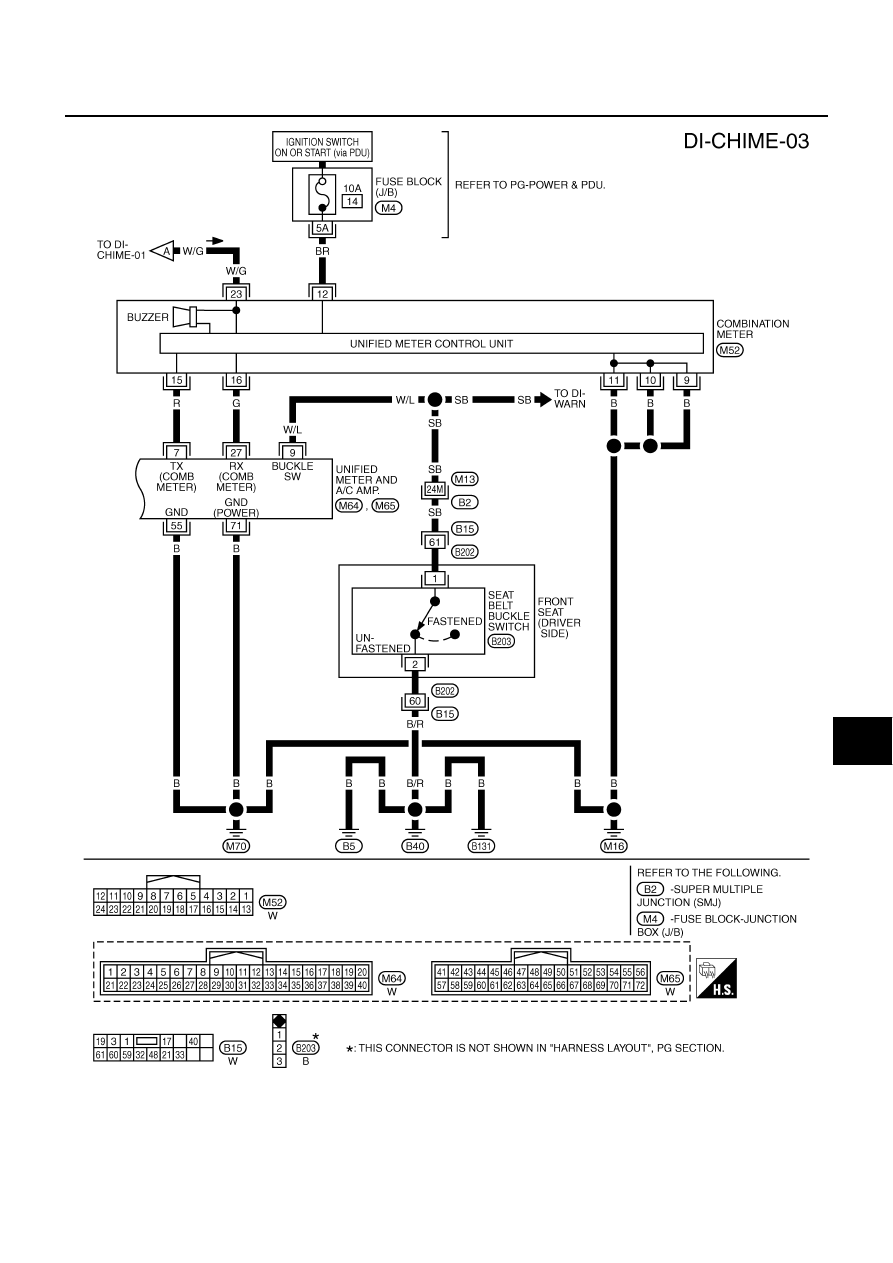

Wiring Diagram — CHIME —

NKS003V1

TKWT5285E

DI-64

WARNING CHIME

TKWT5286E

WARNING CHIME

DI-65

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWT5085E

DI-66

WARNING CHIME

Terminals and Reference Value for Combination Meter

NKS003V2

Terminals and Reference Value for Unified Meter and A/C Amp.

NKS003V3

Terminal

No.

Wire

color

Item

Condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

9

B

Ground

ON

—

0 V

10

11

12

BR

Ignition switch ON or START

ON

—

Battery voltage

15

R

RX communication line (From
unified meter and A/C amp.)

ON

—

16

G

TX communication line (To
unified meter and A/C amp.)

ON

—

23

W/G

Battery power supply

OFF

—

Battery voltage

SKIA3362E

SKIA3361E

Terminal

No.

Wire

color

Item

Condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

7

R

TX communication line
(To combination meter)

ON

—

9

W/L

Seat belt buckle switch
(drive side)

ON

Seat belt is unfastened
(Seat belt buckle switch ON)

0 V

Seat belt is fastened
(Seat belt buckle switch OFF)

12 V

27

G

RX communication line
(From combination meter)

ON

—

53

W/G

Ignition switch ON or START

ON

—

Battery voltage

54

W/G

Battery power supply

OFF

—

Battery voltage

55

B

Ground

ON

—

0 V

56

L

CAN–H

—

—

—
