Infiniti M35/M45 Y50. Manual - part 368





A/T INDICATOR

DI-55

C

D

E

F

G

H

I

J

L

M

A

B

DI

A/T INDICATOR

PFP:24814

System Description

NKS003UV

A/T position is displayed in the dot matrix LCD in the combination meter.

MANUAL MODE

Unified meter and A/C amp. inputs manual mode signal and shift-up/down signal from A/T device (manual
mode switch), and transmits the signals to TCM with CAN communication.

TCM processes manual mode signal and shift-up/down signal, and transmits manual mode indicator sig-
nal and A/T position indicator signal to unified meter and A/C amp. with CAN communication.

Unified meter and A/C amp. transmits manual mode indicator signal and A/T position indicator signal to
combination meter with the communication line.

Combination meter indicates A/T gear position and manual mode indicator, when receiving manual mode
indicator signal and A/T position indicator signal.

NOT MANUAL MODE

Unified meter and A/C amp. inputs not manual mode signal from A/T device (manual mode switch), and
transmits the signals to TCM with CAN communication.

TCM transmits A/T position indicator signal to unified meter and A/C amp. with CAN communication.

Unified meter and A/C amp. transmits A/T position indicator signal to combination meter with the commu-
nication line.

Combination meter indicates A/T shift position when receiving A/T position indicator signal.

PKIB7660E

DI-56

A/T INDICATOR

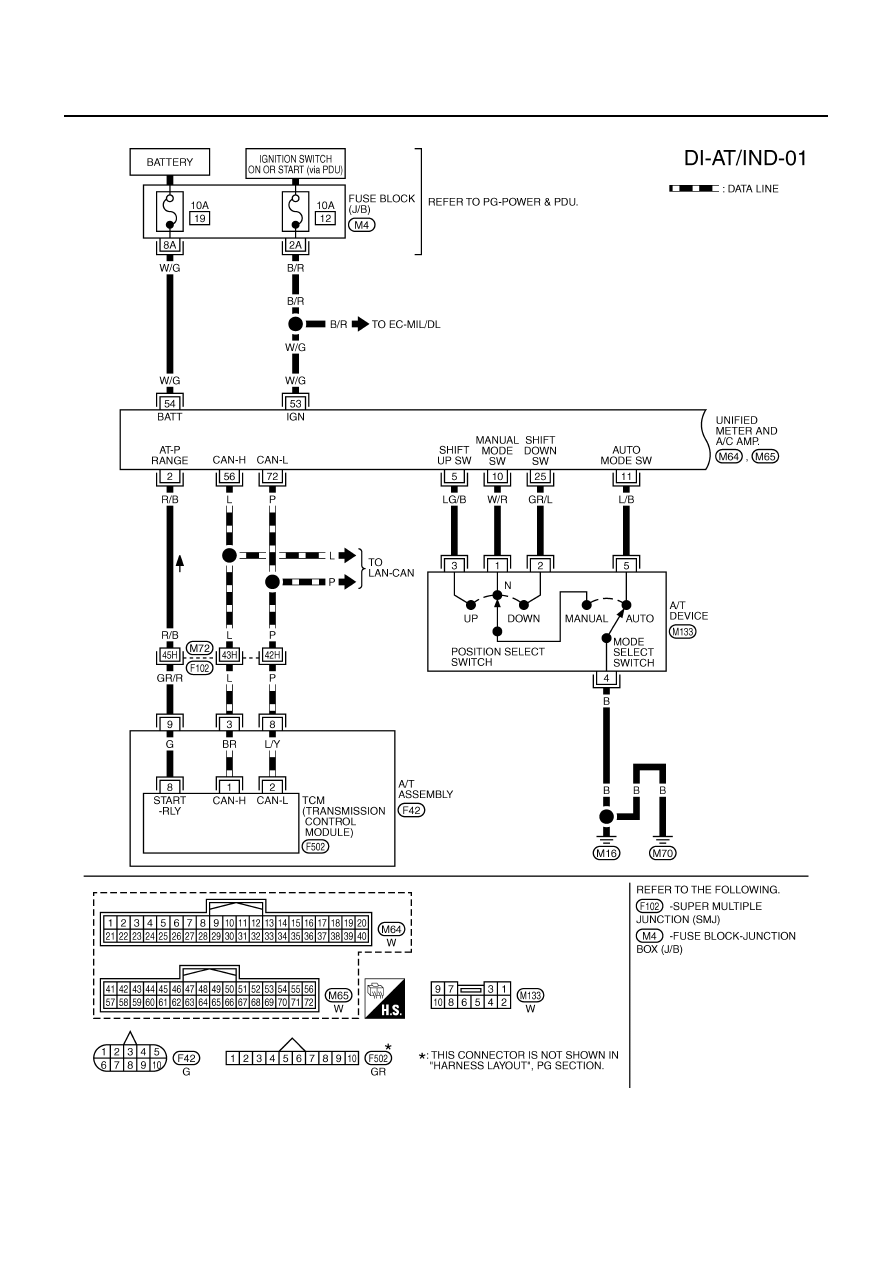

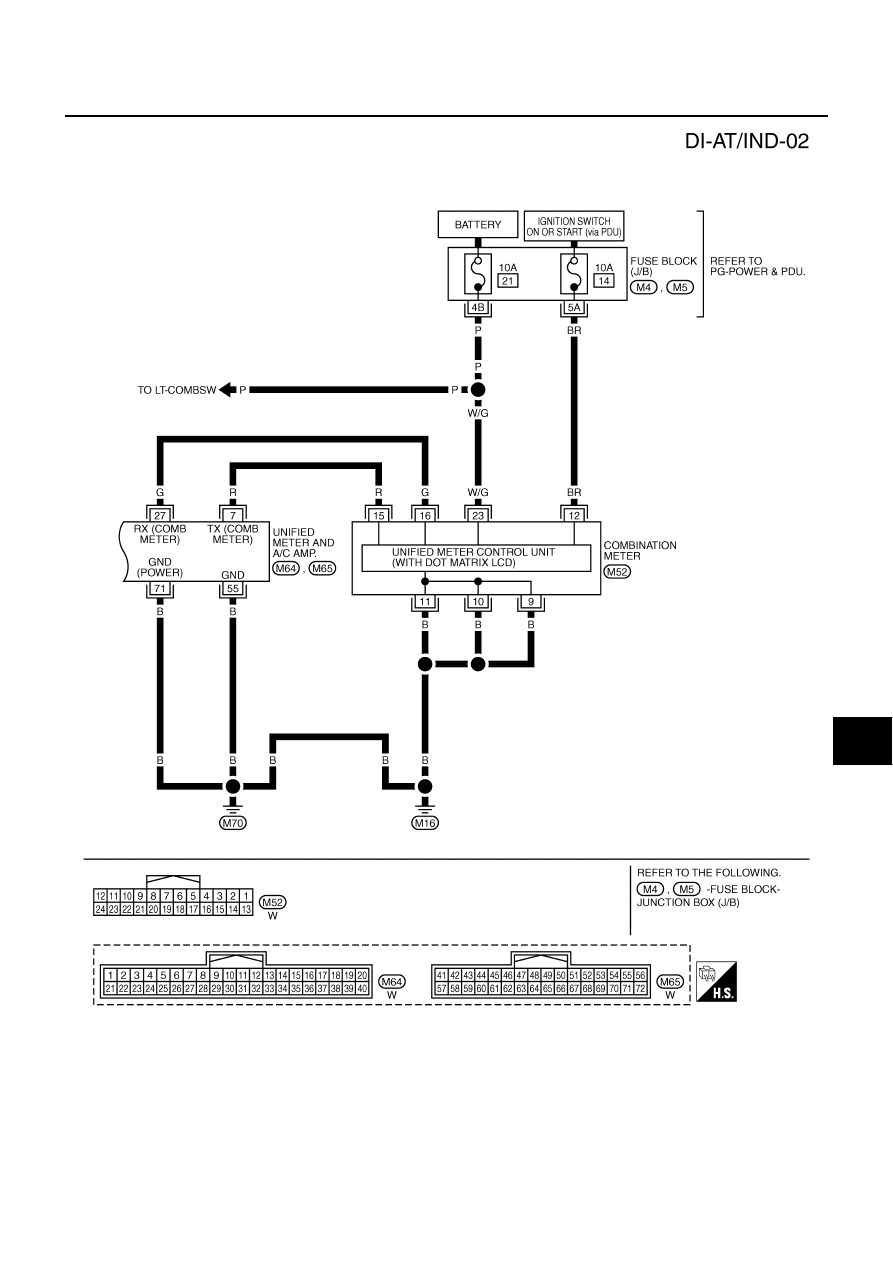

Wiring Diagram — AT/IND —

NKS003UW

TKWT3438E

A/T INDICATOR

DI-57

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWT4892E

DI-58

A/T INDICATOR

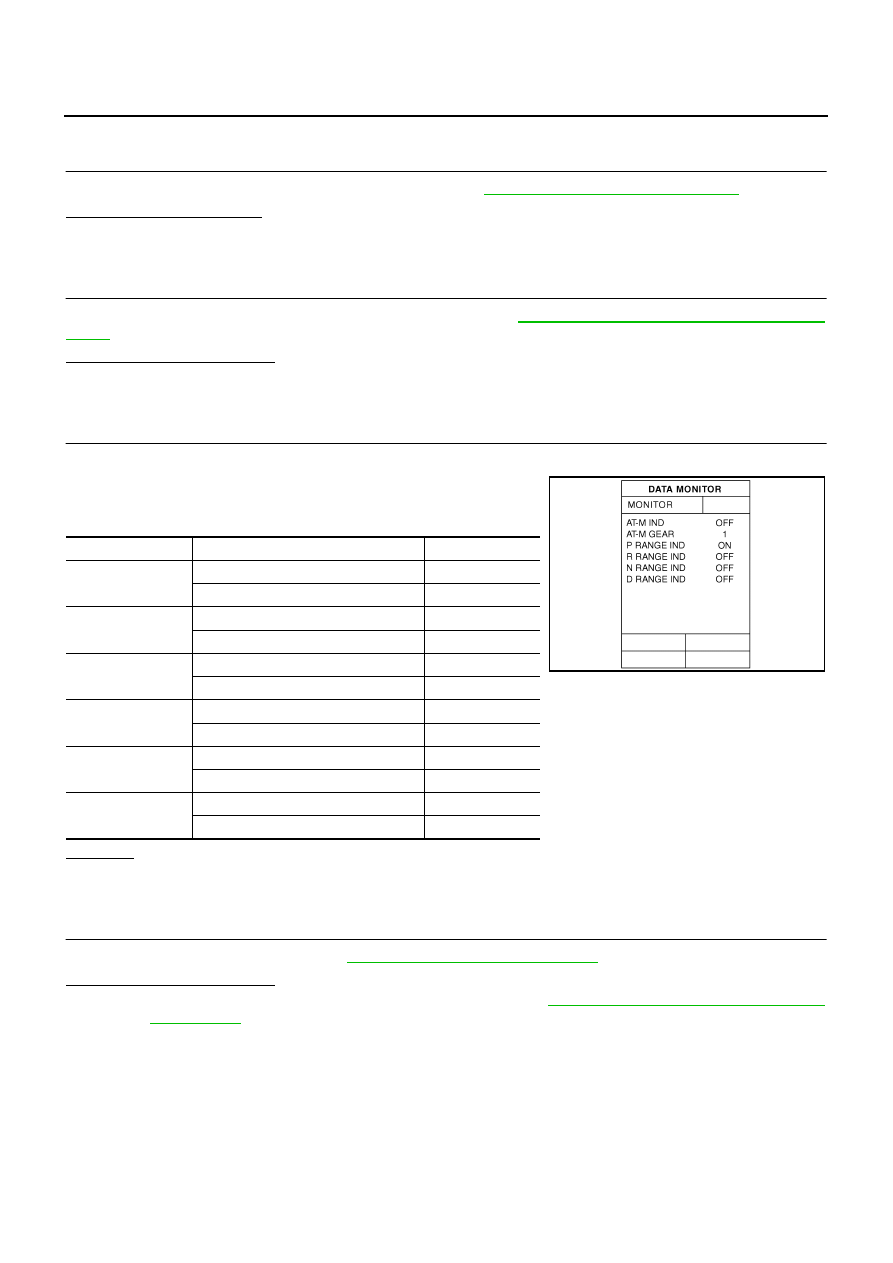

A/T Indicator Is Malfunction

NKS003UX

1.

CHECK SEGMENTS OF A/T INDICATOR

Perform self-diagnosis mode of combination meter. Refer to

DI-17, "OPERATION PROCEDURE"

 .

Are all segments displayed?

YES

>> GO TO 2.

NO

>> Replace combination meter.

2.

CHECK UNIFIED METER AND A/C AMP. (CONSULT-II)

Perform self-diagnosis of unified meter and A/C amp. Refer to

DI-31, "CONSULT-II Function (METER A/C

AMP)"

 .

Self-diagnostic results content

No malfunction detected>> GO TO 3.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

3.

CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL

1.

Connect CONSULT-II and start engine.

2.

Use “DATA MONITOR” of “METER A/C AMP” on CONSULT-II.
Confirm each indication on the monitor when operating the shift
lever.

OK or NG

OK

>> Replace combination meter.

NG

>> GO TO 4.

4.

CHECK TCM (CONSULT-II)

Perform self-diagnosis of TCM. Refer to

AT-90, "CONSULT-II Function (A/T)"

 .

Self-diagnostic results content

No malfunction detected>>Check TCM input/output signal. Refer to

AT-89, "TCM Input/Output Signal Refer-

ence Values"

 .

Malfunction detected>>Check applicable part, and repair or replace corresponding parts.

Display item

Switch operation

Operation status

AT-M IND

Manual mode range

ON

Except for manual mode range

OFF

AT-M GEAR

Manual mode range (shift- up or down)

5 - 1

Except for manual mode range

1

P RANGE IND

P range

ON

Except for P range

OFF

R RANGE IND

R range

ON

Except for R range

OFF

N RANGE IND

N range

ON

Except for N range

OFF

D RANGE IND

D range

ON

Except for D range

OFF

SKIA6259E
