WARNING LAMPS

PFP:24814

System Description

NKS003UO

OIL PRESSURE WARNING LAMP

Oil pressure warning lamp turns ON when reducing engine oil pressure abnormally.

IPDM E/R inputs oil pressure switch signal from oil pressure switch, and transmits the signal to unified
meter and A/C amp. through BCM with CAN communication.

Unified meter and A/C amp. transmits oil pressure switch signal to combination meter with communication
line.

Let the combination meter turn oil pressure warning lamp ON with received oil pressure switch signal.

PKIB7655E

DI-40

WARNING LAMPS

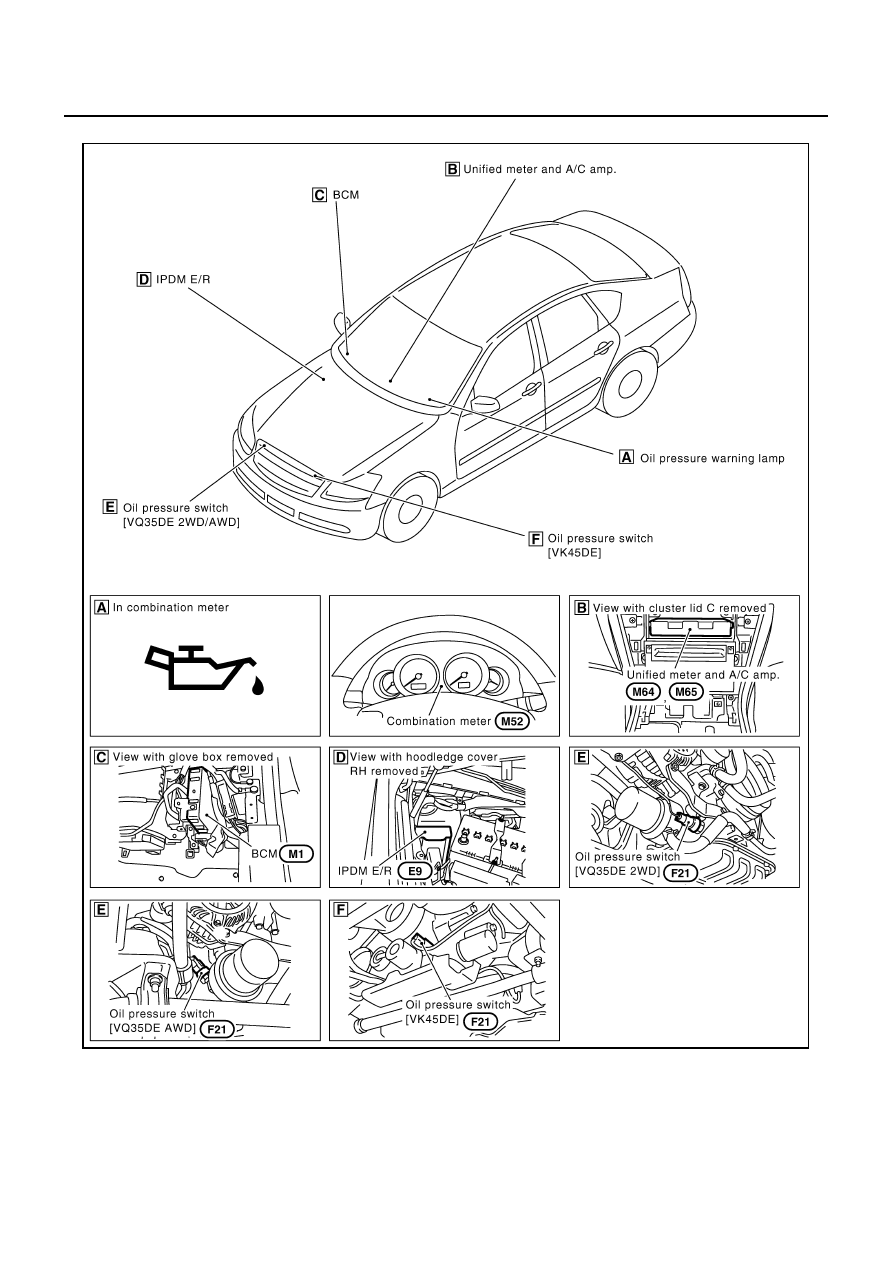

Component Parts and Harness Connector Location

NKS003UP

PKIB7653E

WARNING LAMPS

DI-41

C

D

E

F

G

H

I

J

L

M

A

B

DI

Schematic

NKS003UQ

NOTE:
For the further details, refer to descriptions on each system.

TKWT3426E

DI-42

WARNING LAMPS

Wiring Diagram — WARN —

NKS003UR

TKWT3427E
