THERMOSTAT AND WATER CONTROL VALVE

CO-57

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

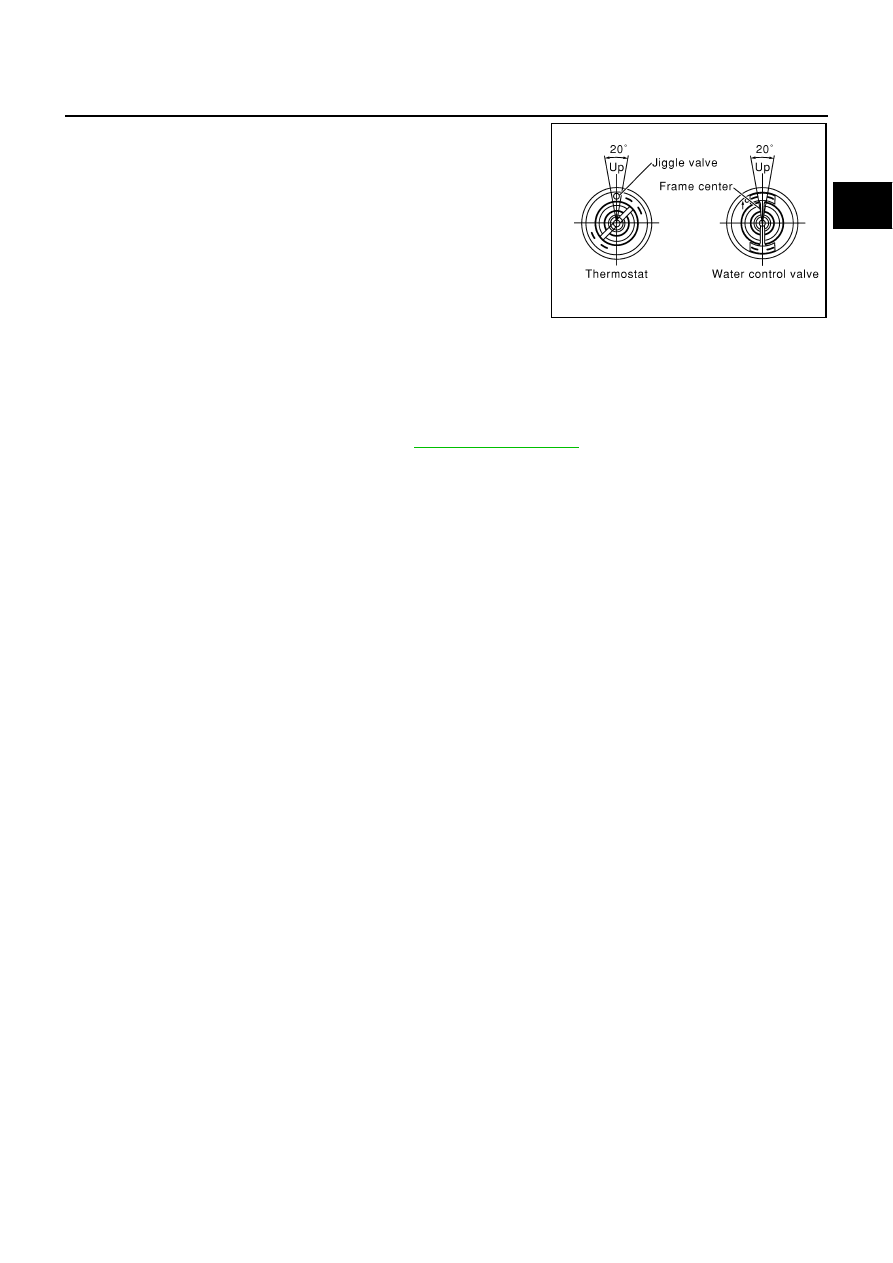

Install thermostat with jiggle valve facing upwards. (The position
deviation may be within the range of

±

10 degrees)

Install water control valve with the up-mark facing up and the
frame center part facing upwards. (The position deviation may
be within the range of

±

10 degrees)

Water Outlet Pipe and Heater Pipe

First apply a neutral detergent to O-rings, then quickly insert the insertion parts of the water outlet pipe and
heater pipe into the installation holes.

INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter (commercial service tool) and radiator
cap tester (commercial service tool). Refer to

CO-40, "LEAK CHECK"

 .

Start and warm up engine. Visually check if there is no leaks of engine coolant.

PBIC0158E

CO-58

[VK45DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Standard and Limit

NBS004RT

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (US qt, Imp qt)

RADIATOR

Unit: kPa (kg/cm

2

 , psi)

THERMOSTAT

WATER CONTROL VALVE

Engine coolant capacity (With reservoir tank at “MAX” level)

10.4 (11, 9-1/8)

Reservoir tank engine coolant capacity (at “MAX” level)

0.8  (7/8, 3/4)

Radiator cap relief pressure

Standard

78 - 98 (0.8 - 1.0, 11 - 14)

Limit

59 (0.6, 9)

Leakage testing pressure

157 (1.6, 23)

Thermostat

Standard

Valve opening temperature

80 - 84

°

C (176 - 183

°

F)

Maximum valve lift

More than 10 mm/95

°

C (0.39 in/203

°

F)

Valve closing temperature

77

°

C (171

°

F)

Water control valve

Standard

Valve opening temperature

93.5 - 96.5

°

C (200 - 206

°

F)

Maximum valve lift

More than 8 mm/108

°

C (0.315 in/226

°

F)

Valve closing temperature

90

°

C (194

°

F)

DI-1

DRIVER INFORMATION SYSTEM

K  ELECTRICAL

CONTENTS

C

D

E

F

G

H

I

J

L

M

SECTION

DI

A

B

DI

DRIVER INFORMATION SYSTEM

PRECAUTION ............................................................ 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3

PREPARATION ........................................................... 4

Commercial Service Tools ........................................ 4

COMBINATION METERS ........................................... 5

System Description  .................................................. 5

UNIFIED METER CONTROL UNIT  ...................... 5
UNIFIED METER AND A/C AMP.  ......................... 5
POWER SUPPLY AND GROUND CIRCUIT  ........ 5
SPEEDOMETER ................................................... 6
TACHOMETER ..................................................... 6
WATER TEMPERATURE GAUGE ........................ 6
FUEL GAUGE  ....................................................... 7
ODO/TRIP METER  ............................................... 7
METER ILLUMINATION CONTROL  ..................... 8
FAIL-SAFE ............................................................ 9

Arrangement of Combination Meter  ....................... 10
Component Parts Location ......................................11
Internal Circuit  ........................................................ 12
Wiring Diagram — METER — ................................ 13
Terminals and Reference Value for Combination
Meter ...................................................................... 15
Terminals and Reference Value for Unified Meter
and A/C Amp. ......................................................... 16
Self-Diagnosis Mode of Combination Meter ........... 17

SELF-DIAGNOSIS FUNCTION  .......................... 17
OPERATION PROCEDURE  ............................... 17

CONSULT-II Function (METER A/C AMP) ............. 18
Trouble Diagnosis  .................................................. 18

HOW TO PERFORM TROUBLE DIAGNOSIS ... 18
PRELIMINARY CHECK  ...................................... 18

Symptom Chart  ...................................................... 18
Power Supply and Ground Circuit Inspection  ........ 19
Vehicle Speed Signal Inspection  ............................ 20
Engine Speed Signal Inspection  ............................ 21
Engine Coolant Temperature Signal Inspection  ..... 22
Fuel Level Sensor Signal Inspection ...................... 22
Fuel Gauge Pointer Fluctuates, Indicator Wrong

Value or Varies  ....................................................... 25
Fuel Gauge Does Not Move to FULL Position  ....... 25
Electrical Components Inspection  .......................... 26

CHECK FUEL LEVEL SENSOR UNIT  ................ 26

Removal and Installation of Combination Meter  ..... 27

REMOVAL ........................................................... 27
INSTALLATION ................................................... 27

Disassembly and Assembly of Combination Meter ... 27

DISASSEMBLY ................................................... 27
ASSEMBLY ......................................................... 27

UNIFIED METER AND A/C AMP .............................. 28

System Description ................................................. 28

COMBINATION METER CONTROL FUNCTION ... 28
A/C AUTO AMP. FUNCTION ............................... 29
OTHER FUNCTIONS  .......................................... 29

Schematic ............................................................... 30
CONSULT-II Function (METER A/C AMP)  ............. 31

CONSULT-II BASIC OPERATION  ....................... 31
SELF-DIAG RESULTS  ........................................ 31
DATA MONITOR  ................................................. 32

Power Supply and Ground Circuit Inspection ......... 34
DTC [U1000] CAN Communication Circuit ............. 35
DTC [B2202] Meter Communication Circuit  ........... 35
DTC [B2205] Vehicle Speed Circuit ........................ 38
Removal and Installation of Unified Meter and A/C
Amp. ....................................................................... 38

REMOVAL ........................................................... 38
INSTALLATION ................................................... 38

WARNING LAMPS .................................................... 39

System Description ................................................. 39

OIL PRESSURE WARNING LAMP  ..................... 39

Component Parts and Harness Connector Location

... 40

Schematic ............................................................... 41
Wiring Diagram — WARN — .................................. 42
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON)  ............................................................. 52
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ................................................ 53
Electrical Component Inspection  ............................ 54

OIL PRESSURE SWITCH ................................... 54

DI-2

A/T INDICATOR  ........................................................ 55

System Description ................................................. 55

MANUAL MODE  .................................................. 55
NOT MANUAL MODE  ......................................... 55

Wiring Diagram — AT/IND —  ................................. 56
A/T Indicator Is Malfunction  .................................... 58

WARNING CHIME ..................................................... 59

System Description ................................................. 59

POWER SUPPLY AND GROUND CIRCUIT  ....... 59
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY)  ...................................................... 60
LIGHT WARNING CHIME  ................................... 60
SEAT BELT WARNING CHIME  ........................... 60

Component Parts and Harness Connector Location ... 61
Schematic ............................................................... 62
Wiring Diagram — CHIME —  ................................. 63
Terminals and Reference Value for Combination
Meter ...................................................................... 66
Terminals and Reference Value for Unified Meter
and A/C Amp.  ......................................................... 66
Terminals and Reference Value for BCM ................ 67
CONSULT-II Function (BCM) .................................. 68

CONSULT-II BASIC OPERATION  ....................... 68
DATA MONITOR .................................................. 68
ACTIVE TEST  ..................................................... 69
SELF-DIAG RESULTS  ........................................ 69

CONSULT-II Function (METER A/C AMP)  ............. 69
Trouble Diagnosis ................................................... 70

HOW TO PERFORM TROUBLE DIAGNOSIS  .... 70
PRELIMINARY INSPECTION  ............................. 70
SYMPTOM CHART  ............................................. 70

Meter Buzzer Circuit Inspection .............................. 70
Lighting Switch Signal Inspection  ........................... 71
Front Door Switch (Driver Side) Signal Inspection ... 72
Seat Belt Buckle Switch Signal Inspection  ............. 73
Electrical Component Inspection  ............................ 74

FRONT DOOR SWITCH (DRIVER SIDE)  ........... 74
SEAT BELT BUCKLE SWITCH (DRIVER SIDE) ... 74

LANE DEPARTURE WARNING SYSTEM ................ 75

Precautions for Lane Departure Warning (LDW)
system .................................................................... 75
System Description ................................................. 75

LDW SYSTEM OPERATION  ............................... 75
POWER SUPPLY AND GROUND CIRCUIT  ....... 77

Action Test  .............................................................. 77

LDW SYSTEM RUNNING TEST  ......................... 77

Camera Aiming Adjustment  .................................... 78

OUTLINE ............................................................. 78
PREPARATION ................................................... 78
TARGET SETTING .............................................. 78
VEHICLE HEIGHT CHECK  ................................. 81
AIMING ADJUSTMENT ....................................... 81

Component Parts and Harness Connector Location ...85
Wiring Diagram — LDW —  .....................................86
Terminals and Reference Value for LDW Camera
Unit ..........................................................................88
CONSULT-II Function (LDW)  ..................................88

DESCRIPTION ....................................................88
CONSULT-II BASIC OPERATION  .......................88
WORK SUPPORT  ...............................................89
SELF-DIAG RESULTS .........................................89
DATA MONITOR  ..................................................90
ACTIVE TEST ......................................................91

Trouble Diagnosis  ...................................................92

HOW TO PERFORM TROUBLE DIAGNOSIS  ....92
PRELIMINARY INSPECTION ..............................92
SYMPTOM CHART ..............................................93

Power Supply and Ground Circuit Inspection  .........93
DTC [C1B00] CAMERA UNIT MALF  ......................94
DTC [C1B01] CAM AIMING INCMP  .......................94
DTC [C1B02] VHCL SPD DATA MALF  ...................94
DTC [C1B03] ABNRML TEMP DETECT  ................94
DTC [U1000] CAN COMM CIRCUIT  ......................95
DTC [U1010] CONTROL UNIT (CAN)  ....................95
LDW Chime Circuit Inspection  ................................95
LDW Switch Circuit Inspection ................................96
LDW Indicator Lamp Circuit Inspection ...................99
Turn Signal Input Inspection  .................................100
Electrical Component Inspection  ..........................100

LDW SWITCH ....................................................100

Removal and Installation for LDW Camera Unit  ...100

REMOVAL ..........................................................100
INSTALLATION ..................................................100

Removal and Installation for LDW Chime  .............101

REMOVAL ..........................................................101
INSTALLATION ..................................................101

Removal and Installation for LDW Switch  .............101

COMPASS ...............................................................102

Precautions for Compass ......................................102
System Description  ...............................................102
Troubleshooting ....................................................103
Zone Variation Setting Procedure  .........................104
Calibration Procedure  ...........................................104
Wiring Diagram – COMPAS –  ...............................105
Removal and Installation of Compass ...................106

CLOCK ....................................................................107

Wiring Diagram — CLOCK — ...............................107
Removal and Installation of Clock .........................108

REMOVAL ..........................................................108
INSTALLATION ..................................................108

CAN COMMUNICATION  .........................................109

System Description  ...............................................109
CAN Communication Unit  .....................................109















Content   ..  352  353  354  355   ..
