Infiniti M35/M45 Y50. Manual - part 284





TRUNK LID

BL-205

C

D

E

F

G

H

J

K

L

M

A

B

BL

Removal and Installation of Trunk Lid Striker

NIS001ZL

REMOVAL

1.

Remove the trunk rear plate and trunk rear finisher. Refer to

EI-

56, "Removal and Installation for Trunk Room Trim"

 .

2.

Remove the mounting bolts, and remove the striker from the
trunk lock support.

INSTALLATION

1.

Install in the reverse order of removal.

2.

After installing, close the trunk lid height. Perform the lock and surface height adjustment. Refer to

BL-

201, "Fitting Adjustment"

 .

3.

After installing, check the operation.

PIIB3914J

BL-206

TRUNK LID

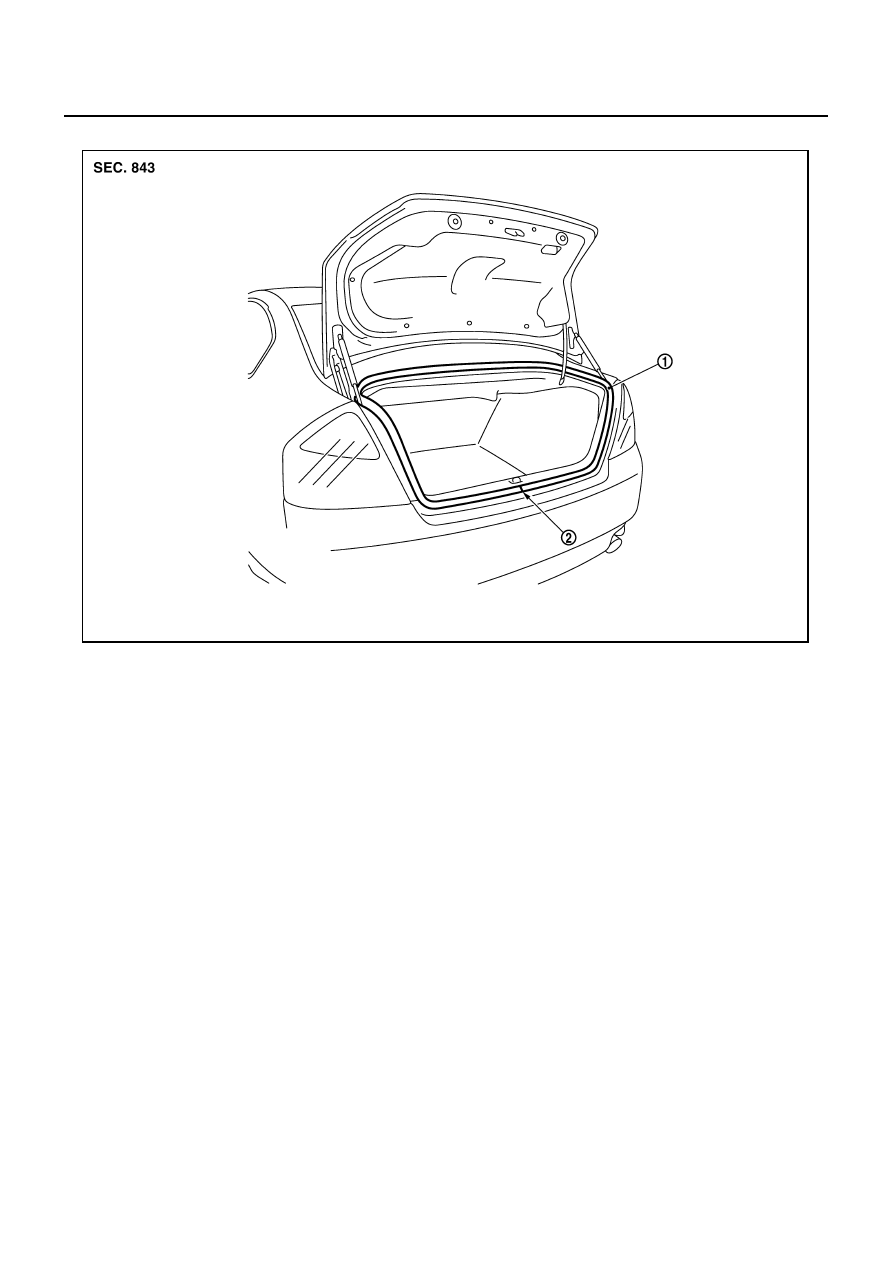

Removal and Installation of Trunk Lid Weatherstrip

NIS001ZM

REMOVAL

Pull up and remove engagement with body from weatherstrip joint.

CAUTION:

After removal, do not pull strongly on the weatherstrip.

INSTALLATION

1.

Working from the lower section, align the weatherstrip seam with center of the striker and weatherstrip
onto the vehicle.

2.

After installation, pull the weatherstrip gently to ensure that there is no loose section.

NOTE:
Make sure the weatherstrip is fit tightly at each corner and back door rear plate.

1.

Weatherstrip

2.

Seam

PIIB3898J

TRUNK LID OPENER

BL-207

C

D

E

F

G

H

J

K

L

M

A

B

BL

TRUNK LID OPENER

PFP:84640

Component Parts and Harness Connector Location

NIS001ZN

1.

Fuse block (J / B) fuse layout

2.

Fuse and fusible link box

3.

BCM M1, M2, M3 (View with instru-
ment lower panel RH removed)

4.

Intelligent key unit M32 (View with
dash side finisher LH removed)

5.

Unified meter and A / C AMP M65

6.

Trunk lid opener switch M25

7.

Trunk lid lock assembly T106
(Trunk lid opener actuator)

8.

Trunk lid opener cancel switch M99
(Glove box inside)

PIIB5916E

BL-208

TRUNK LID OPENER

System Description

NIS001ZO

Power is supplied at all times

through 50A fusible link (letter F,  located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No.21, located in the fuse block (J/B)]

to BCM terminal 42.

Ground is supplied

to BCM terminal 52

through body grounds M16 and M70.

When trunk lid opener cancel switch is ON and trunk lid opener switch is ON (pushed)
Ground is supplied

to BCM terminal 30

through trunk lid opener switch terminals 1and 2

through trunk lid opener cancel switch terminals 1and 3 and

through body grounds M16 and M70.

And power is supplied

through BCM terminal 68

to trunk lid opener actuator terminal 3.

Ground is supplied

to trunk lid opener actuator terminal 2

through body grounds B402,B405.

Then BCM open trunk lid opener actuator.

TRUNK LID OPENER OPERATION

When trunk lid opener switch or trunk button of Intelligent Key is ON, BCM opens trunk opener actuator.
BCM can open trunk lid opener actuator when

vehicle speed is less than 5 km/h (3MPH)

vehicle security system is disarmed or pre-armed phase

BCM does not open trunk lid opener actuator when

trunk lid opener cancel switch is OFF (CANSEL)

vehicle speed is more than 5 km/h (3MPH)

vehicle security system is armed or alarm phase

Intelligent Key is inserted in key slot
