REMOVAL AND INSTALLATION

AV-289

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

INSTALLATION

Installation is the reverse order of removal.

GPS Antenna

NKS004C7

REMOVAL

1.

Remove NAVI control unit. Refer to

AV-282, "AV (NAVI) Control Unit"

 .

2.

Remove upper ventilator grille. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

Remove clips (A) and remove antenna feeder (1) from instru-
ment panel and pad.

4.

Remove screw (A) and remove GPS antenna (1).

INSTALLATION

Installation is the reverse order of removal.

SKIB4365E

SKIB4366E

AV-290

[WITH MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

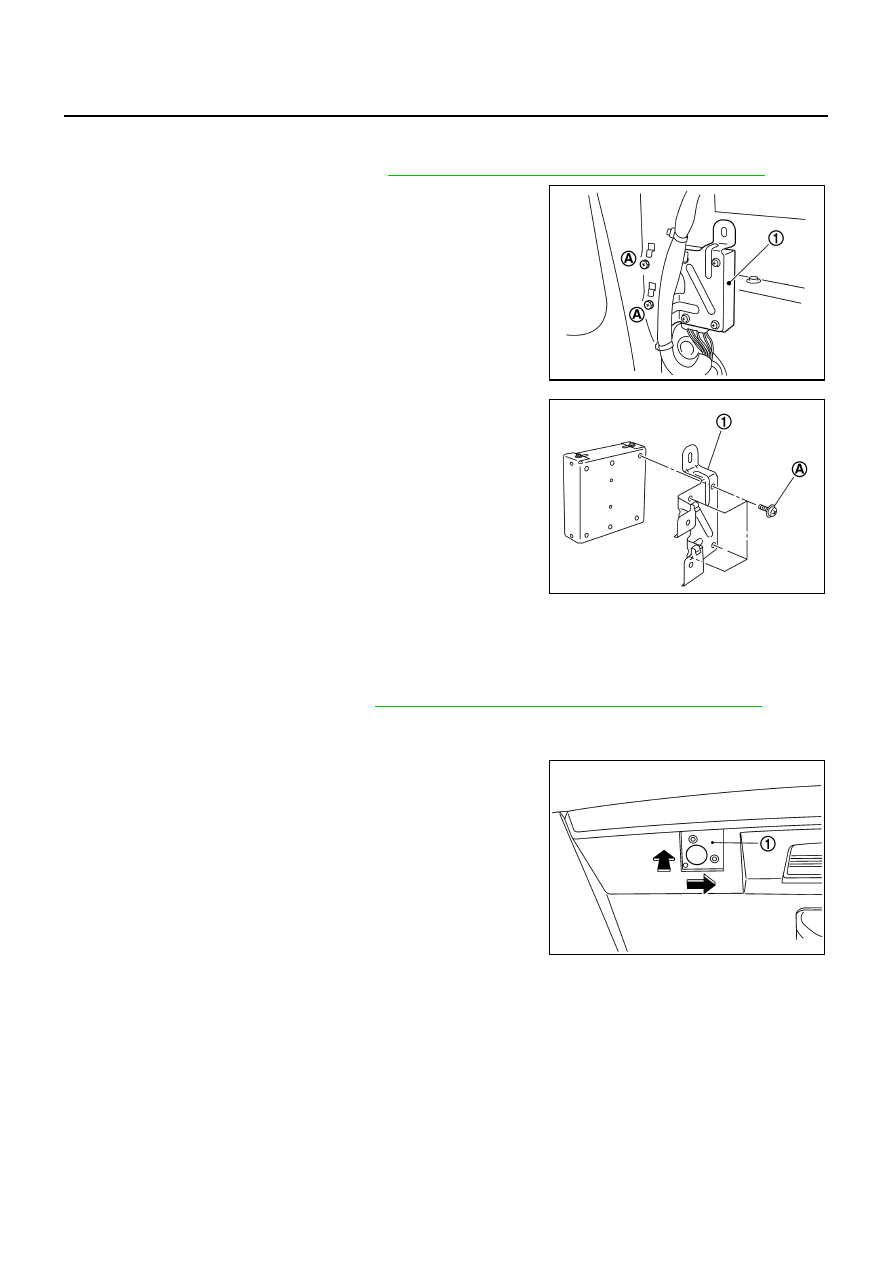

Camera Control Unit

NKS004C8

REMOVAL

1.

Remove trunk side finisher (RH). Refer to

EI-56, "Removal and Installation for Trunk Room Trim"

 .

2.

Remove screws (A) and disconnect connector, and remove rear
view camera control unit (1).

3.

Remove screws (A) and remove bracket (1).

INSTALLATION

Installation is the reverse order of removal.

Rear View Camera

NKS004C9

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

EI-56, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

 .

2.

Remove screws attaching camera and camera bracket.

3.

Remove connector and connector clip.

4.

Remove camera bracket (1) while pushing right direction of
vehicle.

INSTALLATION

1.

Install rear view camera and camera bracket while pressing to trunk room side.

2.

Install connector and connector clip.

3.

Install trunk lid finisher inner.

SKIB4398E

SKIB4399E

SKIB5010E

REMOVAL AND INSTALLATION

AV-291

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

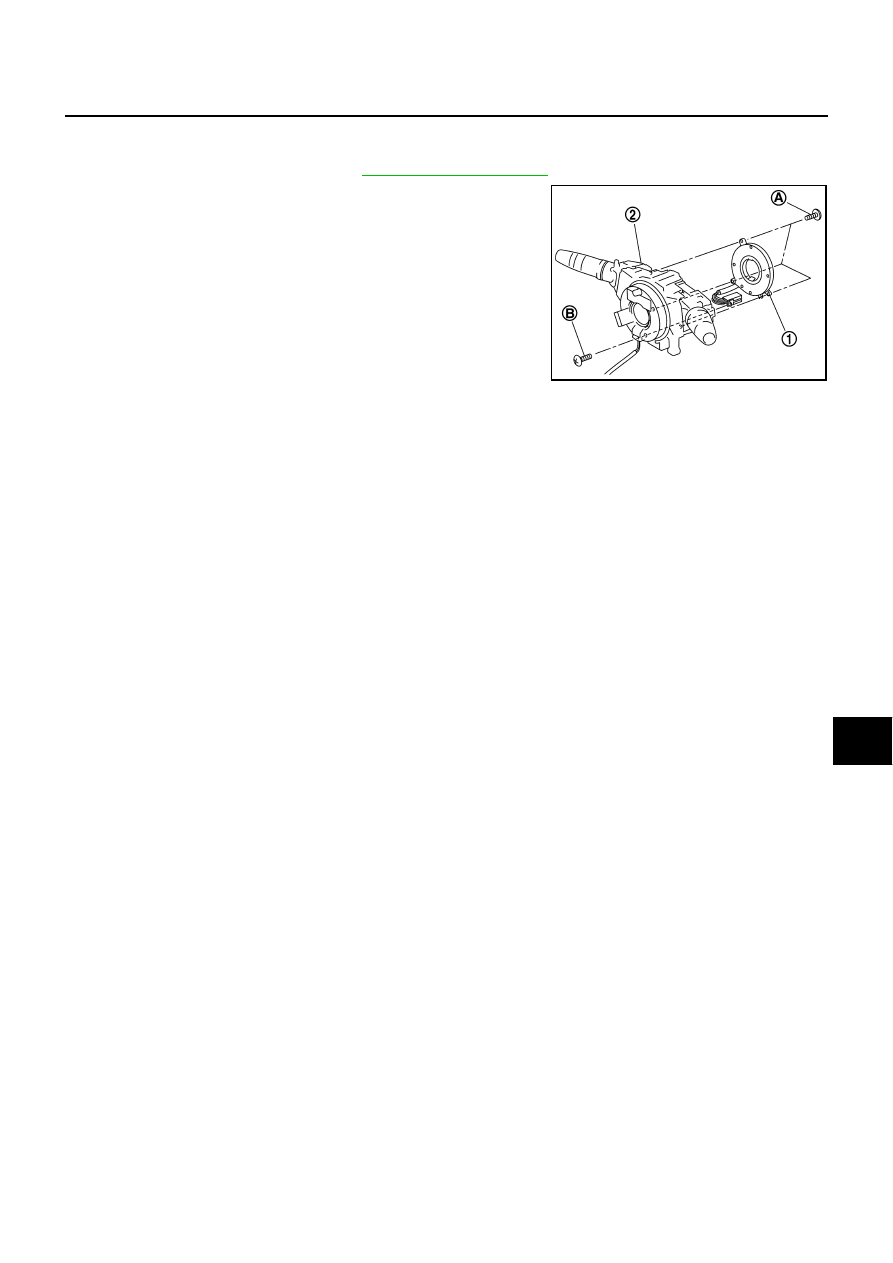

Steering Angle Sensor

NKS004CA

REMOVAL

1.

Remove combination switch. Refer to

SRS-44, "SPIRAL CABLE"

 .

2.

Remove screws (A) and remove connector mount screw (B).

3.

Remove steering angle sensor (1) from combination switch (2).

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Insert the projection area, and install steering wheel angle sensor while fitting adjusting the triangle
marks (Larger mark should be upward.).

SKIB4352E
