REMOVAL AND INSTALLATION

AV-285

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

Steering Switch

NKS004C0

REMOVAL

1.

Refer to

SRS-42, "DRIVER AIR BAG MODULE"

 .

INSTALLATION

Installation is the reverse order of removal.

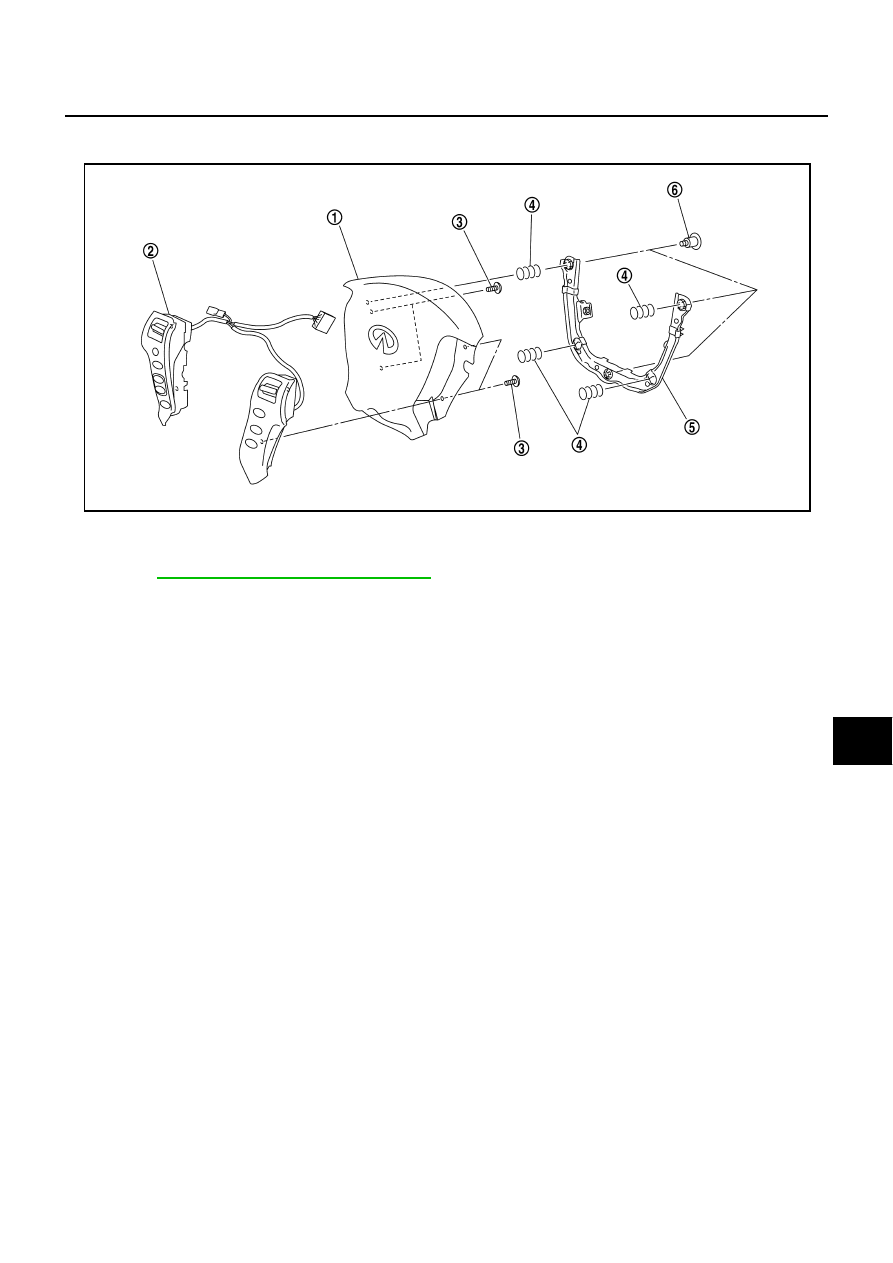

1.

Air bag

2.

Steering switch

3.

Screw

4.

Spring

5.

Bracket

6.

Screw

SKIB4278E

AV-286

[WITH MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

Rear Control Switch

NKS004C1

REMOVAL

1.

Remove tray box from armrest. Refer to

SE-168, "Removal and Installation"

 .

2.

Remove screws (A).

3.

Disconnect connector (1) and disengage tabs (A) to separate
rear control switch (2).

INSTALLATION

Installation is the reverse order of removal.

Video Distributor

NKS004C2

REMOVAL

1.

Remove multifunction switch. Refer to

AV-284, "Multifunction Switch"

 .

2.

Remove audio unit assembly. Refer to

AV-277, "Audio Unit"

 .

3.

Remove screws (A).

4.

Disconnect connector and remove video distributor (1).

5.

Remove screws (A) and remove bracket (1).

SKIB4300E

SKIB4301E

SKIB4392E

SKIB4393E

REMOVAL AND INSTALLATION

AV-287

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

INSTALLATION

Installation is the reverse order of removal.

DVD Player

NKS004C3

REMOVAL

1.

Remove cup holder. Refer to

IP-11, "Removal and Installation of Instrument Panel & Pad"

 .

2.

Disconnect sub harness connector.

3.

Remove sub harness connectors (A) from bracket.

4.

Remove metal clips (A) and 8 pawls. Then remove DVD player
cover (1).

5.

Remove screws (B) and remove DVD player (2).

6.

Remove screws (A) and remove brackets (1).

INSTALLATION

Installation is the reverse order of removal.

PKIC0931E

PKIC0932E

SKIB4358E

AV-288

[WITH MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

Auxiliary Input Jacks

NKS004C4

REMOVAL

1.

Remove center console rear finisher. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove screws (A) and disconnect connector. Remove auxil-
iary input jacks (1) from center console rear finisher.

INSTALLATION

Installation is the reverse order of removal.

Headphone Amp

NKS004C5

: Vehicle front

REMOVAL

1.

Remove rear display cover. Refer to

IP-19, "Disassembly and Assembly"

 .

2.

Remove nuts (A) and disconnect connector. Remove head-
phone amp (1).

INSTALLATION

Installation is the reverse order of removal.

Microphone

NKS004C6

REMOVAL

1.

Remove front pillar garnish. Refer to

EI-37, "BODY SIDE TRIM"

 .

2.

Remove sun-visor and sun-visor holder. Refer to

EI-52, "HEADLINING"

 .

3.

Remove dual-sunvisor. Refer to

EI-52, "HEADLINING"

 .

4.

Remove assistance grip (front). Refer to

EI-52, "HEADLINING"

 .

5.

Bear down headlining assembly (front) to obtain work space between headlining assembly and vehicle.

6.

Disengage tabs (A) and connector to separate microphone unit
(1).

SKIB4351E

SKIB4353E

SKIB4302E
