REMOVAL AND INSTALLATION
PFP:00000
Removal and Installation/Precautions for Replacement
NKS004BG
REMOVAL OF BATTERY
When the battery is removed, the possible route line center position of rear view monitor may not be in the cor-
rect position. Perform the center position correction with the following procedure.
1.
Fully turn the steering wheel to left/right.
2.
Drive 100m (328.1 ft) or more at vehicle speed 30 km/h (18.6 MPH) or more.

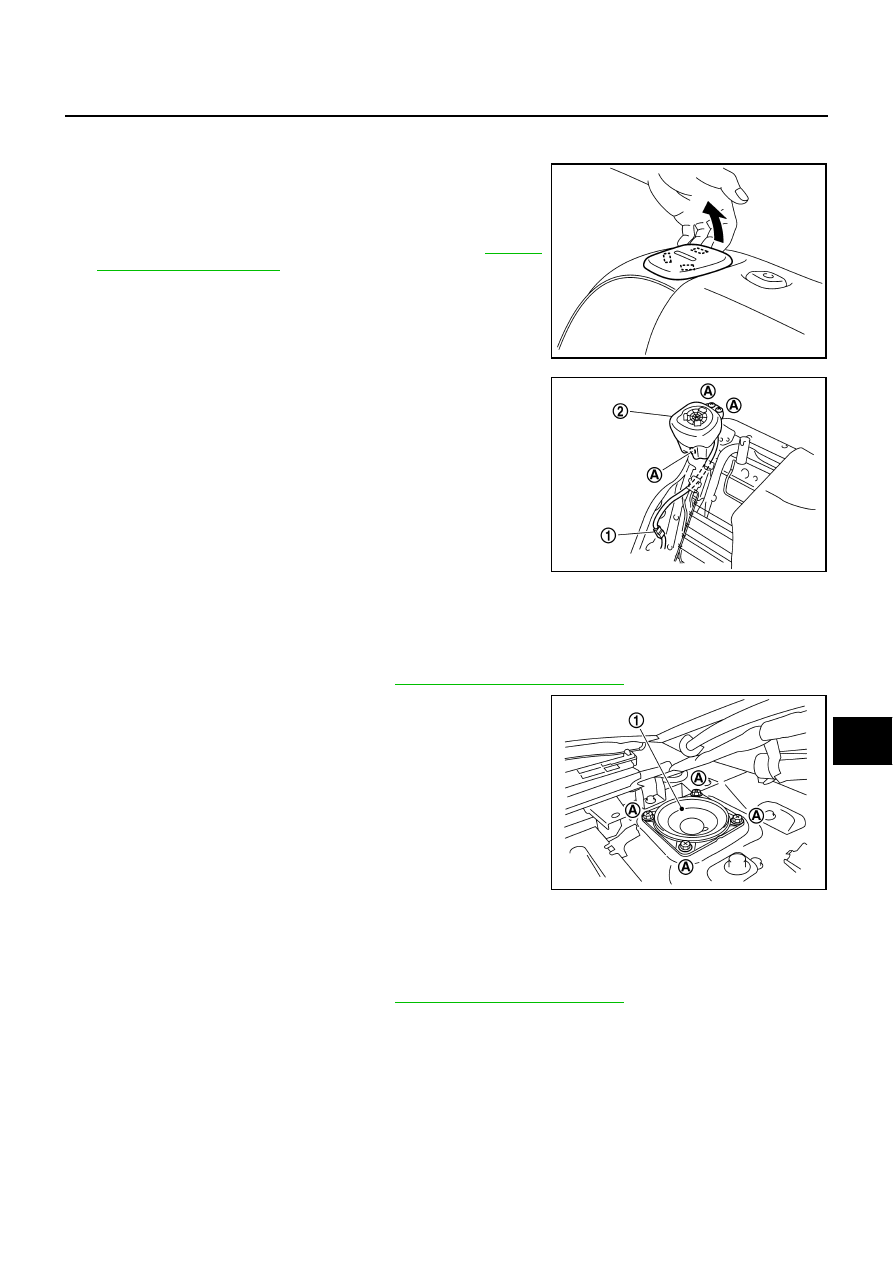

Audio Unit
NKS004BH
REMOVAL
1.
Remove cluster lid C. Refer to
IP-10, "INSTRUMENT PANEL ASSEMBLY"
2.

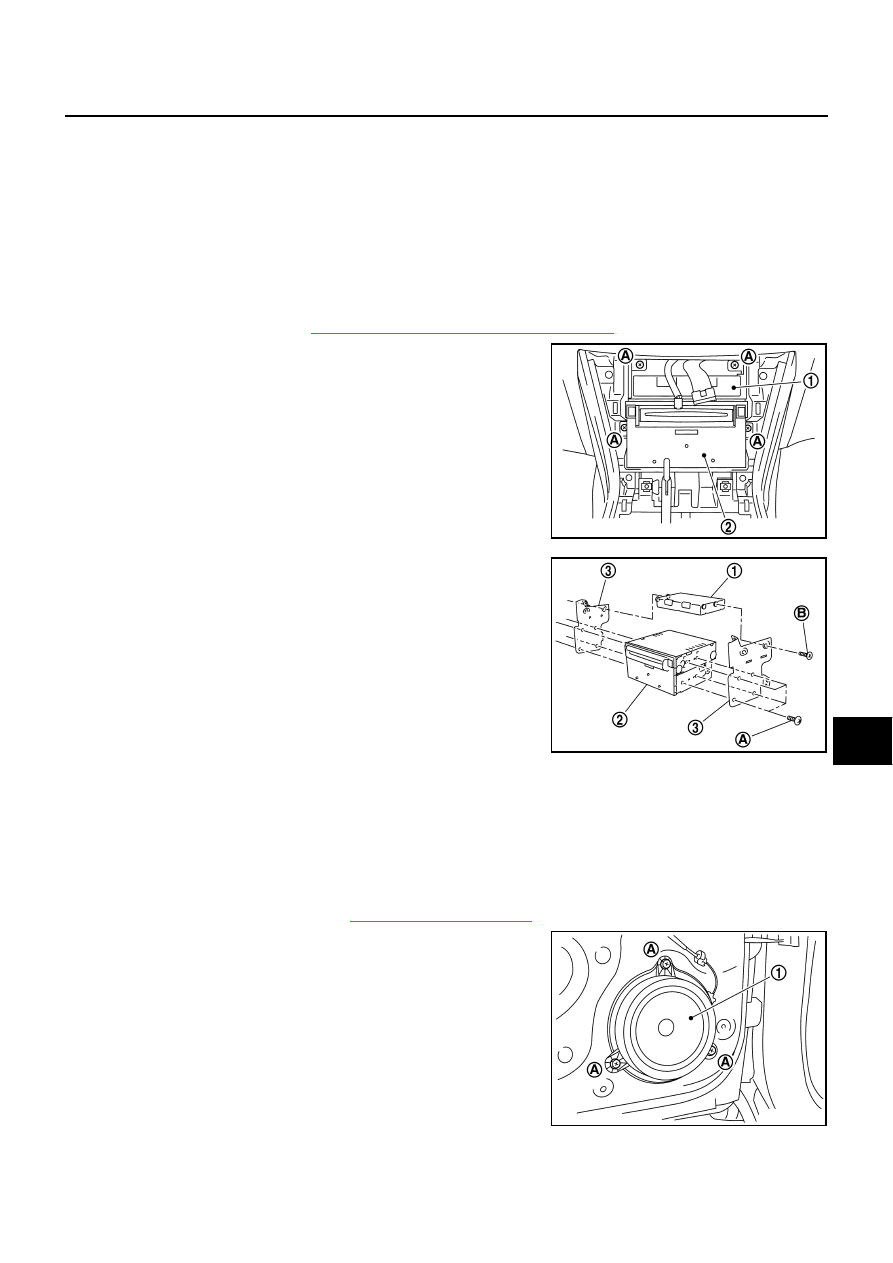

Remove screws (A) and remove audio unit (2) in conjunction
with unified meter and A/C amp (1).
3.
Remove screws (A) and (B)
4.
Remove meter and A/C amp (1), audio unit (2) and bracket (3).
CAUTION:
Be careful not to allow foreign material to enter from CD
slot.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Unified meter and A/C amp screws are different from other securing screws. Never confuse them
when installing.
Front Door Speaker
NKS004BI
REMOVAL
1.
Remove front door finisher. Refer to
2.
Remove screws (A) and remove front door speaker (1).
INSTALLATION
Installation is the reverse order of removal.
SKIB4268E
SKIB4269E
SKIB4270E
