REMOVAL AND INSTALLATION

AV-129

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

2.

Remove screws (A) and disconnect connector.

3.

Remove woofer (1).

INSTALLATION

Installation is the reverse order of removal.

BOSE Amp

NKS0049O

: Vehicle front

REMOVAL

1.

Remove trunk front finisher. Refer to

EI-56, "Removal and Installation for Trunk Room Trim"

 .

2.

Remove screws (A), and disconnect connector.

3.

Remove BOSE amp (1).

INSTALLATION

Installation is the reverse order of removal.

AudioPilot

®

  Microphone

NKS0049P

REMOVAL

1.

Remove steering column lower cover. Refer to

IP-11, "Removal and Installation of Instrument Panel &

Pad"

 .

2.

Remove screws (A) and disconnect connector.

3.

Remove Microphone (2) from steering column lower cover (1).

INSTALLATION

Installation is the reverse order of removal.

Satellite Radio Tuner

NKS0049Q

REMOVAL

1.

Remove trunk front finisher. Refer to

EI-56, "Removal and Installation for Trunk Room Trim"

 .

2.

Remove rear parcel shelf finisher. Refer to

EI-42, "Removal and Installation"

 .

SKIB4348E

SKIB4349E

SKIB4350E

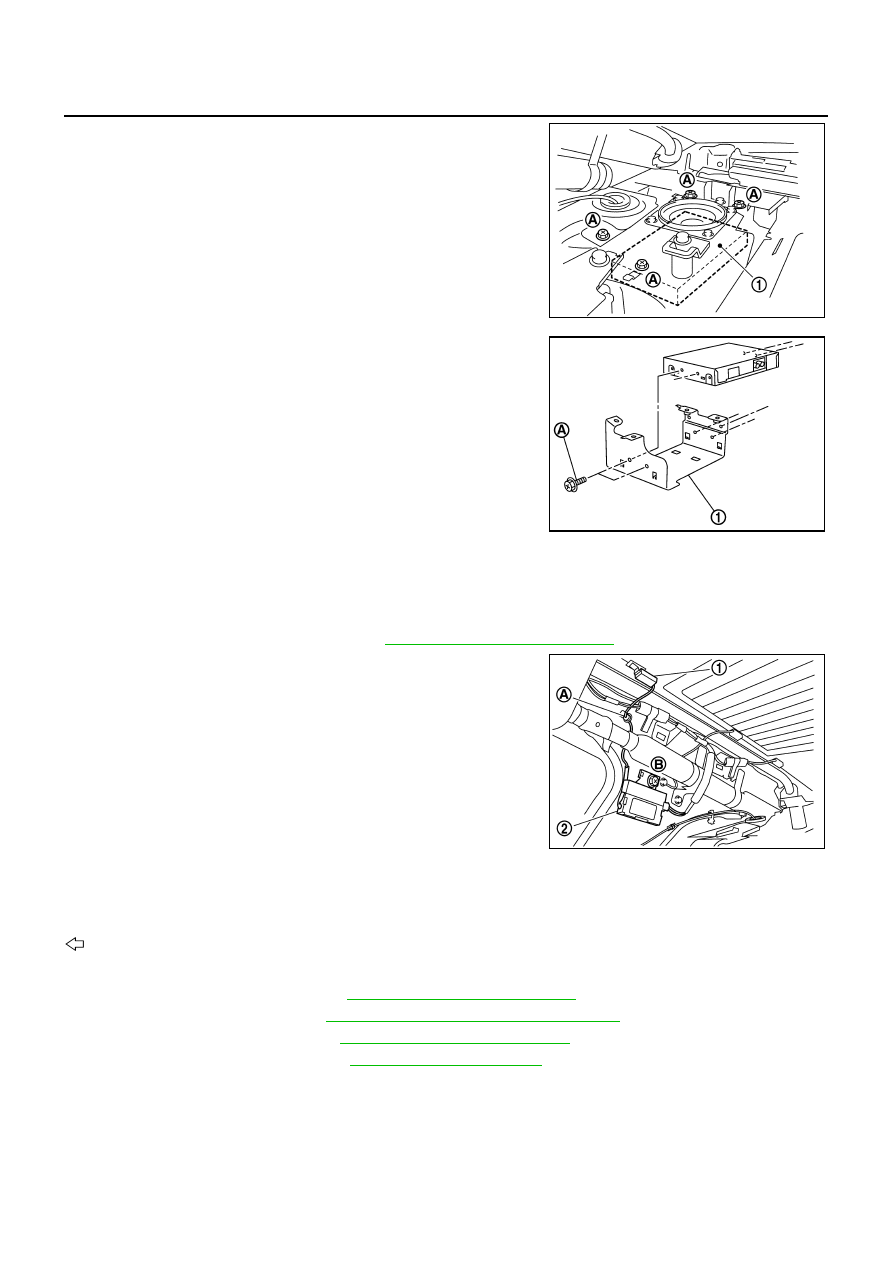

AV-130

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

3.

Remove screws (A).

4.

Disconnect connector and remove satellite radio tuner (1) from
trunk room side.

5.

Disconnect screws (A), and remove bracket (1).

INSTALLATION

Installation is the reverse order of removal.

Antenna Amp

NKS0049R

REMOVAL

1.

Remove rear pillar finisher (RH). Refer to

EI-37, "Removal and Installation"

 .

2.

Disengaged the clip (A) to separate glass terminal (1).

3.

Remove screw (B) and remove antenna amp (2) from vehicle.

INSTALLATION

Installation is the reverse order of removal.

Satellite Radio Antenna

NKS0049S

: Vehicle front

REMOVAL

1.

Remove rear pillar finisher. Refer to

EI-37, "Removal and Installation"

 .

2.

Remove personal lamp. Refer to

LT-289, "REMOVAL AND INSTALLATION"

 .

3.

Remove assist grip (rear). Refer to

EI-52, "Removal and Installation"

 .

4.

Remove rear display cover. Refer to

AV-283, "Rear Display Unit"

 .

5.

Remove head lining assembly (rear) to obtain work space between the head lining assembly and vehicle.

SKIB4396E

SKIB8875E

SKIB4344E

REMOVAL AND INSTALLATION

AV-131

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

6.

Remove nut (A), and then disconnect connector (1).

7.

Remove satellite radio antenna.

INSTALLATION

Installation is the reverse order of removal.

AV (NAVI) Control Unit

NKS0049U

REMOVAL

1.

Remove glove box cover. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove screws (A), and remove knee assist protector assem-
bly (1).

3.

Remove screws (A), and disconnect connector.

4.

Remove AV (NAVI) control unit (1).

5.

Remove screws (A) and remove bracket (1).

INSTALLATION

Installation is the reverse order of removal.

SKIB4394E

Roof antenna mounting nut

: 6.0 N·m (0.61 kg-m, 53 in-lb)

SKIB4273E

SKIB4274E

SKIB4275E

AV-132

[WITHOUT MOBILE ENTERTAINMENT SYSTEM]

REMOVAL AND INSTALLATION

Front Display Unit (Base System)

NKS0049V

REMOVAL

1.

Remove upper ventilator grille. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove multifunction switch. Refer to

AV-133, "Multifunction Switch"

 .

3.

Remove screws (A) and screws (B).

4.

Disconnect connector, and remove display (1).

5.

Remove screws (A) separate front display unit (1) from bracket
(2).

INSTALLATION

Installation is the reverse order of removal.

Front Display Unit (BOSE System)

NKS0049W

REMOVAL

1.

Remove upper ventilator grille. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove multifunction switch. Refer to

ATC-123, "Removal and Installation of Multifunction Switch"

 .

3.

Remove screw (A).

4.

Remove screws (B) and disconnect connector, and remove dis-
play (1).

5.

Remove screws (A) separate front display (1) unit from bracket
(2).
