CONTROLLER

ATC-123

C

D

E

F

G

H

I

K

L

M

A

B

ATC

CONTROLLER

PFP:27500

Removal and Installation of Multifunction Switch

NJS000H4

REMOVAL

Refer to

AV-284, "Multifunction Switch"

 .

INSTALLATION

Installation is basically the reverse order of removal.

ATC-124

AUTO AMP

AUTO AMP

PFP:27760

Removal and Installation of Unified Meter and A/C Auto Amp.

NJS000H5

REMOVAL

1.

Remove audio unit. Refer to

AV-126, "Audio Unit"

  (Without mobile entertainment system) or

AV-277,

"Audio Unit"

  (With mobile entertainment system).

2.

Remove mounting screws, and then remove unified meter and
A/C amp.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA4108E

AMBIENT SENSOR

ATC-125

C

D

E

F

G

H

I

K

L

M

A

B

ATC

AMBIENT SENSOR

PFP:27722

Removal and Installation

NJS000H6

REMOVAL

1.

Remove front grille. Refer to

EI-16, "FRONT GRILLE"

 .

2.

Disconnect ambient sensor connector, and then remove ambi-
ent sensor.

INSTALLATION

Installation is basically the reverse order of removal.

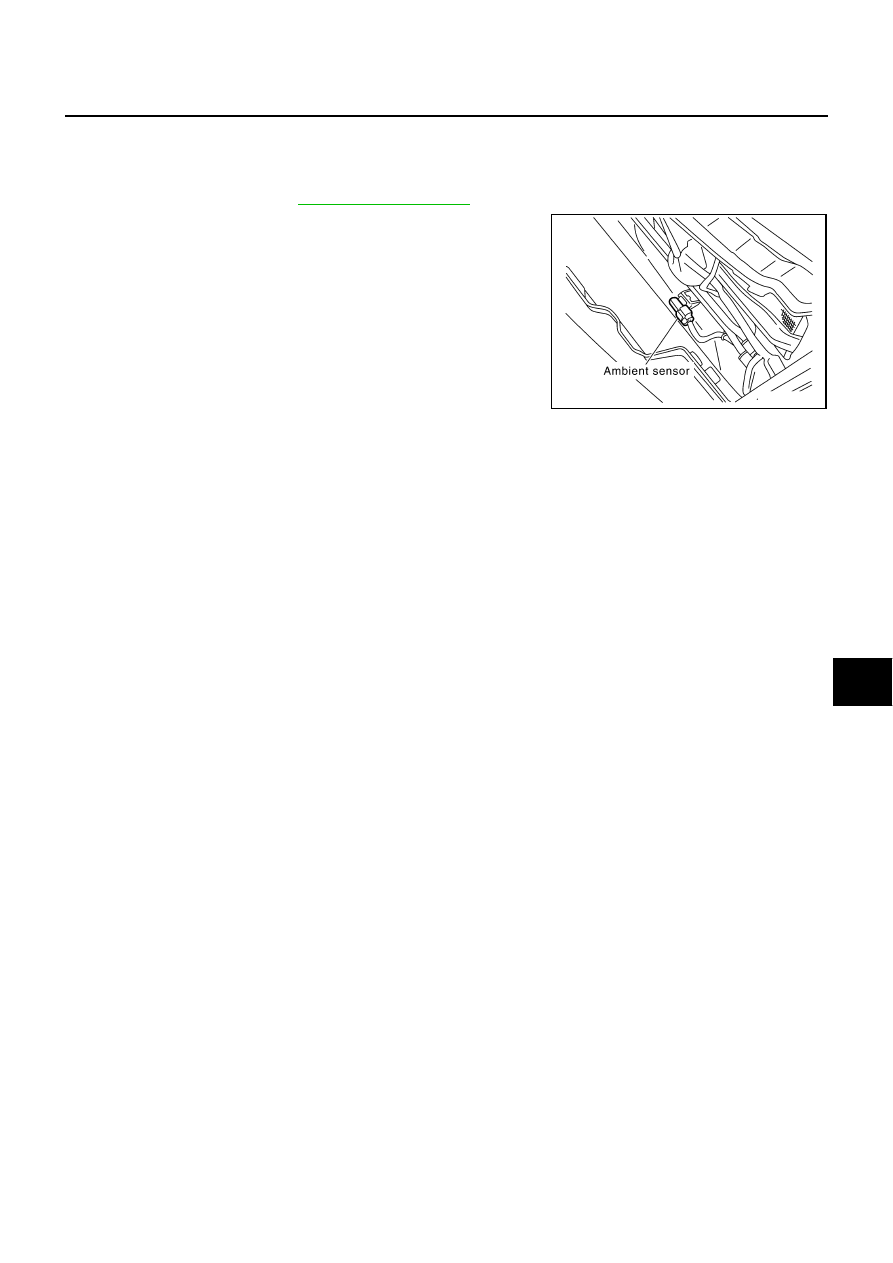

RJIA4087E

ATC-126

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

PFP:27720

Removal and Installation

NJS000H7

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove mounting screw, and then remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA4109E
