Power Supply and Ground Circuit for Auto Amp.

NJS000GL

SYMPTOM: A/C system does not come on.

INSPECTION FLOW

*1

ATC-68, "DIAGNOSIS PROCE-
DURE FOR A/C SYSTEM"

*2

ATC-65, "Operational Check"

*3

AV-108, "Multifunction Switch Can-
not Be Operated"

 (Without mobile

entertainment system) or

AV-249,

"Multifunction Switch Cannot Be
Operated"

  (With mobile entertain-

ment system)

RJIA4047E

ATC-68

TROUBLE DIAGNOSIS

COMPONENT DESCRIPTION
Unified Meter and A/C Amp. (Automatic Amplifier)

The unified meter and A/C amp. has a built-in microcomputer which
processes information sent from various sensors needed for air con-
ditioner operation. The air mix door motor, mode door motor, upper
ventilator door motor, intake door motor, blower motor and compres-
sor are then controlled.
When the various switches and temperature control switch are oper-
ated, data is input to the unified meter and A/C amp. from the AV
control unit / NAVI control unit using CAN communication.
Self-diagnosis functions are also built into unified meter and A/C
amp. to provide quick check of malfunctions in the auto air condi-
tioner system.

Potentio Temperature Control (PTC)

The PTC is built into the multifunction switch. It can be set at an
interval of 0.5

°

C (1.0

°

F) in the 18

°

C (60

°

F) to 32

°

C (90

°

F) tempera-

ture range by pressing temperature control switch. The set tempera-
ture is displayed.

DIAGNOSIS PROCEDURE FOR A/C SYSTEM

SYMPTOM: A/C system does not come on.

RJIA4032E

RJIA4048E

RJIA4049E

TROUBLE DIAGNOSIS

ATC-69

C

D

E

F

G

H

I

K

L

M

A

B

ATC

1.

CHECK POWER SUPPLY CIRCUIT FOR UNIFIED METER AND A/C AMP.

1.

Disconnect unified meter and A/C amp. connector.

2.

Check voltage between unified meter and A/C amp. harness
connector M65 terminals 41, 53 and 55 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check 10A fuses [Nos. 6, 12 and 19, located in the fuse block (J/B)]. Refer to

PG-114, "FUSE

BLOCK - JUNCTION BOX (J/B)"

 .

●

If fuses are OK, check harness for open circuit. Repair or replace if necessary.

●

If fuses are NG, check harness for short circuit and replace fuse.

2.

CHECK GROUND CIRCUIT FOR UNIFIED METER AND A/C AMP.

1.

Turn ignition switch OFF.

2.

Check continuity between unified meter and A/C amp. harness
connector M65 terminal 55, 71 and ground.

OK or NG

OK

>> Replace unified meter and A/C amp.

NG

>> Repair harness or connector.

Terminals

Ignition switch position

(+)

(-)

OFF

ACC

ON

Unified

meter and

A/C amp.

connector

Terminal

No.

M65

41

Ground

Approx. 0 V

Battery
voltage

Battery
voltage

M65

53

Approx. 0 V

Approx. 0 V

Battery
voltage

M65

54

Battery
voltage

Battery
voltage

Battery
voltage

RJIA4050E

55, 71 – Ground

: Continuity should exist.

RJIA4051E

ATC-70

TROUBLE DIAGNOSIS

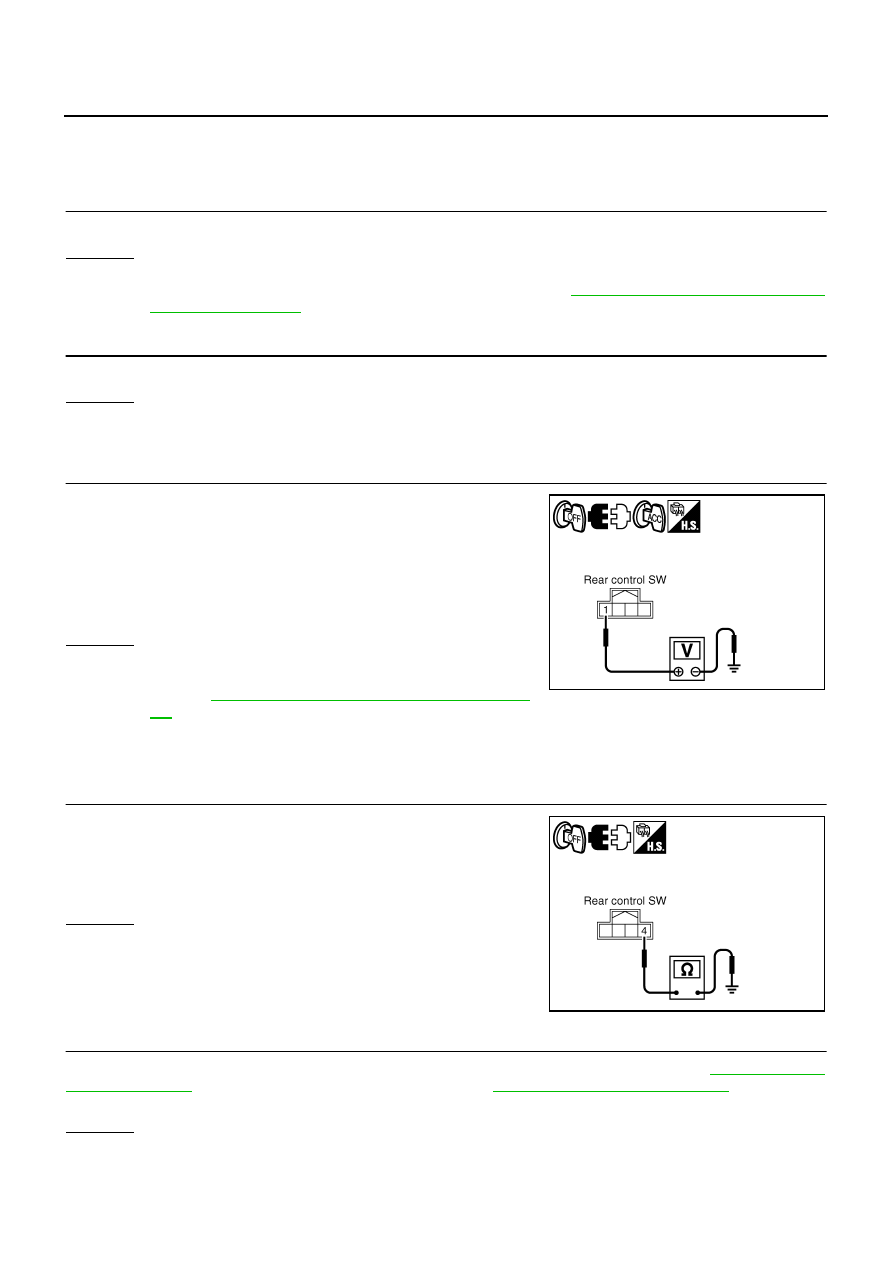

Rear Control Switch Circuit

NJS000GM

DIAGNOSIS PROCEDURE FOR REAR CONTROL SWITCH

SYMPTOM: Rear control switch does not operate.

1.

CHECK A/C SYSTEM

Check multifunction switch, confirm A/C system operation.

OK or NG

OK

>> GO TO 2.

NG

>> Go to trouble diagnosis procedure for A/C system. Refer to

ATC-67, "Power Supply and Ground

Circuit for Auto Amp."

 .

2.

CHECK REAR CONTROL SWITCH

Check rear control switch, except for A/C switch (audio) operation.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

CHECK POWER SUPPLY FOR REAR CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect rear control switch connector.

3.

Turn ignition switch ACC.

4.

Check voltage between rear control switch harness connector
B554 terminal 1 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check 10A fuse [No. 6 located in the fuse block (J/B)].

Refer to

PG-114, "FUSE BLOCK - JUNCTION BOX (J/

B)"

 .

●

If fuse is OK, check harness for open circuit. Repair or replace if necessary.

●

If fuse is NG, check harness for short circuit and replace fuse.

4.

CHECK GROUND CIRCUIT FOR REAR CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Check continuity between rear control switch harness connector
B554 terminal 4 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

5.

CHECK REAR CONTROL SWITCH, AV CONTROL UNIT OR NAVI CONTROL UNIT

Check circuit between rear control switch and AV control unit or NAVI control unit. Refer to

AV-108, "TROU-

BLE DIAGNOSIS"

  (Without mobile entertainment system) or

AV-249, "TROUBLE DIAGNOSIS"

  (With mobile

entertainment system).

OK or NG

OK

>> Replace rear control switch.

NG

>> Replace part or repair for result trouble diagnosis.

1 – Ground

: Battery voltage

RJIA3996E

4 – Ground

: Continuity should exist.

RJIA3997E
