Infiniti M35/M45 Y50. Manual - part 1162





POWER SOCKET

WW-53

C

D

E

F

G

H

I

J

L

M

A

B

WW

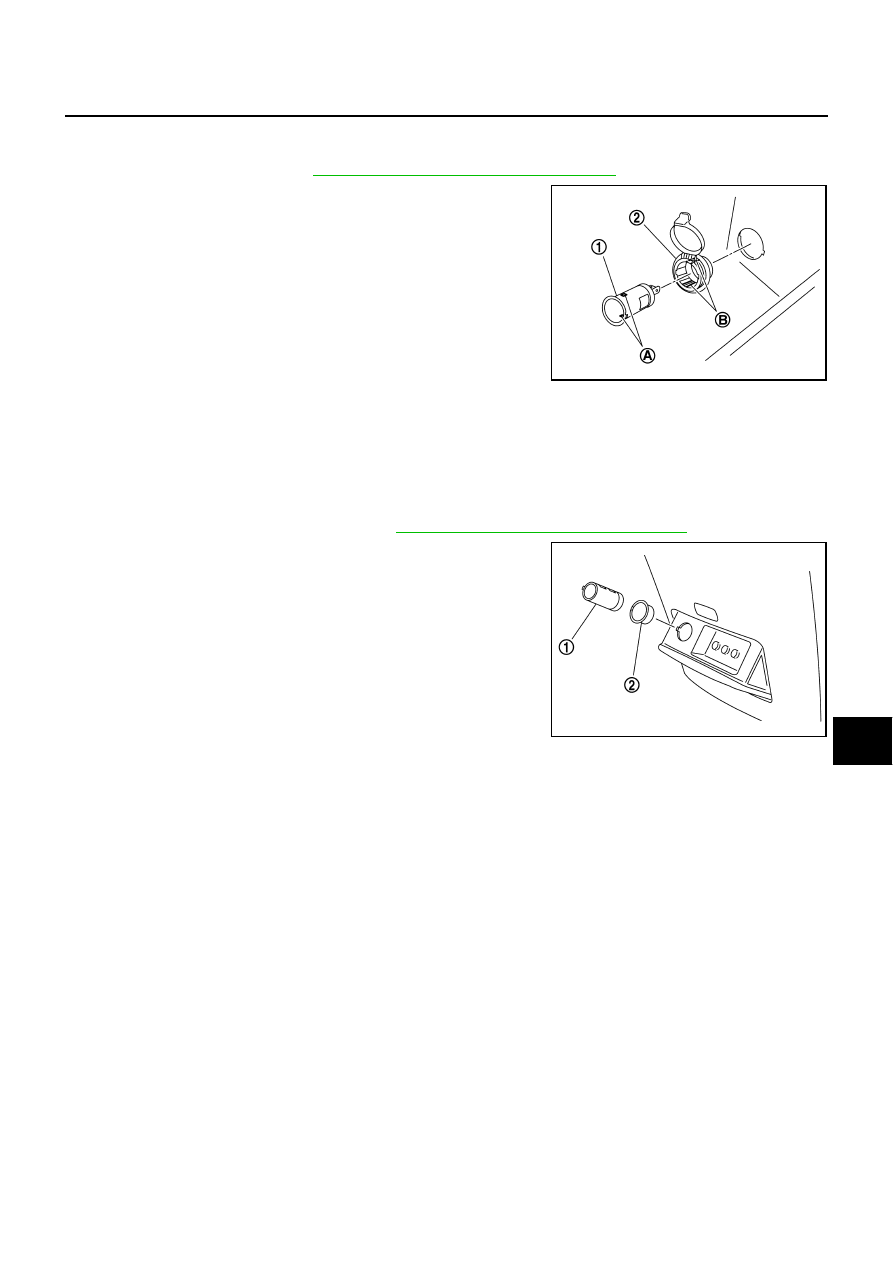

Removal and Installation of Center Console Box Power Socket

NKS003XC

REMOVAL

1.

Remove console box. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove inner socket (1) from the ring (2) while pressing the
hook (B) on the ring out from square hole (A).

3.

Remove ring from console box while pressing pawls.

INSTALLATION

Note the following, and installation is the reverse order of removal.

CAUTION:

Align notches of inner socket and ring, and console box when installing.

Removal and Installation of Center Console Box Rear Side Power Socket

NKS003XD

REMOVAL

1.

Remove the console rear finisher. Refer to

IP-19, "CENTER CONSOLE ASSEMBLY"

 .

2.

Remove inner socket (1) and ring (2) from the console rear fin-
isher while pressing the hook on ring from square hole.

INSTALLATION

Note the following, and installation is the reverse order of removal.

CAUTION:

Align notches of inner socket and ring, and console box when installing.

SKIB4263E

SKIB4265E

WW-54

HORN

HORN

PFP:25610

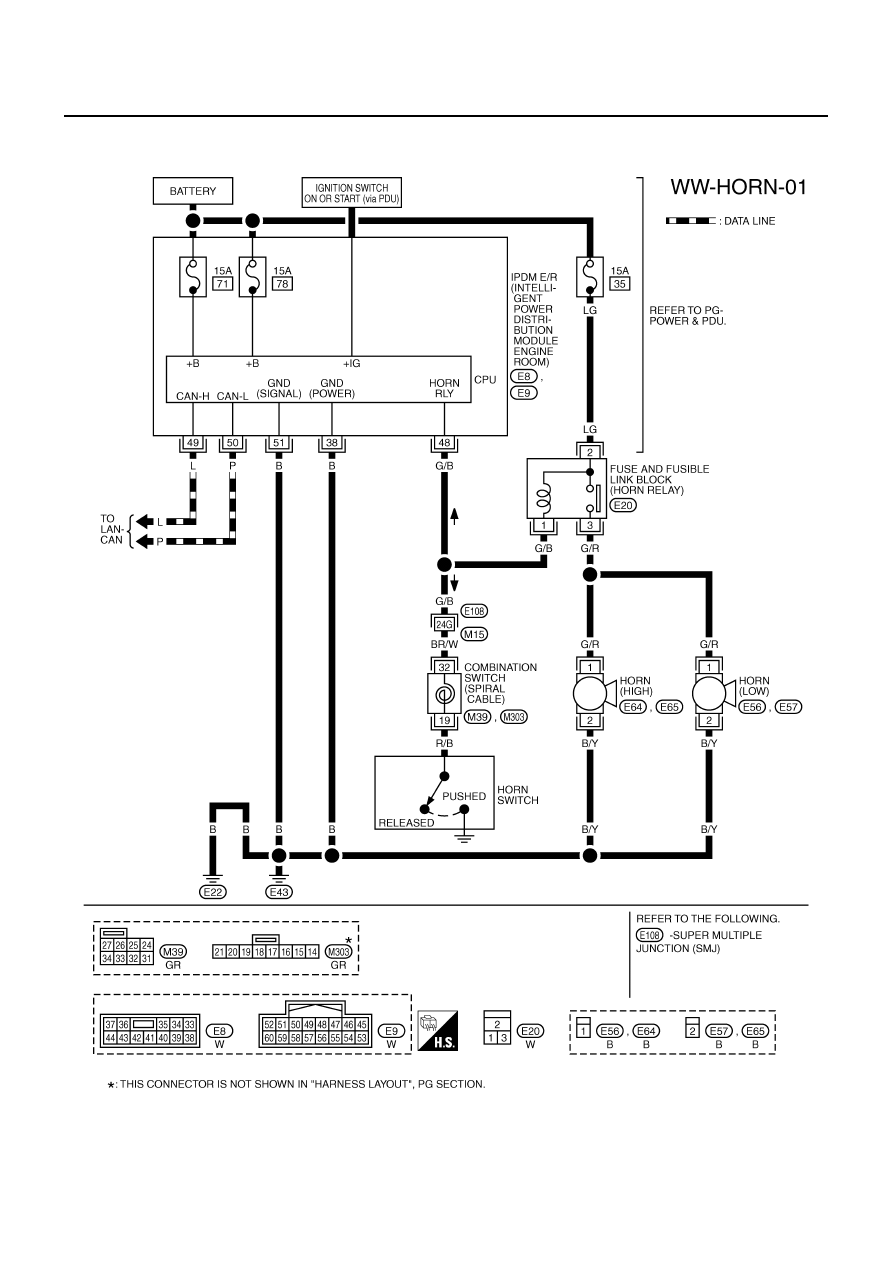

Wiring Diagram — HORN —

NKS003XE

TKWT3221E

HORN

WW-55

C

D

E

F

G

H

I

J

L

M

A

B

WW

Removal and Installation

NKS003XF

REMOVAL

1.

Remove front grille. Refer to

EI-16, "FRONT GRILLE"

 .

2.

Disconnect horn (HI) connectors.

3.

Remove horn (HI) mounting bolt (A), and remove horn (HI) (1)
from vehicle.

4.

Remove fender protector (front) LH to obtain work space between the fender protector and fender.

5.

Disconnect horn (LO) connectors.

6.

Remove horn (LO) mounting bolts (A), and remove horn (LO) (1)
from vehicle.

INSTALLATION

Tighten horn bolt to specified torque.

SKIB4266E

SKIB4267E

Horn mounting bolt

:17.1 N·m (1.7 kg-m, 13 ft-lb.)

WW-56

HORN
