AIR BREATHER HOSE

PFP:31098

Removal and Installation

NDS000E3

Refer to the figure for air breather hose removal and installation information.

CAUTION:

●

Make sure there are no pinched or restricted areas on the air breather hose caused by bending or
winding when installing it.

●

Be sure to insert air breather hose to transfer tube (metal connector) until hose end reaches the
tube's base and another hose end reaches the tube bend R portion of A/T fluid charging pipe.

SDIA2408E

TF-44

TRANSFER ASSEMBLY

TRANSFER ASSEMBLY

PFP:33100

Removal and Installation

NDS000E4

REMOVAL

1.

Remove exhaust front tube with power tool. Refer to

EX-3, "EXHAUST SYSTEM"

 .

2.

Remove front and rear propeller shaft. Refer to

PR-4, "FRONT PROPELLER SHAFT"

  and

PR-6, "REAR

PROPELLER SHAFT"

 .

3.

Disconnect transfer assembly harness connector and separate harness from transfer assembly.

4.

Remove air breather hose. Refer to

TF-43, "AIR BREATHER HOSE"

 .

5.

Remove control rod. Refer to

AT-226, "Control Rod Removal and Installation"

 .

6.

Support transfer assembly and transmission assembly with a jack.

7.

Remove rear engine mounting member and engine mounting insulator with power tool. Refer to

EM-114,

"ENGINE ASSEMBLY"

 .

8.

Lower jack to the position where the top transfer mounting bolts
can be removed.

9.

Remove transfer mounting bolts with power tool and separate
transfer from transmission.

CAUTION:

Secure transfer assembly and transmission assembly to a
jack.

INSTALLATION

Note the following, and install in the reverse order of removal.

●

When installing the transfer to the transmission, install the
mounting bolts following the standard below.

●

After the installation, check the fluid level, fluid leakage and the
A/T positions. Refer to

TF-9, "Inspection"

 ,

AT-227, "Adjustment

of A/T Position"

 .

PDIA0560J

Bolt No.

1

2

3

4

Quantity

4

3

2

1

Bolt length “

” mm (in)

75 (2.95)

45 (1.77)

40 (1.57)

30 (1.18)

Tightening torque
N·m (kg-m, ft-lb)

37 (3.8, 27)

SDIA2284E

TRANSFER ASSEMBLY

TF-45

C

E

F

G

H

I

J

K

L

M

A

B

TF

Disassembly and Assembly

NDS000E5

COMPONENTS

*: This may not be used for December

′

06 models or later.

1.

Drive chain

2.

Front drive shaft rear bearing

3.

Front drive shaft

4.

Front drive shaft front bearing

5.

Sprocket

6.

Mainshaft

7.

Needle bearing

8.

Snap ring

9.

Mainshaft bearing

10. Front case

11.

Front oil seal

12. Mainshaft oil seal

13. Oil cover

14. Temperature sensor*

15. Electric controlled coupling

16. Spacer

17. Snap ring

18. O-ring

19. Oil gutter

20. Drain plug

21. Baffle plate

22. Rear bearing

23. Snap ring

24. Spacer

25. Rear oil seal

26. Companion flange

27. Self-lock nut

28. Breather tube

29. Rear case

30. Harness bracket

31. Retainer

32. Filler plug

33. Gasket

PDIA0244E

TF-46

TRANSFER ASSEMBLY

DISASSEMBLY
Front Case and Rear Case

1.

Remove drain plug and filler plug.

2.

Remove mainshaft oil seal from front case, using a flat-bladed
screwdriver.

CAUTION:

Be careful not to damage the front case and mainshaft.

3.

Remove front oil seal from front case, using a flat-bladed screw-
driver.

CAUTION:

Be careful not to damage the front case and front drive
shaft.

4.

Remove self-lock nut.

5.

Put a matching mark on the end of mainshaft. The mark should
be in line with the mark on the companion flange.

CAUTION:

For matching mark, use paint. Do not damage mainshaft.

6.

Remove companion flange, using a puller.

CAUTION:

Be careful not to damage the companion flange.

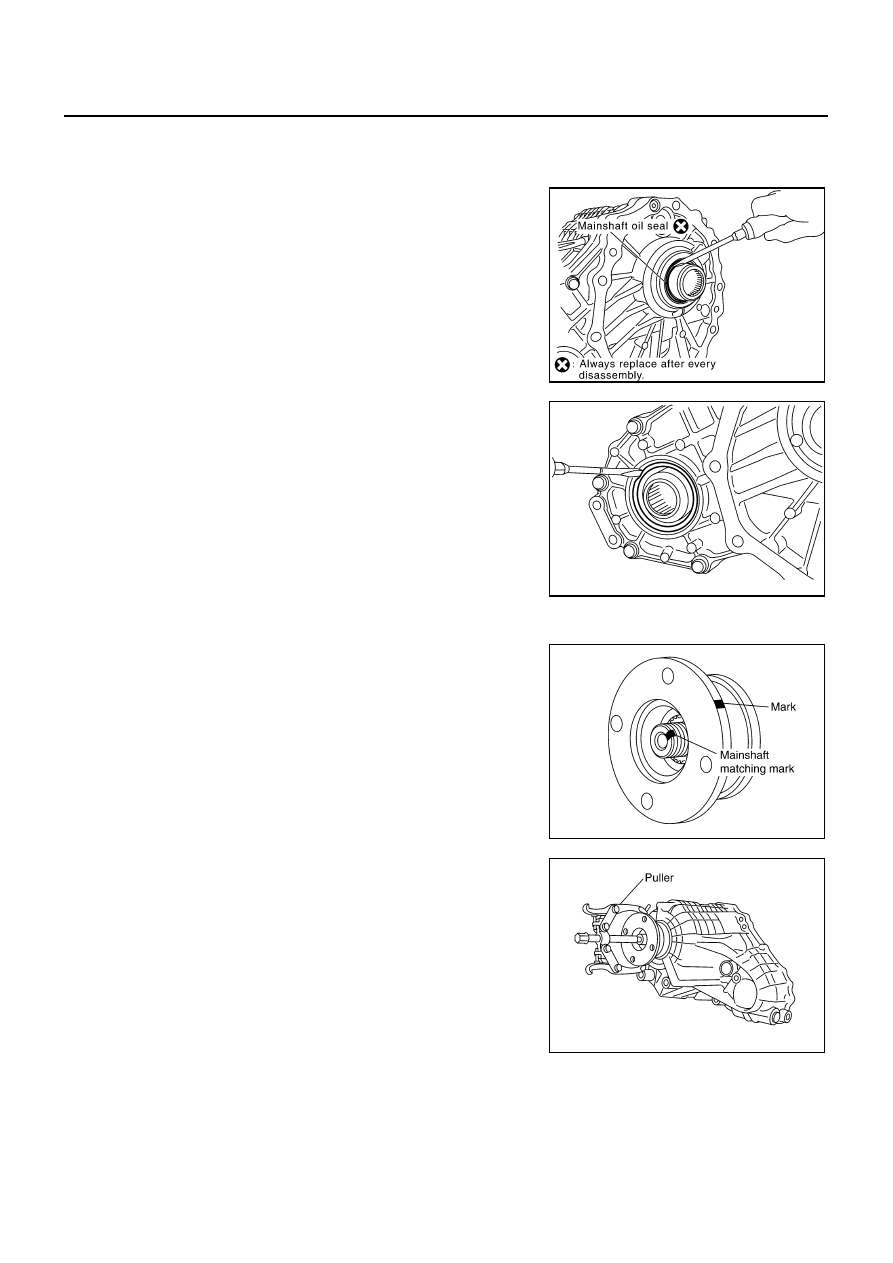

PDIA0253E

PDIA0255E

SDIA2378E

PDIA0258E
