TROUBLE DIAGNOSIS FOR SYSTEM

TF-31

C

E

F

G

H

I

J

K

L

M

A

B

TF

3.

Check resistance between transfer assembly harness connector
F43 terminals 1 and 2.

4.

If NG, replace electric controlled coupling. Refer to

TF-45, "Dis-

assembly and Assembly"

 .

AWD Actuator Relay

NDS000DR

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE

Data are reference value.

DIAGNOSTIC PROCEDURE

●

Check the following if “4WD ACTUATOR RLY [C1205]” is displayed in self-diagnosis results of CONSULT-
II.

1.

CHECK AWD SOLENOID SYSTEM

Perform self-diagnosis. Refer to

TF-22, "SELF-DIAG RESULT MODE"

 .

Is the “4WD SOLENOID [C1204]” displayed?

YES

>> Perform trouble diagnosis for AWD solenoid. Refer to

TF-28, "AWD Solenoid"

 .

NO

>> GO TO 2.

2.

CHECK AWD ACTUATOR RELAY SIGNAL

 With CONSULT-II

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.

3.

Start engine and read out ON/OFF signal of “ETS ACTUATOR”.

OK or NG

OK >> GO

TO

4.

NG

>> GO TO 3.

3.

CHECK AWD CONTROL UNIT

Check AWD control unit input/output signal. Refer to

TF-20, "AWD Control Unit Input/Output Signal Reference

Values"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Check AWD control unit pin terminals for damage or loose connection with harness connector. If

any items are damaged, repair or replace damaged parts.

1 - 2

: Approx. 2.45

Ω

SDIA2162E

Monitor item

Condition

Display value

ETS ACTUATOR [ON/OFF]

Engine stopped (Ignition switch: ON)

OFF

Engine running

ON

Monitor item

Condition

Display value

ETS ACTUATOR

Engine stopped (Ignition switch: ON)

OFF

Engine running

ON

SDIA1897E

TF-32

TROUBLE DIAGNOSIS FOR SYSTEM

4.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.

OK or NG

OK

>> INSPECTION END

NG

>> Replace AWD control unit.

Engine Control Signal

NDS000DS

DIAGNOSTIC PROCEDURE

●

Check the following if “ECM SIGNAL 1 [C1210]” is displayed in self-diagnosis results of CONSULT-II.

1.

CHECK DTC WITH ECM

Perform self-diagnosis with ECM. Refer to

EC-55, "Emission-Related Diagnostic Information"

 .

Is any malfunction detected by self-diagnosis?

YES

>> Check the malfunctioning system.

NO

>> GO TO 2.

2.

CHECK AWD CONTROL UNIT

Check AWD control unit input/output signal. Refer to

TF-20, "AWD Control Unit Input/Output Signal Reference

Values"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Check AWD control unit pin terminals for damage or loose connection with harness connector. If

any items are damaged, repair or replace damaged parts.

3.

CHECK DTC

Perform the self-diagnosis, after driving a vehicle for a while.

OK or NG

OK

>> INSPECTION END

NG

>> Perform self-diagnosis with ECM again. Refer to

EC-55, "Emission-Related Diagnostic Informa-

tion"

 .

CAN Communication Line

NDS000DT

DIAGNOSTIC PROCEDURE

●

Check the following if “CAN COMM CIRCUIT [U1000]” is detected in self-diagnosis results of CONSULT-
II.

1.

CHECK CAN COMMUNICATION CIRCUIT

 With CONSULT-II

1.

Turn ignition switch “ON” and start engine.

2.

Select “SELF-DIAG RESULTS” mode for “ALL MODE AWD/4WD” with in CONSULT-II.

3.

Perform the self-diagnosis.

Is the “CAN COMM CIRCUIT [U1000]” displayed?

YES

>> Print out CONSULT-II screen and go to

LAN-50, "CAN

System Specification Chart"

 .

NO

>> INSPECTION END

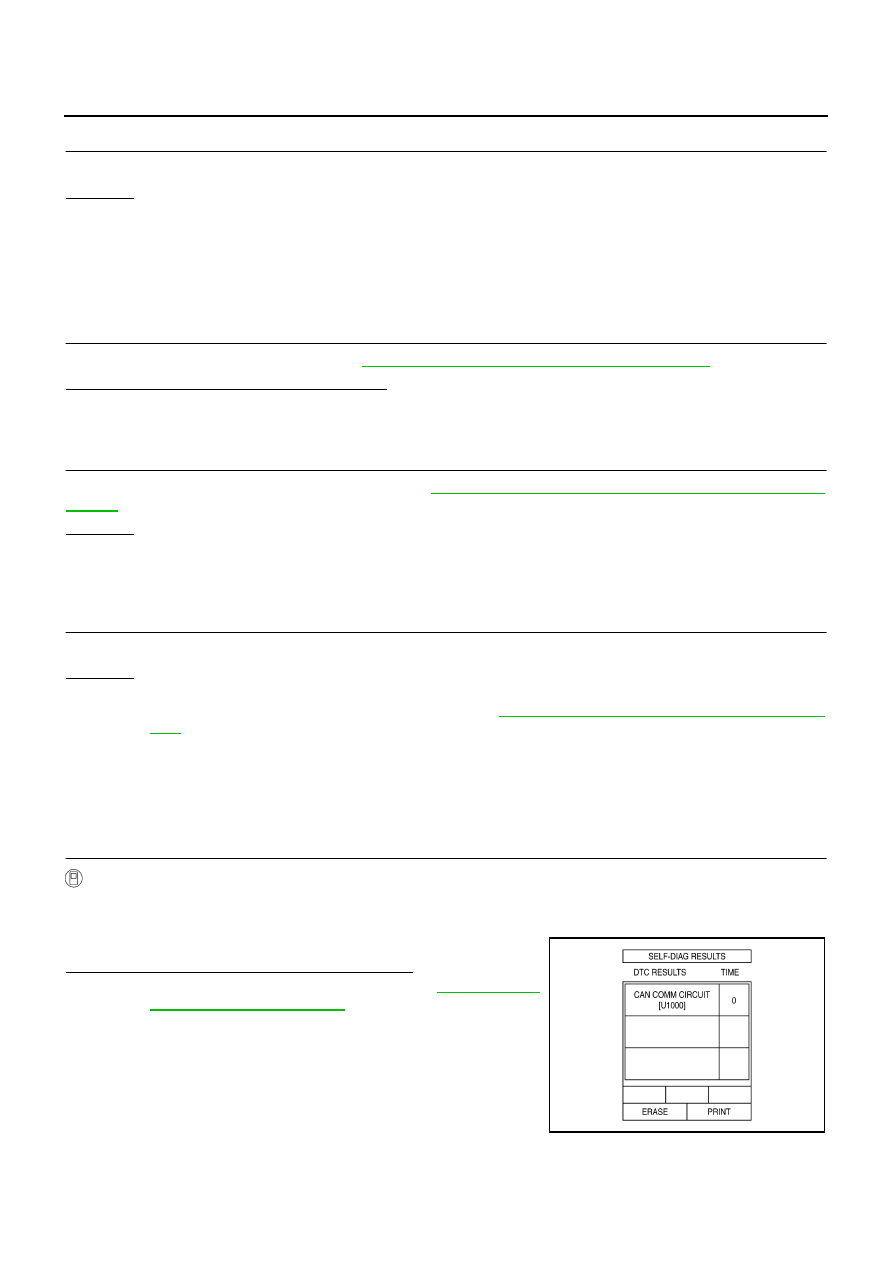

SDIA1850E
