TROUBLE DIAGNOSIS

TF-15

C

E

F

G

H

I

J

K

L

M

A

B

TF

Location of Electrical Parts

NDS000DH

SDIA3135E

TF-16

TROUBLE DIAGNOSIS

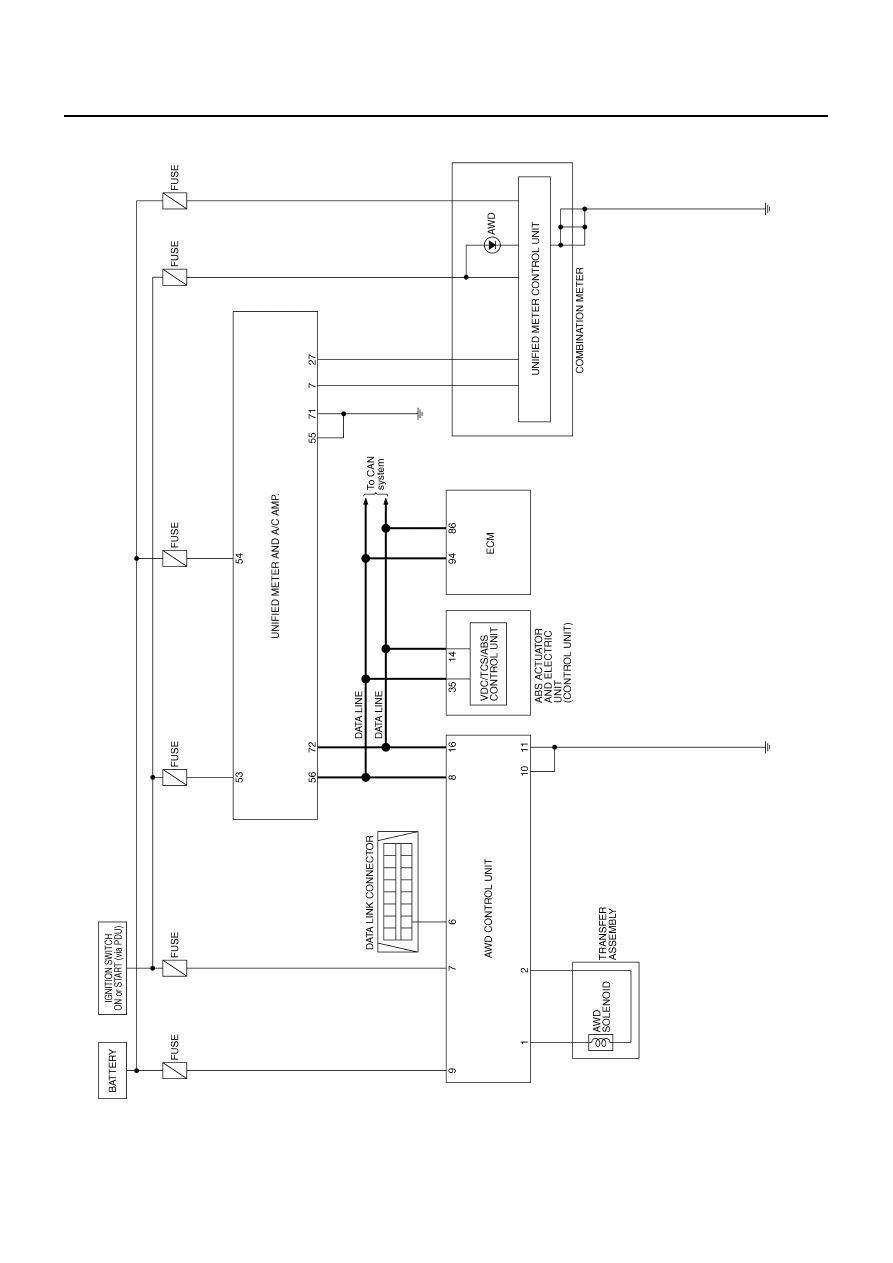

Circuit Diagram

NDS000DI

TDWT0017E

TROUBLE DIAGNOSIS

TF-17

C

E

F

G

H

I

J

K

L

M

A

B

TF

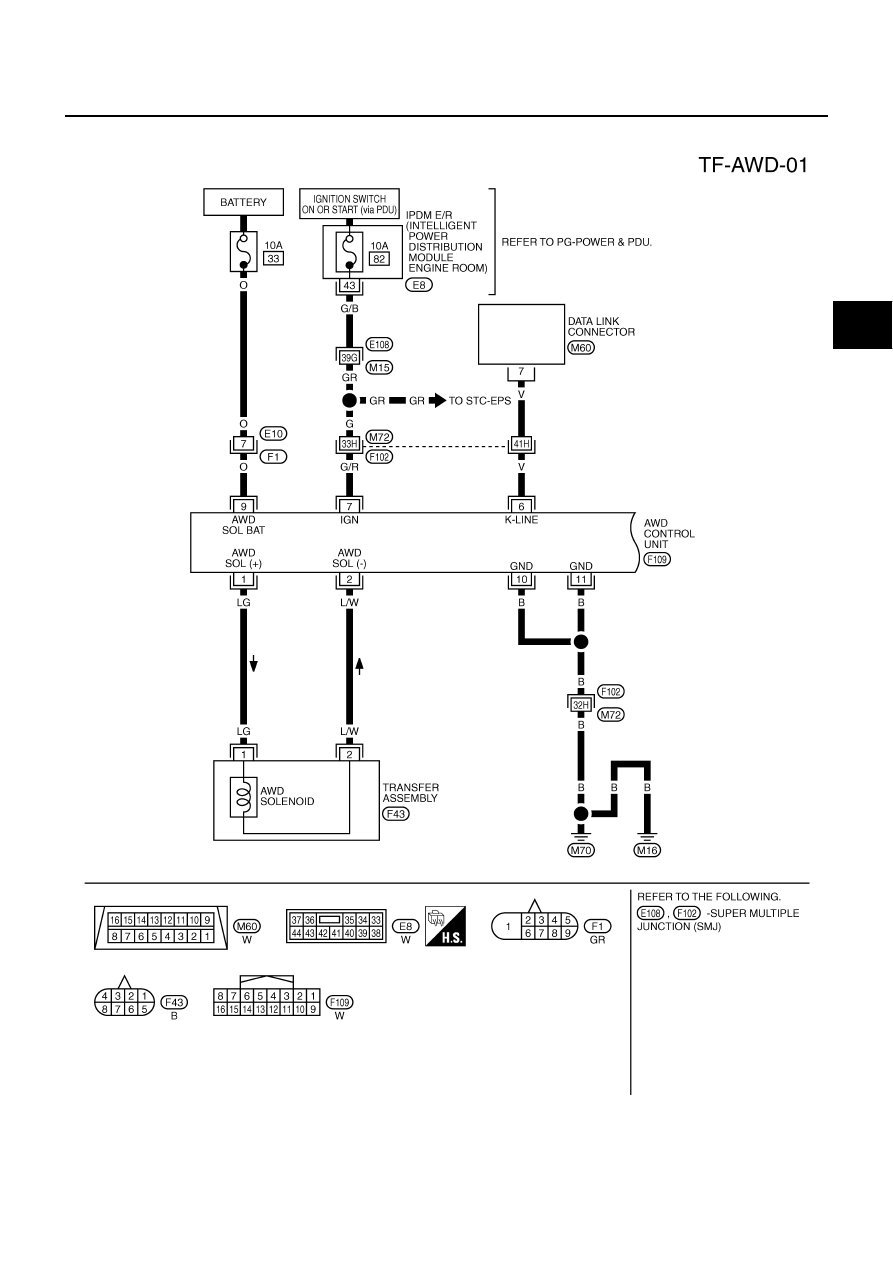

Wiring Diagram — AWD —

NDS000DJ

TDWT0018E

TF-18

TROUBLE DIAGNOSIS

TDWT0026E
