SIDE CURTAIN AIR BAG MODULE

SRS-47

C

D

E

F

G

I

J

K

L

M

A

B

SRS

SIDE CURTAIN AIR BAG MODULE

PFP:985P0

Removal and Installation

NHS0009F

REMOVAL

CAUTION:

Before servicing, turn ignition switch OFF, disconnect both battery terminal and wait at least 3
minutes.

Do not use air tools or electric tools for servicing.

Leave the curtain air bag module with air bag deployment side facing upward.

Do not make an impact to the air bag module by dropping etc. Replace the air bag module if it has
been dropped or sustained an impact.

1.

Remove the curtain air bag module.

Remove the headlining. Refer to

EI-52, "HEADLINING"

 .

Remove the side curtain air bag module connector.

NOTE:

For installing / removing side curtain air bag module con-
nector, insert thin screwdriver wrapped in tape into notch,
lift lock and remove connector.

Install connector with lock raised, and push lock into con-
nector.

After installing the connector, make sure that the lock is
pushed securely into it.

Remove the curtain air bag module fixing bolts, then remove the ground bolt.

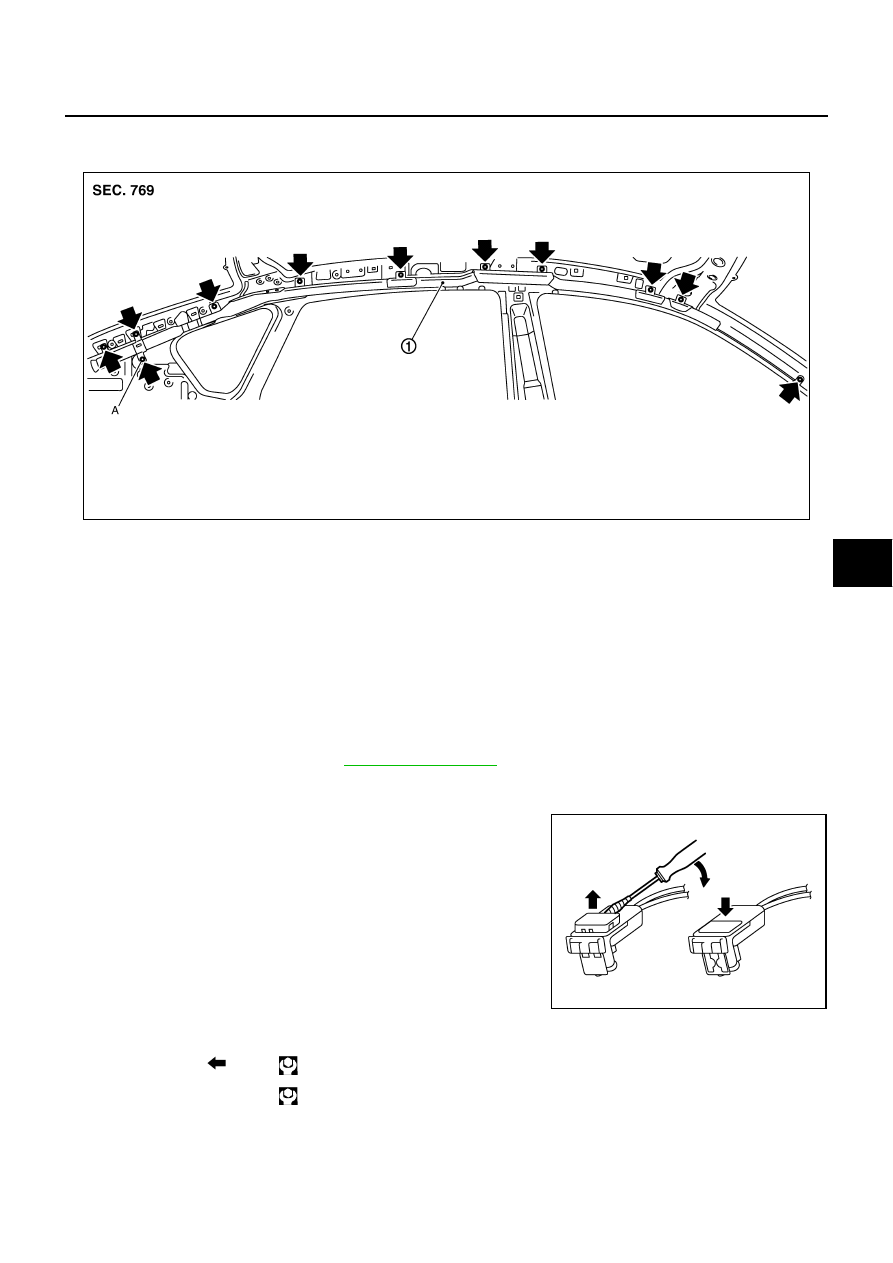

PHIA1115E

1.

Side curtain air bag module

A

Ground bolt

PHIA0953J

Fixing bolt (

)

10.8 N·m (1.1 kg

m, 8 ft

lb)

Ground bolt A

10.8 N·m (1.1 kg

m, 8 ft

lb)

SRS-48

SIDE CURTAIN AIR BAG MODULE

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful not to damage the air bag harness.

After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.

In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT-ll.

In case that malfunction is still detected after the avove operation, perform self-diagnosis to repair
malfunctions. Refer to

SRS-20, "SRS Operation Check"

 .

CRASH ZONE SENSOR

SRS-49

C

D

E

F

G

I

J

K

L

M

A

B

SRS

CRASH ZONE SENSOR

PFP:98531

Removal and Installation

NHS0009G

REMOVAL

CAUTION:

Before servicing, turn ignition switch OFF, disconnect both battery terminal and wait at least 3
minutes.

Do not use air tools or electric tools for servicing.

Do not use old fixing nuts after removal; replace with new nuts.

Do not make an impact to the crash zone sensor by dropping etc. Replace the crash zone sensor if
it has been dropped or sustained an impact.

Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger
air bag.

1.

Remove the crash zone sensor.

Remove the front grille. Refer to

EI-16, "Removal and Installation"

 .

Remove the crash zone sensor fixing nuts.

Disconnect the crash zone sensor harness connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful not to damage the crash zone sensor harness.

After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.

In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT

ll.

In case that malfunction is still detected after the above operation, perform self-diagnosis to repair
malfunctions. Refer to

SRS-20, "SRS Operation Check"

 .

Fixing nut

10.8 N·m (1.1 kg

m, 8 ft

lb)

PHIA1116E

SRS-50

SIDE AIR BAG (SATELLITE) SENSOR

SIDE AIR BAG (SATELLITE) SENSOR

PFP:98830

Removal and Installation

NHS0009H

REMOVAL

CAUTION:

Before servicing, turn ignition switch OFF, disconnect both battery terminal and wait at least 3
minutes.

Do not use air tools or electric tools for servicing.

Do not use old fixing nuts after removal; replace with new nuts.

Do not make an impact to the side air bag (satellite) sensor by dropping etc. Replace the side air
bag (satellite) sensor if it has been dropped or sustained an impact.

Replace the satellite sensor of deployed SRS front side air bag and deployed SRS side curtain air
bag.

1.

Remove the side air bag (Satellite) sensor.

Remove front seat belt. Refer to

SB-29, "Removal and Installation of Front Seat Belt"

 .

Remove fixing nuts,  then remove side air bag (Satellite) sen-
sor.

Disconnect the side air bag (Satellite) sensor harness con-
nector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful not to damage the satellite sensor harness.

After the work is completed, make sure no system malfunction is detected by air bag warning
lamp.

In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis func-
tion and delete the memory by CONSULT

ll.

In case that malfunction is still detected after the above operation, perform self-diagnosis to repair
malfunctions. Refer to

SRS-20, "SRS Operation Check"

 .

Fixing nut

10.8 N·m (1.1 kg

m, 8 ft

lb)

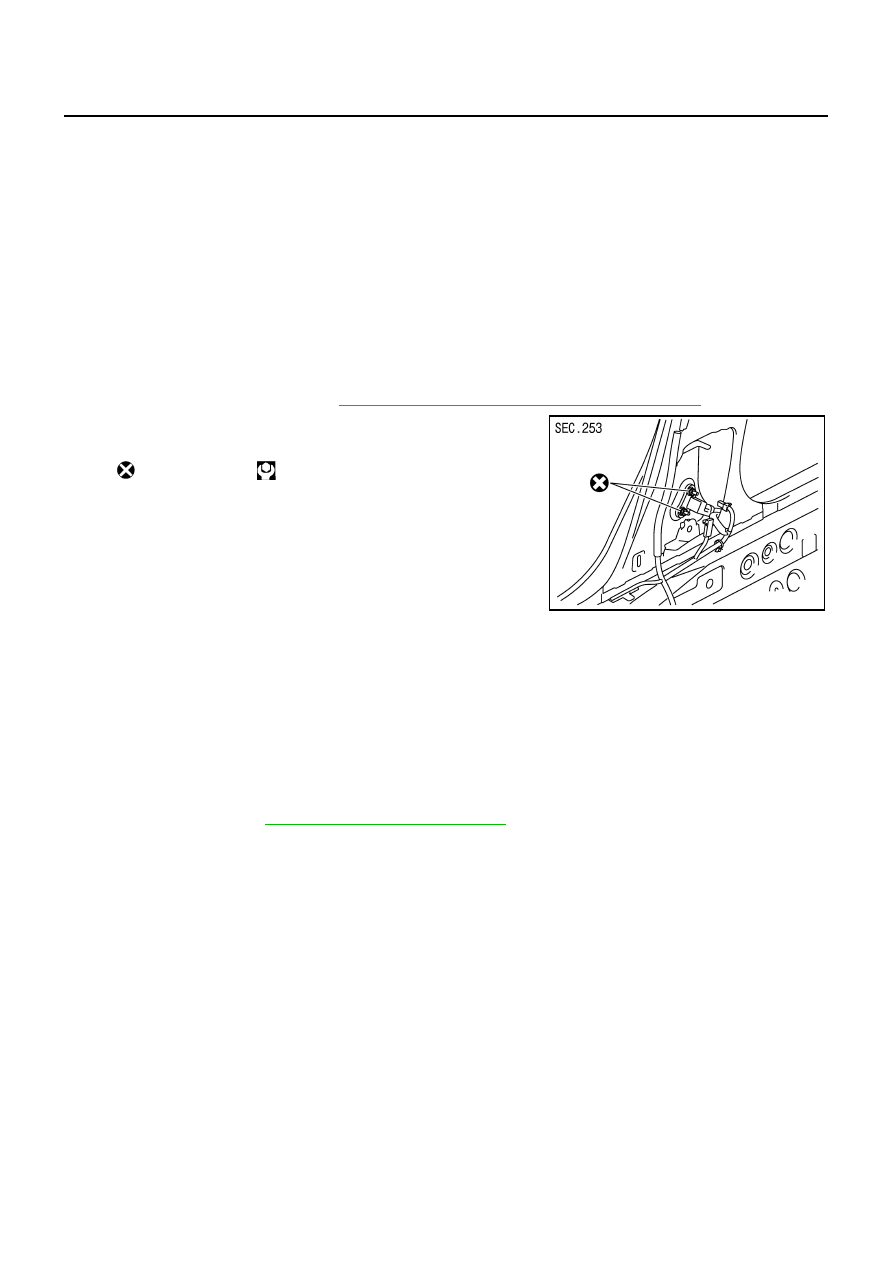

PHIA0902J
