FRONT SEAT

SE-165

C

D

E

F

G

H

J

K

L

M

A

B

SE

1.

Front leg cover

2.

Rear leg cover

3.

Headrest

4.

Seatback board

5.

Seat speaker grill

6.

Headrest holder (free)

7.

Headrest holder (locked)

8.

Seatback upper finisher

9.

Side air bag module

10. Reclining device cover

11.

Seatback trim

12. Seatback pad

13. Seatback frame

14. Seat speaker

15. Seatback thermal electrical device

(TED) assembly

16. Seat cushion rear finisher

(Climate controlled seat model)

17. Seat cushion front finisher

18. Seat slide switch knob

19. Seat reclining switch knob

20. Seat cushion outer finisher

21. Lumber support switch assembly

22. Seat cushion lower finisher

23. Seat cushion inner finisher

24. Seat cushion pad

25. Seat cushion trim

26. Seat cushion finisher B

27. Seat cushion frame

28. Seat cushion thermal electrical

device (TED) assembly

29. Blower motor assembly

30. Climate controlled seat control unit

31. Seat control switch

32. Driver seat control unit

33. Seat cushion finisher C

34. Seat harness

35. Seat belt buckle

36. Seat adjuster assembly

SE-166

FRONT SEAT

Passenger's Seat Components

NIS0028F

PIIB8941E

FRONT SEAT

SE-167

C

D

E

F

G

H

J

K

L

M

A

B

SE

1.

Front leg cover

2.

Rear leg cover

3.

Headrest

4.

Seatback board

5.

Seat speaker grill

6.

Headrest holder (free)

7.

Headrest holder (locked)

8.

Seatback upper finisher

9.

Side air bag module

10. Reclining device cover

11.

Seatback trim

12. Seatback pad

13. Seatback frame

14. Seat speaker

15. Seatback thermal electrical device

(TED) assembly

16. Seat cushion rear finisher

(Climate controlled seat model)

17. Seat cushion front finisher

18. Seat cushion slide switch

19. Seat reclining switch

20. Seat cushion outer finisher

21. Lumber support switch assembly

22. Seat inner finisher

23. Seat cushion finisher B

24. Blower motor assembly

25. Seat cushion  thermal electrical

device (TED) assembly

26. Climate controlled seat control unit

27. Seat cushion finisher C

28. Seat harness assembly

29. Seat belt buckle

30. Seat cushion assembly

SE-168

FRONT SEAT

Removal and Installation

NIS0028G

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

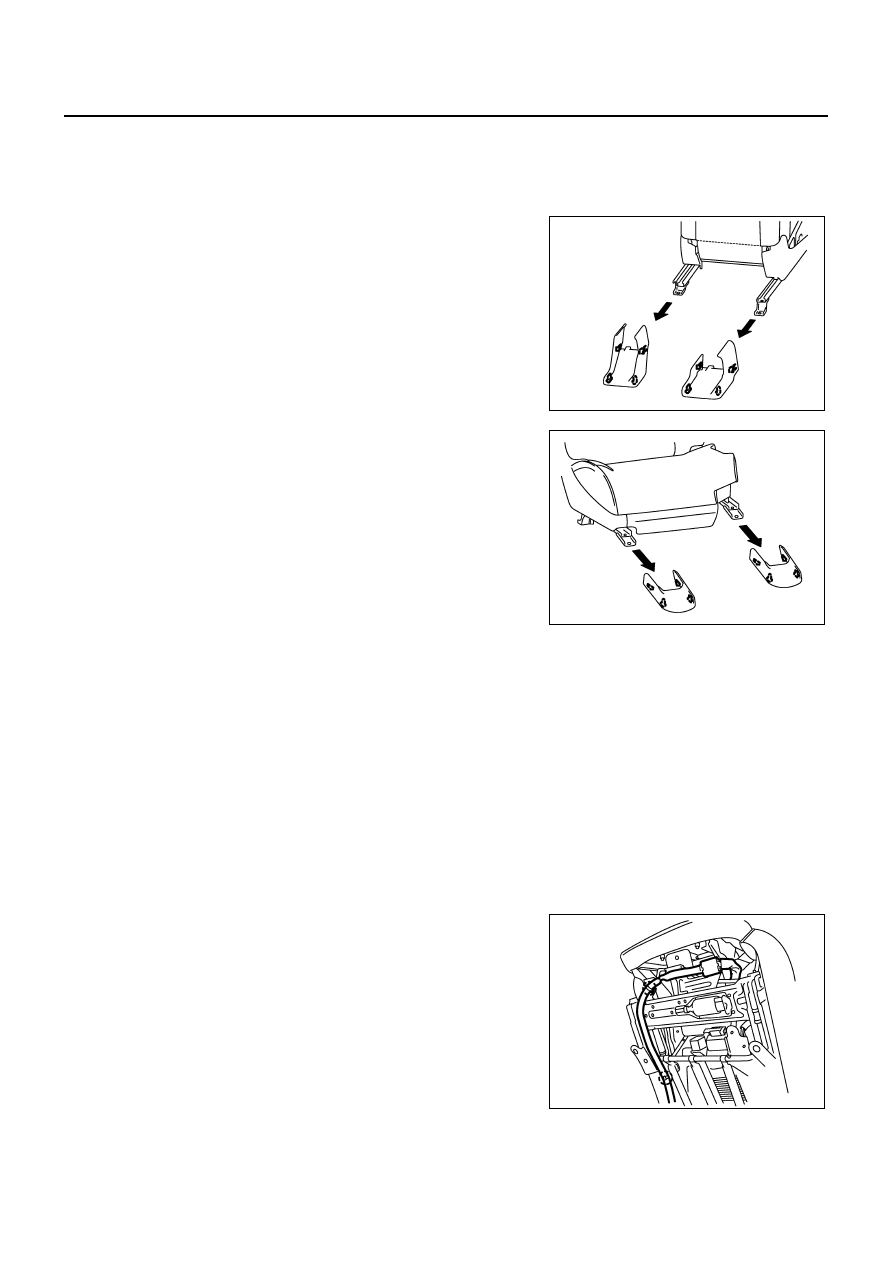

REMOVAL

1.

Pull rear leg cover backward while opening outside to remove
the rear leg cover.

2.

Remove the mounting bolts on the back side of the front seat.

3.

Pull rear leg cover forward while opening outside to remove the
front leg cover.

4.

Remove the mounting bolts on the front side of the front seat.

5.

Disconnect harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, be sure to turn ignition switch OFF, disconnect both battery cables, and then wait
for at least 3 minutes.

6.

Set seatback in a standing position.

7.

Remove the headrest.

8.

Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Install in the reverse order of removal. Be careful of the following two points.

●

Before installation, be sure to turn ignition switch OFF, disconnect both battery cables, and then wait for at
least 3 minutes.

●

Clamp the harness in position.

PIIB3343J

PIIB3342J

PIIB3347J
