POWER SEAT(REAR)

SE-97

C

D

E

F

G

H

J

K

L

M

A

B

SE

Then ground is supplied

●

through rear seat sliding motor terminals 5,

●

through body grounds B5, B40, B131.

When power and ground are supplied, rear power seat slide moves forward.
When rear power seat switch is backward, ground is supplied

●

to rear seat control unit terminal 15,

●

through rear power seat switch terminal 1,

●

through rear power seat switch terminal 3,

●

through body grounds B5, B40, B131.

When rear seat control unit receives power seat switch backward signal, power is supplied

●

to rear seat control unit terminal 7,

●

through rear seat sliding motor terminal 4.

Then ground is supplied

●

through rear seat sliding motor terminals 5,

●

through body grounds B5, B40, B131.

When power and ground are supplied, rear power seat slide moves backward.

REAR SEAT RETREAT FUNCTION

When rear door open, ground is supplied

●

to rear seat control unit terminal 16,

●

through rear door switch terminal 2,

When rear seat control unit receives automatic return cancel switch ON and rear door switch open signal,
power is supplied

●

through rear seat control unit terminal 7,

●

to rear seat sliding motor terminal 4.

Then ground is supplied

●

through rear seat sliding motor terminals 5,

●

through body grounds B5, B40, B131.

When power and ground are supplied, rear power seat slide moves backward.
When rear seat sliding motor is operated, ground is supplied

●

to rear seat control unit terminal 12,

●

through rear seat sliding motor terminal 1,

●

through rear seat sliding motor terminal 2,

●

through rear seat control unit terminal 19,

●

through rear seat control unit terminals 13,

●

through body grounds B5, B40, B131.

Then rear seat control unit receives rear power seat sliding sensor signal.
The rear power seat control unit controls the seat position of the system operation with the signal.

SE-98

POWER SEAT(REAR)

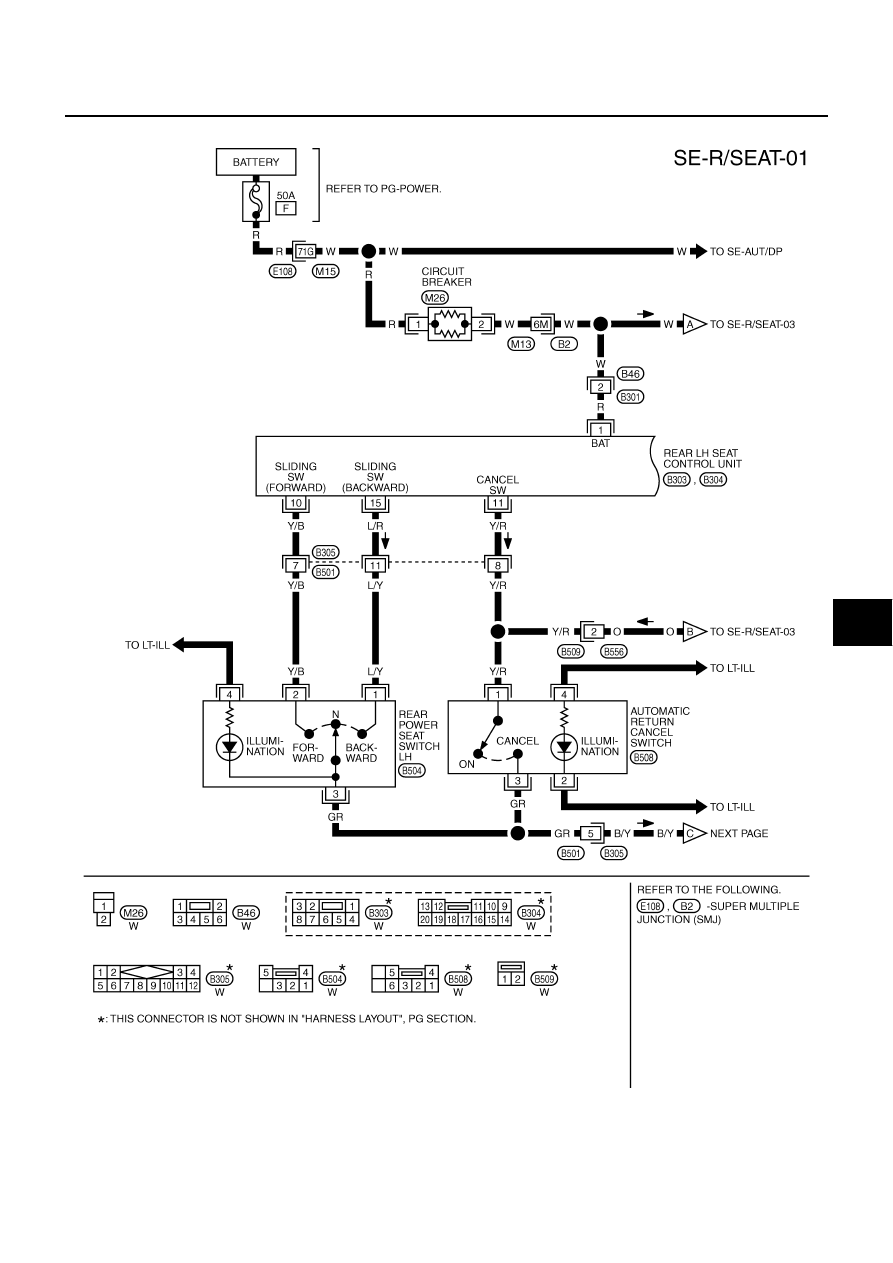

Schematic

NIS00274

TIWT1386E

POWER SEAT(REAR)

SE-99

C

D

E

F

G

H

J

K

L

M

A

B

SE

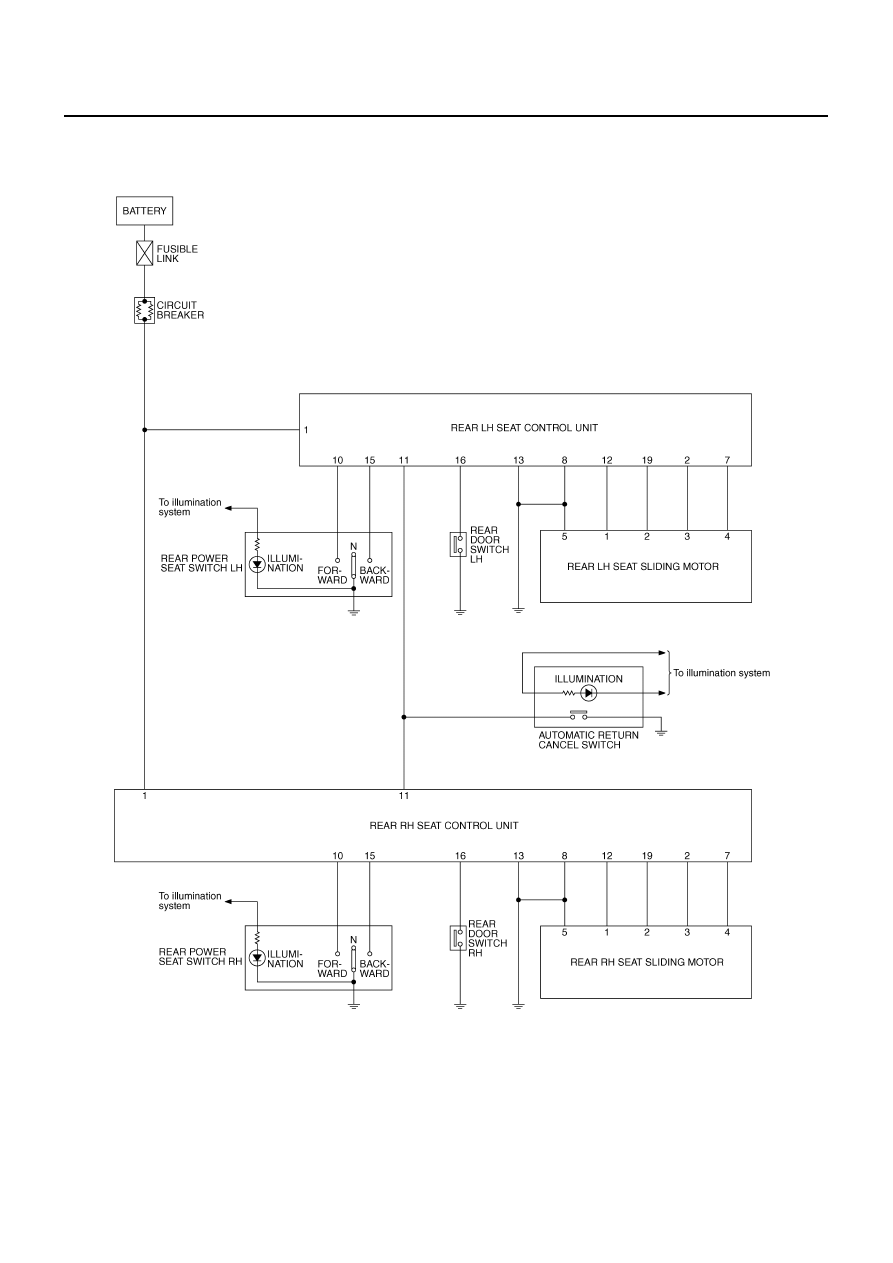

Wiring Diagram — R/SEAT —

NIS00275

TIWT1387E

SE-100

POWER SEAT(REAR)

TIWT1388E
