STARTING SYSTEM

SC-19

C

D

E

F

G

H

I

J

L

M

A

B

SC

VK45DE ENGINE MODELS

Inspection After Disassembly

NKS005BW

PINION/CLUTCH CHECK

1.

Inspect pinion teeth.

●

Replace pinion if teeth are worn or damaged. (Also check condition of ring gear teeth.)

2.

Inspect reduction gear teeth.

●

Replace reduction gear if teeth are worn or damaged. (Also check condition of armature shaft gear
teeth.)

3.

Check if pinion locks in one direction and rotates smoothly in the opposite direction.

●

If it locks or rotates in both directions, or unusual resistance is evident, replace.

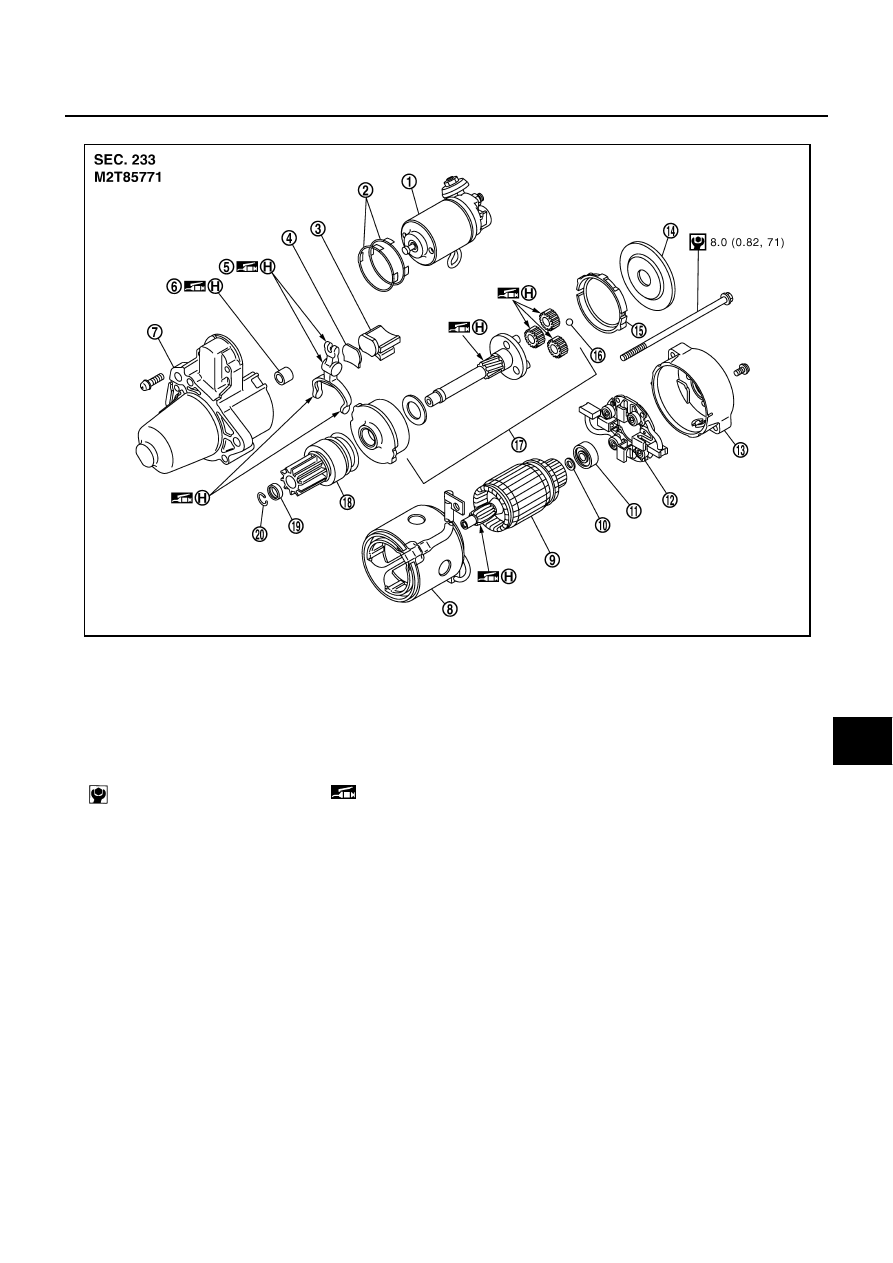

1.

Magnetic switch assembly

2.

Adjusting plate

3.

Packing

4.

Plate

5.

Shift lever

6.

Sleeve bearing

7.

Front bracket assembly

8.

Yoke assembly

9.

Armature assembly

10.

Washer

11.

Rear bearing

12. Brush holder assembly

13.

Rear bracket assembly

14.

Cover

15. Packing

16.

Ball

17.

Shaft gear assembly

18. Clutch gear assembly

19.

Pinion stopper

20.

Stopper clip

: N·m (kg-m, in-lb)

(H): High-temperature grease point

PKIB8653E

SC-20

CHARGING SYSTEM

CHARGING SYSTEM

PFP:23100

System Description

NKS005BX

DESCRIPTION

The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC regulator.
Power is supplied at all times

●

through 10A fuse [No. 36, located in the fuse, fusible link and relay block (J/B)]

●

to alternator terminal 4 (“S” terminal).

“B” terminal supplies power to charge the battery and operate the vehicle's electrical system. Output voltage is
controlled by the IC regulator at terminal 4 (“S” terminal) detecting the input voltage.
The alternator is grounded to the engine block.
With the ignition switch in the ON or START position, power is supplied

●

through 10A fuse [No. 14, located in the fuse block (J/B)]

●

to combination meter terminal 12 for the charge warning lamp.

Ground is supplied at signal

●

to combination meter terminal 22

●

through alternator terminal 3 (“L” terminal).

Then power and ground are supplied, the charge warning lamp will illuminate.
When the alternator is providing sufficient voltage with the engine running, the ground is opened and the
charge warning lamp will go off.
If the charge warning lamp illuminates with the engine running, a malfunction is indicated.
Ground is supplied

●

to alternator terminal 2 (“E” terminal)

●

through grounds E222, E223 and E224. (VQ35DE)

●

through ground E212. (VK45DE)

MALFUNCTION INDICATOR

The IC regulator warning function activates to illuminate the charge warning lamp, if any of the following symp-
toms occur while alternator is operating:

●

Excessive voltage is produced.

●

No voltage is produced.

CHARGING SYSTEM

SC-21

C

D

E

F

G

H

I

J

L

M

A

B

SC

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

Power generation voltage variable control system that controls the power generation voltage of the alternator
has been adopted. By performing the power generation voltage variable control, the engine load due to the
power generation of the alternator is reduced and fuel consumption is decreased.

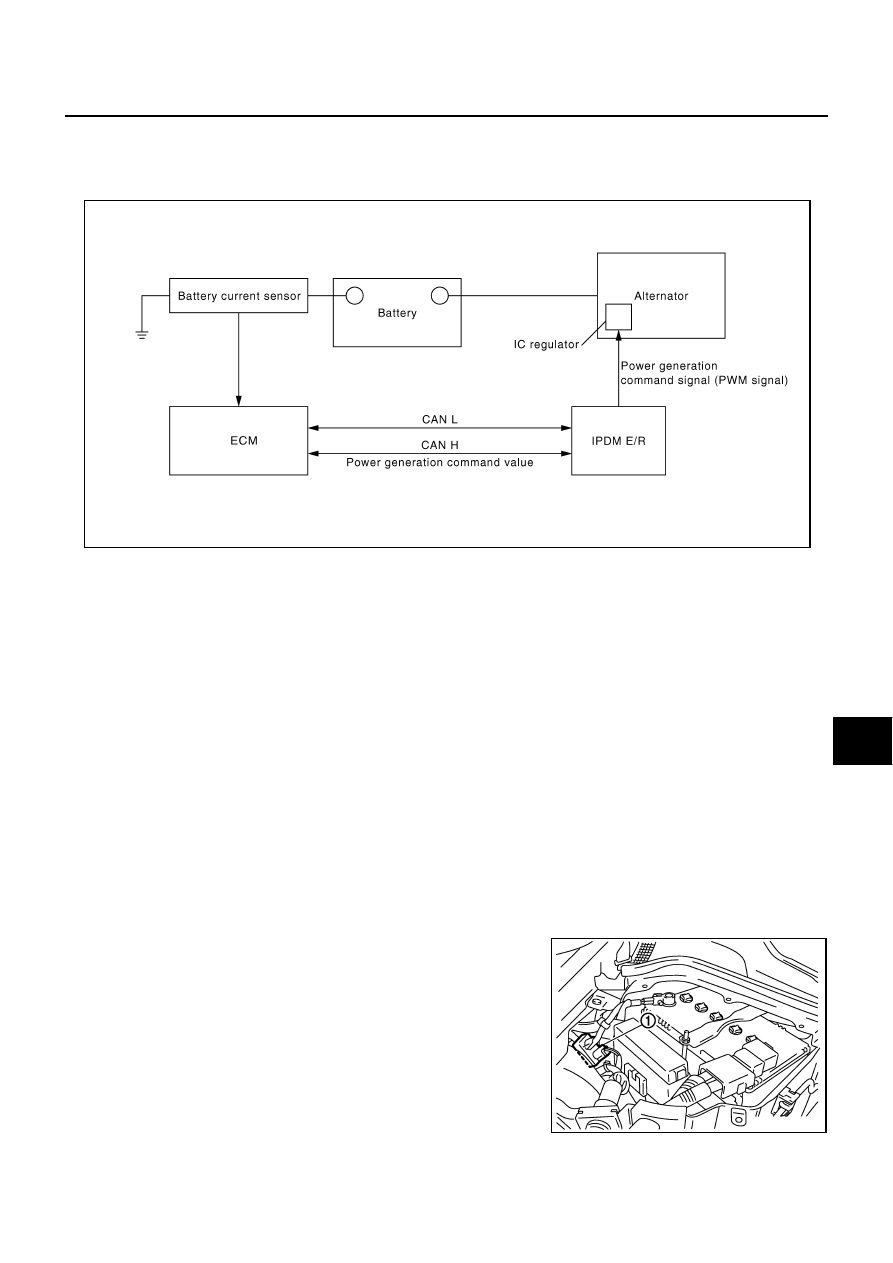

Operation Description

●

The battery current sensor detects the charging/discharging current of the battery. ECM judges the battery
condition based on this signal.

●

ECM judges whether to perform the power generation voltage variable control according to the battery
condition.

●

When performing the power generation voltage variable control, ECM calculates the target power genera-
tion voltage according to the battery condition and sends the calculated value as the power generation
command value to IPDM E/R.

●

IPDM E/R converts the received power generation command value into the power generation command
signal (PWM signal) and sends it to the IC regulator.

●

The IC regulator controls the power generation voltage by the target power generation voltage based on
the received power generation command signal.

●

When there is no power generation command signal, the alternator performs the normal power generation
according to the characteristic of the IC regulator.

NOTE:
When any malfunction is detected in the power generation voltage variable control system, the power genera-
tion is performed according to the characteristic of the IC regulator of the alternator.

Main Component Part

BATTERY CURRENT SENSOR

●

Battery current sensor (1) is installed to the battery cable at the
negative terminal, and it detects the charging/discharging cur-
rent of the battery and sends the voltage signal to ECM accord-
ing to the current value.

SKIB5009E

PKIB8806E

SC-22

CHARGING SYSTEM

Wiring Diagram — CHARGE —

NKS005BY

VQ35DE ENGINE MODELS (2WD)

TKWT5247E
