Infiniti M35/M45 Y50. Manual - part 1033





PRE-CRASH SEAT BELT

SB-3

C

D

E

F

G

I

J

K

L

M

A

B

SB

PRE-CRASH SEAT BELT

PFP:98845

Component Parts and Harness Connector Location

NHS0007X

System Description

NHS0007Y

Pre-crash seat belt system is adapted to front seat belts RH/LH.

When the pre-crash seat belt control unit judges the emergency braking operation, it gives the sense of
security by the motor built into the pre-crash seat belt retracting the shoulder belt and suppressing the
crew's posture change. Also, it eases the damage of the collision.

PHIA1123E

1.

Fuse block (J/B)

2.

Fuse, fusible link and relay block
(J/B)

3.

Pre-crash seat belt control unit B142
(View with the trunk side finisher LH
removed)

4.

Brake pedal stroke sensor E125
(View with the instrument driver
lower panel removed)

5.

Pre-crash seat belt motor B32 (LH),
B422 (RH)
(View with the center pillar lower
garnish removed)

6.

Seat belt buckle switch B203 (driver
seat) B253 (passenger seat)

SB-4

PRE-CRASH SEAT BELT

FUNCTION DESCRIPTION
Operation condition

Pre-crash seat belt operates under the following conditions.

Operation prohibition condition

If operation condition is satisfied, pre-crash seat belt does not operate under the following conditions.

*

1

 : When pre-crash seat belt doesn't operate after it continuously operates 3 times or more, operation can be performed again by stop-

ping operation for approximately 7 minutes.

*

2

 : Refer to

SB-4, "FAIL-SAFE MODE"

  for details of fail-safe mode.

FAIL-SAFE MODE

When a malfunction occurs in the following system, the pre-crash seat belt function is controlled according to
the malfunctioning parts.
Also, seat belt warning lamp blinks with fastening driver seat belt when the following malfunction occurs.

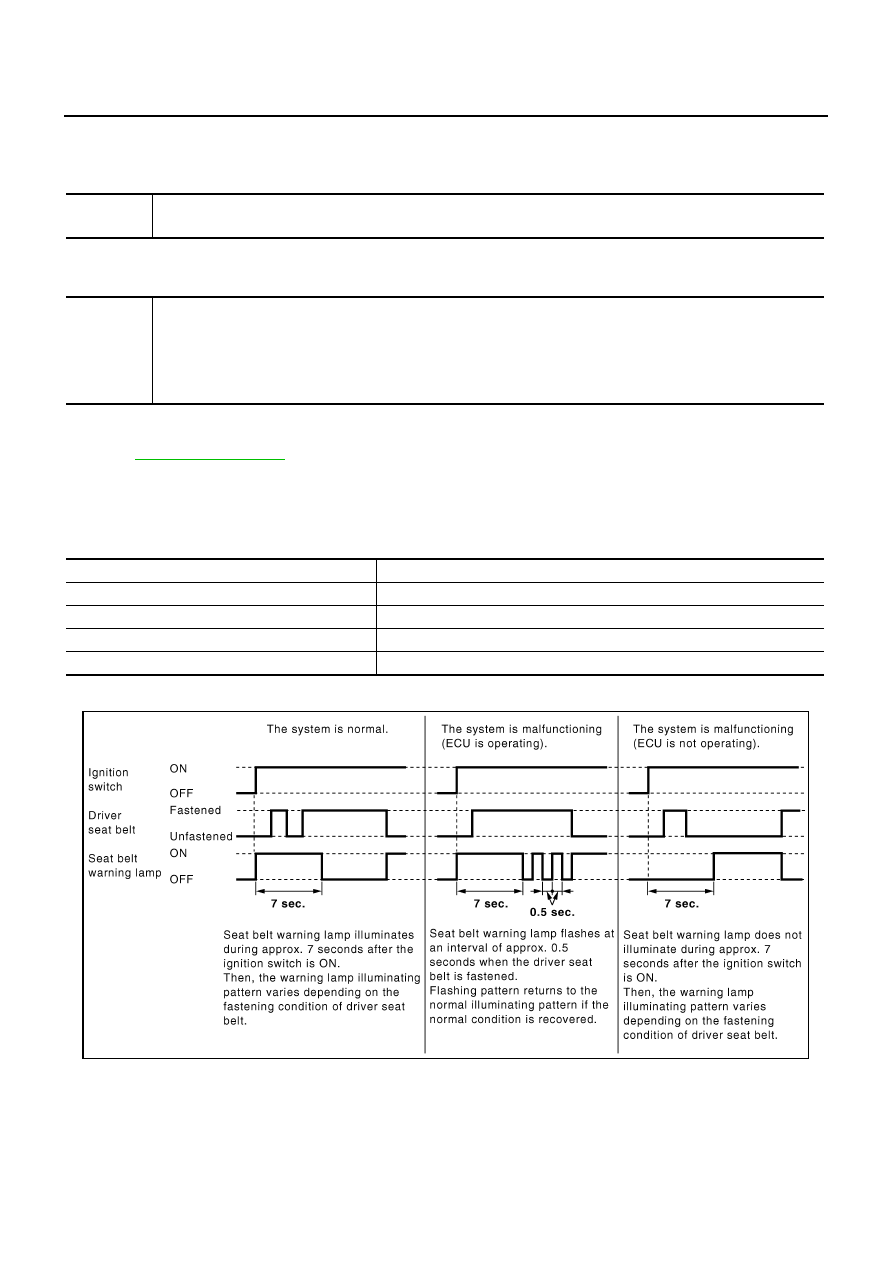

Seat Belt Warning Lamp Illumination Pattern

NOTE:
The seat belt warning lamp illumination system shown above operates only when the air bag system does not
turn on the seat belt warning lamp. The air bag system turns on the seat belt warning lamp, depending on the
conditions of passenger being on and the passenger seat belt fastening.

Condition

When the brake pedal is depressed more than a certain extent

When operation prohibition condition is not satisfied

Condition

When seat belt is not fastened (Only the seat belt that is not fastened does not operate.)

When vehicle is moving backwards

When the vehicle speed is 15 km/h (9 MPH) or less

When pre-crash seat belt continuously operates 3 times or more *

1



At fail-safe condition *

2

Malfunctioning parts

Control contents

Brake pedal stroke sensor system malfunction

Pre-crash seat belt RH/LH do not activate when emergency brake operates.

Seat belt motor RH malfunction

Pre-crash seat belt RH does not activate.

Seat belt motor LH malfunction

Pre-crash seat belt LH does not activate.

Motor power supply circuit malfunction

Pre-crash seat belt RH/LH do not activate.

PHIA1142E

PRE-CRASH SEAT BELT

SB-5

C

D

E

F

G

I

J

K

L

M

A

B

SB

CAN Communication System Description

NHS0007Z

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

NHS00080

Refer to

LAN-50, "CAN System Specification Chart"

 .

SB-6

PRE-CRASH SEAT BELT

Schematic

NHS00081

THWT0139E
