Infiniti M35/M45 Y50. Manual - part 1029





REAR SUSPENSION ASSEMBLY

RSU-5

C

D

F

G

H

I

J

K

L

M

A

B

RSU

REAR SUSPENSION ASSEMBLY

PFP:55020

On-Vehicle Inspection

NES000J6

Make sure the mounting conditions (looseness, back lash) of each component and component conditions
(wear, damage) are normal.

INSPECTION SUSPENSION ARM BALL JOINT AXIAL END PLAY

Measure axial end play by placing and moving up/down with an iron pry bar or something similar between sus-
pension arm and axle assembly.

CAUTION:

Be careful not to damage ball joint boot.

SHOCK ABSORBER INSPECTION

Check shock absorber for oil leakage, damage and replace if malfunction is detected.

Wheel Alignment Inspection

NES000J7

DESCRIPTION

Measure wheel alignment under unladen conditions.

NOTE:
“Unladen conditions” means that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and
mats in designated positions.

PRELIMINARY INSPECTION

Check the following:

1.

Tires for improper air pressure and wear.

2.

Road wheels for runout. Refer to

WT-6, "ROAD WHEEL"

 .

3.

Wheel bearing axial end play. Refer to

RAX-5, "WHEEL BEARING INSPECTION"

 .

4.

Ball joint axial end play of suspension arm. Refer to

RSU-5, "INSPECTION SUSPENSION ARM BALL

JOINT AXIAL END PLAY"

 .

5.

Shock absorber operation.

6.

Each mounting point of axle and suspension for looseness and deformation.

7.

Each of front lower link, rear lower link, radius rod, rear suspension member, suspension arm and shock
absorber for cracks, deformation, and other damage.

8.

Vehicle height (posture).

GENERAL INFORMATION AND RECOMMENDATIONS

A four-wheel thrust alignment should be performed.

This type of alignment is recommended for any NISSAN/INFINITI vehicle.

The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is
centered.

The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.

The rack should be checked to ensure that it is level.

Make sure the machine is properly calibrated.

Your alignment equipment should be regularly calibrated in order to give correct information.

Check with the manufacturer of your specific equipment for their recommended Service/Calibration
Schedule.

Standard value

Axial end play

: 0 mm (0 in)

RSU-6

REAR SUSPENSION ASSEMBLY

THE ALIGNMENT PROCESS

IMPORTANT:
Use only the alignment specifications listed in this Service Manual.

When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or
minus, Go/No Go). Do NOT use these indicators.

The alignment specifications programmed into your machine that operate these indicators may not be cor-
rect.

This may result in an ERROR.

Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-
pensate” the sensors (alignment targets or head units). DO NOT use this “Rolling Compensation”
method.

Use the “Jacking Compensation Method”. After installing the alignment targets or head units, raise the
vehicle and rotate the wheels 1/2 turn both ways.

See Instructions in the alignment machine you're using for more information on this.

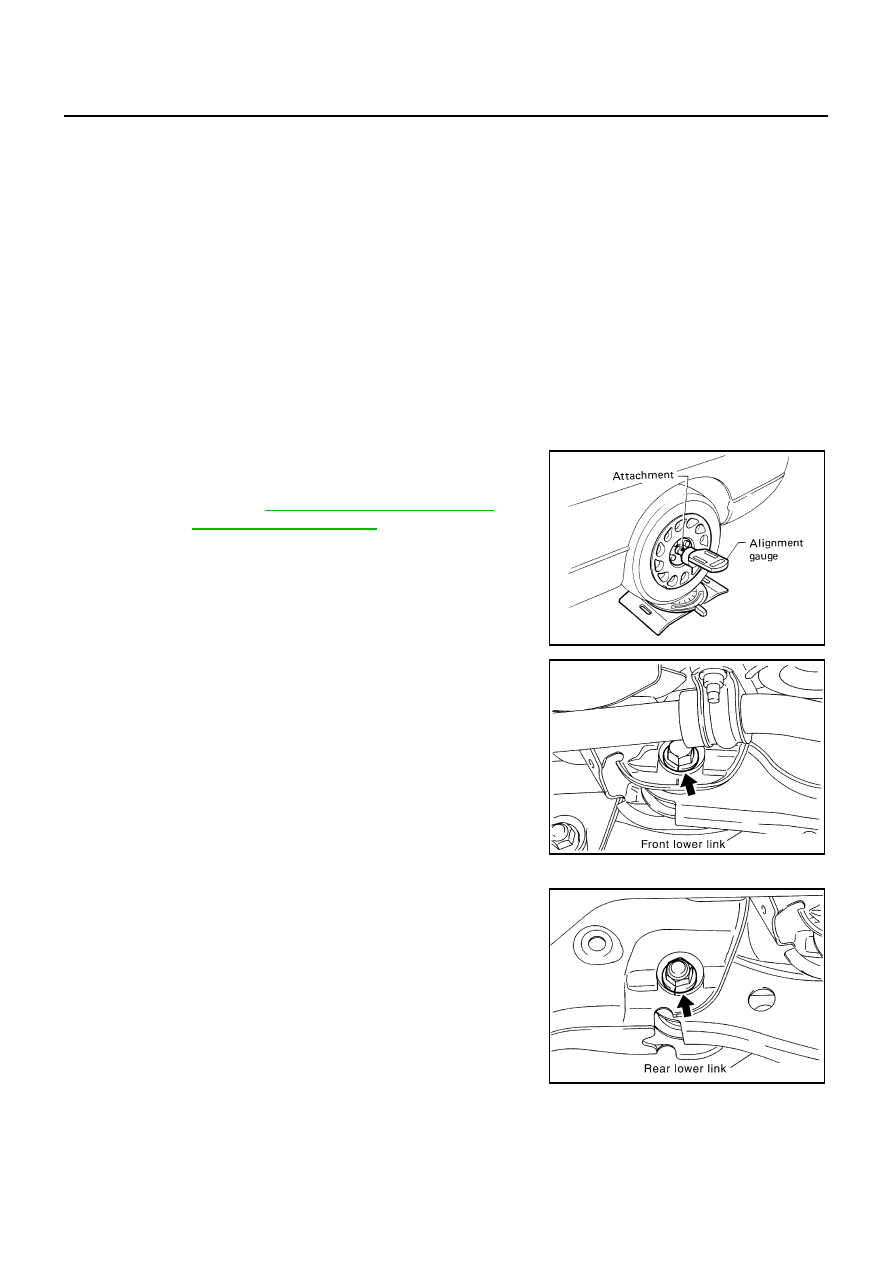

CAMBER INSPECTION

Measure camber of both right and left wheels with a suitable alignment gauge.

Adjust in accordance with the following procedures.

If outside the standard value, adjust with adjusting bolt in front
lower link.
NOTE:
After adjusting camber, be sure to check toe-in.

TOE-IN

If toe-in is not within the specification, adjust with adjusting bolt in
rear lower link.

CAUTION:

Be sure to adjust equally on RH and LH side with adjusting bolt.
If toe-in is not still within the specification, inspect and replace any
damaged or worn rear suspension parts.

Standard value

Camber

: Refer to

RSU-18, "SERVICE DATA AND

SPECIFICATIONS (SDS)"

 .

SRA096A

SEIA0318E

SEIA0319E

REAR SUSPENSION ASSEMBLY

RSU-7

C

D

F

G

H

I

J

K

L

M

A

B

RSU

Components

NES000J8

PEIA0107J

RSU-8

REAR SUSPENSION ASSEMBLY

Removal and Installation

NES000J9

REMOVAL

1.

Remove tires with a power tool.

2.

Remove brake caliper with a power tool. Hang it in a place where it will not interfere with work. Refer to

BR-28, "REAR DISC BRAKE"

 .

CAUTION:

Do not depressing brake pedal while brake caliper is removed.

3.

Put matching marks on both disc rotor and the wheel hub and
bearing assembly, then remove disc rotor.

4.

Remove rear under cover.

5.

Remove wheel sensor from rear final drive.

6.

Remove harness from rear final drive and rear suspension
member.

7.

Remove center muffler. Refer to

EX-3, "EXHAUST SYSTEM"

 .

8.

Remove rear propeller shaft. Refer to

PR-6, "REAR PROPEL-

LER SHAFT"

 .

9.

Remove stabilizer bar. Refer to

RSU-17, "STABILIZER BAR"

 .

10. Remove parking brake cable mounting bolt and separate park-

ing brake cable from vehicle and rear suspension member. Refer to

PB-4, "PARKING BRAKE CONTROL"

.

11. Remove rear lower link and coil spring. Refer to

RSU-16, "REAR LOWER LINK & COIL SPRING"

 .

12. Remove mounting bolt on lower side of shock absorber. Refer to

RSU-10, "SHOCK ABSORBER"

 .

13. Set jack under rear final drive.

14. Remove member stay from vehicle.

15. Remove rear pin stay mounting bolts and nuts.
16. Gradually lowering jack, remove rear pin stay and rear suspension assembly.

INSTALLATION

Installation is the reverse order of the removal. For tightening torque, refer to

RSU-7, "Components"

 .

CAUTION:

Do not reuse non-reusable parts.

Assemble disc rotor and wheel hub and bearing assembly by
aligning each matching mark as shown in the figure when install-
ing disc rotor.

Perform the final tightening of each of parts under unladen con-
ditions, which were removed when removing rear suspension
assembly. Check the wheel alignment. Refer to

RSU-5, "Wheel

Alignment Inspection"

 .

Adjust neutral position of steering angle sensor after checking
the wheel alignment. Refer to

BRC-6, "Adjustment of Steering

Angle Sensor Neutral Position"

 .

Check for the following after finishing work.

1.

Washer

2.

Mounting seal

3.

Bushing (upper side)

4.

Distance tube

5.

Mounting bracket

6.

Bushing (lower side)

7.

Bound bumper cover

8.

Bound bumper

9.

Shock absorber

10. Axle assembly

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Cotter pin

16. Suspension arm

17. Connecting rod mounting bracket

18. Connecting rod

19. Mount stopper

20. Rear lower link

21. Front lower link

22. Radius rod

23. Stabilizer Bushing

24. Stabilizer Clamp

25. Stabilizer bar

26. Rear suspension member

27. Member stay

28. Stopper rubber

29. Cap

30. Rear pin stay

Refer to

GI-11, "Components"

 , for to the symbols in the figure.

SDIA2638E

SDIA2638E
