SUNROOF

RF-15

C

D

E

F

G

H

J

K

L

M

A

B

RF

Terminals and Reference Value for BCM

NIS0023T

Terminals and Reference Value for Sunroof Motor Assembly

NIS0023U

Termi-

nal

Wire

color

Item

Signal

Input/Output

Condition

Voltage (V)

(Approx.)

12 P

Front door switch
(passenger side)

Input

OPEN (ON)

0

CLOSE (OFF)

Battery voltage

38

W

Power source (IGN)

Input

Ignition switch (ON or START) position

Battery voltage

42

P

Power source (Fuse)

Input

—

Battery voltage

52

B

Ground (power)

—

—

0

53 BR

RAP

signal

Output

Ignition switch ON

Battery voltage

Within 45 seconds after ignition switch is
turned to OFF position

Battery voltage

When driver side or passenger side door is
opened during retained power operation.

0

54

O

Power window power supply
(BAT)

Output

—

Battery voltage

55

W

Power source (Fusible link)

Input

—

Battery voltage

62

V

Front door switch (driver side)

Input

OPEN (ON)

0

CLOSE (OFF)

Battery voltage

Termi-

nal

Wire

color

Item

Signal

Input/Output

Condition

Voltage (V)

(Approx.)

1

O

BAT power supply (BCM)

Input

—

Battery voltage

4

LG

Sunroof
(TILT DOWN/SLIDE OPEN)
switch signal

Input

Ignition switch ON and sunroof switch in
TILT DOWN / SLIDE OPEN position

0

Other than above

Battery voltage

6

Y

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 seconds after ignition switch is
turned to OFF position

Battery voltage

When driver side or passenger side door is
opened during retained power operation.

0

8

B

Ground

—

—

0

9

Y

Sunroof switch ground

—

—

0

11

L

Sunroof
(TILT UP/SLIDE CLOSE)
switch signal

Input

Ignition switch ON and sunroof switch in
TILT UP / SLIDE CLOSE position

0

Other than above

Battery voltage

RF-16

SUNROOF

CONSULT-II Function (BCM)

NIS0023V

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II START PROCEDURE

Refer to

GI-38, "CONSULT-II Start Procedure"

 .

ACTIVE TEST

WORK SUPPORT

DATA MONITOR

BCM diagnostic test item

Check item diagnostic test mode

Content

RETAINED PWR

Work support

Changes setting of each function.

Data monitor

Displays the input data of BCM in real time.

Active test

Gives a drive signal to a load to check the operation.

Test Item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-II screen even if the ignition switch is turned OFF.

NOTE:
During this test, CONSULT-II can be operated with ignition switch in “OFF” position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-II screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-II might be stuck if
“RETAINED PWR” is turned  to “ON” or “OFF” on CONSULT-II screen when ignition switch is OFF.

Work item

Description

RETAINED PWR

Rap signal’s power supply period can be changed by mode setting. Selects rap signal’s power
supply period between three steps

●

MODE1 (45 sec.) / MODE2 (OFF) / MODE 3 (2 min.).

Work item

Description

IGN ON SW

Indicates (ON / OFF) condition of ignition switch

DOOR SW–DR

Indicates (ON / OFF) condition of front door switch driver side

DOOR SW–AS

Indicates (ON / OFF) condition of front door switch passenger side

SUNROOF

RF-17

C

D

E

F

G

H

J

K

L

M

A

B

RF

Work Flow

NIS0023W

1.

Check the symptom and customer's requests.

2.

Understand the outline of system. Refer to

RF-11, "System Description"

 .

3.

According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

RF-17,

"Diagnosis Symptom Chart"

 .

4.

Does sunroof system operate normally? If Yes, GO TO 5. If No, GO TO 3.

5.

INSPECTION END.

Diagnosis Symptom Chart

NIS0023X

Check BCM Power Supply and Ground Circuit

NIS0023Y

1.

CHECK FUSE

●

Check 50A fusible link (letter F,  located in the fuse and fusible link box).

●

Check 15A fuse [No.1, located in the fuse block (J/B)]

●

Check 10A fuse [No.21, located in the fuse block (J/B)]

NOTE:
Refer to

RF-10, "Component Parts and Harness Connector Location"

 .

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-3, "POWER SUPPLY ROUTING CIRCUIT"

 .

Symptom

Diagnostic procedure and repair order

Refer to page

Sunroof does not operate properly.

1. Check BCM power supply and ground circuit

RF-17

2. Check sunroof motor assembly power supply and
ground circuit

RF-18

3. Check sunroof switch

RF-20

4. Replace sunroof motor assembly

RF-24

Automatic operation dose not operate.

1. Check initialization procedure

RF-12

2. Replace sunroof motor assembly

RF-24

Motor does not stop at sunroof fully -open or fully- closed
position.

1. Check initialization procedure

RF-12

2. Replace sunroof motor assembly

RF-24

Retained power operation does not operate properly.

1. Check the retained power operation mode setting

RF-16

2. Check door switch

RF-22

3. Replace sunroof motor assembly

RF-24

Sunroof does not operate anti-pinch function.

1. Check initialization procedure

RF-12

2. Replace sunroof motor assembly

RF-24

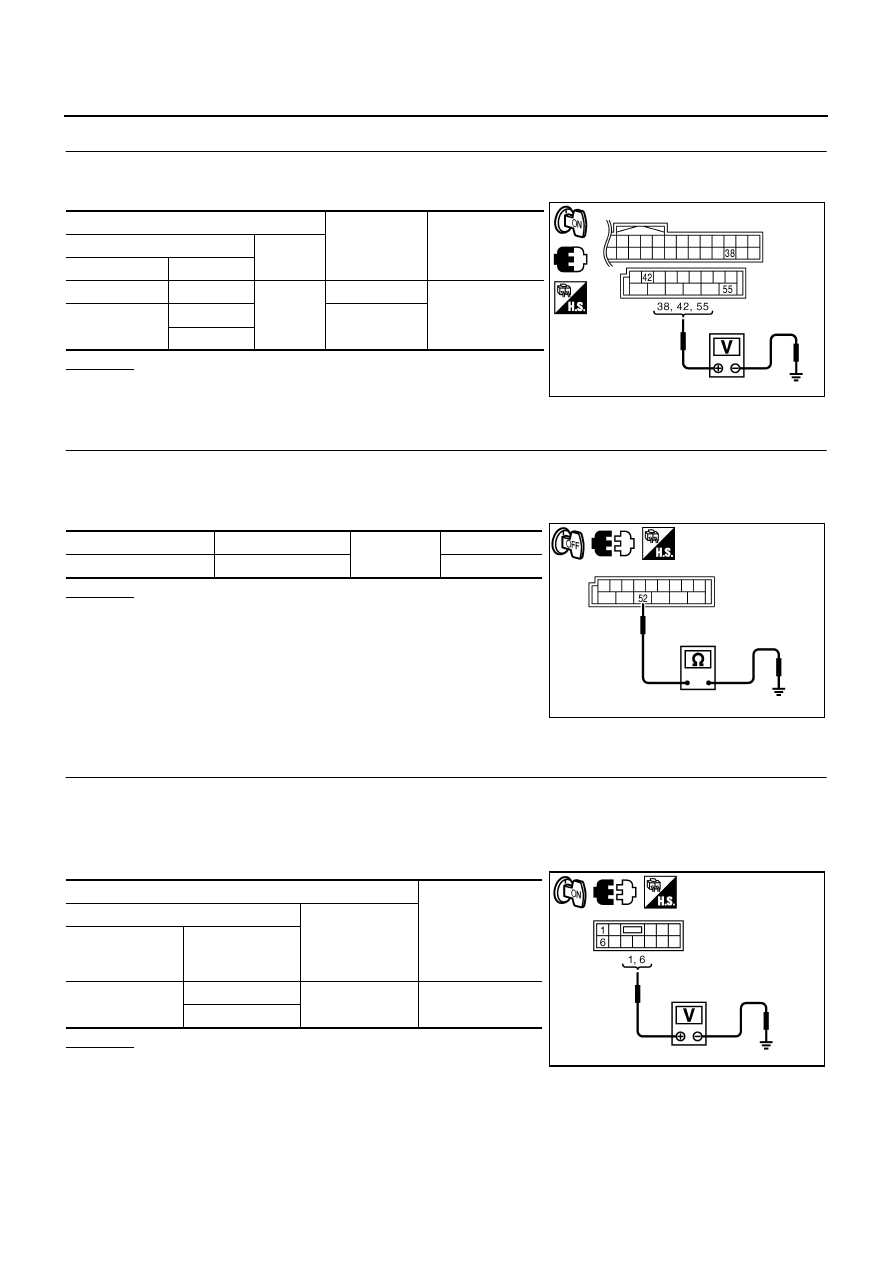

RF-18

SUNROOF

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between BCM connector and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check BCM power supply circuit for open or short.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM connector and ground.

OK or NG

OK

>> Power supply and ground circuit are OK.

NG

>> Check BCM ground circuit for open.

Check Sunroof Motor Assembly Power Supply and Ground Circuit

NIS0023Z

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect sunroof motor assembly connector.

3.

Turn ignition switch ON.

4.

Check voltage between sunroof motor assembly connector and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

Terminals

Condition of

ignition switch

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M1

38

Ground

ON

Battery voltage

M2

42

OFF

55

PIIB5901E

BCM connector

Terminal

Ground

Continuity

M2

52

Yes

PIIB5902E

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Sunroof motor

assembly

connector

Terminal

M186

1

Ground

Battery voltage

6

PIIB5903E
