Infiniti M35/M45 Y50. Manual - part 95

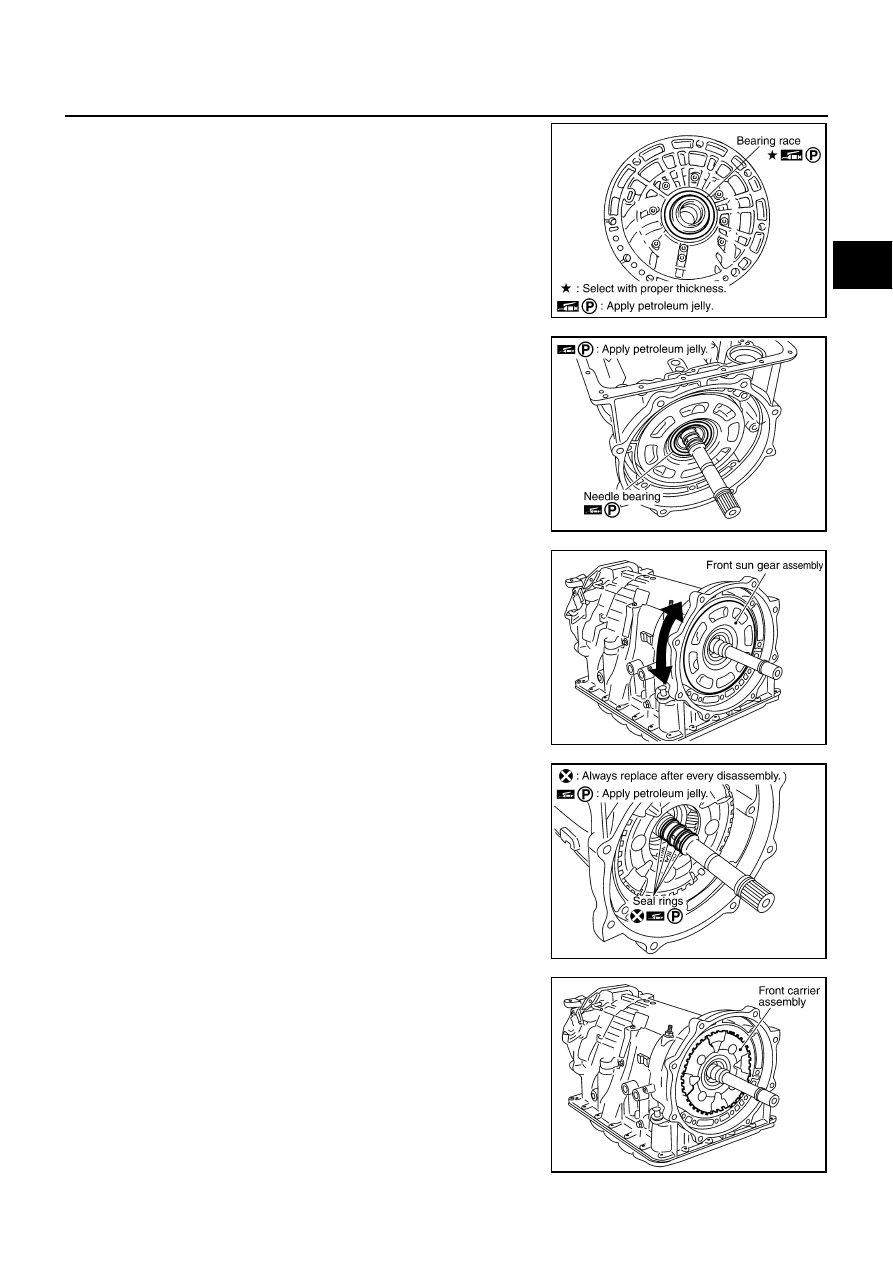

DISASSEMBLY

AT-303

D

E

F

G

H

I

J

K

L

M

A

B

AT

10. Remove bearing race from oil pump assembly.

11. Remove needle bearing from front sun gear.

12. Remove front sun gear assembly from front carrier assembly.

NOTE:
Remove front sun gear by rotating left/right.

13. Remove seal rings from input clutch assembly.

14. Remove front carrier assembly from rear carrier assembly. (With

input clutch assembly and rear internal gear.)

CAUTION:

Be careful to remove it with needle bearing.

SCIA6529E

SCIA2808E

SCIA5014E

SCIA2470E

SCIA5015E

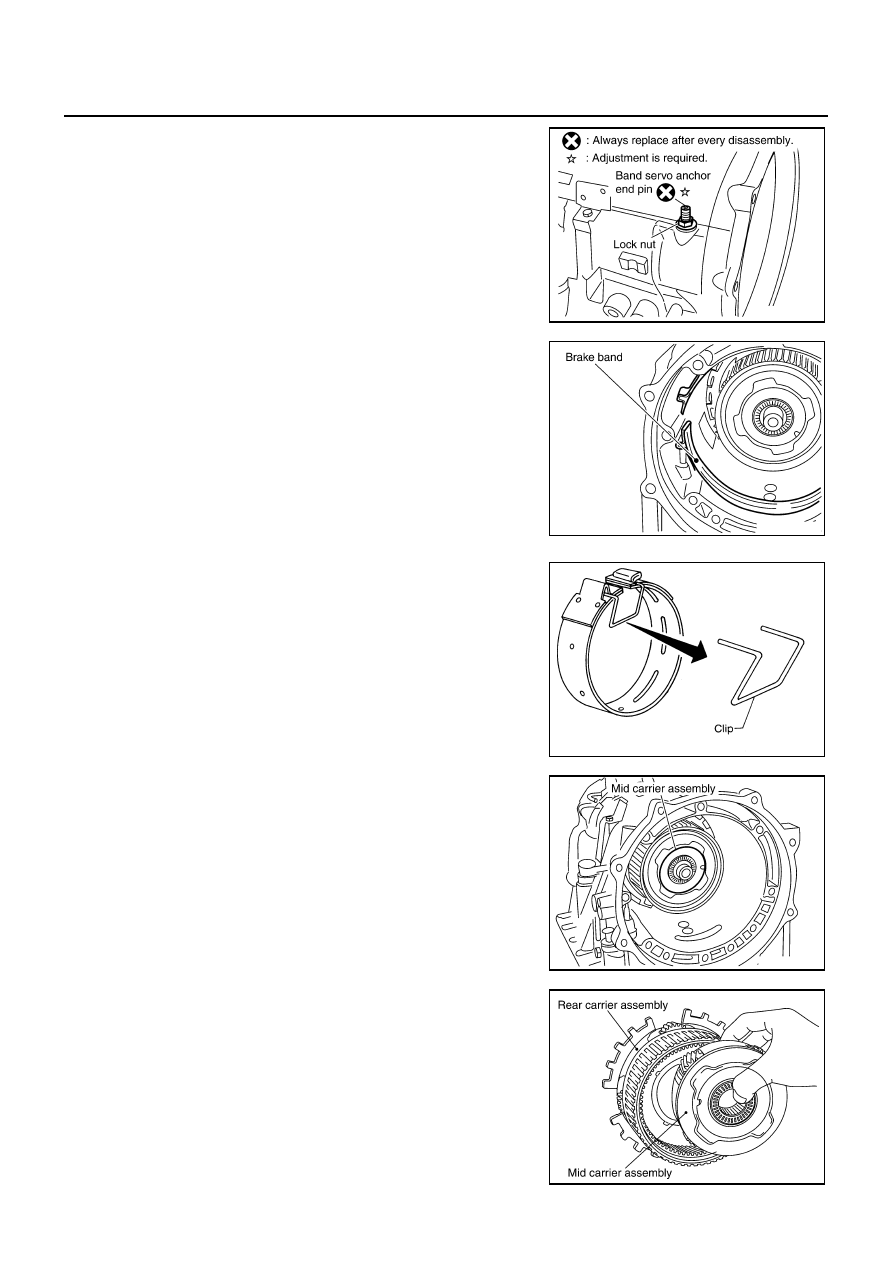

AT-304

DISASSEMBLY

15. Loosen lock nut and remove band servo anchor end pin from

transmission case.

16. Remove brake band from transmission case.

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.

Check brake band facing for damage, cracks, wear or
burns.

17. Remove mid carrier assembly and rear carrier assembly as a

unit.

18. Remove mid carrier assembly from rear carrier assembly.

SCIA6512E

SCIA2580E

SAT655

SCIA5017E

SCIA5697E

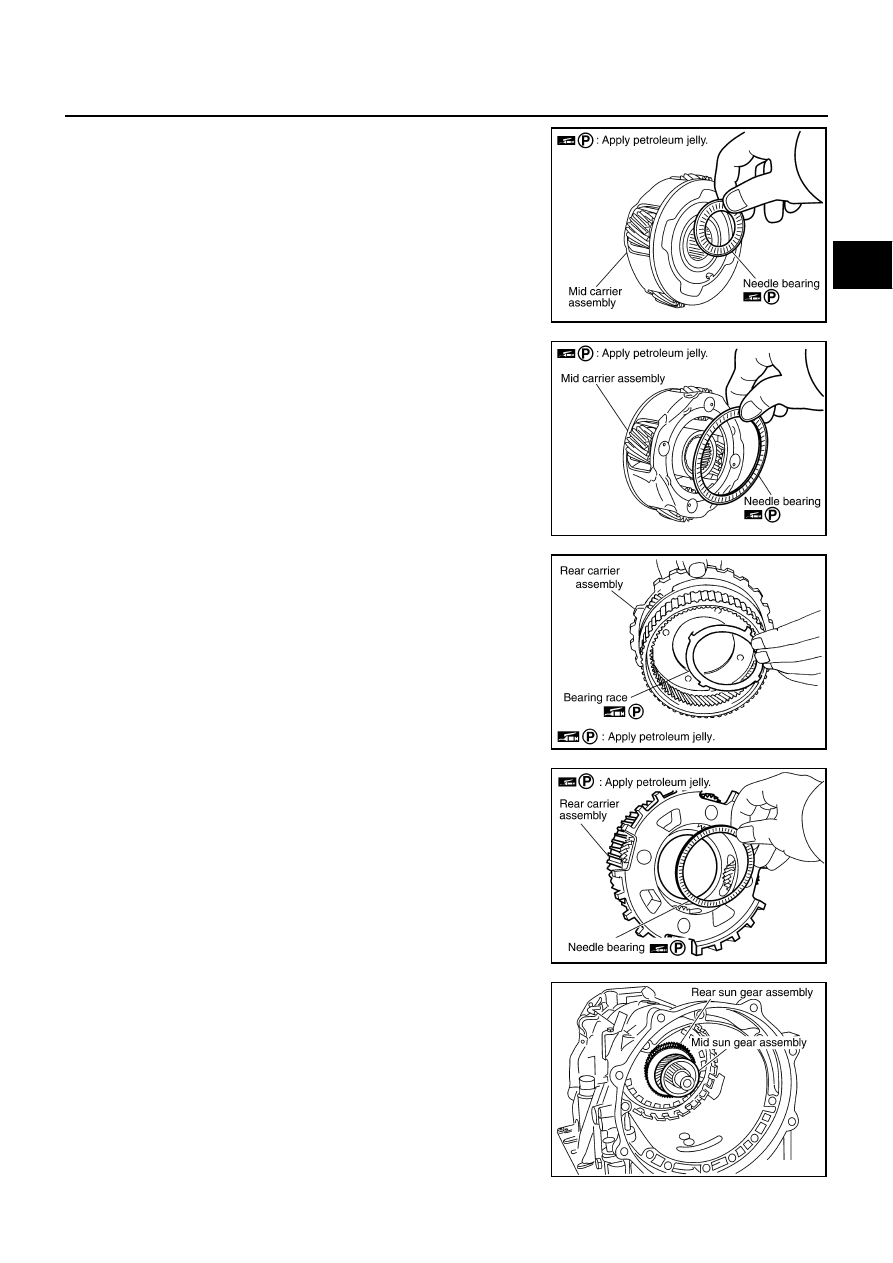

DISASSEMBLY

AT-305

D

E

F

G

H

I

J

K

L

M

A

B

AT

19. Remove needle bearing (front side) from mid carrier assembly.

20. Remove needle bearing (rear side) from mid carrier assembly.

21. Remove bearing race from rear carrier assembly.

22. Remove needle bearing from rear carrier assembly.

23. Remove mid sun gear assembly, rear sun gear assembly and

high and low reverse clutch hub as a unit.

CAUTION:

Be careful to remove then with bearing race and needle
bearing.

SCIA2805E

SCIA2804E

SCIA5175E

SCIA2803E

SCIA5018E

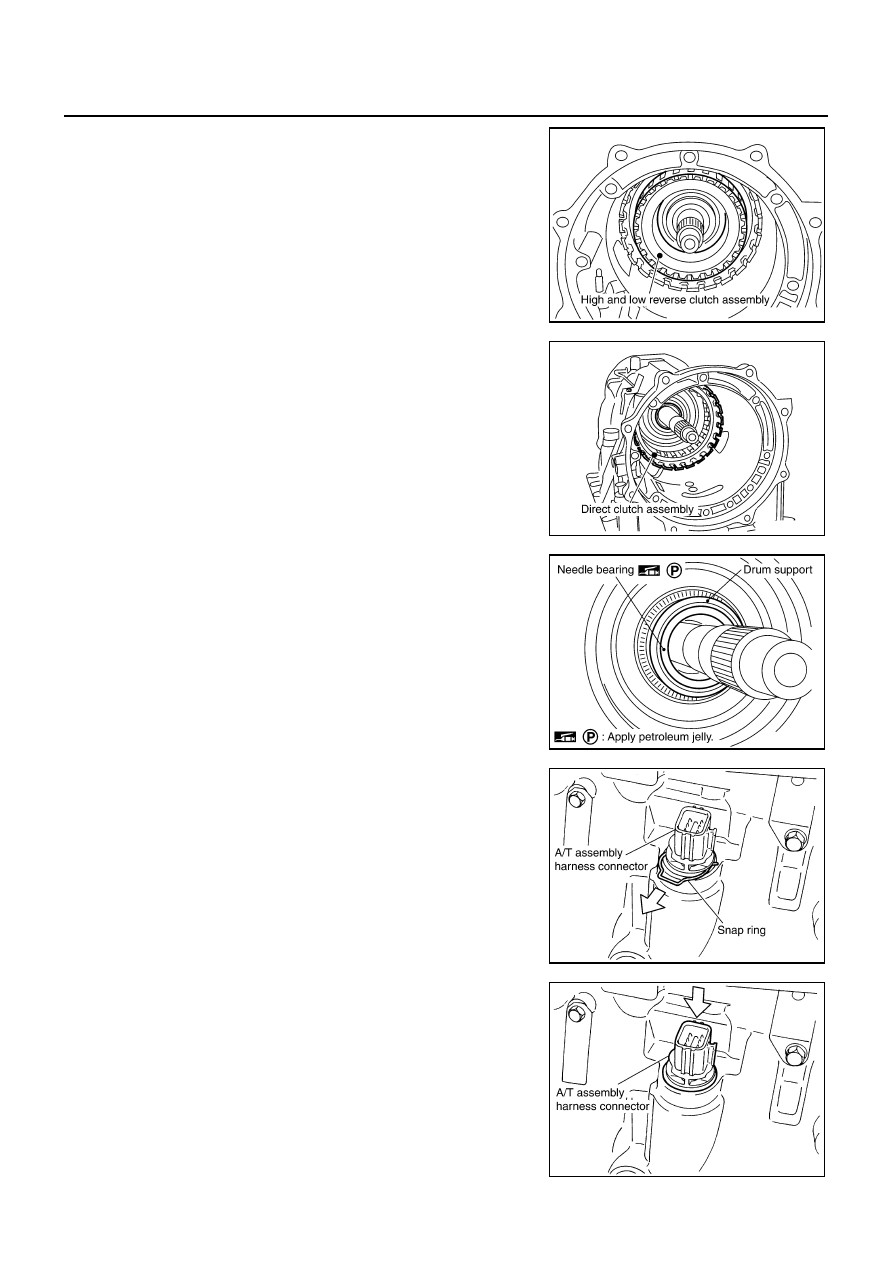

AT-306

DISASSEMBLY

24. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.

25. Remove direct clutch assembly from reverse brake.

26. Remove needle bearing from drum support.

27. Remove snap ring from A/T assembly harness connector.

28. Push A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

SCIA2306E

SCIA5019E

SCIA5198E

SCIA5021E

SCIA5022E
