Infiniti M35/M45 Y50. Manual - part 87





ON-VEHICLE SERVICE

AT-271

D

E

F

G

H

I

J

K

L

M

A

B

AT

ii.

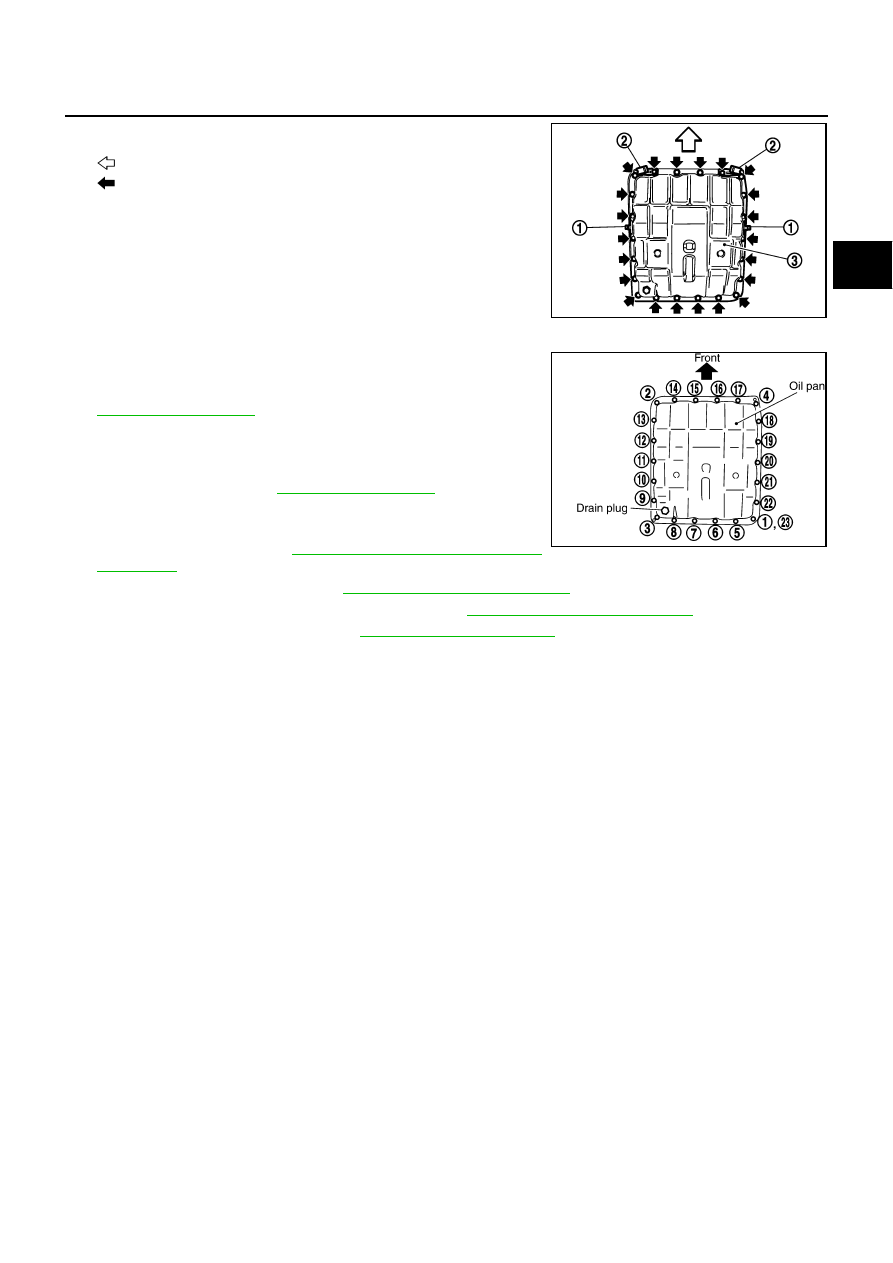

Install oil pan (3) (with oil pan gasket), clips (1) and brackets (2)
to transmission case.

: Front
: Bolt (22)

CAUTION:

Install it so that drain plug comes to the position as
shown in the figure.

Be careful not to pinch harnesses.

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

Be careful with installation direction of brackets (2).

iii.

Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to

AT-263, "Components"

 .

CAUTION:

Do not reuse oil pan mounting bolts.

7.

Install drain plug to oil pan. Tighten a necessary drain plug with
specified torque. Refer to

AT-263, "Components"

 .

CAUTION:

Do not reuse drain plug gasket.

8.

Install control rod. Refer to

AT-226, "Control Rod Removal and

Installation"

 .

9.

Install rear propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

10. Install exhaust front tube and center muffler. Refer to

EX-5, "Removal and Installation"

 .

11. Pour ATF into A/T assembly. Refer to

AT-12, "Changing A/T Fluid"

 .

12. Connect the battery cable to the negative terminal.

SCIA8035E

SCIA4113E

AT-272

AIR BREATHER HOSE

AIR BREATHER HOSE

PFP:31098

Removal and Installation

NCS001QX

VQ35DE ENGINE MODEL

Refer to the figure below for air breather hose removal and installation procedure.

CAUTION:

When installing an air breather hose, be careful not to be crushed or blocked by folding or bend-
ing the hose.

When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the
tube bend “R” portion.

SCIA7067E

AIR BREATHER HOSE

AT-273

D

E

F

G

H

I

J

K

L

M

A

B

AT

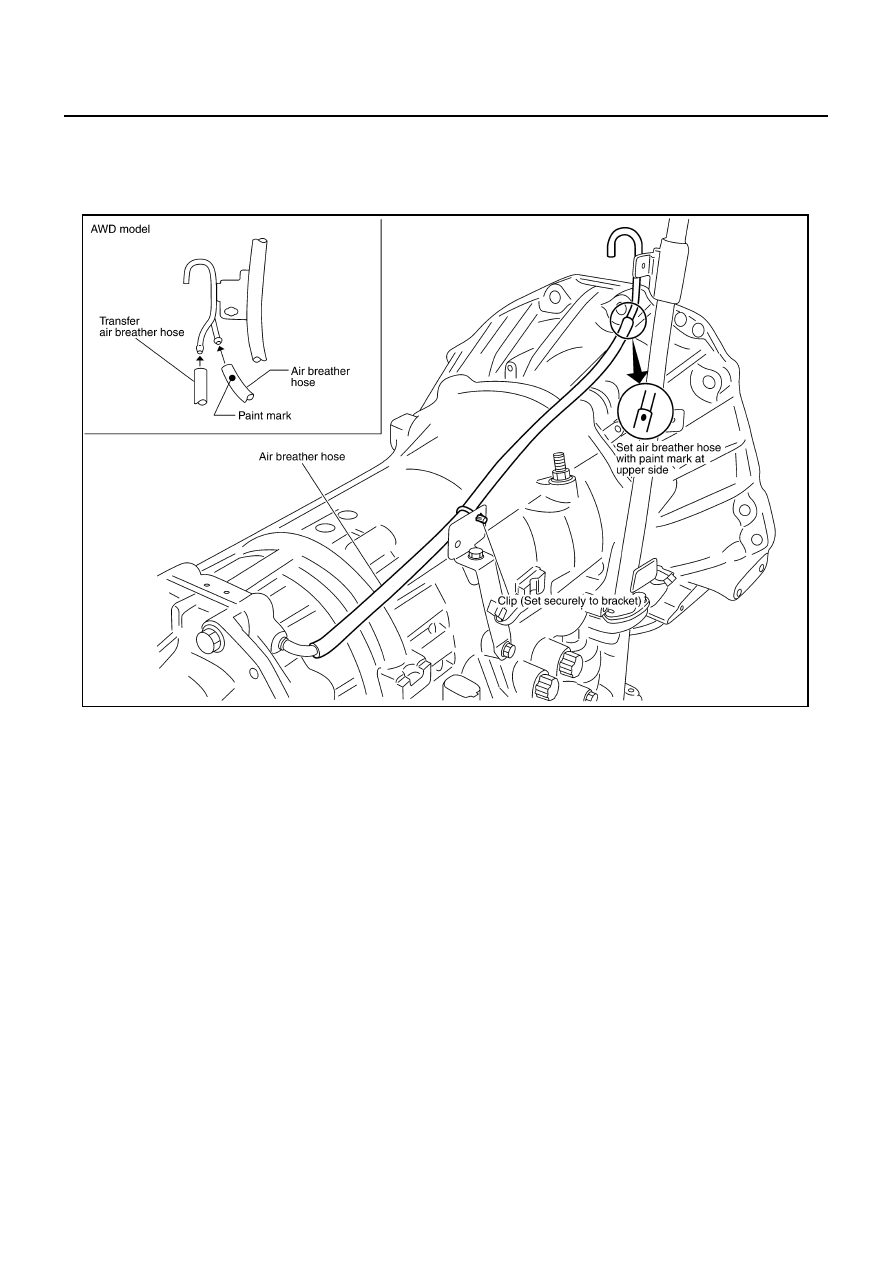

VK45DE ENGINE MODEL

Refer to the figure below for air breather hose removal and installation procedure.

CAUTION:

When installing an air breather hose, be careful not to be crushed or blocked by folding or bend-
ing the hose.

When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the
tube bend “R” portion.

When inserting a hose to the air breather tube, be sure to insert it fully until its end reaches the
tube spool portion.

SCIA6953E

AT-274

TRANSMISSION ASSEMBLY

TRANSMISSION ASSEMBLY

PFP:31020

Removal and Installation (2WD Models)

NCS001QY

COMPONENTS

VQ35DE models

SCIA6751E

1.

A/T assembly

2.

A/T fluid level gauge

3.

A/T fluid charging pipe

4.

O-ring

5.

Copper washer

6.

Fluid cooler tube

7.

Bracket

8.

Rear engine mounting member

9.

Engine mounting insulator (rear)

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-11, "Components"

 .

However, refer to the following symbols for others.

:

For tightening torque, refer to

AT-277, "INSTALLATION"

 .
