Infiniti M35/M45 Y50. Manual - part 83





ON-VEHICLE SERVICE

AT-255

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

Install bearing (1) to rear extension.

CAUTION:

Take care with the direction of needle bearing. Refer to

AT-298, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

Apply petroleum jelly to needle bearing.

Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to

GI-11, "Components"

 .

6.

Install seal rings to output shaft.

CAUTION:

Do not reuse seal rings.

Apply petroleum jelly to seal rings.

7.

Install parking gear to output shaft

8.

Install output shaft in transmission case.

9.

Install bearing race to output shaft.

SCIA6179J

SCIA5209E

SCIA5247E

SCIA5246E

SCIA5245E

AT-256

ON-VEHICLE SERVICE

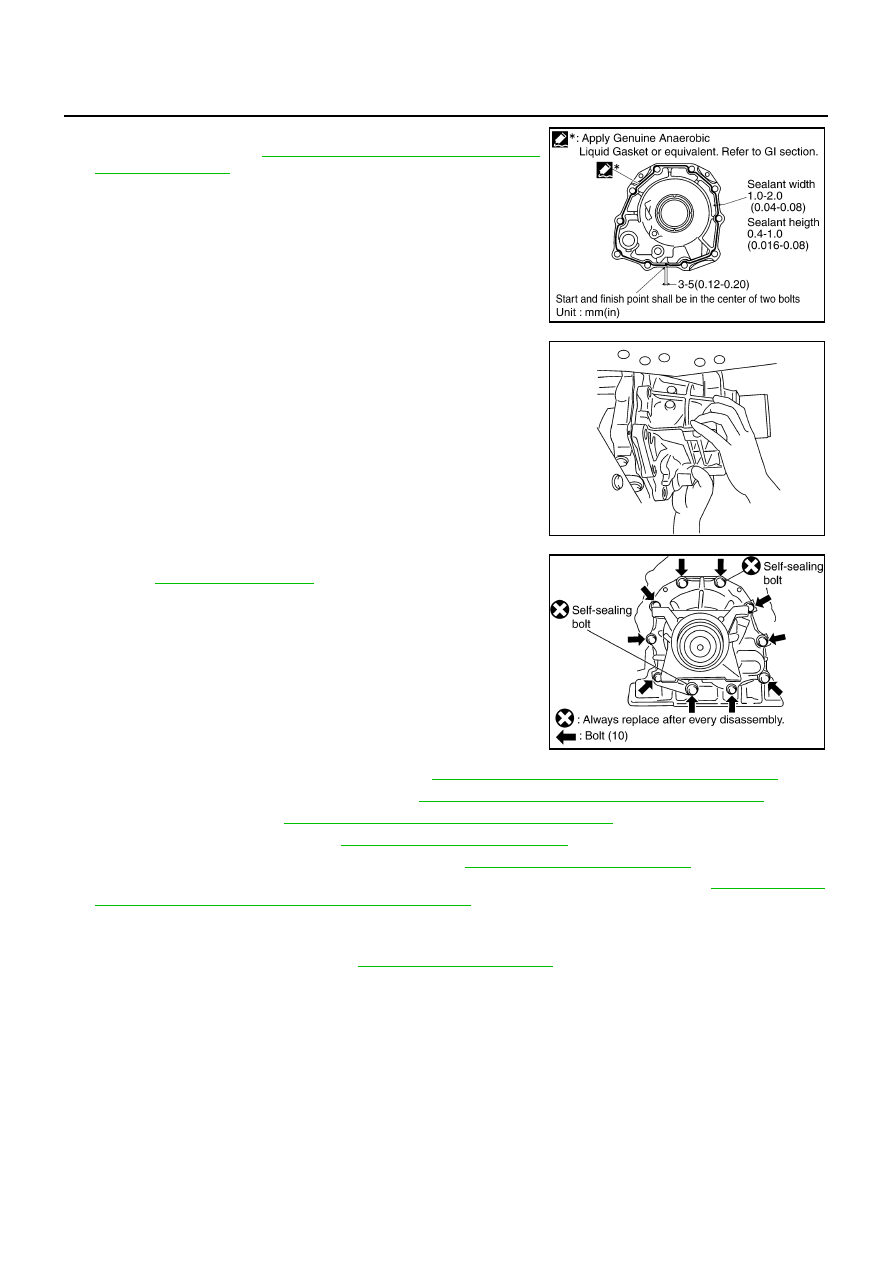

10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-47, "Recommended Chemical Prod-

ucts and Sealants"

 .) to rear extension assembly as shown in

the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

11. Install rear extension assembly to transmission case. (With nee-

dle bearing.)

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

12. Tighten rear extension assembly bolts to the specified torque.

Refer to

AT-250, "Components"

 .

CAUTION:

Do not reuse self-sealing bolts.

13. Install engine mounting insulator (rear). Refer to

AT-274, "Removal and Installation (2WD Models)"

 .

14. Install rear engine mounting member. Refer to

AT-274, "Removal and Installation (2WD Models)"

 .

15. Install control rod. Refer to

AT-226, "Control Rod Removal and Installation"

 .

16. Install rear propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

17. Install exhaust front tube and center muffler. Refer to

EX-5, "Removal and Installation"

 .

18. Install drain plug to oil pan. Tighten a necessary drain plug with specified torque. Refer to

AT-236, "Control

Valve With TCM and A/T Fluid Temperature Sensor 2"

 .

CAUTION:

Do not reuse drain plug gasket.

19. Pour ATF into A/T assembly. Refer to

AT-12, "Changing A/T Fluid"

 .

SCIA5212E

SCIA3431E

SCIA6941E

ON-VEHICLE SERVICE

AT-257

D

E

F

G

H

I

J

K

L

M

A

B

AT

REMOVAL AND INSTALLATION (VK45DE MODELS)
Components

Removal

1.

Drain ATF through drain plug.

2.

Remove exhaust front tube and center muffler with a power tool. Refer to

EX-7, "Removal and installation"

.

3.

Remove rear propeller shaft. Refer to

PR-8, "Removal and Installation"

 .

4.

Remove control rod. Refer to

AT-226, "Control Rod Removal and Installation"

 .

5.

Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, be careful not to allow it to collide against the drain plug.

6.

Remove rear engine mounting member with a power tool. Refer to

AT-274, "Removal and Installation

(2WD Models)"

 .

7.

Remove engine mounting insulator (rear). Refer to

AT-274, "Removal and Installation (2WD Models)"

 .

1.

Output shaft & companion flange complement

2.

Parking actuator support

3.

Return spring

4.

Parking pawl

5.

Pawl shaft

6.

Self-sealing bolt

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-11, "Components"

 .

However, refer to the following symbols for others.

*

:

Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"



.

SCIA7029E

AT-258

ON-VEHICLE SERVICE

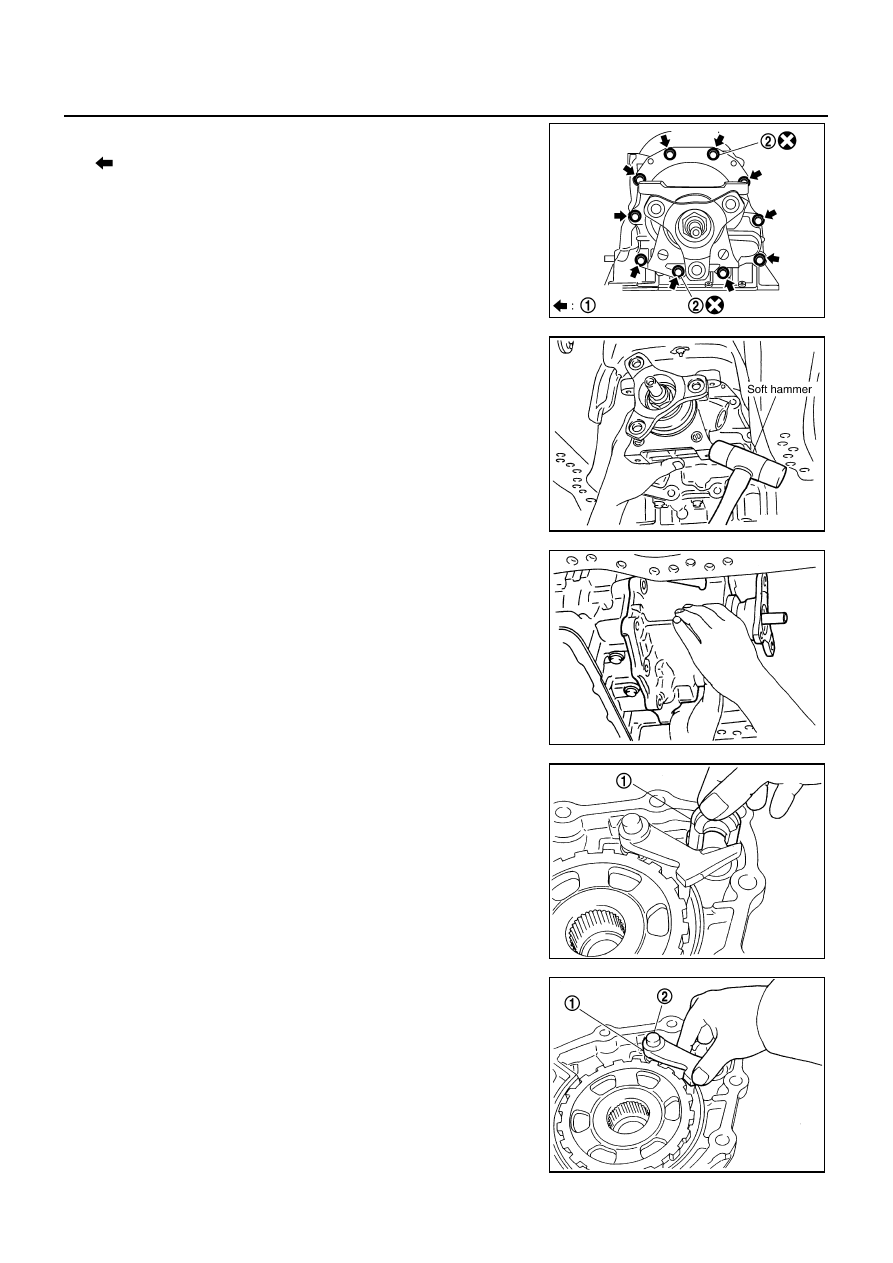

8.

Remove tightening bolts (1) for output shaft & companion flange
complement and transmission case.

: Bolt (10)

Self-sealing bolts (2)

9.

Tap output shaft & companion flange complement with a soft
hammer.

10. Remove output shaft & companion flange complement from

transmission case.

11. Remove parking actuator support (1) from output shaft & com-

panion flange complement.

12. Remove parking pawl (with return spring) (1) and pawl shaft (2)

from output shaft & companion flange complement.

SCIA6943E

SCIA5687E

SCIA5688E

SCIA7065E

SCIA7066E
