A/T SHIFT LOCK SYSTEM

AT-235

D

E

F

G

H

I

J

K

L

M

A

B

AT

8.

CHECK SHIFT LOCK SOLENOID

1.

Connect A/T device harness connector.

2.

Turn ignition switch ON.

3.

Check shift lock solenoid operation.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damage parts.

Condition

Brake pedal

Operation

When ignition switch is turned to ON position and
selector lever is set in “P” position.

Depressed

Yes

Released

No

AT-236

ON-VEHICLE SERVICE

ON-VEHICLE SERVICE

PFP:00000

Control Valve With TCM and A/T Fluid Temperature Sensor 2

NCS001QT

COMPONENTS

1.

A/T

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

A/T fluid temperature sensor 2

7.

Oil pan gasket

8.

Clip

9.

Bracket (VK45DE)

10. Bracket (VK45DE)

11.

Oil pan mounting bolt

12. Oil pan

13. Magnet

14. Drain plug

15. Drain plug gasket

16. Terminal cord assembly

17. O-ring

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-11, "Components"

 .

SCIA8045E

ON-VEHICLE SERVICE

AT-237

D

E

F

G

H

I

J

K

L

M

A

B

AT

CONTROL VALVE WITH TCM REMOVAL AND INSTALLATION
Removal

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Disconnect heated oxygen sensor 2 harness connector.

4.

Disconnect A/T assembly harness connector.

5.

Remove snap ring from A/T assembly harness connector.

6.

Push A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

7.

Remove oil pan, oil pan gasket and clips (VQ35DE models) or oil pan, oil pan gasket, brackets and clips
(VK45DE models) according to the following procedures.

a.

VQ35DE models

i.

Remove clips (1).

ii.

Remove oil pan (2) and oil pan gasket.

: Front
: Bolt (22)

b.

VK45DE models

i.

Remove clips (1) and brackets (2).

ii.

Remove oil pan (3) and oil pan gasket.

: Front
: Bolt (22)

SCIA5021E

SCIA5022E

SCIA8039E

SCIA8035E

AT-238

ON-VEHICLE SERVICE

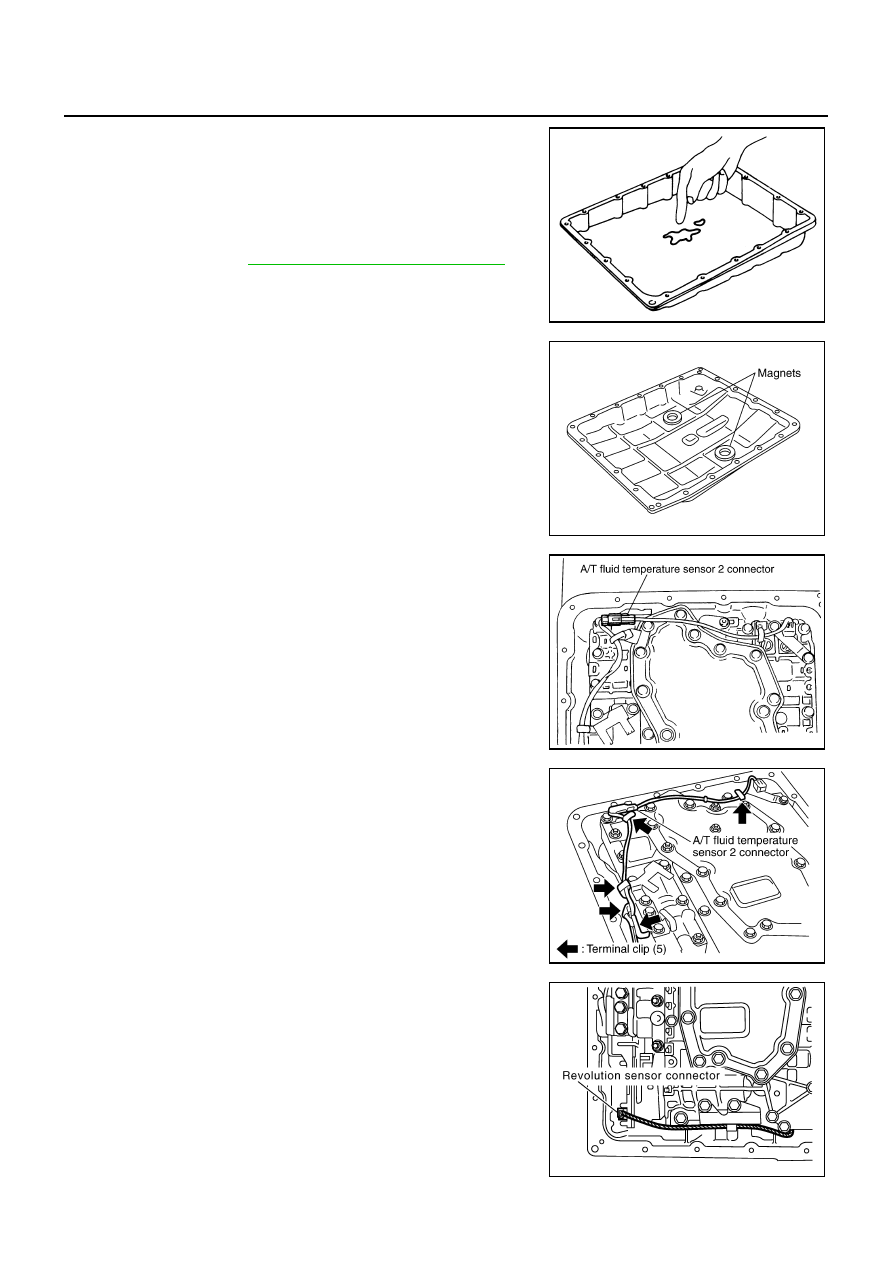

8.

Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

●

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-14, "A/T Fluid Cooler Cleaning"

 .

9.

Remove magnets from oil pan.

10. Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

Be careful not to damage connector.

11. Straighten terminal clip to free terminal cord assembly A/T fluid

temperature sensor 2 harness.

12. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

SCIA5199E

SCIA5200E

SCIA5023E

SCIA5446E

SCIA7524E
