Infiniti M35/M45 Y50. Manual - part 63





DTC P1843 ATF PRESSURE SWITCH 3

AT-175

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS001PC

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.

3.

Drive vehicle in the “D” position (3rd

Þ

 4th gear), and confirm

the ON/OFF actuation of the “ATF PRES SW 3”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-180, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-236, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-174, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

Item name

Condition

Display value

ATF PRES SW 3

Input clutch engaged. Refer to

AT-21



.

ON

Input clutch disengaged. Refer to

AT-21



.

OFF

PCIA0067E

AT-176

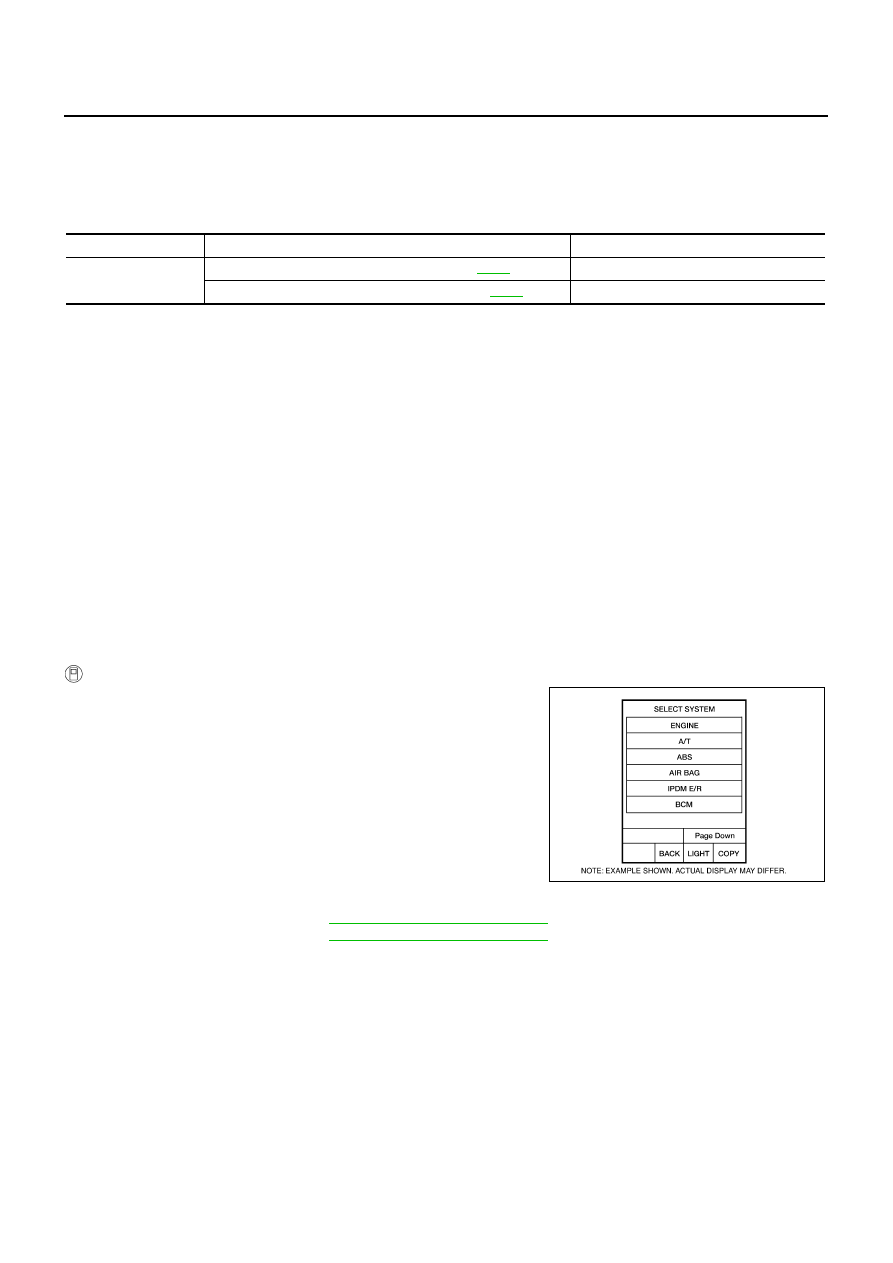

DTC P1845 ATF PRESSURE SWITCH 5

DTC P1845 ATF PRESSURE SWITCH 5

PFP:25240

Description

NCS001PD

Fail-safe function to detect direct clutch solenoid valve condition.

CONSULT-II Reference Value

NCS001PE

On Board Diagnosis Logic

NCS001PF

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P1845 ATF PRES SW 5/CIRC” with CONSULT-II is detected when TCM detects
that actual gear ratio is normal, and relation between gear position and condition of ATF pressure switch 5
is irregular during depressing accelerator pedal. (Other than during shift change.)

Possible Cause

NCS001PG

ATF pressure switch 5

Harness or connectors
(Switch circuit is open or shorted.)

DTC Confirmation Procedure

NCS001PH

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start engine.

2.

Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “1”

Þ

 “2” (D/C ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

3.

Perform step 2 again.

4.

Turn ignition switch OFF, then perform step 1 to 3 again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
If DTC (P1845) is detected, go to

AT-177, "Diagnostic Procedure"

 .

If DTC (P1762) is detected, go to

AT-156, "Diagnostic Procedure"

 .

Item name

Condition

Display value

ATF PRES SW 5

Direct clutch engaged. Refer to

AT-21



.

ON

Direct clutch disengaged. Refer to

AT-21



.

OFF

BCIA0030E

DTC P1845 ATF PRESSURE SWITCH 5

AT-177

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS001PI

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.

3.

Drive vehicle in the “D” position (1st

Þ

 2nd gear), and confirm

the ON/OFF actuation of the “ATF PRES SW 5”.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-180, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-236, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-176, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

Item name

Condition

Display value

ATF PRES SW 5

Direct clutch engaged. Refer to

AT-21



.

ON

Direct clutch disengaged. Refer to

AT-21



.

OFF

PCIA0067E

AT-178

DTC P1846 ATF PRESSURE SWITCH 6

DTC P1846 ATF PRESSURE SWITCH 6

PFP:25240

Description

NCS001PJ

Fail-safe function to detect high and low reverse clutch solenoid valve condition.

CONSULT-II Reference Value

NCS001PK

On Board Diagnosis Logic

NCS001PL

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P1846 ATF PRES SW 6/CIRC” with CONSULT-II is detected when TCM detects
that actual gear ratio is normal, and relation between gear position and condition of ATF pressure switch 6
is irregular during depressing accelerator pedal. (Other than during shift change.)

Possible Cause

NCS001PM

ATF pressure switch 6

Harness or connectors
(Switch circuit is open or shorted.)

DTC Confirmation Procedure

NCS001PN

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start engine.

2.

Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “2”

Þ

 “3” (HLR/C ON/OFF)

Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

3.

Perform step 2 again.

4.

Turn ignition switch OFF, then perform step 1 to 3 again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
If DTC (P1846) is detected, go to

AT-179, "Diagnostic Procedure"

 .

If DTC (P1767) is detected, go to

AT-160, "Diagnostic Procedure"

 .

Item name

Condition

Display value

ATF PRES SW 6

High and low reverse clutch engaged. Refer to

AT-21



.

ON

High and low reverse clutch disengaged Refer to

AT-21



.

OFF

BCIA0030E
